| Prod Model: |
CG1-30 |
| Power: |
Electricity |
| Cutting Gas: |
Oxygen+Acetylene or Propane |
| Cutting Material: |
Mild Steel Plate, Stainless Steel Sheet |
| Cutting Thickness: |
5-100mm |
| Circle Cutting Range: |
Φ200- Φ2000 |
| Weight: |
27kg |
| Bevel Cut Angle: |
0-45° |
| Cutting Speed: |
50-750mm/min |
| Machine Size: |
470*240*240mm |
| Supply Voltage: |
AC220V |
Product Description

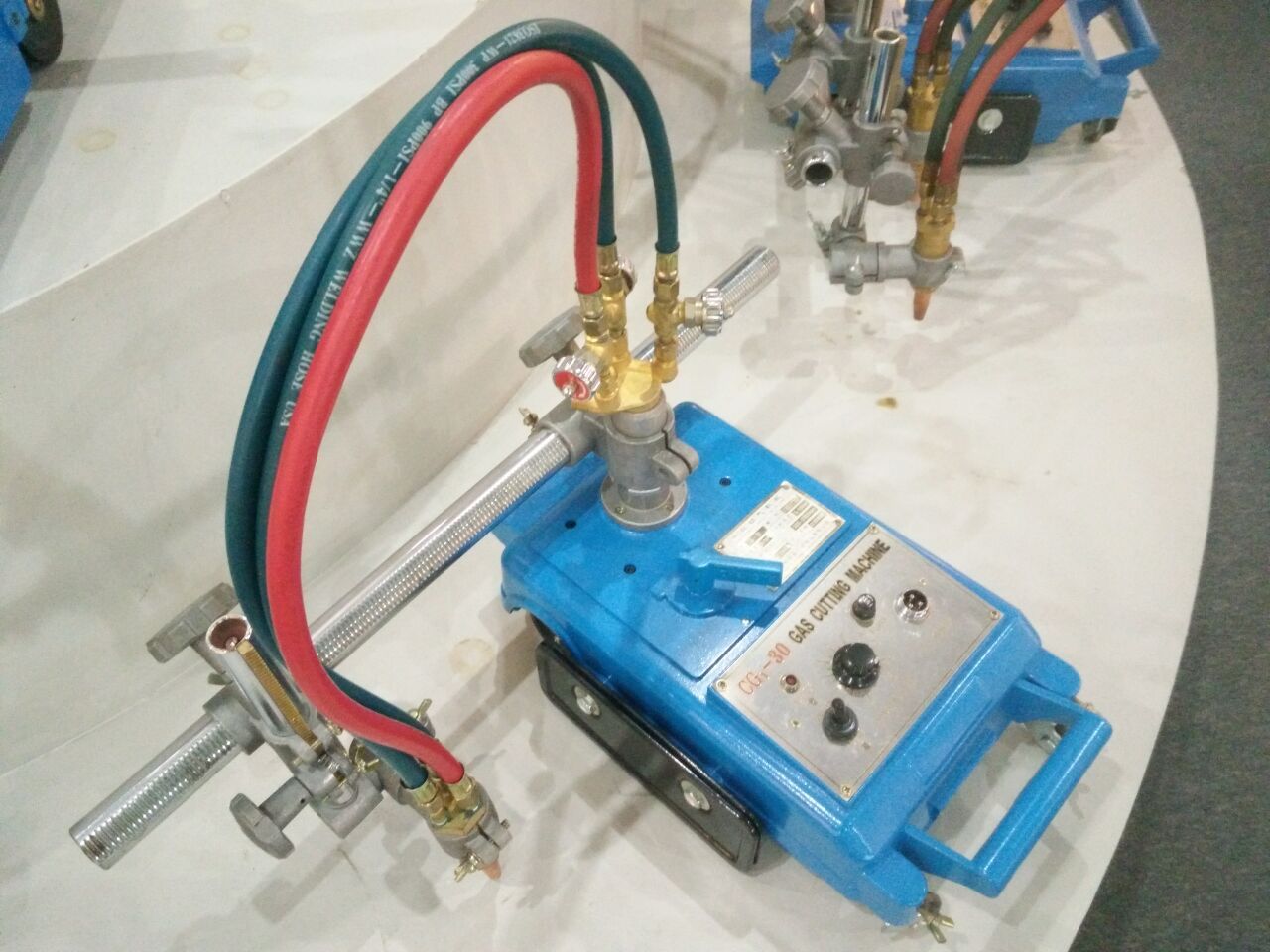

Product summary of CG1-30 gas cutting machine
The oxygen cutting is widely used because of its simplicity, low price and easy operation. It is a main method for cutting carbon steel plate and low alloy metal steel plate, especially for middle thick steel plate. The surface cutting roughness could reach to 12.5 and needless to cutting processing further on common occasion. The CG1-30 (single cutting torch) and CG1-100 (double cutting torch) semiautomatic gas-cutting machine produced are multi-use machine with Ethane as its flame gas. It can do linear cutting but also circle, slide cutting as well as V shape beveling. What's more, if more facilities added, it can even be used for quench and plastic welding.

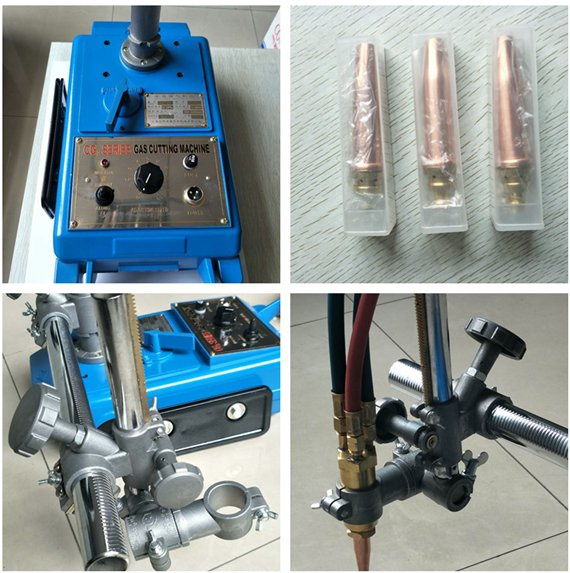

Product details:
Youtube cutting video: https://www.youtube.com/watch?v=nBeUGZN1o7ATechnical parametersThis product is produced based on JB/T 7436-1994 standard. Its main technical parameters are as following: 1. Technical parameter
| CG1-30 |
| Steel plate thickness | 8-100mm |
| Cutting speed | 50-750mm /min |
| Cutting circle dia. | Ф200-2000 mm |
| Cutting thickness | 5-100mm |
| Power | Ac220v,50Hz |
| Machine body dimension | 470×240×240 |
| Weight | 27kg |
Advantage1.Adopting SCR(silicon controlled rectifier) technology control speed, traveling steadily2.Body of machine was cast by aluminum alloy with high intensity which is durable in use3.Torch angle could be adjusted freely back and forth, left and rightMainly cutting straight-line, I,Y,V beveling
4.Rail shape:concave rail,more durable and more strong,longer life expectancy.

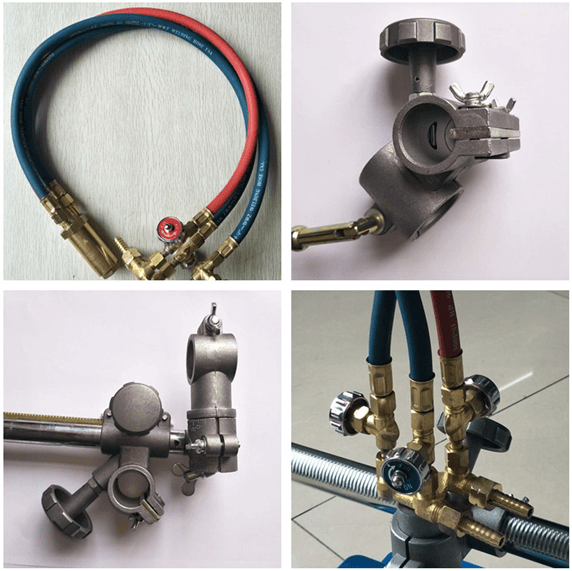

What's included.The gas-cutting machine is consisted of small vehicle, torch system, guide rail, radius bar and electric gas control.About CHDFounded in 1989, WenZhou CHD Welding Equipment Factory is China's famous cutting machine, beveling machine, welding machine and accessories manufacturer, with 3 production bases located in Shanghai, Wenzhou and Chengdu and plant area of 53,000 square meters.have passed authoritative certification such as the ISO9001 and Switzerland SGS, France BV.10 kind of products has passed the EU CE certification.Wenzhou CHD have applied for more than 10 patents, have participated in the drafting of three Chinese national standards, been rated as famous brand in Shanghai. With marketing and service agencies covering more than 70 countries.
Exhibition
CHD have participated in all kinds of the welding exhibitions more than 100 times since 1989 when enterprise started to run over the last decade.we attend at least 6 exhibitions annually.
1989-2015 all the Beijing Essen Welding&Cutting Exhibitions
1989-2015 all the China welding expositions.
and exhibitions in Russia,Austrilia,India,Brazil,Vietnam&all over the mainland China.
FAQ1. Q: Are you manufaturer or trading company?
A: We are a factory with 28 years manufacturing experience.our main products are IGBT inverter air plasma cutter,CNC cutting machine,welding machine,beveling machine.
2. Q: what certificate do you get?
A: CE ,ISO,CCC and SGS.
3. Q:What is payment terms?
A:For amount less than USD3000,100% TT in advance,more than USD3000,30% TT in advance,and then 70% against copy of Bill of lading.
4 Q:Delivery time?
A:15 days after receipt of remittance.
5 Q:what is your garantee period?
A:1 year.free parts within gartantee period.
6 Q:where is your factory located?how can i visit?

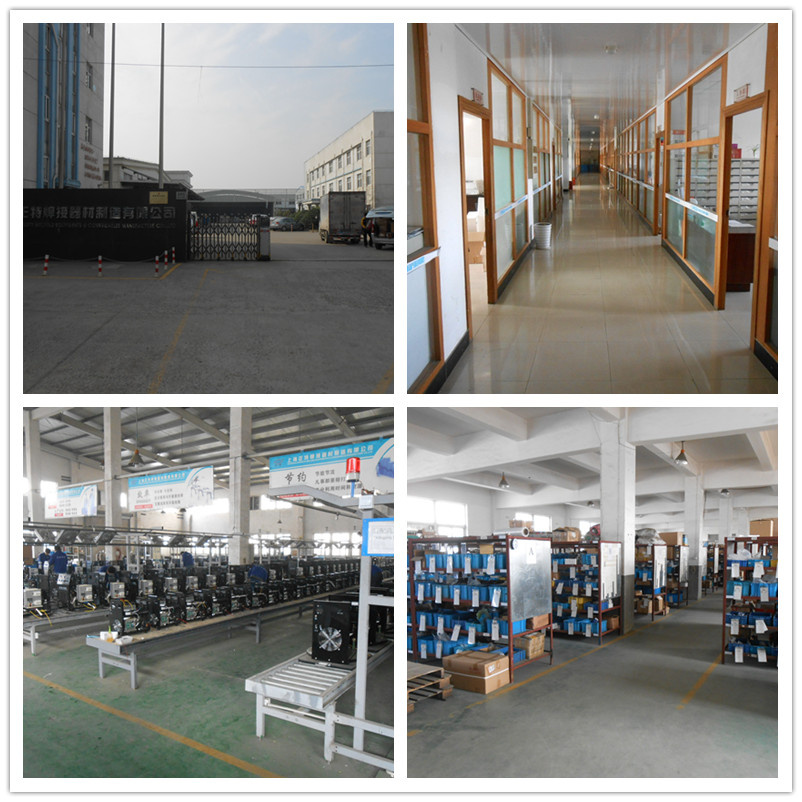

A:Our factory is located in Jiading District Shanghai City China. If you would like to visit our factory, we are glad to pick you up at the airport or train station.
7 Q:what after-sale service do you offer?
A: 24 Hours Online Service, free parts replacement within 1 year. and paid overseas service provided
