| Price: | US $ 3500-5000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | JJ-YP50X |
|---|---|
| Input Power: | 50kw |
| Input Current: | 75A |
| Output Power: | 25-48kw |
| Input Voltage: | Three Phase 380V,40-50Hz |
| Oscillation Frequency: | 20-35kHz |
| Net Weight: | 107kg |
| Volume: | 55X65X126cm |
| Application: | Quenching,Annealing,Welding,Hot Forging |
| HS: | 8514400090 |
| Certificate: | Ce RoHS |

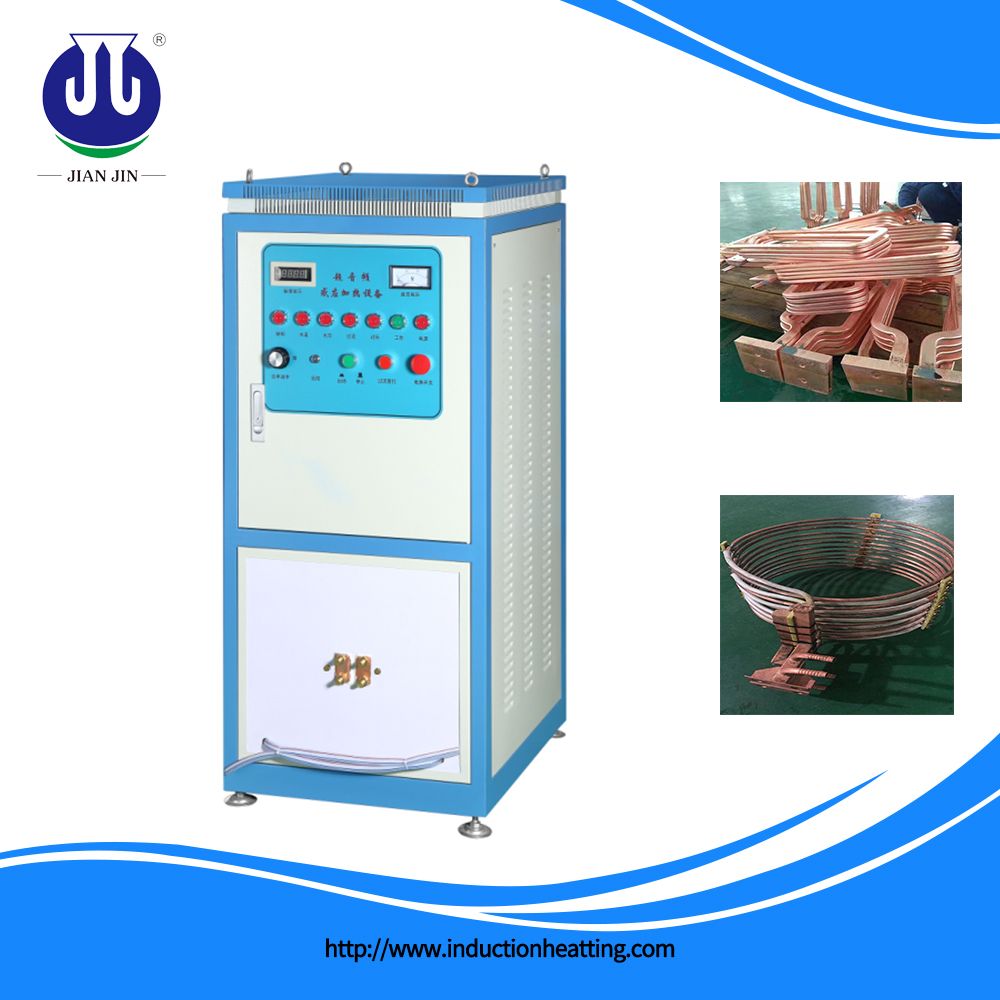

| Model | JJ-YP50X |
| Input power | 50kw |
| Input current(max) | 75A |
| Output power | 25-48kw |
| Input voltage | three phase 380V 40-50HZ |
| Oscillation frequency | 20-35KHZ |
| Net weight | 107kg |
Equipment Features:
1.IGBT (SIEMENS) technology, high conversion efficiency; Energy saving 15%-30% , compared to SCR/KGPS technology
2.Much more efficient than gas-fired and coal-fired method
3.100% start-up success rate; power factor > 95%
4.Perfect and complete protection functions, increasing machine's reliability & stability
5.No special foundations required, Low operating cost, Easy operation
6.Modular design, ease of maintaining and repairing
Product Advantages
Energy saving, Environmental protection, Low pollution level
Easy operation, can be equipment with PLC controller
Miniature and light weight, Economic Space Occupation, Easy installation
Enhanced monitoring and diagnostics system-"JKZ-PS" device, guarantee the machine of high stability, reliability and security.
Strict Supplier Management System and ISO9001-2008 Quality Management System guarantee high quality of each equipment.
Customized services, producing machines according to customer's requirement.

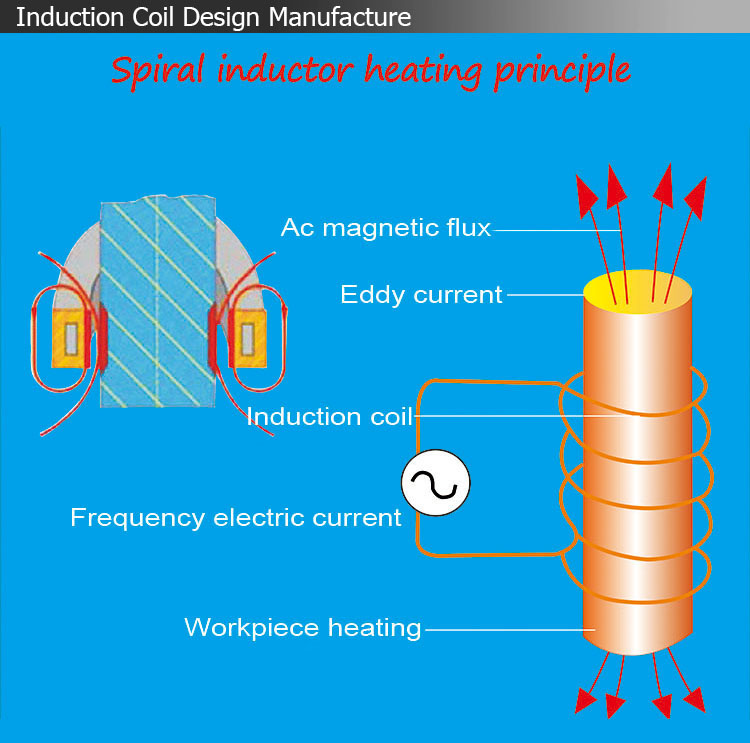

The induction coil design and manufacture
1.The shape of the induction coil, should according to the heating surface shape workpiece,Production principle should
make induction part of brass and workpiece heating surface parallel or isometric and adjacent interturn current direction
should be consistent
2.The clearance between the induction coil and small artifacts should be controlled in 1-3 mm is advisable
3.material selects and uses the diameter 6 the above(wall thickness red copper tubes with 1 mm best)
the diameter>10mms brass selects and uses method of brass best
4.Connected to the machine of electric contact surface should be clean the oxide layer
5.Make full use of the approach of the current effect and gap effect, when it is necessary to add magnetizer
6. After induction coil is made, with the machine match, a frequency within the prescribed scope

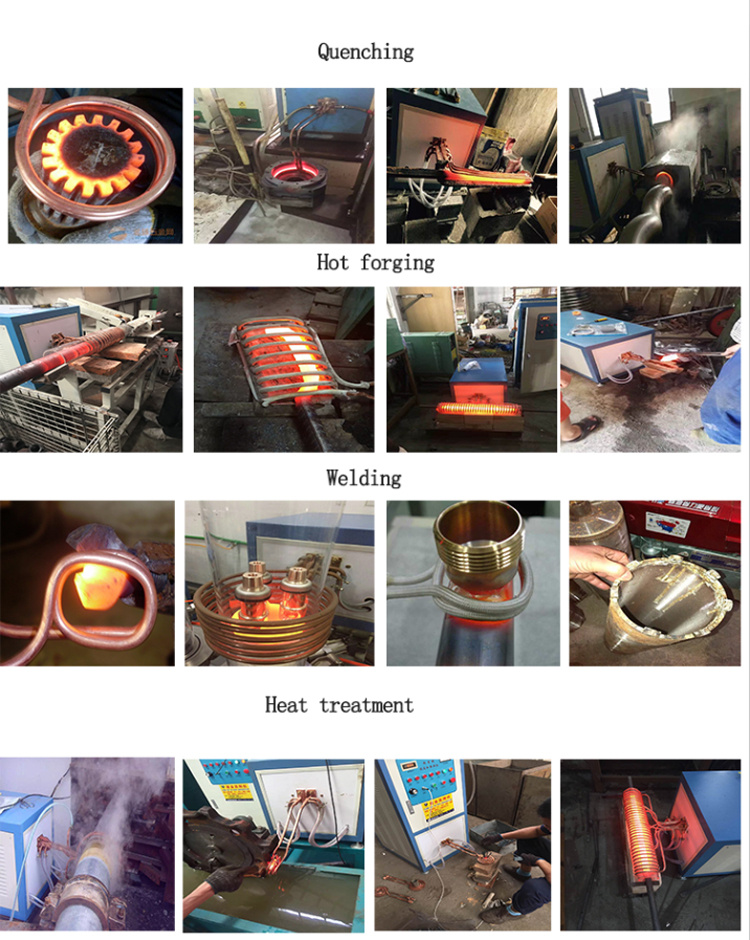

Application area:
Heat Treatment like annealing, normalizing, hardening/quenching, tempering.
1. Hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Electric tools, such as gear and axes.
4. Machine tools, such as lathe deck and guide rail.
5. Various hardware metal parts and machined parts, such as big shaft, gear (chain wheel), camshaft, chuck and clamp etc.
6. Hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7. Other metal products.

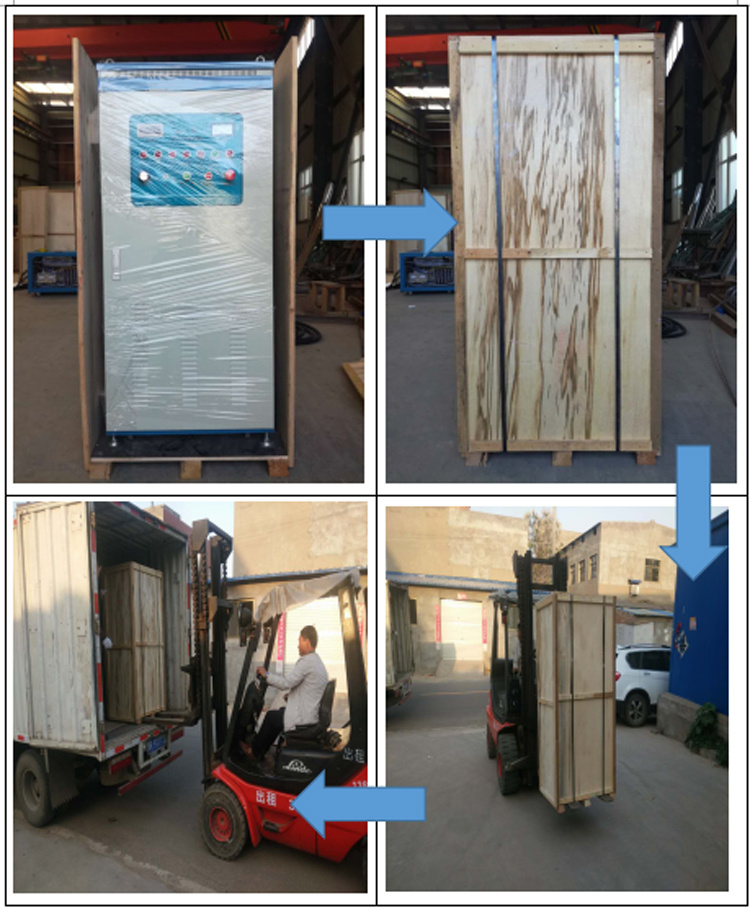

Packing and transportation

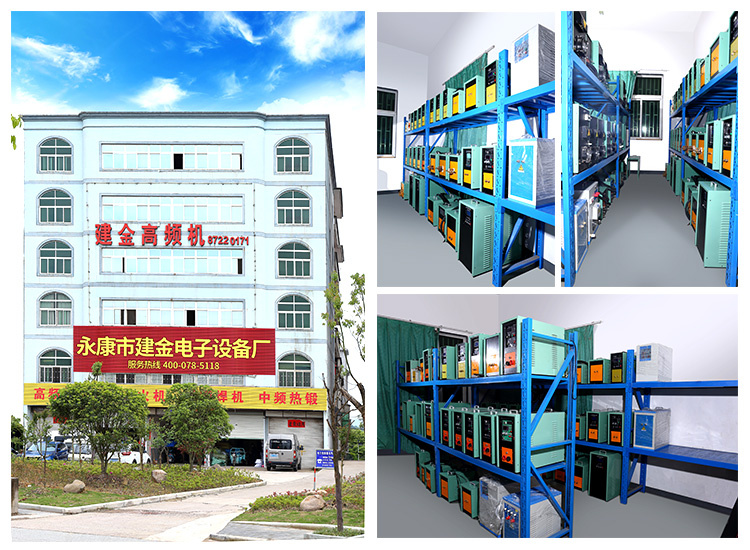

YongKand JianJin Electronics Co.,Ltis a China based company with 12 years experience in special induction heating equipment region. Our R& D team has developed different induction machines for varied applications, and our machines have been successfully installed and commissioned all world wide.
We are a leading manufacturer of reliable, high quality induction heating equipments, that ensures an excellent payback on your investment. Besides, JianJin Electronics Co.,Ltd can provide specific application oriented equipment to meet individual needs of our customers and assist you with automation of the machines offered.If you have any interest in our products, pls do not hesitate any more, our staff will give you the best service at the first time.
FAQ:
1.which countries your products are exported to ?
Our products are sold all over the world and with related certifications.
2.How to install your machine?
We have paper installation instructions and videos ,we will teach till you learn it.
3.How about the warranty?
All our products have one year quality warranty,during the warranty time,the spare parts replacement is free,and we
provide life long time technical support and other assistance.
4.Which export port you use?
Any China port,commonly we will use Ningbo Shanghai port,can appoint as you like.
5.If I have paid but can not receive the goods,how should I do?
Alibaba international website is a famous trade platform and has been mature those years,every merchant on it has
paid large integrity fund,and we have China business licenses which can be checked on China official website or we
can show it to you,so that situation will never appear, please be assured.
6. How about the payment ways and delivery time?
30% deposit,70% before sending the goods(we will shoot total delivering process for customer's confirmation)and the
related papers.You can pay by T/T,L/C,western union or other ways.The small machinedelivery date is within 7 days,
the bigger one takes about 15days,we will delivery goods on time.
7.What is your nature of your company,dealer or factory?
We are manufacturer, warmly welcome to visit our factory.
