Power Tool Plus or Max Hammer Drill with "W" Tip
| Price: |
US $ 0.1-25/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
4*110-30*1000mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hammer Drill Bit |
| Material: |
40cr and Yg8c |
| Use: |
Concrete Drilling |

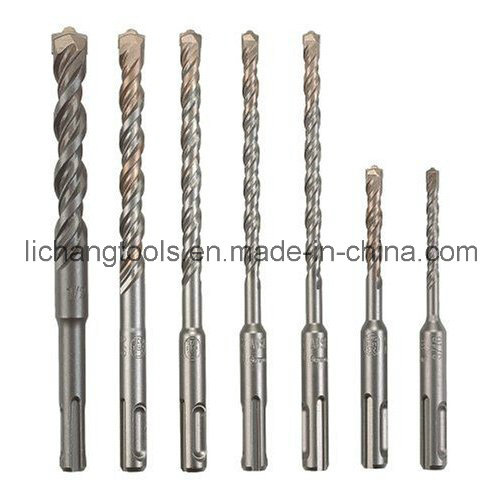

Product Description
SDS PLUS HAMMER DRILL BIT, USE FOR CONCRETEMaterial: 40 Chrome steel and YG8C carbide tip
Flute type: Single flute and double flute ( S4)
Professional Heat treatment
HRC: 47-55
Use for Concrete, stone.
Tip: "w" tip
Shank type: SDS PLUS shank
Dia Size: 4-30mm Length Size 110-1000mm

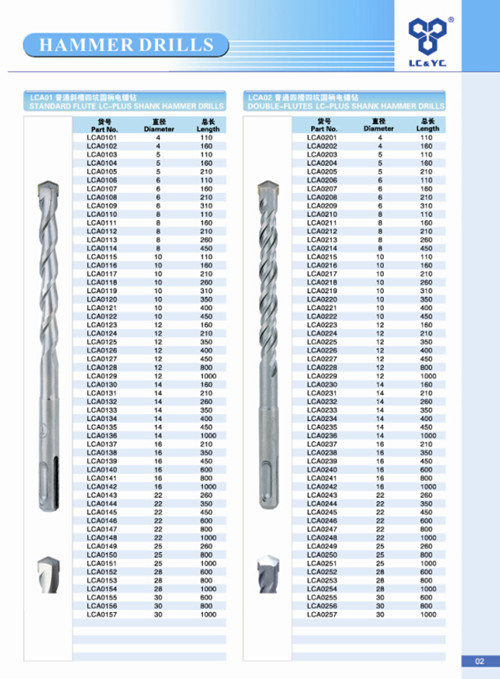

Packing: PVC bag, plastic tube,hanger and so on. | Specification | Specification | Specification |
| Dia X Length (mm) | Dia X Length (mm) | Dia X Length (mm) |
| 4x110 | 12X210 | 18x1000 |
| 4x160 | 12X260 | 20x210 |
| 5x110 | 12X310 | 20x260 |
| 5x160 | 12X350 | 20x310 |
| 5.5x110 | 12X400 | 20x350 |
| 5.5x160 | 12X460 | 20x400 |
| 5.5x210 | 12X600 | 20x460 |
| 5.5x260 | 12X110 | 20x600 |
| 6X110 | 12X160 | 20x800 |
| 6X160 | 12X210 | 20x1000 |
| 6X210 | 12X260 | 22x210 |
| 6X260 | 12X310 | 22x260 |
| 6.5x110 | 12X350 | 22x310 |
| 6.5x160 | 12X400 | 22x350 |
| 6.5x210 | 12X460 | 22x400 |
| 6.5x260 | 12X600 | 22x460 |
| 7x110 | 12x800 | 22x600 |
| 7x160 | 12x1000 | 22x800 |
| 7x210 | 14x160 | 22x1000 |
| 7x260 | 14x210 | 25x210 |
| 7x310 | 14x260 | 25x260 |
| 8X110 | 14x310 | 25x310 |
| 8X160 | 14x350 | 25x350 |
| 8X210 | 14x400 | 25x400 |
| 8X260 | 14x460 | 25x460 |
| 8X310 | 14x600 | 25x600 |
| 8X350 | 14x800 | 25x800 |
| 8X460 | 14x1000 | 25x1000 |
| 9X110 | 16x160 | 28x260 |
| 9X160 | 16x210 | 28x310 |
| 9X210 | 16x260 | 28x350 |
| 9X260 | 16x310 | 28x400 |
| 9X310 | 16x350 | 28x460 |
| 9X350 | 16x400 | 28x600 |
| 9X460 | 16x460 | 28x800 |
| 10X110 | 16x600 | 28x1000 |
| 10X160 | 16x800 | 30x260 |
| 10X210 | 16x1000 | 30x310 |
| 10X260 | 18x210 | 30x350 |
| 10X310 | 18x260 | 30x400 |
| 10X350 | 18x310 | 30x460 |
| 10X400 | 18x350 | 30x600 |
| 10X460 | 18x400 | 30x800 |
| 10X600 | 18x460 | 30x1000 |
| 12X110 | 18x600 | |
| 12X160 | 18x800 | |
