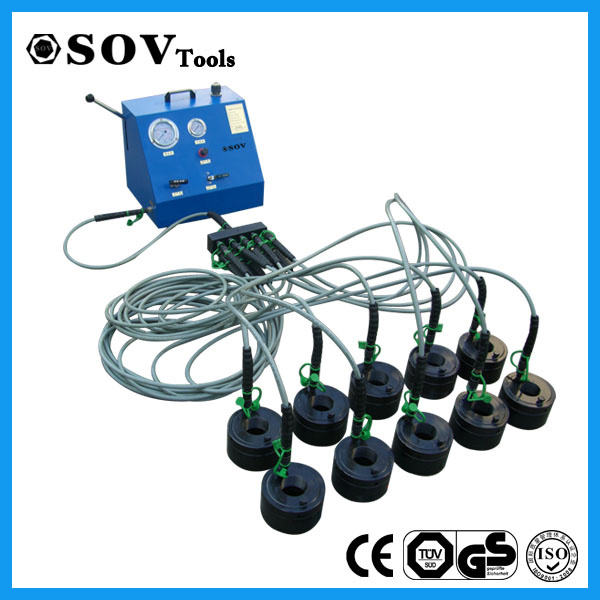

Power Tools Hydraulic Nuts (SV11LM)

Name: Power Tools Hydraulic Nuts (SV11LM)
Brand: tool-buy.com
SKU: 746821335
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	US $ 150-3000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,D/P,Paypal,Money Gram,Western Union

Contact Supplier

SOV Hydraulic Technology (Shanghai) Co., Ltd.

Showroom Product Company Profile

Prod Model:	SV11LM Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Diameter:	110-1180mm
Inner Diameter:	51-1002mm
Height:	35-88mm
OEM:	Yes
Market:	Global
Structure:	Compact Design
Brand:	Sov
Color:	Customized
Stroke:	5-17mm
Weight:	2.5-232kg

Product Description

Features

With internal thread piston.
Max pressure up to 2500bar.
Applicable for nut degree 10.9

Packaging Details

1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.

Shipping

1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Product Application

Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.

Our Service

1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.

Competitive Advantages

1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.

Thank you for your time! Any questions, pls contact me at:

>>>>>>>>>>>>>>>>>>>>>>>>>>
> Name: Gloria Rui
> Mobile: +8618918150916
>>>>>>>>>>>>>>>>>>>>>>>>>>

Best wishes for you! !

Model	Whorl	Outside diameter(mm)	Inner diameter(mm)	Height(mm)	Stroke(mm)	Work area(mm²)	Weight (kg)
SV11LM50	M50×1.5	110	51	35	5	3350	2.5
SV11LM55	M55×2	120	53	35	5	3980	2.6
SV11LM60	M60×2	125	61	35	5	4240	2.8
SV11LM65	M65×2	131	66	35	5	4470	3
SV11LM70	M70×2	135	71	35	5	4715	3.1
SV11LM75	M75×2	139	76	35	5	4950	3.2
SV11LM80	M80×2	145	81	35	5	5150	3.5
SV11LM85	M85×2	150	86	35	5	5410	3.6
SV11LM90	M90×2	156	91	36	5	5650	4
SV11LM95	M95×2	160	96	36	5	5850	4.1
SV11LM100	M100×2	166	101	36	5	5950	4.2
SV11LM105	M105×2	170	106	36	5	6050	4.5
SV11LM110	M110×2	177	111	36	5	6250	4.8
SV11LM115	M115×2	180	116	36	5	6500	5
SV11LM120	M120×2	188	121	36	5	6700	5.1
SV11LM125	M125×2	190	126	36	5	6880	5.2
SV11LM130	M130×2	198	131	36	5	7150	5.5
SV11LM135	M135×2	202	136	36	5	7280	5.8
SV11LM140	M140×2	205	141	37	5	7600	6
SV11LM145	M145×2	214	146	37	5	7800	6.5
SV11LM150	M150×2	220	151	38	6	7650	6.7
SV11LM155	M155×3	225	156	38	6	7990	6.9
SV11LM160	M160×3	232	161	40	6	8010	7.5
SV11LM165	M165×3	238	166	40	6	8330	7.7
SV11LM170	M170×3	242	171	41	6	8660	8.4
SV11LM180	M180×3	255	181	42	6	8750	9
SV11LM190	M190×3	270	191	42	8	9250	10
SV11LM200	M200×3	280	202	43	8	8550	11.4
SV11LM205	Tr205×4	288	207	43	8	8750	12
SV11LM210	Tr210×4	292	222	43	9	10425	12.5
SV11LM215	Tr215×4	300	217	44	9	11550	13
SV11LM220	Tr220×4	305	222	44	9	11750	13.5
SV11LM225	Tr225×4	310	227	45	9	12000	14.2
SV11LM230	Tr230×4	317	232	45	9	12250	14.9
SV11LM235	Tr235×4	326	237	45	9	12550	15.5
SV11LM240	Tr240×4	330	243	45	9	12810	16.3
SV11LM250	Tr250×4	340	253	46	9	13110	17
SV11LM260	Tr260×4	355	263	47	9	13750	19

SV11LM270	Tr270×4	365	273	48	9	14220	19.8
SV11LM280	Tr280×4	380	283	48	9	14650	22
SV11LM290	Tr290×4	390	293	49	9	15100	22.3
SV11LM300	Tr300×4	402	302	50	10	15650	25
SV11LM310	Tr310×5	410	312	52	10	16000	27
SV11LM320	Tr320×5	425	322	53	10	16500	29
SV11LM330	Tr330×5	435	332	53	10	17000	30
SV11LM340	Tr340×5	450	342	54	10	17550	31
SV11LM345	Tr345×5	455	348	54	10	17800	32
SV11LM350	Tr350×5	465	352	56	10	18100	35.5
SV11LM360	Tr360×5	470	363	56	10	18550	35.8
SV11LM365	Tr365×5	480	367	57	11	18850	38
SV11LM375	Tr375×5	485	377	57	11	19100	39
SV11LM380	Tr380×5	495	382	58	11	19500	39
SV11LM385	Tr385×5	505	387	58	11	19800	40
SV11LM400	Tr400×5	520	402	60	11	20500	45
SV11LM410	Tr410×5	535	412	60	11	20800	48
SV11LM420	Tr420×5	545	422	61	11	21300	50
SV11LM430	Tr430×5	555	432	62	11	21650	52
SV11LM440	Tr440×5	565	442	62	12	22000	54
SV11LM450	Tr450×5	580	452	64	12	22390	57
SV11LM460	Tr460×5	590	462	64	12	22750	60
SV11LM470	Tr470×5	600	472	65	12	23150	62
SV11LM480	Tr480×5	610	482	65	12	23500	63
SV11LM490	Tr490×5	625	492	67	12	23900	65
SV11LM500	Tr500×5	635	502	67	12	24320	69
SV11LM510	Tr510×6	650	512	68	12	24700	71
SV11LM520	Tr520×6	655	522	68	13	25100	74
SV11LM530	Tr530×6	670	532	69	13	25500	77
SV11LM540	Tr540×6	680	542	69	13	26000	80
SV11LM550	Tr550×6	690	552	70	13	26500	84
SV11LM560	Tr560×6	700	562	70	13	26800	86
SV11LM570	Tr570×6	710	572	72	13	27350	90
SV11LM580	Tr580×6	720	582	72	13	27800	95
SV11LM600	Tr600×6	745	602	73	14	28200	100
SV11LM630	Tr630×6	780	632	74	14	28700	112
SV11LM650	Tr650×6	805	652	75	14	29200	114
SV11LM670	Tr670×6	825	672	76	14	29700	119
SV11LM690	Tr690×6	845	692	77	14	30220	125
SV11LM710	Tr710×7	870	712	78	15	30500	135
SV11LM750	Tr750×7	910	752	79	15	31200	143
SV11LM800	Tr800×7	965	802	80	16	31750	160
SV11LM850	Tr850×7	1010	852	82	16	32300	178
SV11LM900	Tr900×7	1075	902	86	17	32540	201
SV11LM950	Tr950×8	1125	952	86	17	33400	213
SV11LM1000	Tr1000×8	1180	1002	88	17	33950	232

About SOV Hydraulic Technology(Shanghai) Co., Ltd.

Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut

Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose

Hydraulic pipe cutting and beveling machine

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
