| Price: | US $ 11000-16000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | CY-STX-603 |
|---|---|

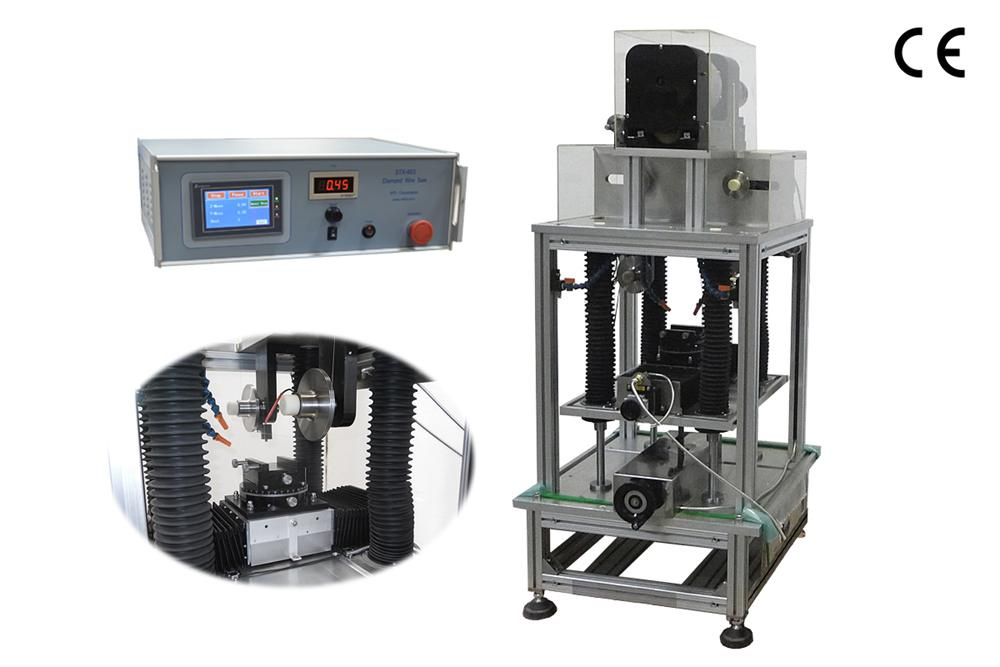

| Item: | Diamond Wire Saw |
| Type: | Diamond Wire Saw |
| Power Input | AC 220V, 50/60Hz |
| Structure | Heavy duty Aluminum alloy |
| Cutting Speed (Feeding Speed) | 1~35mm/min adjustable |
| Wire Moving Speed | 0 ~2m/S |
| Controller | Digital 6" color touch screen |
| Diamond wire | Ø 0.28mm x 65m Length |
| Z and Y Axis Max. Traveling distance | 160mm (±0.01mm accuracy) |

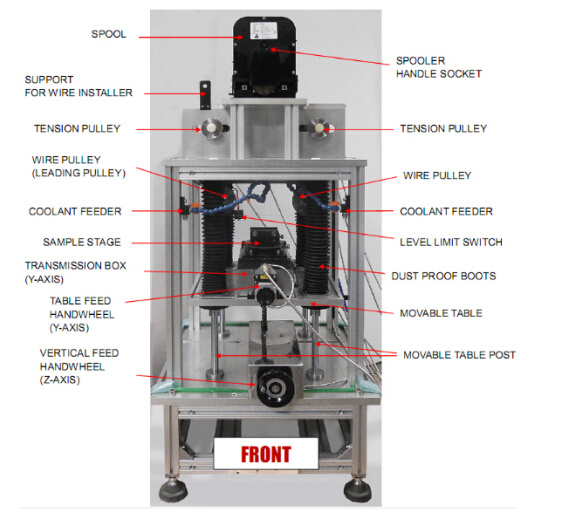

| Sample Stage | Moves in the X-axis and rotate towards two directions (clockwise and counter-clockwise) for precision orientation. |
| Sample size | Max. 160mm x 160mm |

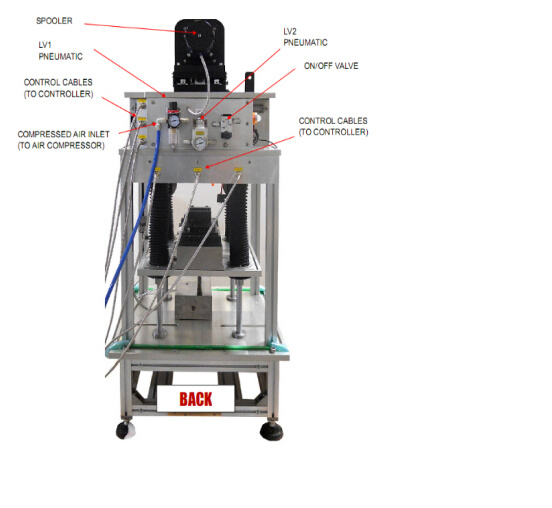

| Wire Tension System | Built in pneumatic valves can easily adjust the tension of cutting wire. (air pump is not included) |
| Dimensions | Saw: 700mm x 620mm x 1500mm (L x W x H) Controller: 490mm x 400mm x 170mm (L x W x H) |
| Shipping weight | 200Kg |
| Warranty | Two years limited, not including diamond wire and rusted parts |
| Certification | CE Certified |
| Application Notes | The flow rate of coolent is adjustable by the valve in the blue feeding tubing. Please adjust it properly to improving cutting performance. Please use correct cutting fluid. Don't use tap water or any other fluid would cause corrosion of machine parts. Must clean the machine after each use. |

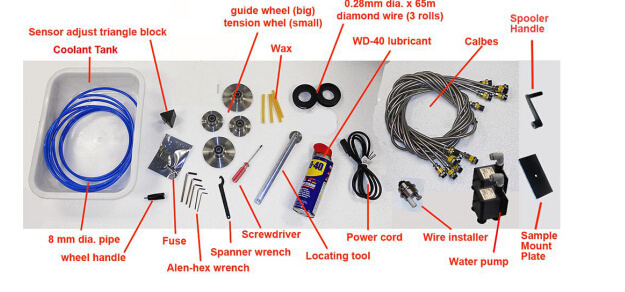

| Sn | Description | Qty |
| 1 | STX-603 diamond wire saw main machine | 1 pc |
| 2 | Tension wheels | 2 pc |
| 3 | Guide wheel | 2 pc |
| 4 | 0.28mm dia. x 65m diamond wire | 2 roll |
| 5 | Graphite plate | 2 pc |
| 6 | Sensor adjust triangle block | 1 pc |
| 7 | Allen hex wrench | 1 set |
| 8 | Locating toolc | 1 pc |
| 9 | WD-40 lubricant | 1 PC |
| 10 | Spanner wrench | 1 pc |
| 11 | Wire installer | 1 pc |
| 12 | COMM cables | 6 pc |
| 13 | Power cord | 1 pc |
| 14 | Wax | 4 pc |
| 15 | Phillips Screw driver | 1 pc |
| 16 | Fuse (10A) | 2 pc |
| 17 | Water splash guard (2 large, 2 small, 1 for spooler) | 1 set |
| 18 | Spooler handle | 1 pc |
| 19 | Sample mounting plate | 1 pc |
