| Prod Model: |
ROC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Stone Diamond Rope |
| Diameter: |
11.5mm |
| Coating: |
Spring |
| Beads/M: |
40 PCS |
| Making Method: |
Sintered |
| Use: |
Wet Cutting |
| Length: |
50m/Roll |
| Weight: |
18.5kg |
Product Description

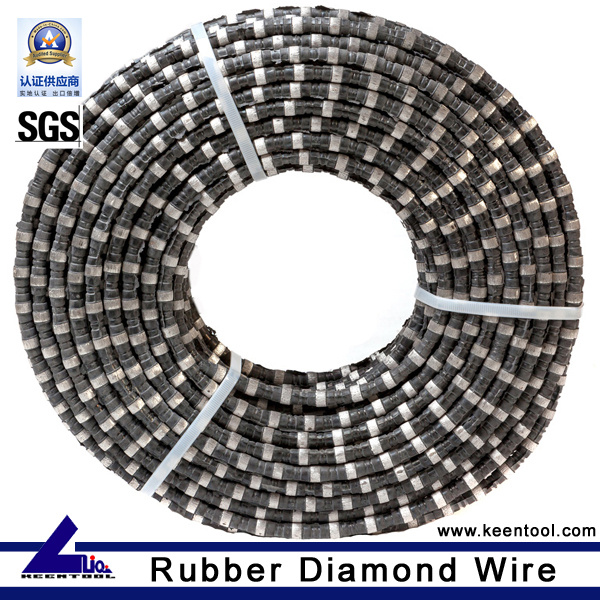

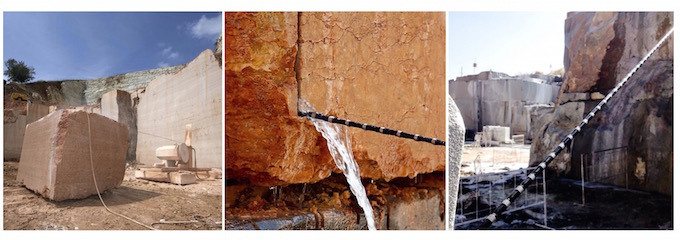

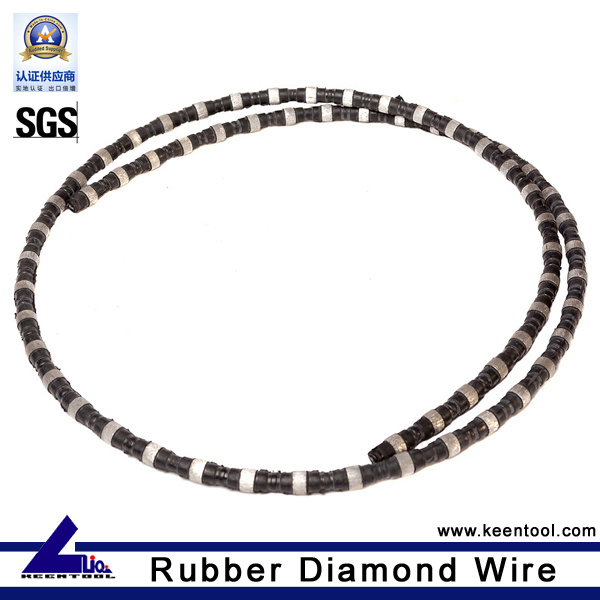

DescriptionRubber coated diamond wire for granite with features of good flexibility, good protection for internal steel cable, good safety and stability during cutting, it is the best choice for quarrying use of hard materials like granite and sandstone etc, for the reasons as below:
1. Vulcanised rubber adheres to the beads and cable tightly, which protects the cable against from action of pastes, in particular when takes up small radii of curvature (beginning and end of quarry cuts)
2. Good flexibility which reduces the risk of irregular wear of diamond beads.
3. Higher safety for the operator, as good protection of internal cable from break.
The wire for granite is made of:

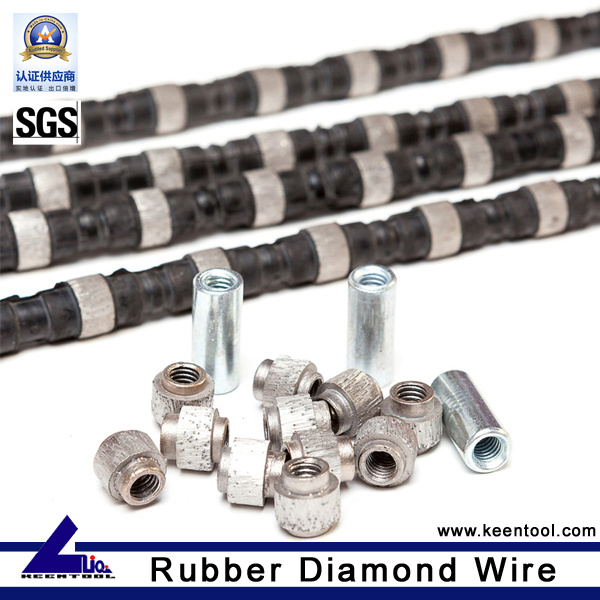

1. Diamond beads are sintered with top quality diamond power imported from UK.
2. Steel cable are imported from German.
3. High quality and wear resistant black rubber.
4. Advanced rubber injection technique and equipment make the rubber penetrated into the steel cable well and greatly enhance the binding force the rubber and steel cable.
Technical Data| Diamond wire for granite quarry |
| Specification of beads(mm) | Model | Coating | Beads No.
(Pcs/M) | Hardness of Granite | Cutting speed
( Sqm/Hr ) | Cutting life
(Sqm/Mtr ) |
Φ11.5mm
Φ11.0mm | GDW-KT-Q | Rubber | 40 | Soft | 8-12 | 28-40 |
| Medium | 6-8 | 18-25 |
| Hard | 3-5 | 8-15 |

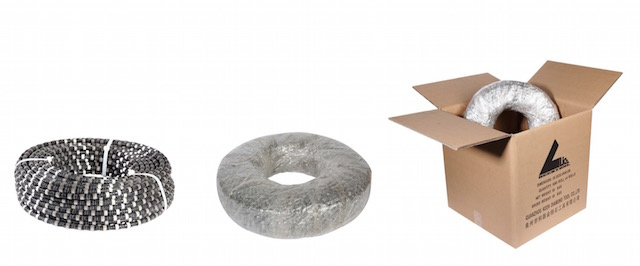

Packaging & Shipping: Packaging: Carton with water proof plastic.
Meters/Roll: 50/60Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
