| Prod Model: |
jzf4 |
| Model No: |
Jzf4 |
| Spacerdamper: |
for Transmission Line |
| Type: |
Protection Fitting |
Product Description
Product Description

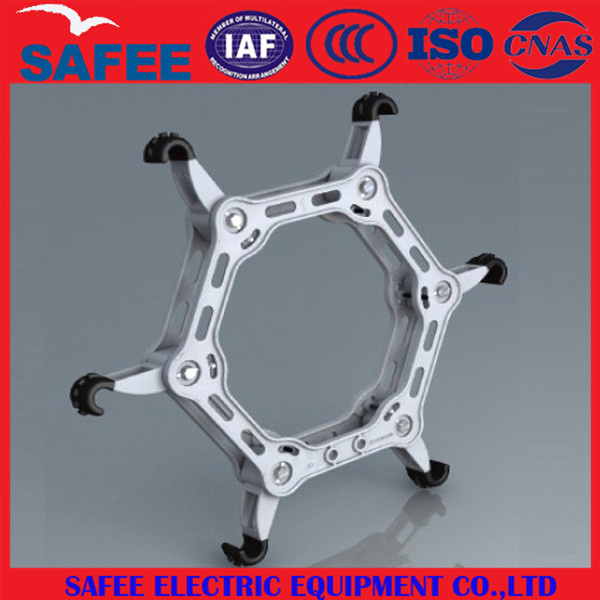

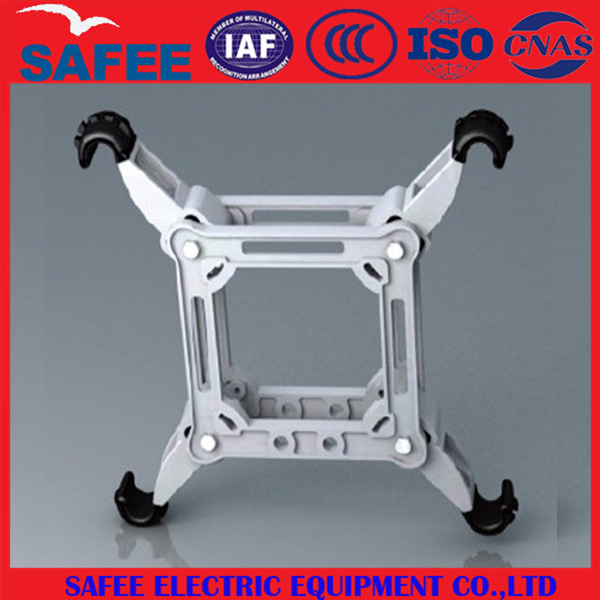

Good quality transmission line hardware and cable clamp, aluminum alloy made with less
weight but with higher mechanical strength and performance. Exported to many countries.
The body and jumper clamp are made of aluminum, other parts are made of hot-dip galvanized steel.
Manufacture standards can be GB or IEC as client's requirement.
| Type no | Suitable conductor outside dia. (mm) | Dimensions (mm) | Weight
(kg) |
| L |
| JZF4-45300 | 23.0~24.5 | 450 | 7.5 |
| JZF4-45300J | 24.5~26.0 | 450 | 7.5 |
| JZF4-45400 | 26.0~28.0 | 450 | 7.5 |
| JZF4-45400J | 28.1~29.5 | 450 | 7.5 |
Product Description
Applicable for assembling the suspension insulator to string ,and it is also used in connecting one or several strings insulator and then suspending on the pole arm of perch.the connection of suspension clamp and dead end clamp,the connection between stay wire and perch.
1.The body keeper and bracket are made of aluminum alloy,
2.The damper are made of elastomer(DEMP),
3.Other parts are made of hot dip galvanized steel.
| Catalog No. | Conductor Section Area(mm²) |
Fig No. | Dimensions(mm) |
Steel Wire Specification |
Weight(kg) |
| Steal Wire | AAC,ACSR | D | A | H | L1 | L1 |
| FD-1 | / | 35~50 | Fig.2 | 40 | 40 | 40 | 95 | 300 | 7/2.6 | 1.5 |
| FD-2 | / | 70~95 | Fig.1 | 46 | 45 | 55 | 130 | 370 | 7/3.0 | 2.4 |
| FD-3 | / | 120~150 | Fig.1 | 56 | 60 | 65 | 150 | 450 | 19/2.2 | 4.5 |
| FD-4 | / | 185~240 | Fig.1 | 62 | 60 | 70 | 175 | 500 | 19/2.2 | 5.6 |
| FD-5 | / | 300~500 | Fig.1 | 67 | 70 | 70 | 200 | 550 | 19/2.6 | 7.2 |
| FD-6 | / | 500~630 | Fig.1 | 70 | 70 | 75 | 200 | 550 | 19/2.6 | 8.6 |
| FD-35 | 35 | / | Fig.2 | 42 | 45 | 50 | 100 | 300 | 7/3.0 | 1.8 |
| FD-50 | 50 | / | Fig.2 | 46 | 45 | 50 | 130 | 350 | 7/3.0 | 2.4 |
| FD-70 | 70 | / | Fig.1 | 56 | 50 | 60 | 150 | 400 | 19/2.2 | 4.2 |
| FD-100 | 100 | / | Fig.1 | 62 | 60 | 65 | 175 | 500 | 19/2.2 | 5.9 |
1. Hot Dip Galvanzied
2. High Quality&Competive Price
3. Different sizes you can choose
4. More than ten years production experience
Company Information
We are the manufacturer with 10years experience of galvanized steel overhead line fittings. our company has been engaged in designing and making in producing electric power fittings and pole line accessories more than 10 years, and has got the certificate of International Quality System ISO9001.

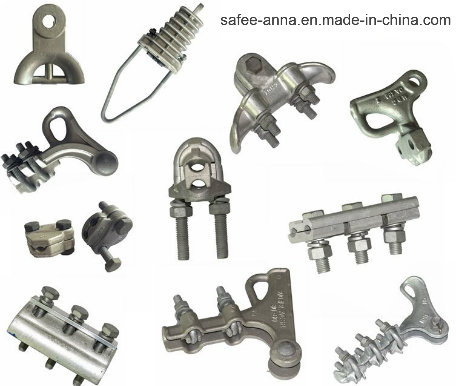

Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, porcelain insulators and so on. The company has a strong technological power, top-ranking production.

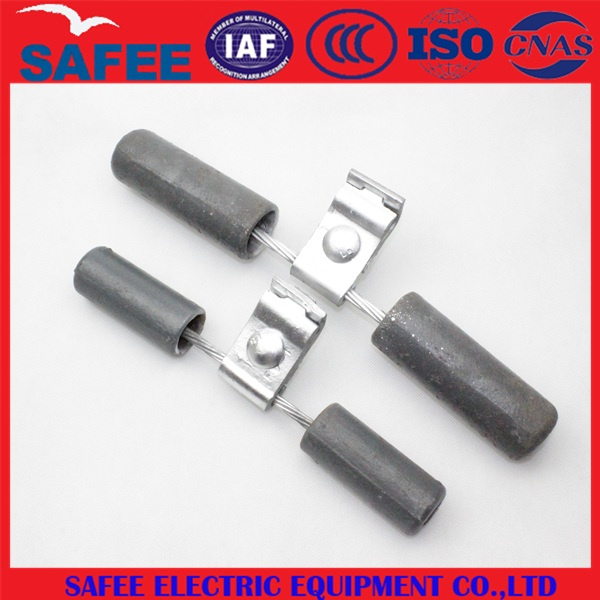

Shock hammer is a kind of power to protect hardware, it is usually used in high voltage transmission lines hanging from above the high tension line to prevent the wind, and the function of external force, prevent cable under the condition of the wind swinging
1. Material:Galvanized Steel
2. Product quality has reached to IEC standard
3. Packing: Standard export seaworthy and plywood case packing or follow buyer's request
4. Delivery: Within 3 weeks after receipt of client's prepayment or L/C.
For opening a new mold then delivery time need undetermined.
Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.
-------------------------------------------------------------------------------------------------------------------------
