| Prod Model: |
00210 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hydraulic Fitting: |
Hydraulic Adapter |
| Surface: |
Zinc-Plated |
| Color: |
White |
| Manufacture: |
Factory |
| Original Place: |
Qingdao, China |
| Standard: |
JIS |
| Material: |
Medium Carbon Steel |
| Connection: |
Female |
Product Description
Qingdao Hydraulic Hose Ferrule Fittings for SAE 100R2AT2SN Hose (00210)Detail:Model No.: 00210
Material: Carbon Steel, Stainless Steel
Surface Treatment: Yellow Zinc-Plated
Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
Company IntroductionQINGDAO UNITE MACHINERY CO.,LTD is specialized in manufacturing and exporting hydraulic fittings. Our Main products include : Ferrules, Hydraulic hose fitting, hydraulic adapter and hose assemblies.
We can supply full range of hydraulic hose fitting and adapters : Metric, BSP, BSPT, JIC, NPT, ORFS, SAE Flange etc. We also provide the OEM service for customers who have special requirements according to customer's drawing.
So far, our products have been exported to America, Canada, Chile, South Korea, Italy, UK, Switzeland, UAE and more than 40 countries. We totally believe our price and quality is pretty competitive in the market. Hoping we can get a chance to compete with your current suppliers.

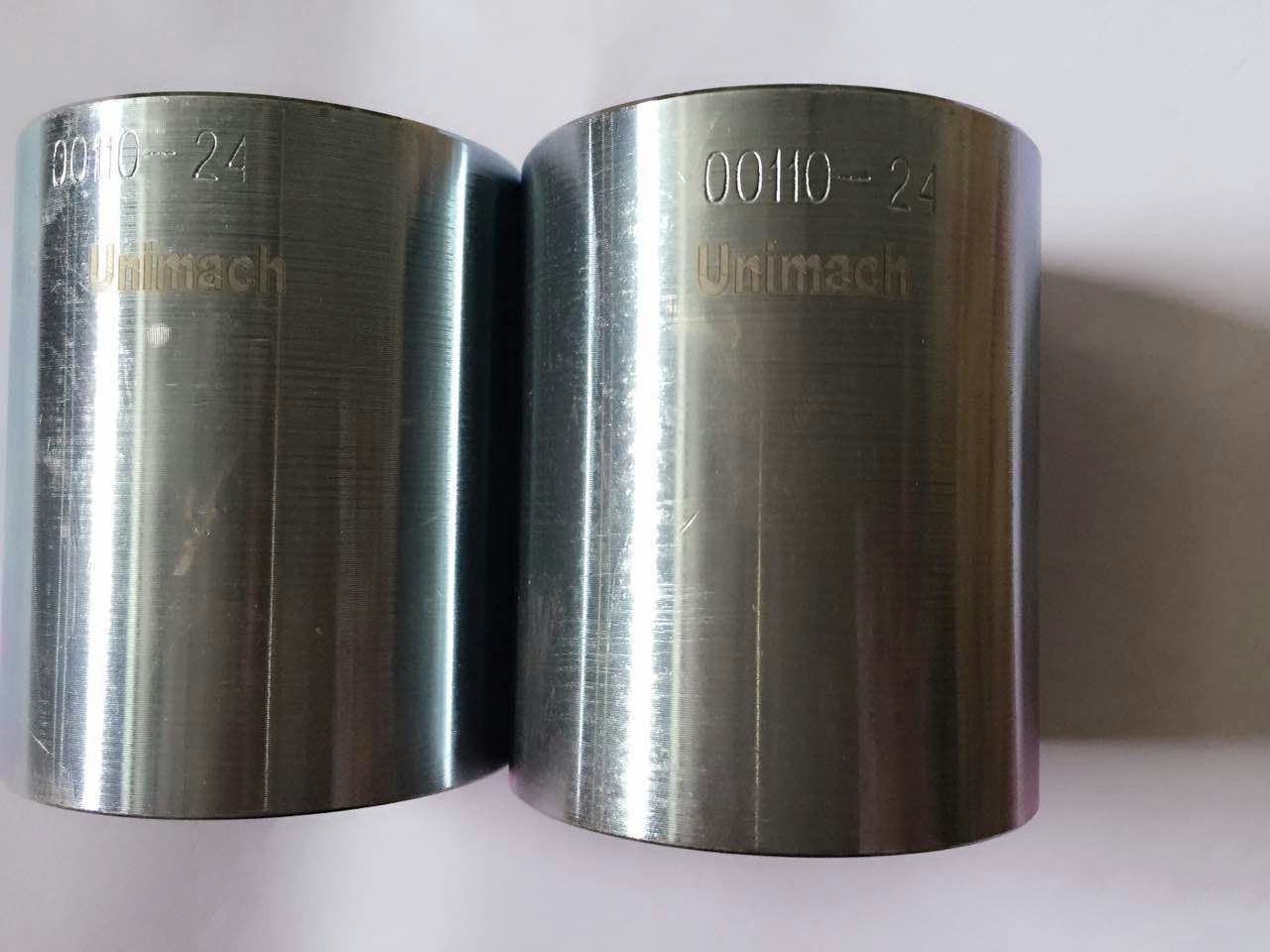

Laser printing logo:All of our products can make
laser printing of the logo for the ferrules and fittings.
We also can print the logo according to the customers' requirement.

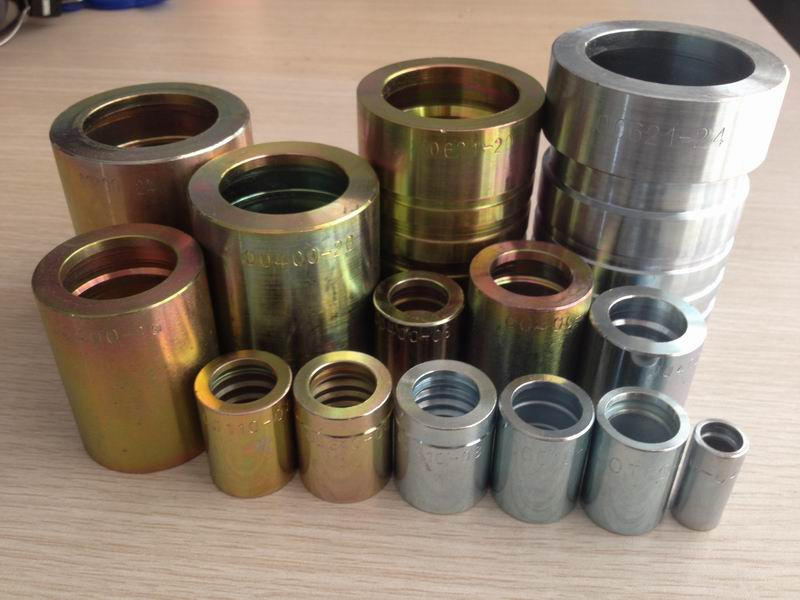

00100SKIVE FERRULE FOR SAE 100R1A/EN 853 1ST HOSE
00110-ANO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
00110NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
00200SKIVE FERRULE FOR SAE 100R2A/EN 853 2ST HOSE
00210NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
03310NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
00110SKIVE FERRULE FOR CHINA 1-WIRE HOSE
01200SKIVE FERRULE FOR CHINA 2-WIRE HOSE
01300SKIVE FERRULE FOR CHINA 3-WIRE HOSE
01400SKIVE FERRULE FOR R12/20-24 HOSE
00400SKIVE FERRULE FOR 4SP,4SH/10-16,R12/06-16 HOSE
00401SKIVE FERRULE FOR 4SH,R12/32 HOSE
00402FERRULE FOR SAE 100 R9AT-R12,EN 856 4SP/04-16 HOSE
00403FERRULE FOR EN 856 4SP/21-16-32 HOSE
00018NO-SKIVE FERRULE FOR SAE 100R7 HOSE
00TF0NO-SKIVE FERRULE FOR TEFLON HOSE
00500FERRULE FOR SAE 100 R5
00621INTERLOCK FERRULE FOR SAE 100 R13/R15 HOSE
Statement1. Payment term: L/C, T/T
2. Delivery time: 45-75 days after down payment
3. Galvanization : Zinc Plating (Cr3 ) Silver & Yellow
4. Salt Spray Test > 72 Hours, 96 Hours, 120 Hours, 240 Hours Available
5. Product Logo : "Unimach" or according to your requirements.
6. Packing : Hose Fitting and adapters are protected by plastic caps. Then packed in the carton box with plywood boxes. Plastic bag+box+wooden pallent.
7. Sample : Free samples will be provided upon customer request.
8. Certification: ISO9001
FAQ:
1.How do you control the quality of your products?
-Talented in-house engineers' team.
-And strict ISO 9001:2008 quality control system;
-And before the cargoes sent, we will have strictly testing process.
2.How about your products price?
We have our own factory, so our price will be more competitive.
3.Can you offer the samples for us?
Yes, samples can be provided for you to test our quality. Customers just need to pay for the freight cost.
Products Package: Plastic Bag+Box +wood Pallet
CERTIFICATION: ISO9001
| PART NO. | HOSE BORE | DIMENSIONS |
| DN | DASH | D | L |
| 00210-03 | 5 | 3 | 20.6 | 27 |
| 00210-04 | 6 | 4 | 22.2 | 30 |
| 00210-05 | 8 | 5 | 23 | 31 |
| 00210-06 | 10 | 6 | 25 | 32 |
| 00210-08 | 12 | 8 | 28.3 | 34 |
| 00210-10 | 16 | 10 | 31.5 | 37 |
| 00210-12 | 20 | 12 | 35.5 | 43 |
| 00210-16 | 25 | 16 | 45 | 50 |
| 00210-20 | 32 | 20 | 55 | 59 |
| 00210-24 | 38 | 24 | 62.5 | 74 |
| 00210-32 | 51 | 32 | 75.5 | 78 |

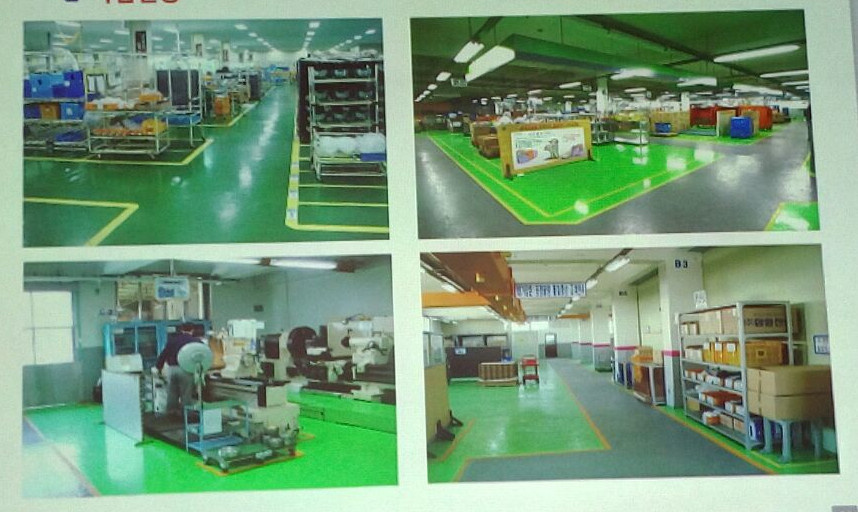

Workshop
QINGDAO UNITE MACHINERY Co., Ltd(HAITE GROUP) is located in the beautiful seaside city-Qingdao China, which has very beautiful picturesque view and very convenient transportation. Qingdao port is one of the biggest ports of China and our factory is about 15 minutes to Qingdao airport. We specialize in the manufacturing of hydraulic fittings for many years and we have distributors and buyers all over the world.
Products: Our main products include: Ferrule, Hydraulic fitting(Metric, British, American, staplelok, etc. ), Banjo, Adaptor, Hose assembly, and Hose Crimper machinery.
R&D: We have big talent pool which has a large group of exporters and engineers. Some of them have been working in this field for more than 10 years and they have strong knowledge and experience in new product development and quality guarantee.
QC: We adopted an advanced and strict quality control system to guarantee our products comply with or exceed the quality standard.
Market: We focus on both domestic and international markets. Our buyers and distributors include some big and prestigious companies.
Principle: Quality first! Your satisfaction is our biggest goal!
