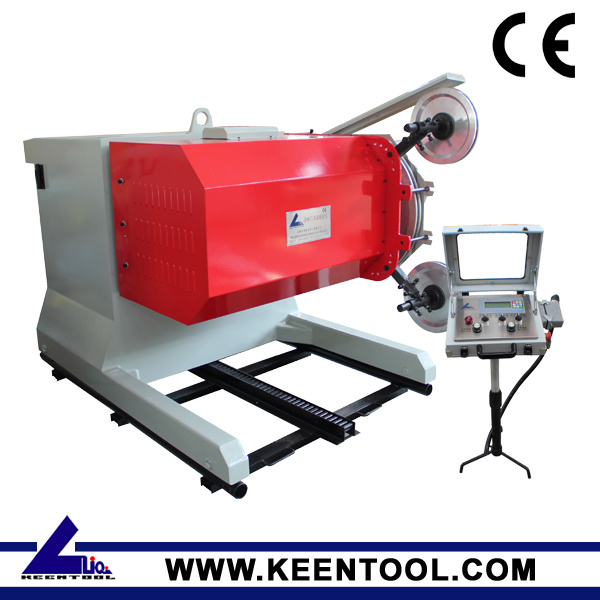

Quarry Wire Saw Machine
| Price: |
US $ 15500-25000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
LQ-WSM- KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Quarry Wire Saw |
| Main Motor: |
37/55/75kw |
| Speed: |
0-40m/S |
| Driving Wheel: |
800/1000mm |
| Rotation: |
360 Degree |
| Horizontal Extension: |
+/-350-400mm |
| Application: |
Quarrying Wire Saw |
| Certification: |
SGS CE |
| Usage: |
Engineering Material |
| Manufacturing Arts: |
Cutting |
| Kind: |
Stone Sawing Machine |
| Saw Blade External Diameter: |
11.5 Mm |
Product Description
Quanzhou Keen Diamond Tool Co is one of the most professional manufacturer and exporter of serious KEENTOOL Brand wire saw machines for quarry use of ornamental stone industry here in China. The major models of our quarry wire saws are with power of 37KW, 55KW and 75KW.
LQ series of quarry wire saws are with high advantage in electrical control system. The electrical control system of our wire saw machine are with PLC and two inverters that allow to variable linear speed of diamond wire from 0-40m/s. The translation and 360 degree rotation of flywheel-holder head of our quarry wire saw machines are motorized and allow an easy and fast positioning of the machine, as well as the execution of two parallel cuts. All the movement of the wire saw machines are motorized and an automatic mechanism keeps always constant and programmed tension of diamond wire in working conditions.
Meanwhile, our quarry wire saws are with safety devices that shut off the machine in case of wire breakage, over voltage, over electric current, over heating of motor, incorrect maneuvers etc. The greatest advantage of our wire saws are safe cutting and good diamond wire durability as well as being user friendly.
When place order of KEENTOOL Brand Quarry Wire Saw Machine please inform as followings:
1. The type of your stone quarry (granite/marble/ limestone/ travertine/ sandstone or else)
2. Main power of wire saw machine you required (Normally we suggest 37KW or 45KW wire saw machines for Marble quarry, and 45 or 55kw wire saw machines for granite quarry)
3. The rated voltage and electrical current of power supply
4. Special requirements (if any).
|
Model |
Main Motor Power |
Length of Wire (m) |
Linear Speed (m/s) |
Diameter of Flying Wheel |
Remark |
|
KT-WSM-22VP |
22KW |
5-40 |
0-40 |
800mm/1000mm
|
For quarrying use of any type stone
|
|
KT-WSM-37VP |
37KW |
20-80 |
0-40 |
|
KT-WSM-45VP |
45KW |
20-100 |
0-40 |
|
KT-WSM-55VP |
55KW |
20-120 |
0-40 |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
