| Prod Model: |
MT-51YTJ |
| Crimping Range: |
6~51 mm (1/4~2") |
| Quantity Of Dies: |
10 Sets |
| Accuracy: |
0.01 mm |
| System Pressure: |
31.5 MPa |
| Motor Power: |
3 Kw / 4 Kw 1 2 3 Phase (Optional) |
| Voltage: |
220 V ~ 415 V 50/60 Hz (Optional) |
| Output Volume Of Pump: |
2.5 L / 5 L / 10 L (Optional) |
| Crimping Force: |
500 T |
| Efficiency: |
200 PCS/H |
| Weight: |
320 Kg |
Product Description

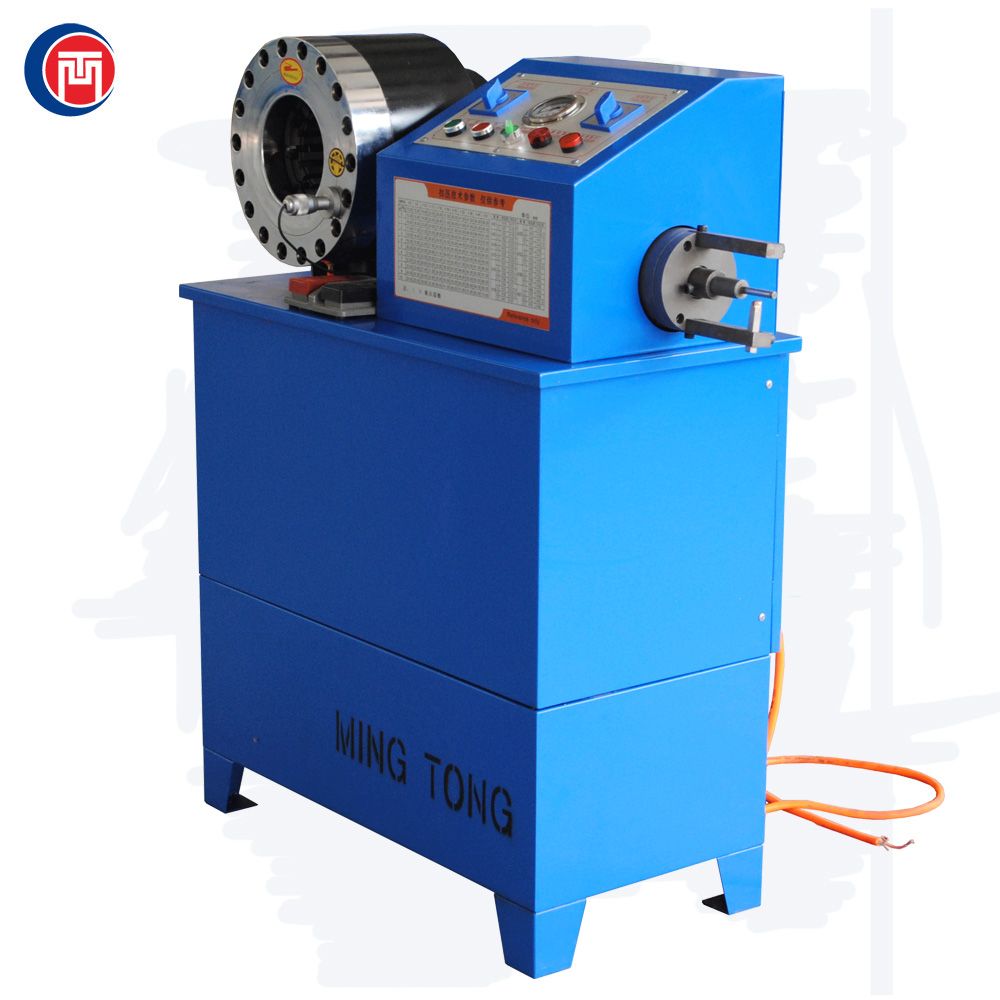

Rich Configuration Hosepipe Crimping Tool
1.Brief introduction of product:
Crimping machine is a kind of hydraulic device which is used to withhold pipes & fittings. It could connect metal joints with the fitting hoses firmly, such as high pressure oil hose, brake pipes on cars, motor oil hose, AC hose, dynamic hose, etc. It could be used in extensive field, such as engineering machinery, vehicles, hydraulic machinery, welding and cutting equipment.
2.Product advantage:
1) Die Base: Chromium 12 material
2) Electric Cabinet: Low failure rate, Humanized circuit (CKT) design
3) Dies: Chromium 12 material, Low wear rate, No dies deformation
4) Hydraulic Valve: Domestic first-line brand, Low failure rate, Good performance
5) Oil Pump: Axial piston pump, High pressure, Low failure rate
6) Cylinder: High density carbon steel, Large diameter, Strong crimping force
3.Configuration Table
| Crimping range | 6~51mm ( 1/4~2" ) |
| Quantity of dies | 10 sets |
| Item No. of dies | 15.19.23.26.31.36.41.47.55.60 |
| Accuracy | 0.01 mm |
| Output volume of pump | 2.5 L / 5 L / 10 L (optional) |
| System pressure | 26 MPa / 31.5 MPa (optional) |
| Motor power | 3 kW / 4 kW 1 2 3 phase (optional) |
| Voltage | 220 V ~ 415 V 50/60 Hz (optional) |
| Crimping force | 500 T |
| Efficiency | 200 pcs/h |
| Maximum open diameter | 114 mm |
| The max open tolerance | ± 30 mm |
| Machine dimension | 970*540*1050 mm |
| Package dimension | 1070*640*1150 mm |
| Net weight | 310 kg |
| Gross weight | 320 kg |
4.Preparatory work before installation
1) Prepare 65L BP46# hydraulic oil in winter and BP68# in summer.
2) Prepare a 6mm cable to connect the machine and the general switch.
5.The procedure of setup operation and notice
1) In order to increase the lifetime of the crimping machine, and reduce the malfunction happens, please fuel the original BP46# hydraulic oil, or it will cause the problems of the reversal valve.
2) The electric cabinet must be opened and checked by skilled electricians. It will be easily for you to take the electric cabinet off by loosing the four screws when you plan to check it.
3) The rusted fitting and steel pipe can not be used. Warning, it will be dangerous if you have some impurity in Nose such as iron scrap , mud and sand, cotton and silk and so on. The slope between the mould seat and front board must be cleaned frequently.
4) Lubricate the front internal cone by little oil brush or oil squirt before using. (The butter and hydraulic oil mixed by 1:1). One or more times according to the workload.
5) Please put the work-piece into the mould when you plan to deal with it. Warning, do not let it out of the mould, or the mould will be destroyed .
6) In case of destroying or breaking off the mould , please do not use the mould out of the range.
7) Please take good care of your hands when operating the machine.
8) In order to avoid the Spring transforming, the mould base must be back to the original place when the crimping machine power off.
9) To avoid reducing the service life time of the machine, please turn off the general power switch after work.
6.Company Profile
1) We are the professional manufacturer with 8 years experience in production of varies of hydraulic equipments. Our main products are Hose Crimping/Cutting/Skiving Machines. Besides, high pressure steel wire hose, low pressure hose, hydraulic fittings, rubber accessories, etc.
2) Widely used in industries of engineering machinery, agricultural machine, construction field, oil field, steel, shipbuilding, coal mine, etc.
3) Enterprise tenet: Quality first, integrity based, service paramount, forge ahead
Development: Scientific management, innovation and enterprising
Market: Super quality and competitive price, Keep up with the times
Service: Customer first, sincere and timely
Cooperation: Integrity based, mutual benefit and win-win
7.FAQ:
Why choose us?
1) More than 10 years of production experience
2) Timely after-sales service
3) A wide range of products to meet all customer needs
4) No middlemen to make price difference in direct sales
5) Short delivery time, within 3~7 days
6) Support Alibaba Trade Assurance protection
What can we offer?
1) Affordable first price
2) Quality assurance, certificate of origin, no fakes
3) OEM and ODM support
What products our machine can crimp?
Hose, excavator oil hose, construction machinery oil hose, coal mine hose, air conditioning hose, PTFE hose, resin hose, wire guide pipe, air spring, bath pipe, steel wire rope, building steel pipe, stainless steel pipe, etc.
