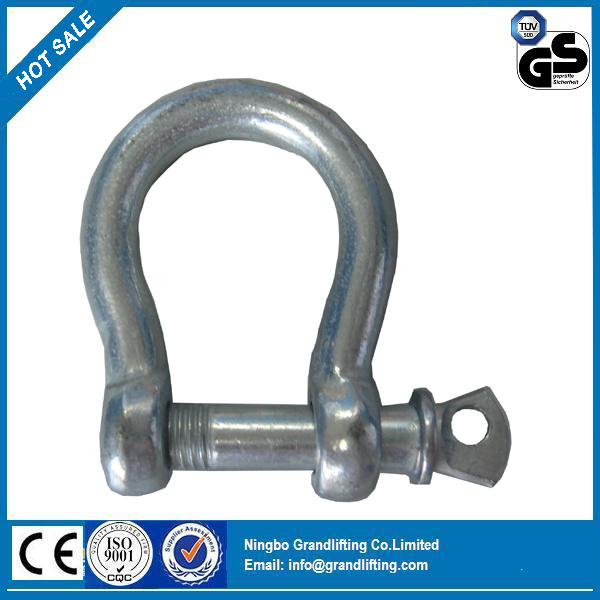

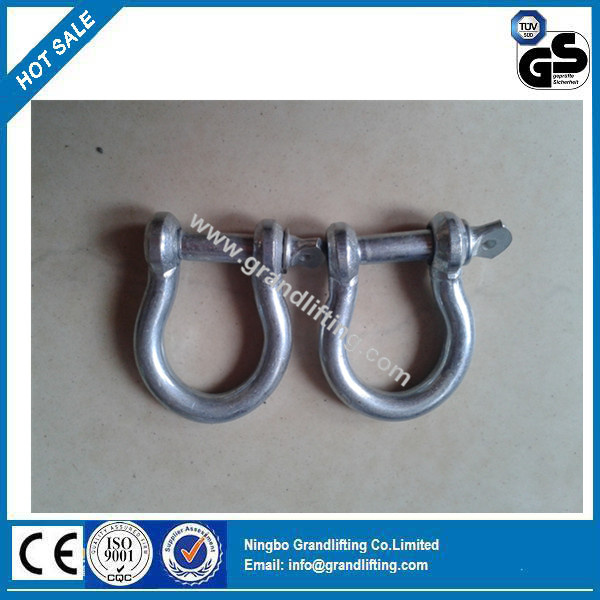

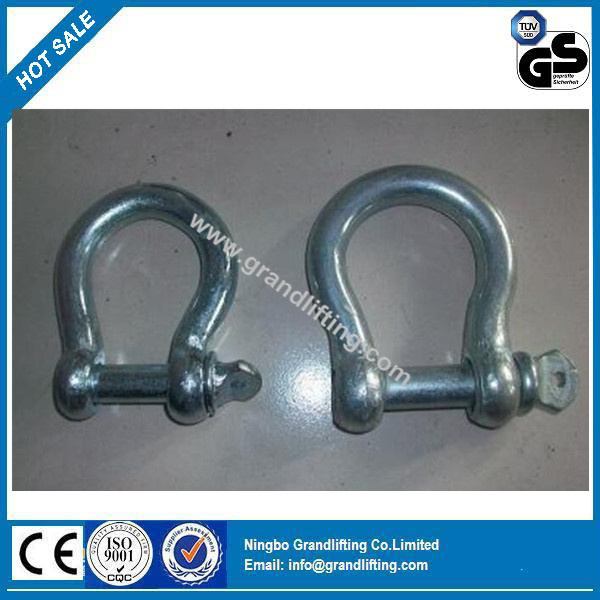

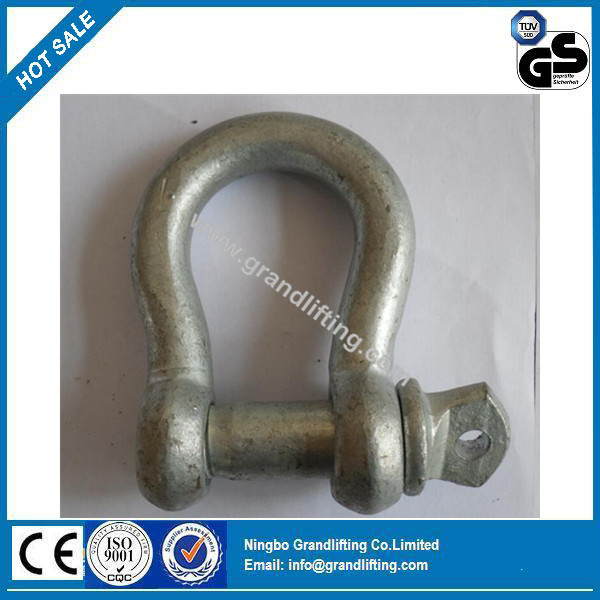

Rigging Hardware Commrtcial European Type Bow Shackle
| Price: |
US $ 0.9/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
Bow Shackle |
| Treatment: |
Quenched and Tempered |
| Test: |
Individully Proof Tested |
| Application: |
Used in Lifting Operation |
| Standard Required: |
European Standard |
| Safe Factor: |
4:1 |
| Material: |
Alloy Steel |
Product Description
Our main produce include shackles, clips, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope, chains, snap hooks, stainless steel and solid brass riggings etc.
If you need this product, let us know ASAP.
WE ARE WAITING FOR YOU!
FEATURES:
Hot dip galvainzed surface finished.
Body forged carbon steel, and pin forged alloy steel.
Test load is 2.2times working load limit.
Ultimate load is 6times working load limit.

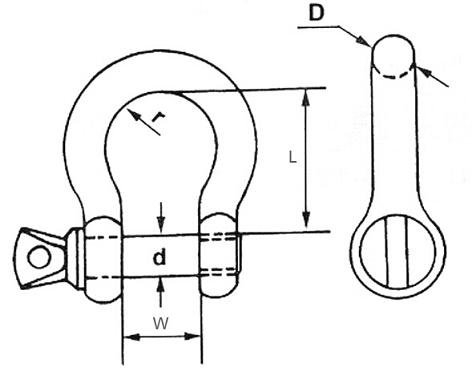

| ITEM NO | SIZE | W.L.L. | W | L | D | d | r |
| | | t | mm | mm | mm | mm | mm |
| ZHCBS-1 | 5 | 0.08 | 10 | 19.5 | 5 | 5 | 15 |
| ZHCBS-2 | 6 | 0.1 | 12 | 24 | 6 | 6 | 18 |
| ZHCBS-3 | 8 | 0.2 | 16 | 32 | 8 | 8 | 24 |
| ZHCBS-4 | 10 | 0.32 | 20 | 40 | 10 | 10 | 30 |
| ZHCBS-5 | 11 | 0.4 | 22 | 44.5 | 11 | 11 | 33 |
| ZHCBS-6 | 12 | 0.52 | 25 | 49 | 12 | 12 | 36 |
| ZHCBS-7 | 14 | 0.65 | 28 | 59 | 14 | 14 | 42 |
| ZHCBS-8 | 16 | 0.8 | 32 | 64 | 16 | 16 | 48 |
| ZHCBS-9 | 18 | 1 | 36 | 71 | 18 | 18 | 54 |
| ZHCBS-10 | 20 | 1.1 | 38 | 80 | 19 | 20 | 60 |
| ZHCBS-11 | 22 | 1.5 | 44 | 85 | 22 | 22 | 66 |
| ZHCBS-12 | 25 | 2.1 | 50 | 100 | 25 | 24 | 75 |
| ZHCBS-13 | 28 | 3 | 56 | 116 | 28 | 27 | 86 |
| ZHCBS-14 | 32 | 3.5 | 64 | 129 | 32 | 33 | 96 |
| ZHCBS-15 | 38 | 5 | 76 | 151 | 38 | 39 | 114 |
