Us Type G209 Bow Type Screw Pin Anchor Shackle

Name: Us Type G209 Bow Type Screw Pin Anchor Shackle
Brand: tool-buy.com
SKU: 766011205
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 0.1-10/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Ningbo Grandlifting Co., Ltd.

Showroom Product Company Profile

Prod Model:	Anchor Shackle
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Safe Factor:	4:1/6:1
Us Standards:	Us Standard G209
Process:	Drop Forged
Treatment:	Quenched and Tempered
Type:	Shackles

Product Description

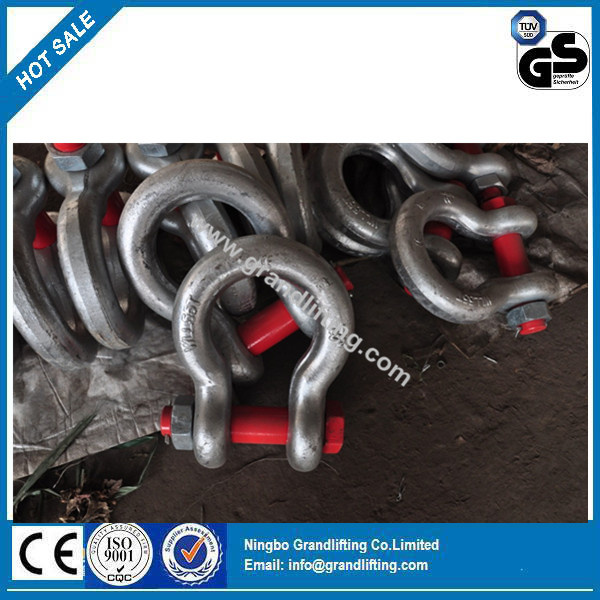

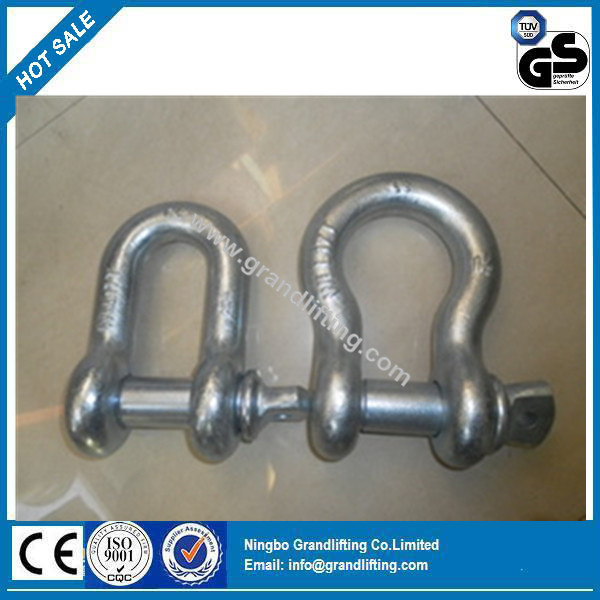

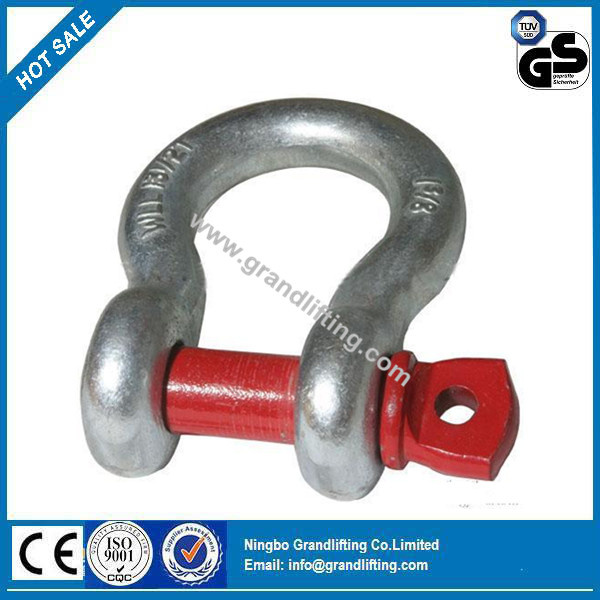

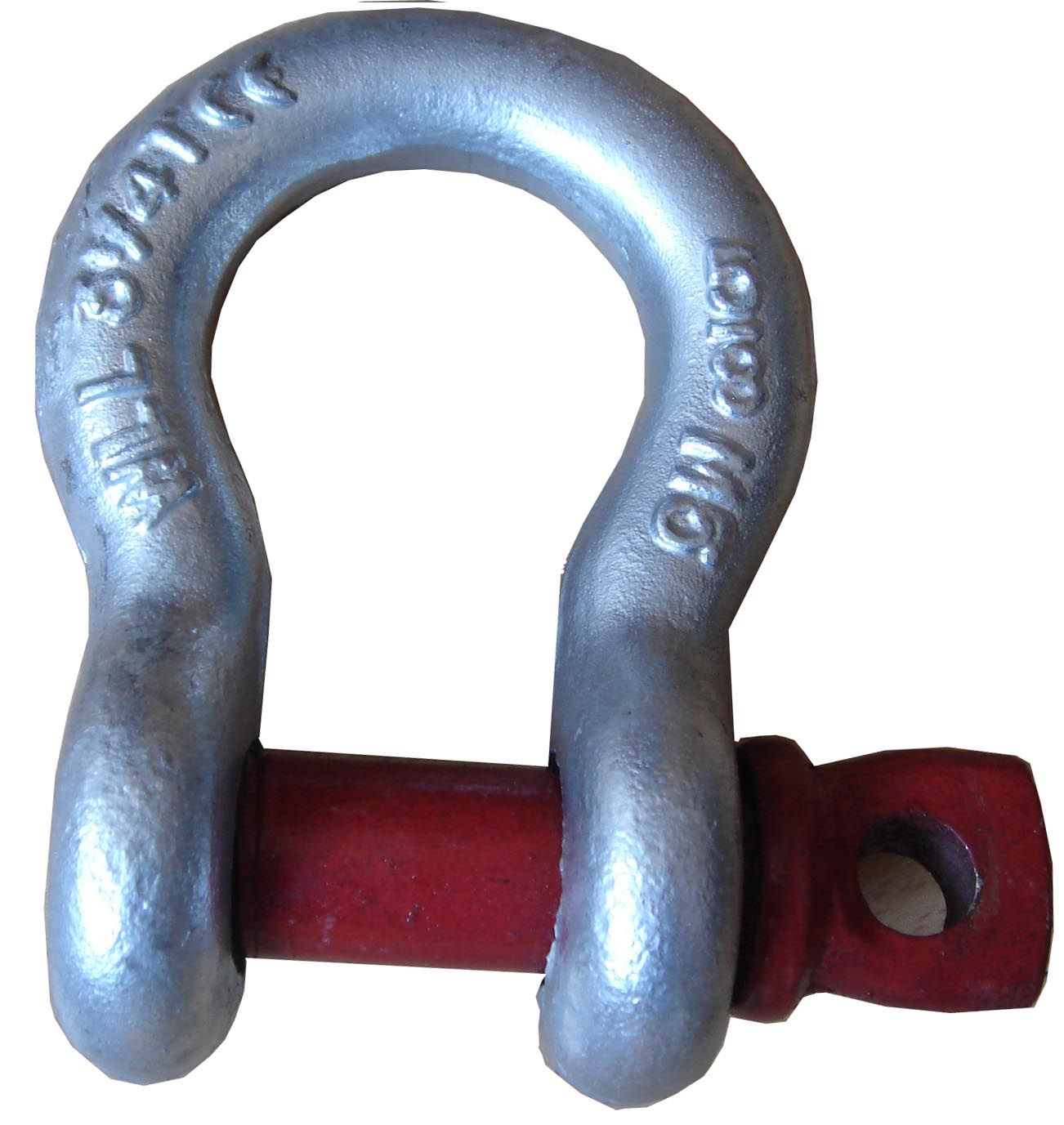

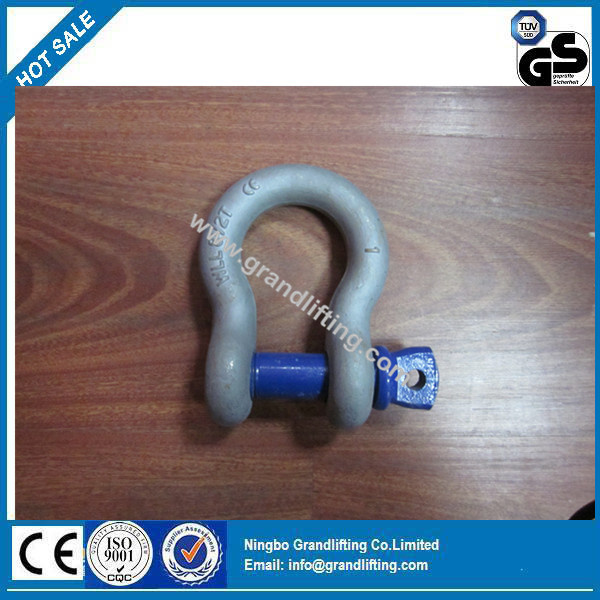

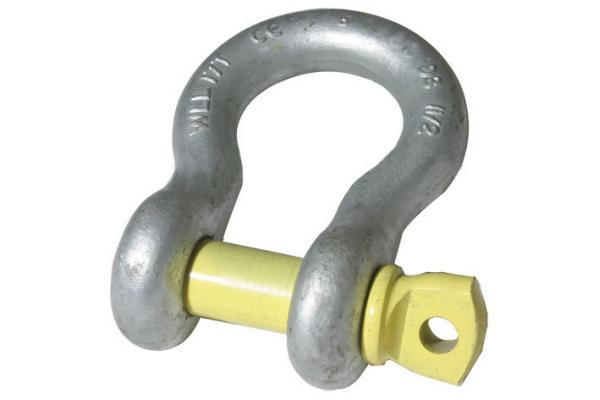

U. S. Type G209 Bow Type Screw Pin Anchor Shackle
Production Standards: American standard, Japanese standard, German standard, European
Surface: Galvanized (hot dip and electroplating), painting, self colored, zinc plated
Process: Drop forged
Packing: Gunny bag, wooden case, plastic drum.

Welcome to look through our website:www.grandlifting.com

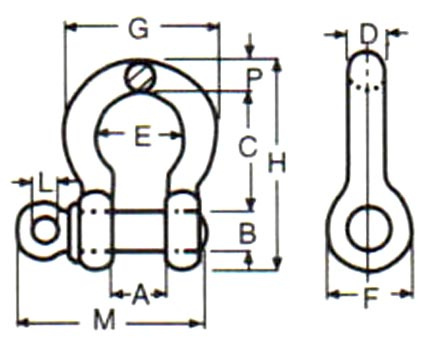

ITEM NO	Nominal Size	Working Load Limit	Dimensions(mm)											Weight each
	(in.)	(tons)	A	B	C	D	E	F	G	H	L	M	P	(kg)
ZHG209-1	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
ZHG209-2	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
ZHG209-3	5/16	3/4	13.5	9.65	31	7.85	21.3	19.1	37.3	53	5.6	42.2	7.85	0.09
ZHG209-4	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63	6.35	51.5	9.65	0.14
ZHG209-5	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74	7.85	60.5	11.2	0.17
ZHG209-6	1/2	2	20.6	16	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
ZHG209-7	5/8	3-1/4	26.9	19.1	60.5	16	42.9	38.1	74.5	106	11.2	85	17.5	0.62
ZHG209-8	3/4	4-3/4	31.8	22.4	71.5	19.1	51	46	89	126	12.7	101	20.6	1.07
ZHG209-9	7/8	6-1/2	36.6	25.4	84	22.4	58	53	102	148	12.7	114	24.6	1.64
ZHG209-10	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
ZHG209-11	1-1/8	9-1/2	46	31.8	108	29.5	74	68.5	131	190	16	142	31.8	3.36
ZHG209-12	1-1/4	12	51.5	35.1	119	32.8	92.5	76	146	210	17.5	156	35.1	4.31
ZHG209-13	1-3/8	13-1/2	57	38.1	133	36.1	92	84	162	233	19.1	174	38.1	6.14
ZHG209-14	1-1/2	17	60.5	41.4	146	39.1	98.5	92	175	254	20.6	187	41.1	7.8
ZHG209-15	1-3/4	25	73	51	178	46.7	127	106	225	313	25.4	231	57	12.6
ZHG209-16	2	35	82.5	57	197	53	146	122	253	348	31	263	61	20.4
ZHG209-17	2-1/4	42.5	95	65	220	57	160	143	274	32	33	321	66	32
ZHG209-18	2-1/2	55	105	70	267	69	184	145	327	453	35.1	330	79.5	38.9

All our activities are accredited to ISO 9001 and based on delivering the highest quality possible, both in products and services, ensuring longterm benefits and optimum performance.

Also we got the below certification: CE GS SUV, LR ABS ( anchors and anchor chains) Our rigging hardware is manufactured under exceptional quantity control and strictly adhered to the US, DIN, JIS, BS and AS standards.

About sample: Cost with free If the quantity small, and the express charge account into buyer's, after receiving the official order, the seller deducts it in first order's

Please do not hesitate to contact us, should there be any questions or enquires.

Welcome to look througth our website: www.grandlifting.com
