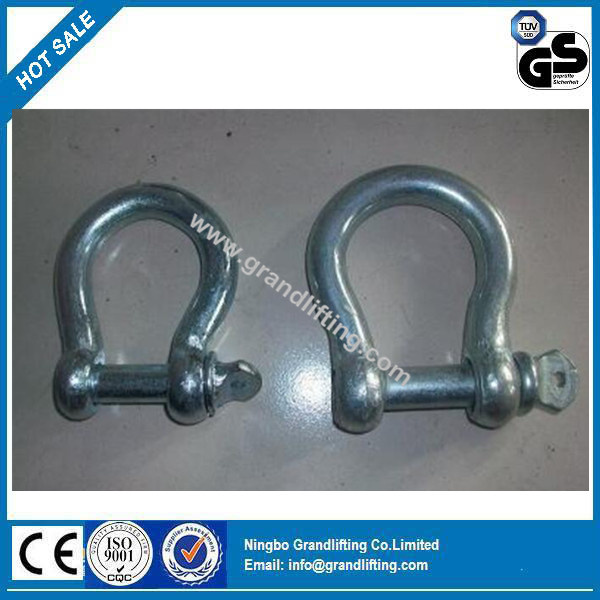

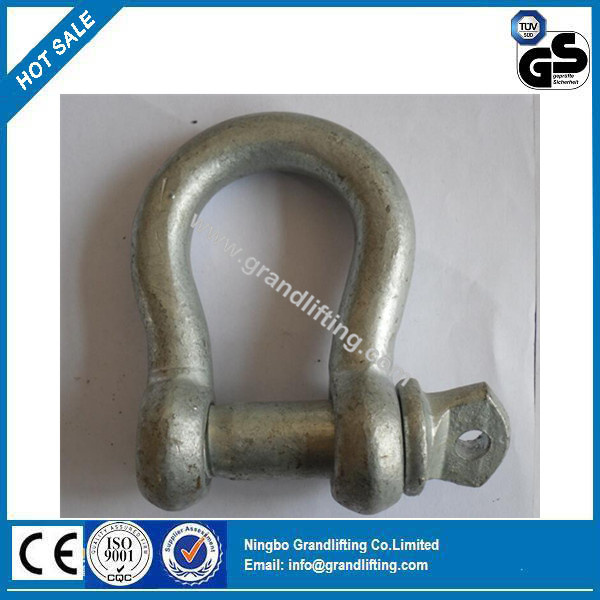

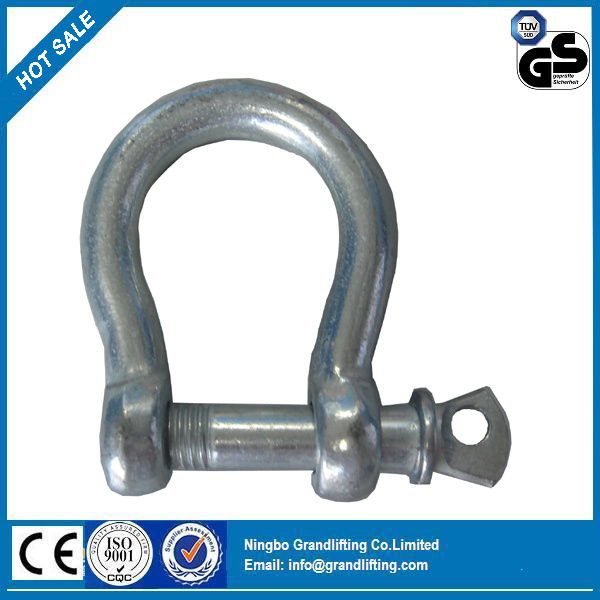

Rigging Hardware Electric Glav European Type Anchor Shackle
| Price: |
US $ 0.9/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
European Type Anchor Shackle |
| Treatment: |
Quenched and Tempered |
| Test: |
Individully Proof Tested |
| Application: |
Used in Lifting Operation |
| Standard Required: |
European Standard |
| Safe Factor: |
4:1 |
| Material: |
Alloy Steel |
Product Description
Our main produce include shackles, clips, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope, chains, snap hooks, stainless steel and solid brass riggings etc.
If you need this product, let us know ASAP.
WE ARE WAITING FOR YOU!
FEATURES:
Hot dip galvainzed surface finished.
Body forged carbon steel, and pin forged alloy steel.
Test load is 2.2times working load limit.
Ultimate load is 6times working load limit.

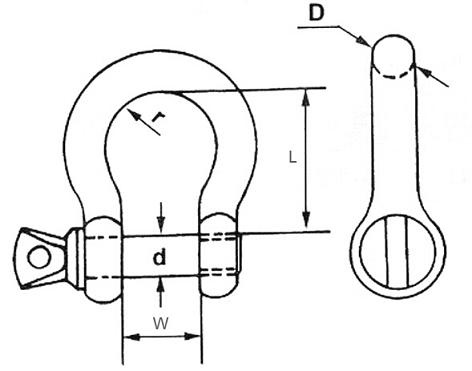

| ITEM NO | SIZE | W.L.L. | W | L | D | d | r |
| | | t | mm | mm | mm | mm | mm |
| ZHCBS-1 | 5 | 0.08 | 10 | 19.5 | 5 | 5 | 15 |
| ZHCBS-2 | 6 | 0.1 | 12 | 24 | 6 | 6 | 18 |
| ZHCBS-3 | 8 | 0.2 | 16 | 32 | 8 | 8 | 24 |
| ZHCBS-4 | 10 | 0.32 | 20 | 40 | 10 | 10 | 30 |
| ZHCBS-5 | 11 | 0.4 | 22 | 44.5 | 11 | 11 | 33 |
| ZHCBS-6 | 12 | 0.52 | 25 | 49 | 12 | 12 | 36 |
| ZHCBS-7 | 14 | 0.65 | 28 | 59 | 14 | 14 | 42 |
| ZHCBS-8 | 16 | 0.8 | 32 | 64 | 16 | 16 | 48 |
| ZHCBS-9 | 18 | 1 | 36 | 71 | 18 | 18 | 54 |
| ZHCBS-10 | 20 | 1.1 | 38 | 80 | 19 | 20 | 60 |
| ZHCBS-11 | 22 | 1.5 | 44 | 85 | 22 | 22 | 66 |
| ZHCBS-12 | 25 | 2.1 | 50 | 100 | 25 | 24 | 75 |
| ZHCBS-13 | 28 | 3 | 56 | 116 | 28 | 27 | 86 |
| ZHCBS-14 | 32 | 3.5 | 64 | 129 | 32 | 33 | 96 |
| ZHCBS-15 | 38 | 5 | 76 | 151 | 38 | 39 | 114 |
Ningbo Grandlifting Co., Ltd., based in Ningbo, a seaport city near Shanghai, is a professional manufacturer and exporter of lifting & lashing equipment for more than ten years.
Our company is certified by ISO9001: 2008, whilst most of our products are CE, TUV & GS certified. We are involved of a wide range of lifting and lashing products, especially Chain Hoist, Lever Block, Wire Rope Pulling Hoist, Snatch Block, Ratchet Tie Down, Webbing Sling, Round Sling, Wire Rope etc.
Our products are widely used in metallurgy, electric power, shipyard, sea port, oil-field, railway, machinery, auto, energy, aerospace, etc.
With the suport from our sales and marketing staff, we are selling our products very well to more than 50 countries all over the world. With good quality products, most competitive prices and excellent customer service, we remain friendly and long-term business relationships with our existing customrers.
By this chance we sincerely welcome enquires from all our new customers to with a view of a long term and mutual beneficial cooperation with you!
