Rigging Hardware G210 Steel Screw Pin Chain Shackle

Name: Rigging Hardware G210 Steel Screw Pin Chain Shackle
Brand: tool-buy.com
SKU: 833794485
Availability: InStock
Rating: 4.3 (78 reviews)

Price:	US $ 0.5-50/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Chongqing Deso Lifting Co., Ltd.

Showroom Product Company Profile

Prod Model:	G210
Delivery Time:	10-30days
Material:	Alloy Steel

Product Description

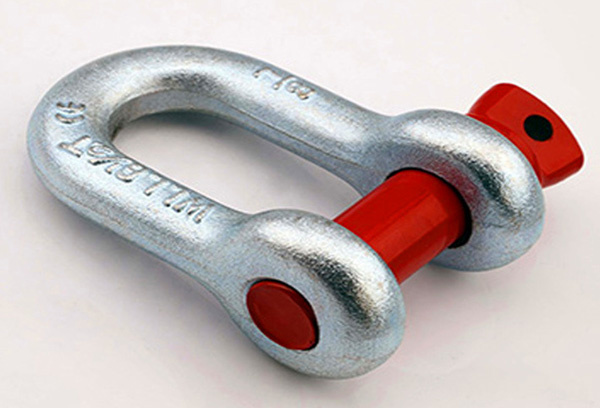

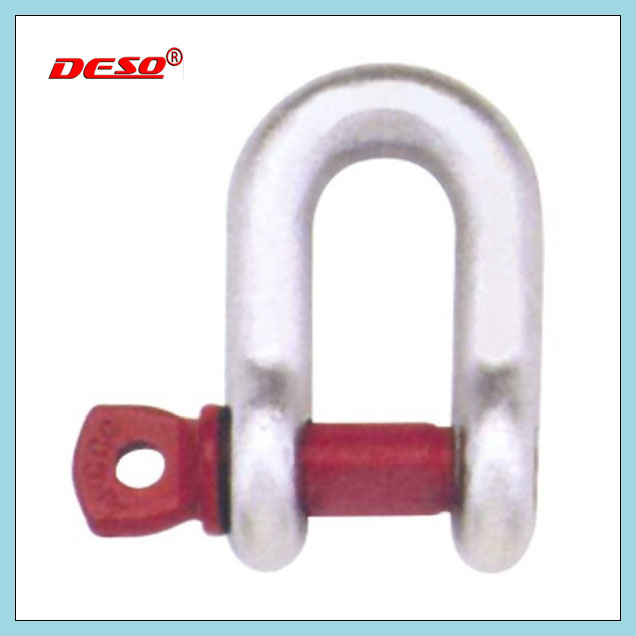

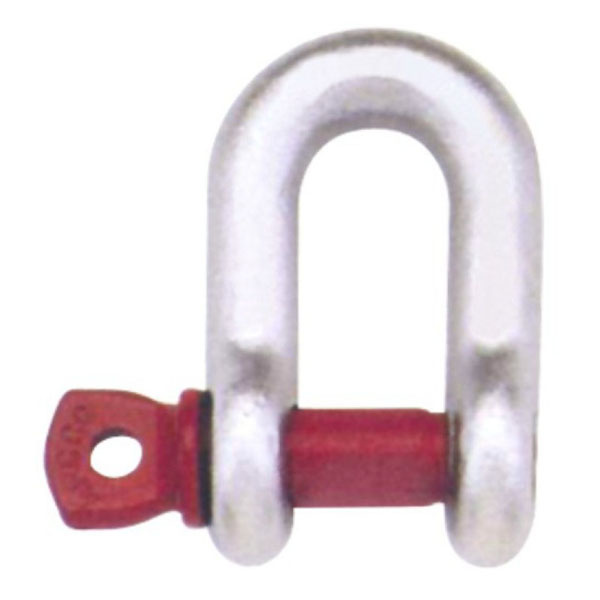

G210 Screw Pin Chain Shackle

Screw pin r shackles meets the performance requirements of Federal Specifications RR-C-271D
Teaceability code, capacity and WLL embossed.
Construction: Forged Quenched and Tempered, with alloy pins.
Material: Forged Carbon Steel with Alloy pin.
Finish: Hot Dip Galvanized.
Proof load: Tested at 2 times of Working Load Limit
Safety factor: 6: 1
Fatigue: Tested at 1.5 times of Working Load Limit

Size (in)	WLL (t)	Weight (kg/pc)	Dimensions (mm)									Tolerance +/-
Size (in)	WLL (t)	Weight (kg/pc)	A	B	D	E	F	G	K	L	M	C	A
1/4	0.5	0.05	11.9	7.85	6.36	24.6	15.5	22.4	40.4	4.8	35.1	1.50	1.50
5/16	0.75	0.08	13.5	9.65	7.85	29.5	19.1	26.2	48.5	5.60	42.2	1.50	1.50
3/8	1	0.13	16.8	11.2	9.65	35.8	23.1	31.8	58.5	6.35	51.5	3.30	1.50
7/16	1.5	0.20	19.1	12.7	11.2	41.1	26.9	36.6	67.5	7.85	60.5	3.30	1.50
1/2	2	0.27	20.6	16.0	12.7	46.0	30.2	41.4	77.0	9.65	68.5	3.30	1.50
5/8	3.25	0.57	26.9	19.1	16.0	5835	39.1	51.0	95.5	11.2	85.0	3.30	1.50
3/4	4.75	1.20	31.8	22.4	19.1	70.0	46.0	60.5	115	12.7	101	6.35	1.50
7/8	6.5	1.43	36.6	25.4	22.4	81.0	53.0	71.5	135	12.7	114	6.35	1.50
1	8.5	2.15	42.9	28.7	25.4	93.5	60.5	81.0	151	14.2	129	6.35	1.50
1-1/8	9.5	3.06	46.0	31.8	28.7	103	68.0	91.0	172	16.0	142	6.35	1.50
1-1/4	12	4.11	51.5	35.1	31.8	115	76.0	100	191	17.5	156	6.35	1.50
1-3/8	13.5	5.28	57.0	38.1	35.1	127	84.0	111	210	19.1	174	6.35	3.30
1-1/2	17	7.23	60.5	41.4	38.1	137	92.0	122	230	20.6	187	6.35	3.30
1-3/4	25	12.1	73.0	51.0	44.4	162	106	146	279	25.4	231	6.36	3.30
2	35	19.2	82.5	57.0	51.0	184	122	172	312	31.0	263	6.35	3.30
2-1/2	55	32.5	105	70.0	66.5	238	145	203	377	35.1	330	6.35	6.35

If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
