| Prod Model: |
G210 |
| Delivery Time: |
10-30days |
| Material: |
Alloy Steel |
Product Description

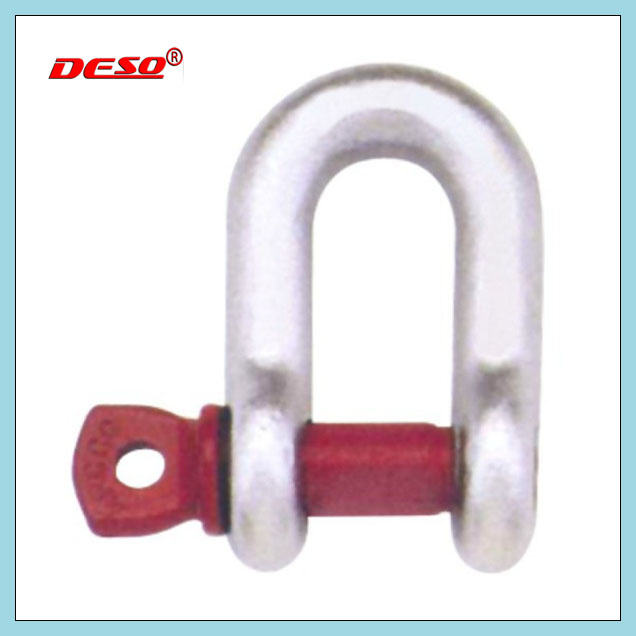

Screw pin r shackles meets the performance requirements of Federal Specifications RR-C-271D
Teaceability code, capacity and WLL embossed.
Construction: Forged Quenched and Tempered, with alloy pins.
Material: Forged Carbon Steel with Alloy pin.
Finish: Hot Dip Galvanized.
Proof load: Tested at 2 times of Working Load Limit
Safety factor: 6: 1
Fatigue: Tested at 1.5 times of Working Load Limit
Size
(in) | WLL
(t) | Weight
(kg/pc) | Dimensions(mm) | Tolerance +/- |
| A | B | D | E | F | G | K | L | M | C | A |
| 1/4 | 0.5 | 0.05 | 11.9 | 7.85 | 6.36 | 24.6 | 15.5 | 22.4 | 40.4 | 4.8 | 35.1 | 1.50 | 1.50 |
| 5/16 | 0.75 | 0.08 | 13.5 | 9.65 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.60 | 42.2 | 1.50 | 1.50 |
| 3/8 | 1 | 0.13 | 16.8 | 11.2 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 3.30 | 1.50 |
| 7/16 | 1.5 | 0.20 | 19.1 | 12.7 | 11.2 | 41.1 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 3.30 | 1.50 |
| 1/2 | 2 | 0.27 | 20.6 | 16.0 | 12.7 | 46.0 | 30.2 | 41.4 | 77.0 | 9.65 | 68.5 | 3.30 | 1.50 |
| 5/8 | 3.25 | 0.57 | 26.9 | 19.1 | 16.0 | 5835 | 39.1 | 51.0 | 95.5 | 11.2 | 85.0 | 3.30 | 1.50 |
| 3/4 | 4.75 | 1.20 | 31.8 | 22.4 | 19.1 | 70.0 | 46.0 | 60.5 | 115 | 12.7 | 101 | 6.35 | 1.50 |
| 7/8 | 6.5 | 1.43 | 36.6 | 25.4 | 22.4 | 81.0 | 53.0 | 71.5 | 135 | 12.7 | 114 | 6.35 | 1.50 |
| 1 | 8.5 | 2.15 | 42.9 | 28.7 | 25.4 | 93.5 | 60.5 | 81.0 | 151 | 14.2 | 129 | 6.35 | 1.50 |
| 1-1/8 | 9.5 | 3.06 | 46.0 | 31.8 | 28.7 | 103 | 68.0 | 91.0 | 172 | 16.0 | 142 | 6.35 | 1.50 |
| 1-1/4 | 12 | 4.11 | 51.5 | 35.1 | 31.8 | 115 | 76.0 | 100 | 191 | 17.5 | 156 | 6.35 | 1.50 |
| 1-3/8 | 13.5 | 5.28 | 57.0 | 38.1 | 35.1 | 127 | 84.0 | 111 | 210 | 19.1 | 174 | 6.35 | 3.30 |
| 1-1/2 | 17 | 7.23 | 60.5 | 41.4 | 38.1 | 137 | 92.0 | 122 | 230 | 20.6 | 187 | 6.35 | 3.30 |
| 1-3/4 | 25 | 12.1 | 73.0 | 51.0 | 44.4 | 162 | 106 | 146 | 279 | 25.4 | 231 | 6.36 | 3.30 |
| 2 | 35 | 19.2 | 82.5 | 57.0 | 51.0 | 184 | 122 | 172 | 312 | 31.0 | 263 | 6.35 | 3.30 |
| 2-1/2 | 55 | 32.5 | 105 | 70.0 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 6.35 | 6.35 |
If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
