Rigging Hardware G2150 Bolt Type Chain Shackle

Name: Rigging Hardware G2150 Bolt Type Chain Shackle
Brand: tool-buy.com
SKU: 831137675
Availability: InStock
Rating: 4.9 (35 reviews)

Price:	US $ 2-50/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Chongqing Deso Lifting Co., Ltd.

Showroom Product Company Profile

Prod Model:	G2150
Payment:	T/T L/C
Delivery Time:	20-40days
Material:	Alloy Steel

Product Description

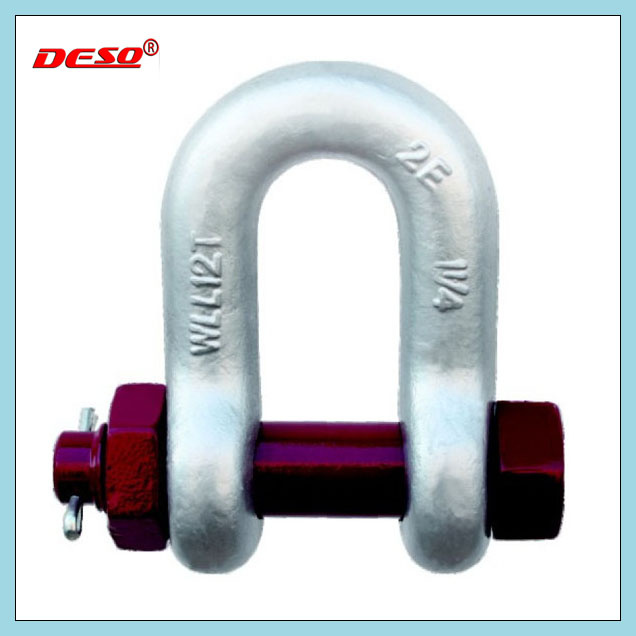

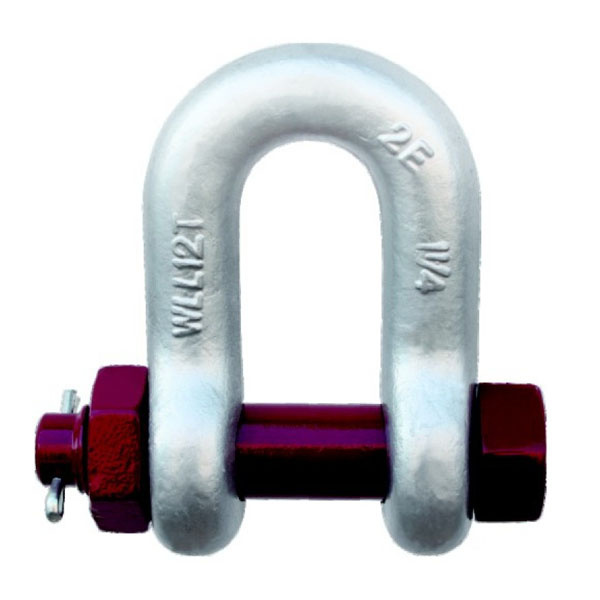

G2150 bolt type anchor shackle

Screw pin chain shackle meets performance requirements of Federal specifications RR-C-271D.
Traceability code, capacity, brand name and WLL embossed.
Construction: Forged quanched and tempered, with alloy pin.
Material: Forged carbon steel with alloy pin.
Finish: Hot dip galvanized.
Proof load: Tested at 2 times of Working Load Limit.
Safety factor: 6:1.
Fatigue: Tested at 1.5 times of Working Load Limit.

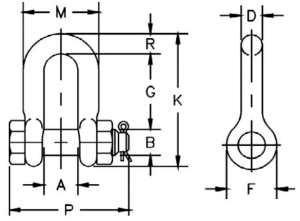

Size (in)	WLL (t)	Weight (kg/pc)	Dimensions(mm)									Tolerance +/-
			A	B	C	D	E	F	H	L	N	C	A
3/16	0.33	0.03	9.65	6.35	22.4	4.85	15.2	14.2	37.3	24.9	4.85	1.50	1.50
1/4	0.5	0.05	11.9	7.85	28.7	6.36	19.8	15.5	46.7	32.5	6.35	1.50	1.50
5/16	0.75	0.10	13.5	9.65	31.0	7.85	21.3	19.1	53.0	37.3	7.85	3.30	1.50
3/8	1	0.15	16.8	11.2	36.6	9.65	26.2	23.1	63.0	45.2	9.65	3.30	1.50
7/16	1.5	0.22	19.1	12.7	42.9	11.2	39.5	26.9	74.0	51.5	11.2	3.30	1.50
1/2	2	0.36	20.6	16.0	47.8	12.7	33.3	30.2	83.5	58.5	12.7	3.30	1.50
5/8	3.25	0.62	26.9	19.1	60.5	16.0	42.9	39.1	106	74.5	17.5	6.35	1.50
3/4	4.75	1.23	31.8	22.4	71.5	19.1	51.0	46.0	126	89.0	20.6	6.35	1.50
7/8	6.5	1.79	36.6	25.4	84.0	22.4	58.0	53.0	148	102	24.6	6.35	1.50
1	8.5	2.28	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	6.35	1.50
1-1/8	9.5	3.75	46.0	31.8	108	28.7	74.0	68.0	190	131	31.8	6.35	1.50
1-1/4	12	5.31	51.5	35.1	119	31.8	82.5	76.0	210	146	35.1	6.35	1.50
1-3/8	13.5	7.18	57.0	38.1	133	35.1	92.0	84.0	233	162	38.1	6.35	3.30
1-1/2	17	8.62	60.5	41.4	146	38.1	98.5	92.0	254	175	41.1	6.35	3.30
1-3/4	25	15.4	73.0	51.0	178	44.4	127	106	313	226	57.0	6.36	3.30
2	35	23.7	82.5	57.0	197	51.0	146	122	348	253	61.0	6.35	3.30
2-1/2	55	44.6	105	70.0	267	66.5	184	145	453	327	79.5	6.35	6.35
3	85	70	127	82.5	330	76.0	200	165	546	365	92.0	6.35	6.35
3-1/2	120	120	133	95.5	372	92.0	229	203	626	419	105	6.35	6.35
4	150	153	140	108	368	104	254	229	653	468	166	6.35	6.35

Packing & Delivery

If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!

Chongqing DESO Lifting Co., Ltd is committed to the developing and manufacturing High quality products which are widely used for operations of heavy duty lifting, rigging, fastening, and material handling in mines, oil rigs, mills, docks, and on ships. All the products we provide can be certified by registers BV, ABS, Lloyd' S, etc.

Deso' History can be dated back to 1987, following The Policy Of Reform And opening of China, Our domestic and global market with huge demand for lifting material, we begin our business first with Chain Hoist and Lever Hoist. Our products with good reputation in China, and we also export goods to a few countries like USA, Germany etc. By cooperating with some National stae-owned Imp&Exp enterprises.

Deso gained the right to export in 2002 following the step of China' S joining WTO(World Trade Organization), we are among the first companies with the authority to export in China. In order to meet the demand of our client(Mainly for European and MID-East at that time), we expanded our products from Chain Block&Lever Block to more lifting material. After the development of the past years, our high quality products with good price including:

*Chain Block&Lever Block.

*G80 Chain, Hook, Master Link, Connecting Link, Chain Sling.

*G100 Chain, Hook, Master Link, Connecting Link, Chain Sling.

*US Type Shackles and Other Rigging Hardware.

*Steel Wire Rope.

*Electric Hoist&Winch.

Deso invested new factory and facility in Jiangsu Province2010, updated production line and facility guarantee us improved quality and capacity, combined with our 27 years' S experience in the field of international trade. We find our advantages to Survive and the right way to help our customer win the marketshare, that' S quality and service.

When Buying From Deso You Are Buying More Than Products, You Are Buying Quality And Service
