Rotation Platform Rig Drilling Equipment Single Double Triple Jet Grouting

Name: Rotation Platform Rig Drilling Equipment Single Double Triple Jet Grouting
Brand: tool-buy.com
SKU: 809619925
Availability: InStock
Rating: 4.3 (44 reviews)

Price:	US $ 28600-35000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd.

Showroom Product Company Profile

Prod Model:	MDL-135D
Application:	Urban Subway, High-Rise Buildings, Airport, Groun

Product Description

Quick Detail:

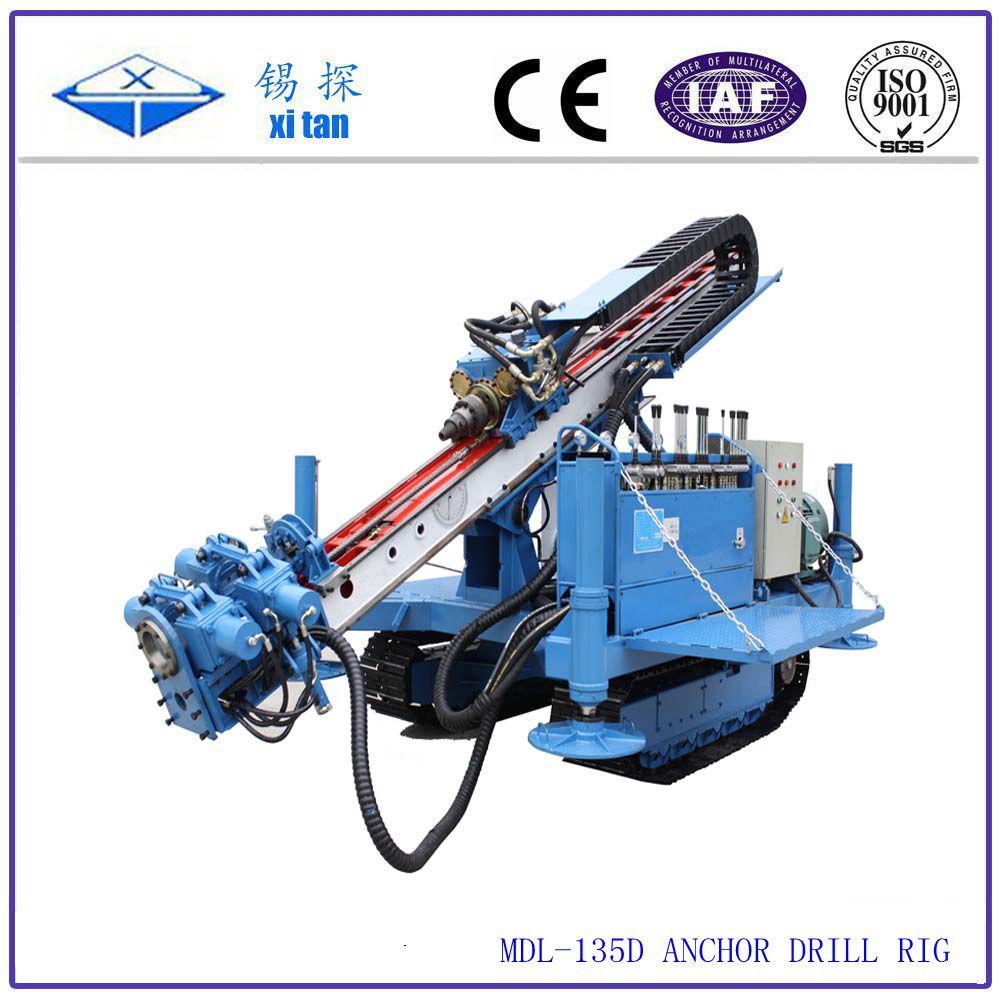

1. MDL-135D drilling rig is a kind of full hydraulic power head crawler drilling rig. Its drilling depth is 100-140m, and drilling diameter150-250mm.

2. The great rotary torque and long feeding stroke distance of the drilling rig make the speed of borehole faster, the disposal capability of accident better and efficiency of drilling work higher.

3. The equipment is mounted on the crawler with the turning platform mechanism which makes the moving and walking more and more convenient.

4. This rig can be used for single,double and triple tube jet grouting drilling,and can be used with double

casing drilling.

Description:

1. MDL-135D drilling rig is a kind of full hydraulic power head crawler drilling rig. Its drilling depth is 100-140m, and drilling diameter150-250mm.

2. The drilling mainly for anchoring and jet-grouting, which is designed and produced by Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. It is mainly applied in drilling work of the anchoring hole of high buildings deep basement foundation, and also used in drilling the drain hole. It can be also used for foundation pit,the blast hole,the anti-floating anchoring hole .

3. The route of shaft bracket is 3.4 meters, so the 135D crawler anchor drilling rig can have complex rod & casing drill for 3 meters. The rig is applicable to rod boring, casing drilling and complex rod & casing drilling.

4. It can be used for jet grouting, which is applicable to single jet grouting, double jet grouting and triple jet grouting.

5. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.

6.Based on different stratums,we can adjust torque and rotary speed of drilling rig to increase the rig adaptability.

Applications:

1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.

2. Jet grouting and dewatering.

3. This engineering drill rig can be used for drilling geothermal hole and well.

4. The blast hole,the anti-floating anchoring hole .

Specifications:

Hole depth	100-140m
Rod dia	150-250mm
Hole angle(°)	0-90°
Output rotary speed of power head	10/20/25/40/50/60/70/100/120/140r/min
Stroke of power head	3400mm
Output torque of power head	6800N.m
Stroke of slide frame	900mm
Lifting force of power head	65KN
Feeding force of power head	33kN
Power	Electric motor:	55+18.5+2.2KW
Weight	6000KG
Dimensions (L×W×H)	5400×2100×2000mm

Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets

Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.

Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.

We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.

Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
