| Prod Model: |
GDW-KT-115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Diamond Wire Saw for Granite |
| Model: |
Gdw-Kt-115 |
| Diameters: |
11.5mm |
| Coating: |
Rubber |
| Beads: |
Sintered |
| No. Of Beads: |
40 PCS |
| Applcation: |
Diamond Wire Saw for Granite Quarrying |
| Certification: |
SGS |
| Manufacturing Arts: |
Sinter |
Product Description

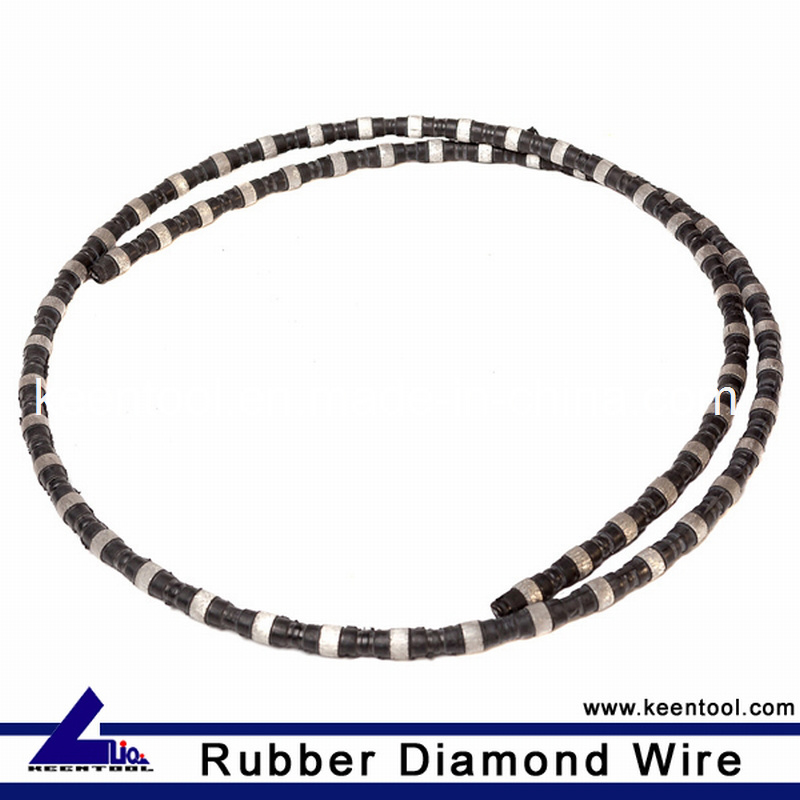

DescriptionCrude rubber coating diamond wire saw with advantages of good flexibility, good protection for internal steel cable, good safety and stability during cutting, which is the best choice for quarrying of hard materials like Granite, Sandstone, Basalt etc.
The performance varies according to hardness and wear index of granite materials, main motor power of
Cutting machine, electric current of power supply etc.
Remarks:
1. Other specifications are available as per customer requirement.
2. Different types of wire beads special for different material are available.
Technical DataArt No. | Specification (mm) | Beads/M | Reinforcement |

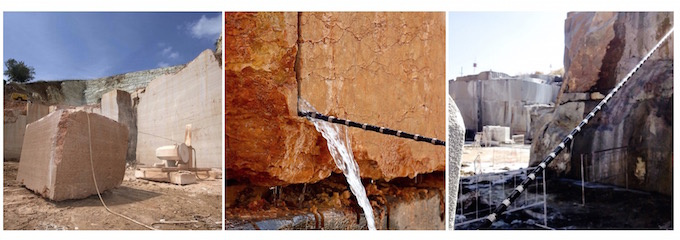

To be widely used for granite quarrying, and block trimming in the mine | ROC-GQ40R | ¢11.5×6.5 | 40 | Rubber |
ROC-GQ37R | ¢11.5×6.5 | 37 | Rubber |
ROC-GB40R | ¢11.0×6.5 | 40 | Rubber |
ROC-GB37R | ¢11.0×6.5 | 37 | Rubber |
Cutting Material | Linear Speed (M/S) | Cutting Speed (M2/H) | Cutting Life (M2/M) |
Soft Granite | 28-40 | 12-20 | 30-45 |
Medium Granite | 28-35 | 8-15 | 20-30 |
Hard Granite | 24-32 | 4-9 | 10-20 |
Abrasive Granite | 28-40 | 10-15 | 25-35 |

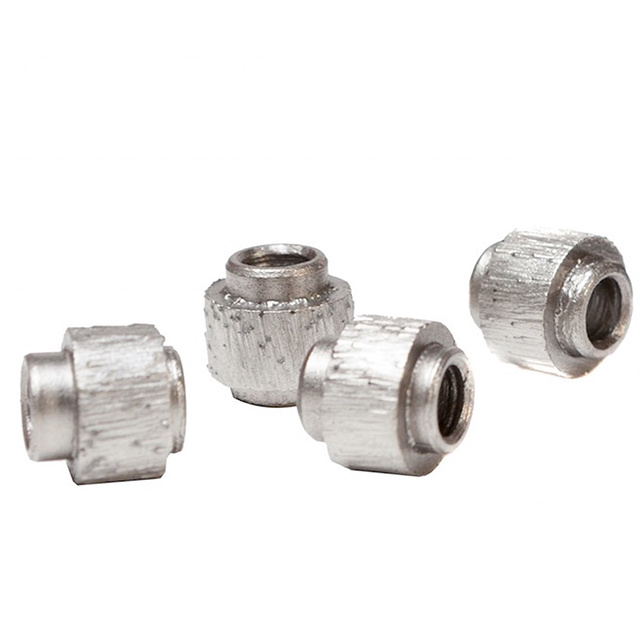

Beads Spec. | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
¢11.5 | 6.5 | 11 | Sintered |
¢11.0 | 6.5 | 11 | Sintered |

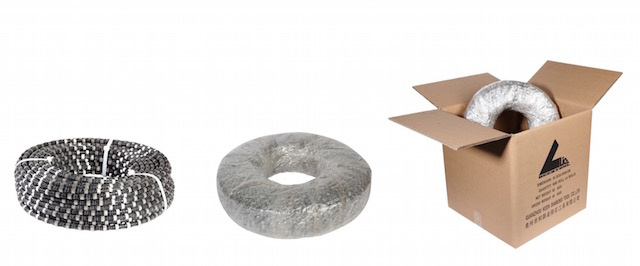

Packaging & Shipping: Packaging: Carton with water proof plastic.
Meters/Roll: 50/60Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
