Rubber+Flat Spring Reinforced Diamond Wire Saw with 10.5mm Diameter Sintered Beads for Cutting Steel and Cast Iron
| Price: |
US $ 40-50/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
ROC-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Beads/M: |
40 Bpm |
| Coating: |
Rubber + Spring |
| Use: |
Wet Cutting of Metal Materials |
| Length Available: |
15-120lm |
| Weight: |
0.36kgs/Lm |
| Certification: |
SGS Ce |
| Equipment For Wire: |
Working on Cedima/Hilti and Tyrolit Wire Saws |
| Cutting Speed: |
0.5-1m2/Hour |
| Cutting Life: |
0.8-1.5m2/Lm |
Product Description
Description:Diamond Wire For Cutting Steel Pipe/ Cast Iron and Other Metal Materials:
Thanks to continuous development of diamond wire technology, the wire cutting system has been widely introduced to projects of cutting particular materials like steel pipe, cast Iron and other metal materials.

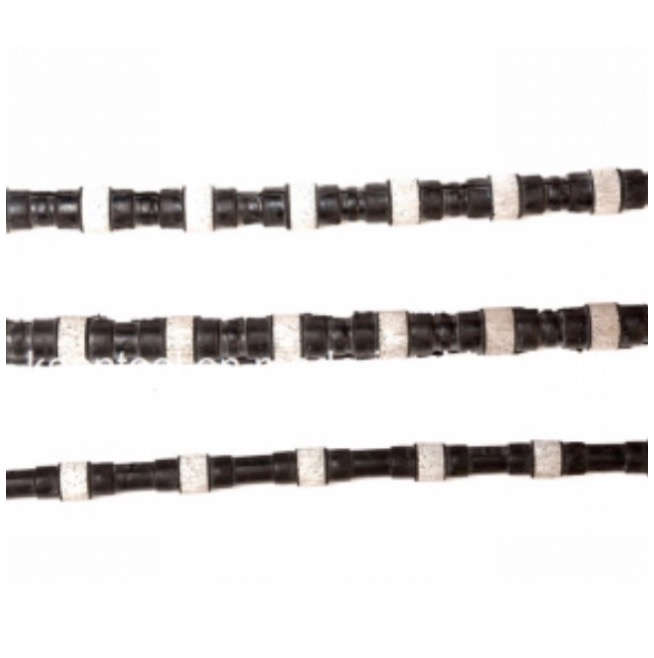

"Rubber + Spring" reinforced diamond wire saw with is recommended for cutting in steel and metal construction (with or without concrete) , also applicable for offshore or under-water conditions.Technical Data:| Application | Art No | Specification (mm) | Beads/M | Reinforcement |
| To be widely used for cutting concrete, reinforced concrete and steel pipe | ROC-C110R | ¢11.0×6.5 | 40 | Rubber+Spring |
| ROC-C105R | ¢10.5×6.5 | 40 | Rubber+Spring |
| Cutting Material | Linear Speed (M/S) | Cutting Speed (M2/H) | Cutting Life
(M2/M) |
| Steel Pipe/Metal | 12-18 | 0.5-1 | 0.5-1.2 |
| Beads Spec | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
| ¢11.0 | 6.5 | 11 | Sintered |
| ¢10.5 | 6.5 | 11 | Sintered |
Features of Keentool Diamond Wire Saw: - Keentool studied the metal materials to be cut to design the soft bond with strong diamond for this special hard applications
- Keentool wires use the top quality steel cable from Germany
- Keentool developed special rubber and the technology of vulcanization, with strong flat spring between beads to make sure our diamond wire can work in most hard-working conditions

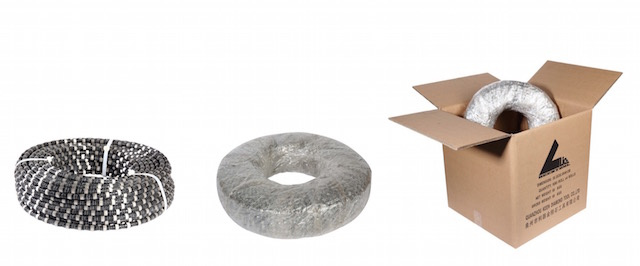

Packaging & Shipping: Packaging: Carton with water proof plastic.
Meters/Roll: 50/60Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
