| Prod Model: |
XQL-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Used For: |
Cutter Rubber Crumbs |
| Packing System: |
Seaworthy Packing |
| Cooling Mode: |
Air Cooling |
| Applicable Material: |
EPDM, PVC, Rubber, Leather, Plastic, |
| Power: |
11-25kw |
| Control Software: |
Electrical Button |
| Tire Cutting Thickness: |
1000mm |
| Name: |
Big Tire Cutting Machine |
| Machine Size: |
3000*700*3600 mm |
Product Description
XQL Series Single Knife Rubber Cutting Machine / Blade Hydraulic Rubber Bale Cutter

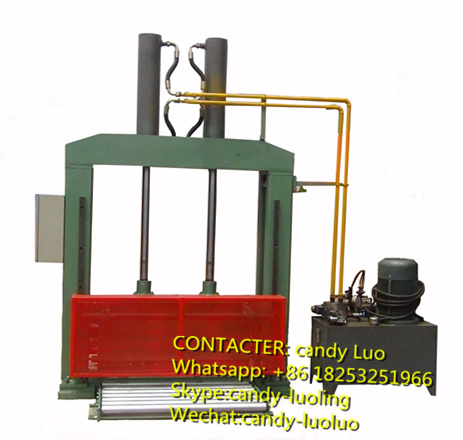

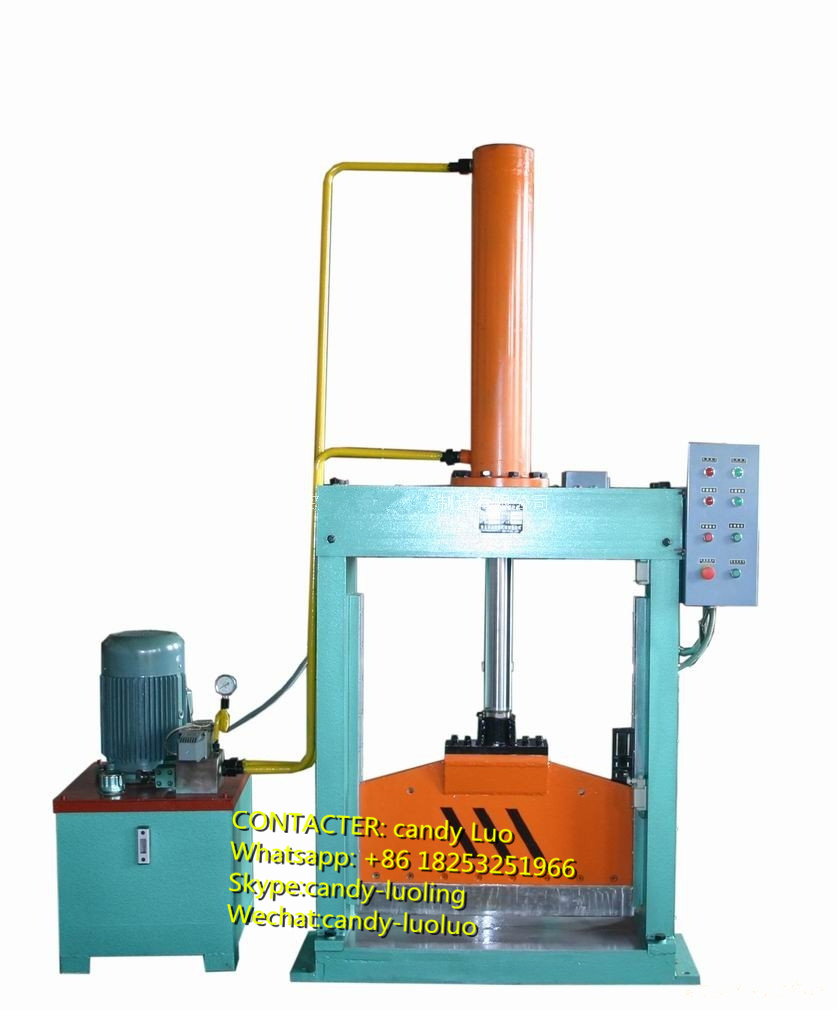

photos of Single Knife Rubber Cutting Machine / Blade Hydraulic Rubber Bale Cutter
Feature of Single Knife Rubber Cutting Machine / Blade Hydraulic Rubber Bale Cutter
1. Using high hardness and high precision circular knife cutting, pneumatic feed, pneumatic the tailstock (the tailstock has owe pressure protection device);
2. Cutting spindle replaceable steering, satisfy customer's different way to cut,
3. According to the customer's need to increase the feeding diameter to ø 300mm, at circular knife parts increase drive motor and reducer, knife seat installs the precision linear guide bearing, make cutting more stable, cutting out of finished edge is more beautiful, especially suitable for cutting large diameter of bubble surface materials;
4. Can increase the sword type flat knife slitting structure (manual cutting machine slitting functions), can be manual pushing flat blade for cutting, more convenient, meanwhile slitting flat end face, Cutting spindle domains on PE hose protect knife, prevent blade bruising,Operation is very simple;
5. Slitting length by hexagon positioning shaft decision, can set up six basic slitting width,also in six basic width of cutting, multiple cutting width accurate location.
Main technical parameters |
| Move form of rotor blade | Back and forth |
| Quantity of blade | 2 |
| Length of blade | 680 mm |
| Reciprocating frequency | 26 time/min |
| Power | 3 kw |
| Dimension | 1650*800*1000 mm |
| Weight | 600 kg
|
Work Principle:
Natural Crumb Rubber Hydraulic Guillotine Cutter are used in cutting natural rubber/synthetic rubber blocks into smaller pieces for secondary refining.According tothe width of the cutters, there are 2 different sizes of Hydraulic Guillotine Cutter, which with the cutter of 660mm width and the other 1000mm. These 2 typesof rubber cutting machines are in different sizes, but same construction.
Function:
Machine consists of a rack, a cutter, a hydro-cylinder, and the hydraulicsystem. During operation, the rubber block is put under the cutter, then it will be cut into2 pieces by the cutter which is moving down by the pressure from the hydraulic cylinder.
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
