Waste Tire Block Cutting Machine, Waste Tire Block Cutter
| Price: |
US $ 8000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
QKJ-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Rubber Cutter |
| Weight: |
<50 Tons |
| Power: |
<10kw |
| Using Life: |
≥15 Years |
| Customized: |
Non-Customized |
| Type Of Tire Machinery: |
Waste Tire Recycling Machine |
| Name: |
Waste Tire Block Cutter |
| Function: |
Waste Tire Cutting, Shredding, Crushing |
| Motor Power: |
5.5kw |
Product Description
Waste tire cutting machine tire cutting tool tire cutter machine

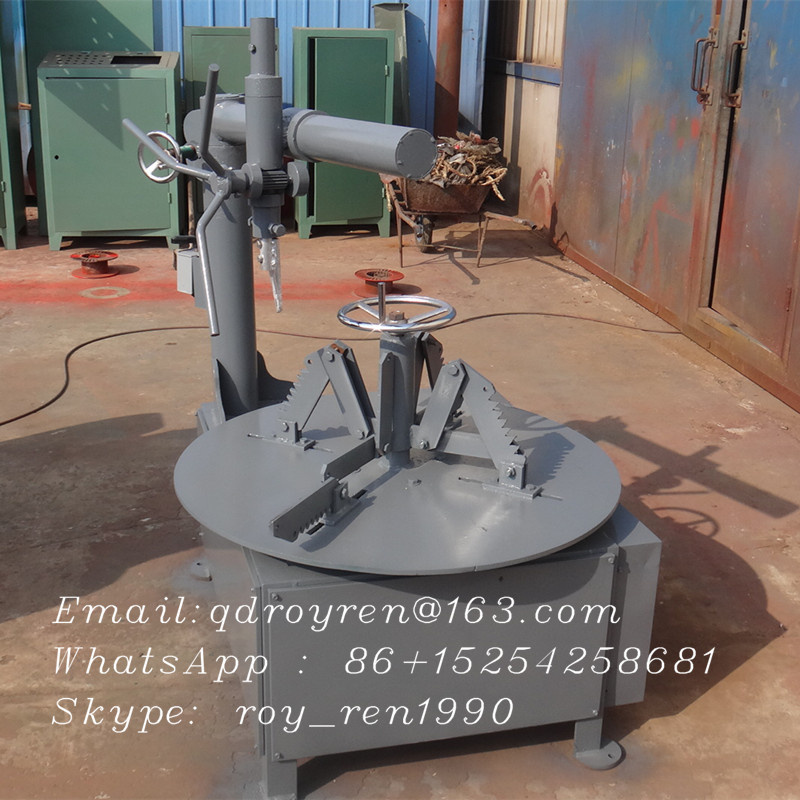

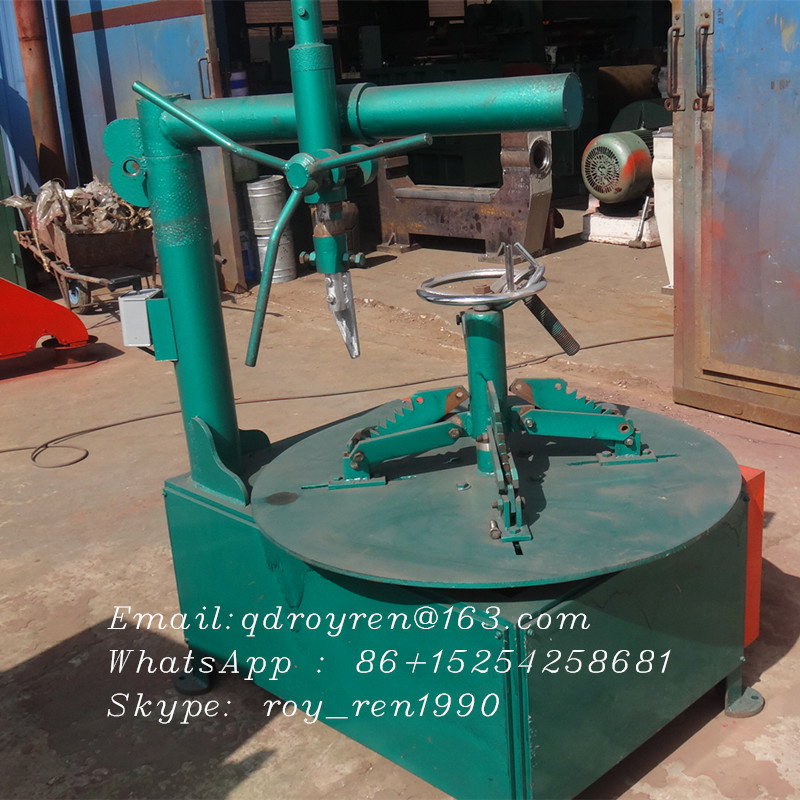

1.ring cutter
ring cutter is used for cutting the used tire into three parts,two sidewalls and one tread.
spare blades can be sent together with machines free of charge.
model |
motor
(kw) |
processing range(mm) |
weight
(kg) |
dimension
(mm) |
production |
| QKF850 | 2.2 | 750-1200 | 300 | 1300*900*1480 | 2ton tire/h |

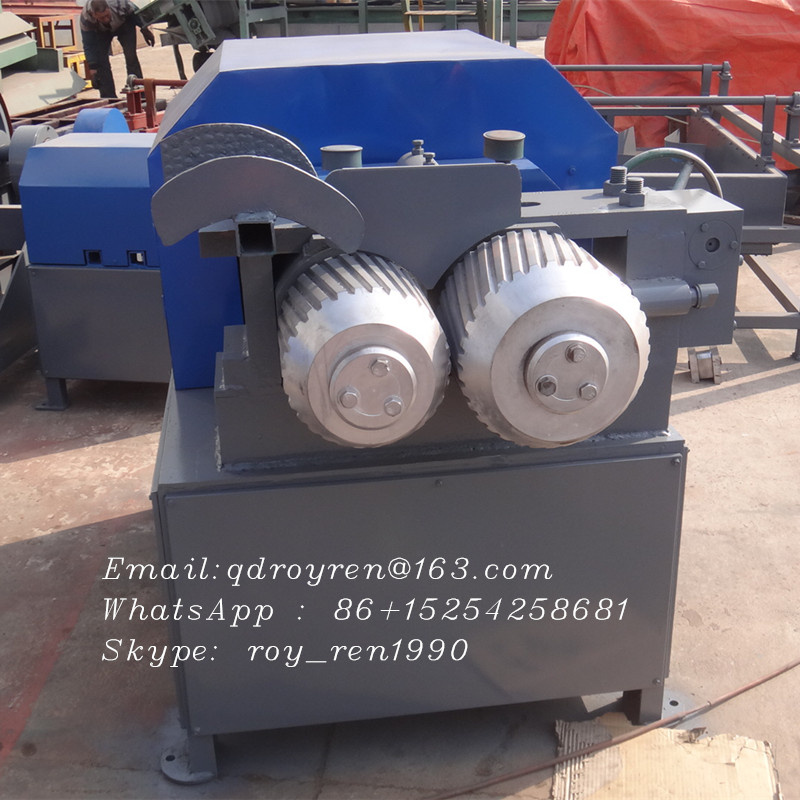

2.strips cutter
strips cutter is used for cutting the sidewalls and tread into rubber strips.
circle blades can run for at least 1 year,grind and sharp are necessary for maintain.
model |
motor
(kw) |
processing range
(mm) |
weight
(kg) |
dimension
(mm) |
production |
| QT380 | 4 | 750-1200 | 900 | 1300*750*1580 | 1ton/hour |
3.blocks cutter
blocks cutter is used for cutting rubber strips into rubber blocks.
3 pieces blades can run for at least half year,grind and sharp are necessary for maintain.
model | motor(kw) | processing range(mm) | weight(kg) | dimension(mm) | production |
| QK200 | 7.5 | 750-1200 | 450 | 800*810*1070 | 1ton/hour |
4.bead wire separator
bead wire separator is to separate the whole steel circle from bead.
cast steel rollers can run for at least 2 years,grind and welding are necessary for maintain.
model | motor(kw) | Processing range | Weight(kg) | Dimension(mm) | production |
| GF240 | 15 | bead tire | 1800 |
1520*1180*122
|
30pieces tire/hour |
CJ-1200 tire cutter
Use:more than 800 tyres need this kind of cutting machine, after cutting can break in the broken tire machine.
The cutter machine is made up of motor, hydraulic system, oil cylinder, one pair of blade, frame and rotating body etc.
The basic principle is: motor drive hydraulic system and the cylinder, place the tire betwork to lock arm, fasten two blades rotating between tire and shear cylinders work to move, two blades rotating blades forming shear, achieve the effect of shear.
Feature:
This equipment, good shear effect,shearing speed, low energy consumption, small volume, convenient, because use the hydraulic system, easy operation and safety.
Mechanical description: the tires more than 800 need to cut,and cut into four pieces in general.the size of piece is 200-500mm
technical parameters:
Adapt tire |
1200mm(less than 1200) |
capacity |
20-60 tires/h |
Motor power |
5.5KW |
Dimension |
2080*1000*2130 |
pull power |
1.5T |
Adopt to tire |
1200-2000mm |
weight |
2T |
Our packing way :Export standard (wooden package ) or according to your requirement .
Our Services :
1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.
2 .Our service department listen to customers' feedback at any time and provide spare parts timely.Welcome to visit our factory and we can show you the machine in working condition:
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
