| Prod Model: |
XQL-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Way: |
Hydraulic Press |
| Drive: |
Motor Drive |
| Model: |
Xql-80, 160, 1500 |
| Overal Size: |
2000*1000*2500mm |
| Knife Number: |
Single Knife |
| System: |
Hydraulic |
| Cutting Width: |
680, 800, 1000, 1500mm |
| Color: |
Green, Blue or Your Demand |
| Warranty: |
2 Years |
Product Description

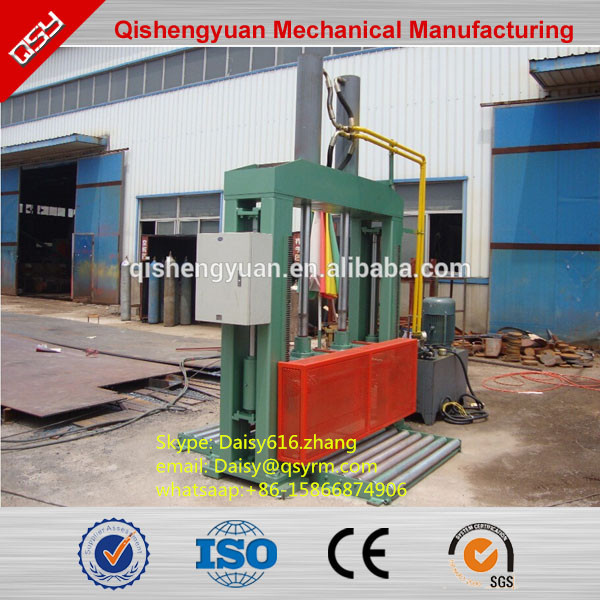

XQL-16 rubber bale cutter/rubber cutting machine/bale splitter
1. our company information:
our company set more than 20 years of manufacturing techology, has brought together with rich exprience of techology staff. specializing in the production of rubber mixing machine, rubber mixing mill,rubber mixer,rubber calendering machine. plate vulcanizing machine, rubber floor tiles vulcanizing machine. rubber extruder, hot feeding rubber extruder machine, cold feeding rubber extruder, rubber refining machine, rubber powder production line, waste rubber tires recycling plant, rubber cutting machine, conveyor belt production line and so on. we have excellent staff and high quality research and development management team. and can according to user requirements design and manufacture all kinds of special and non-standard rubber machienry and equipment.
2. product discription:
Rubber Cutter is mainly used to cut the natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.
This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is caste on the base under the rubber knife for protecting the edge of the rubber knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder
3. main technology specification:
| Main parameters/Model | XQL-80 | XQL-120 | XQL-160 |
| Width (mm) | 660 | 760 | 1000 |
| Stroke (mm) | 680 | 680 | 680 |
| Diameter of the piston (mm) | 150 | 150 | 150 |
| Time Taken by the stroke (s) | 13-16 | 13-16 | 16-25 |
| Power (kw) | 5.5 | 5.5 | 5.5 |
| Overall size (mm) | 2122*1440*2500 | 2300*1500*2530 | 2240*720*2580 |
| Weight (kg) | 1600 | 2000 | 2200 |
4. our company sevice:
1). Are you manufacturer?
yes, we are BV approved rubber products manufacturer in china.
2). Can you design new product for us?
yes, we have a professional development team that make products accoding to your requirements.
3). What's your payment term?
common is 30% deposit by T/T. the balance paid against shipping documents. or L/C at sight.
4). Are your near to qingdao airport?
yes, only within 1.5 hours. and within 1 hours to qingdao sea port. 50 minutes to qingdao railway station.
5). Do you have any certification of your products?
yes, CE, ISO, BV,SGS.
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
