| Price: | US $ 0.7-60/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | 30308 |
|---|---|
| Structure: | Taper |
| Type: | Roller |
| Bore Size: | 0 - 35 mm |
| Precision: | P0 P6 P5 |
| Cage: | Steel Cage |
| Seals Type: | Open Zz 2RS |
| Thickness: | 22.5mm |
| Vibration: | V1 V2 V3 |
| Weight: | 0.511kg |
| Sample: | Available |
| Rolling Body: | Roller Bearings |
| The Number Of Rows: | Single |
| Outer Dimension: | Small and Medium-Sized (',60-115mm) |
| Material: | Bearing Steel |
| Load Direction: | Radial Bearing |
| Separated: | Separated |
Specification:
1. High quality with competitive price
2. ISO9001:2008 certificate
3. Quality guarantee:one year after shipment
4. Directly supply from factory
5. 20 years history in bearing manufacturing industry.
6. Strict quality control system.
Brief introduction of Taper roller bearing:
Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.
Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.
Tapere roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring's raceway. The bigger the contact angle is, the greater the capacity will be.
Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

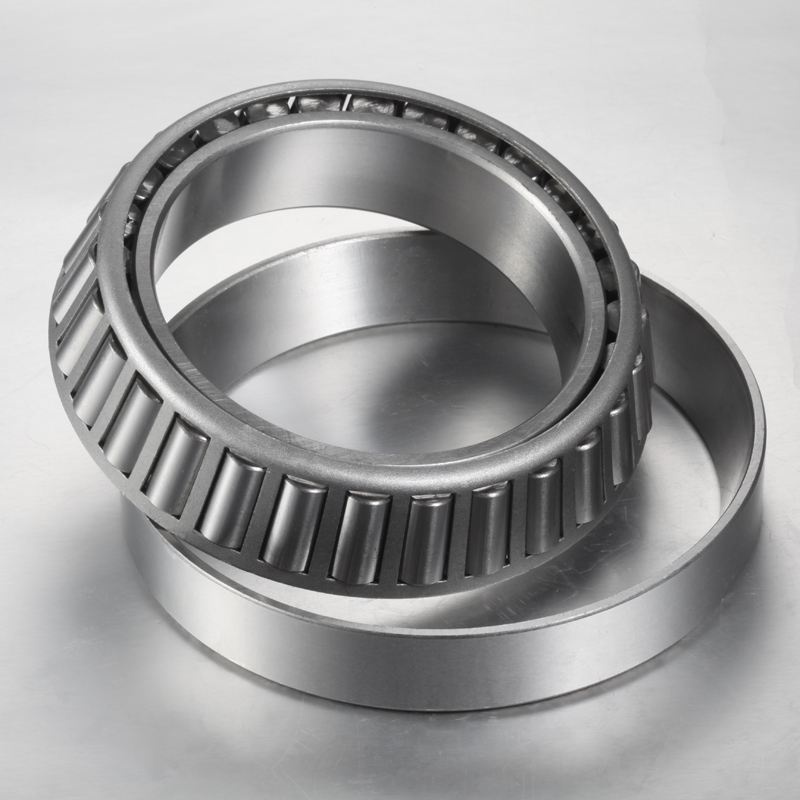

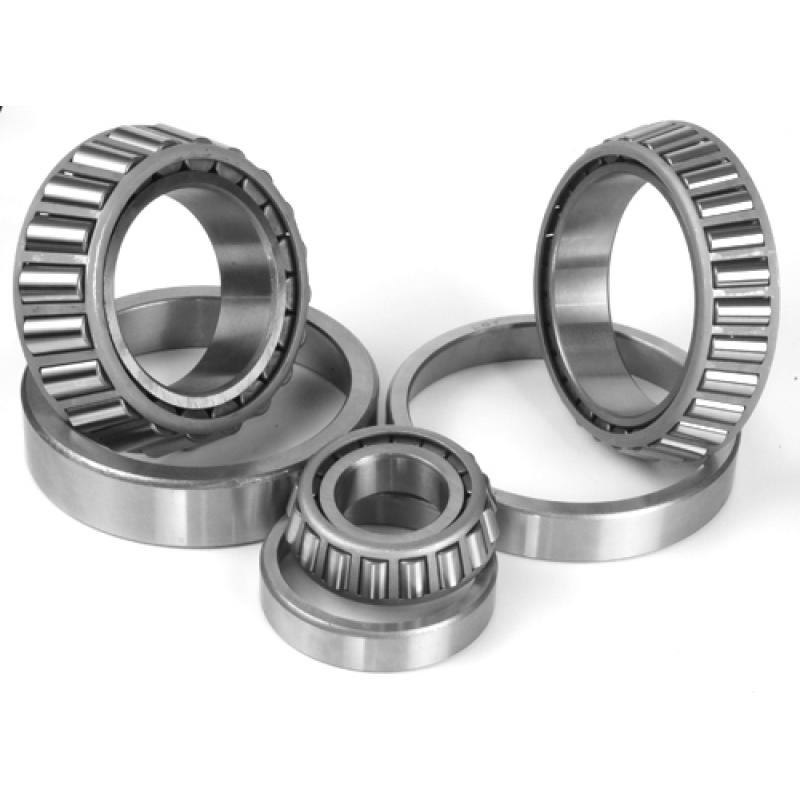

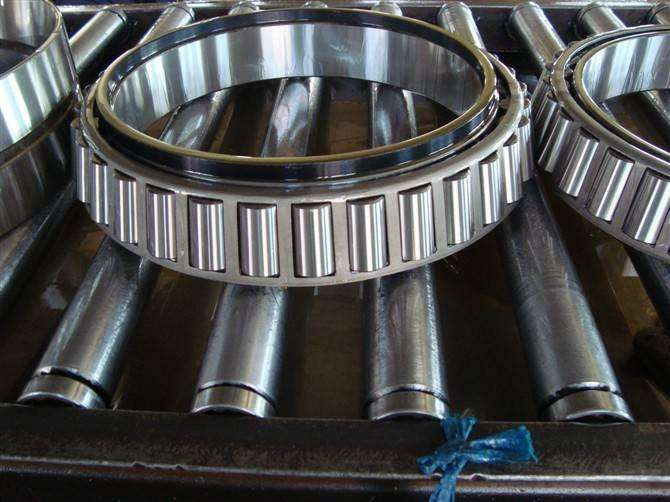

Photos Shows: Single Row Taper Roller Bearing 30308 30309 30310 Bearing

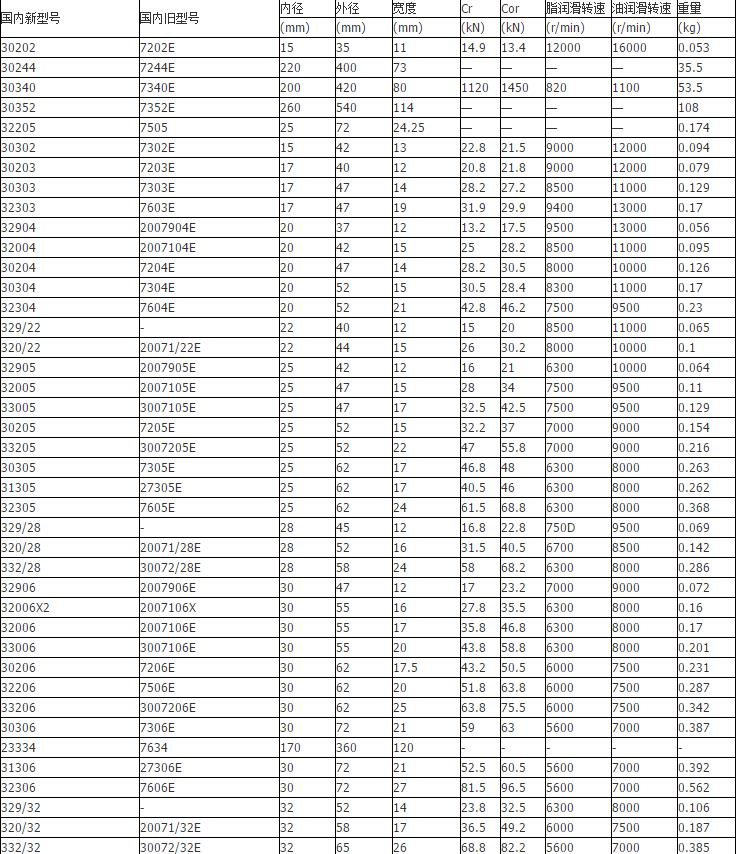

Series models specification:
