| Prod Model: |
CK40L |
| Max.Swing Over Bed: |
360mm |
| Max Swing Over Slide: |
160mm |
| Max Processing Length: |
350mm |
| Max. Bar Diameter: |
45mm |
| Spindle Speed: |
4000rmp |
| Spindle Through Hole Diameter: |
56mm |
| X Axis Travel: |
200mm |
| Z Axis Travel: |
350mm |
| X/Z Rapid Speed: |
24/24 M/Min |
| Tool Size: |
20*20mm |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |

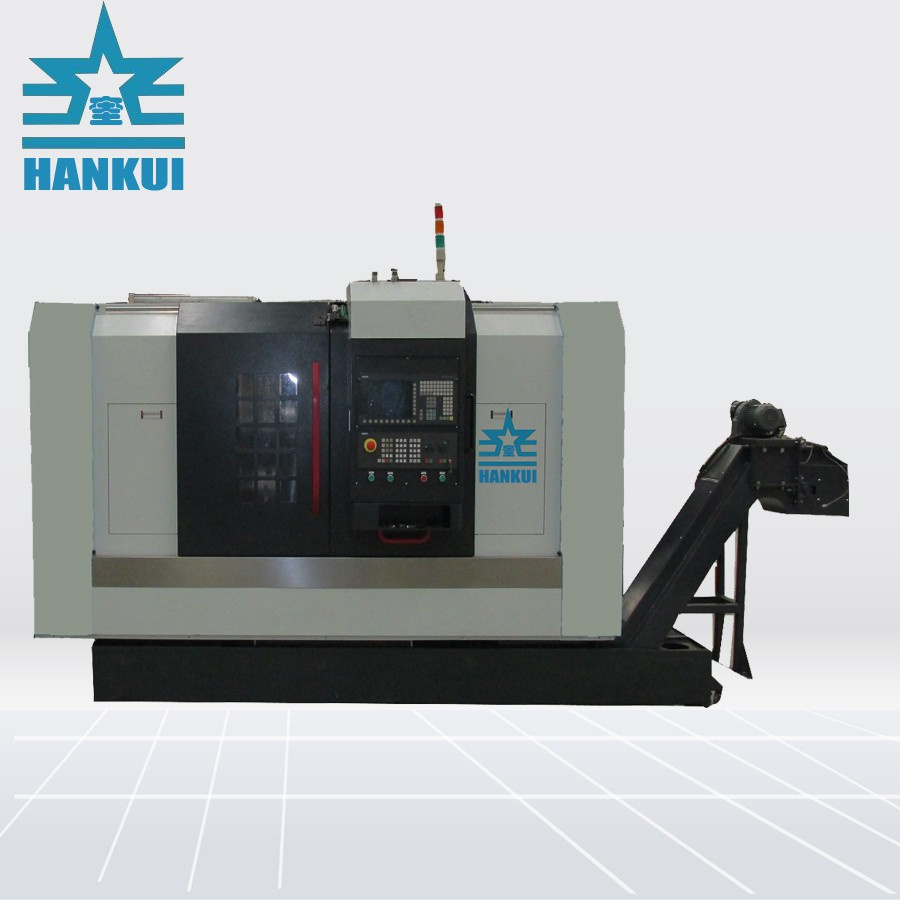

Product Description
Made In China CNC Slant Machinery With Import Controller | Specification | CK-32L | CK-36L | CK-40L | CK-50L | CK-63L | CK-80L |
| Max.swing over Bed | 320 | 360 | 400 | 500 | 660 | 800 |
| Max.swing over Slide | 160 | 160 | 220 | 320 | 500 | 640 |
| Max. Processing Length | 350 | 350 | 450 | 550 | 890 | 890 |
Max. Cutting Dia.
(disc type) | 200 | 254 | 360 | 420 | 630 | 800 |
| Max. Bar Dia. | 40 | 45 | 51 | 51 | 75 | 90 |
| Spindle Speed | 4000 | 4000 | 3500 | 2500 | 2200 | 1500 |
| Spindle Nose ISO Form | A2-5 | A2-5 | A2-5 | A2-6/8 | A2-8 | A2-11 |
| Thru-hole Dia. | 41 | 56 | 56 | 66/82 | 86 | 112 |
| Chuck Dia. | 160(6") | 200(6") | 200(8") | 250(10") | 320(12") | 380(15") |
| Motr Power | 3.7(servo) | 3.7/5.5(servo) | 5.5/7.5/11 (servo) | 11/15(servo) | 18~22(servo) |
| Body Structure | 30°integrated | 30° integrated | 45° integrated | 45° integrated | 30°integrated | 30° integrated |
| X axis Travel | 200 | 200 | 210 | 260 | 410 | 410 |
| Z axis Travel | 350 | 350 | 450 | 550 | 860 | 860 |
| X/Z axis Rapid Speed | 24/24 | 24/24 | 24/24 | 24/24 | 18/18 | 18/18 |
| Type | | 63-8T | 80-8T | 100-8T | 160-8T | 160-8T |
| Tool Size | 20*20 | 20*20 | 20*20 | 25*25 | 25*25 | 25*25 |
| Tailstock Sleeve Dia. | 52 | 52 | 52 | 75 | 150 | 150 |
| Tailstock Sleeve Travel | 60 | 60 | 60 | 100 | 150 | 150 |
| Tailstock Sleeve Taper | MT4 | MT4 | MT4 | MT5 | MT5 | MT5 |
| Processing Precision | IT6 |
| Repositioning Precision | X:0.006, Z:0.008 | X:0.006, Z:0.01 |
| Roughness | Ra.≤0.8 | Ra.≤1.25 |
| N.W (kg) | 1500 | 1700 | 2700 | 3500 | 5500 | 5600 |
| Dimension (m) | 1.6*1.4*1.6 | 1.8*1.6*1.6 | 2.8*1.6*1.6 | 3.1*1.8*1.8 | 3.8*2.2*2.2 | 3.8*2.2*2.2 |
Standard configuration:
1.Sleeve type spindle
2.8-Station hydraulic turret
3.Taiwan linear guide way
4.Automatic lubrication
5.Hydraulic tail stock
7.Full enclosed cover
8.Hollow hydraulic chuck
9.Three color warning light
Optional configuration:
1.Automatic chip conveyor
2.10/12 station hydraclic turret
3.Servo turret
4.CNC controller: SIEMENS/FANUC/KND/GSK/MITSUBISHI/SYNTEC

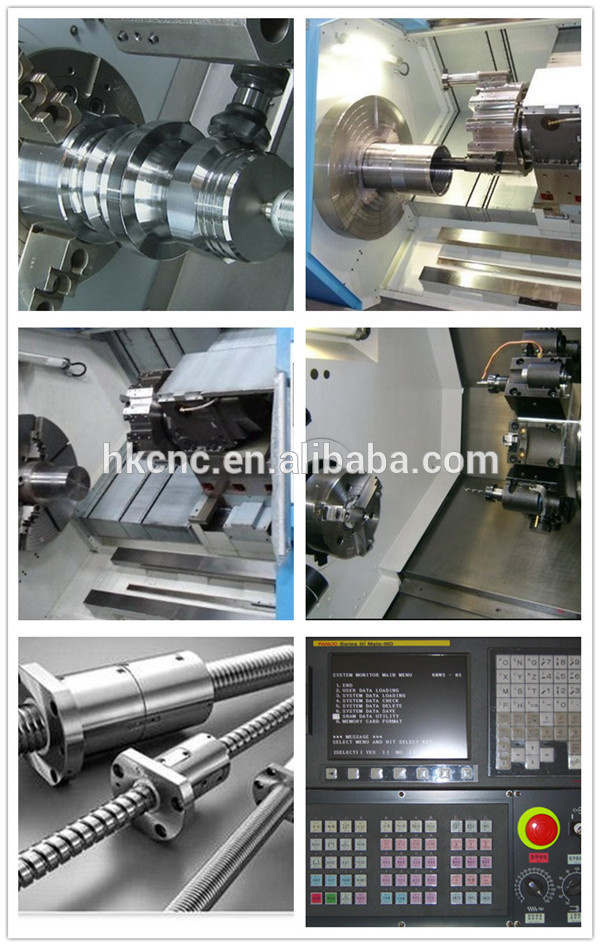

Detail photos

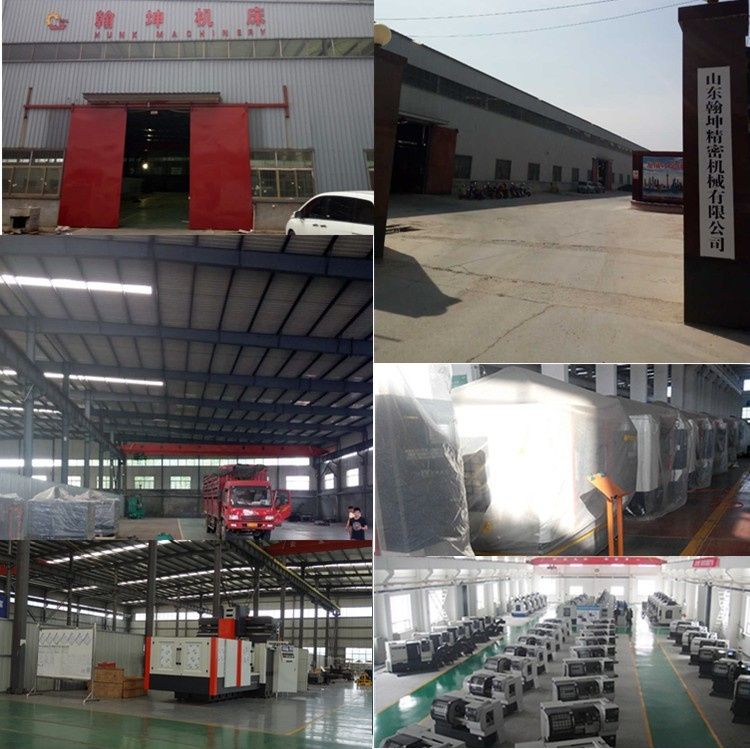

Our Factory:
Shippment
Together with our customers
Our certification
FAQ1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
2. Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
3. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
4. Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
5. Q: What sales terms do you have?
A: T/T, L/C,West Union.
6. Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
7. Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
8. Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
9. Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
10. Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
11. Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
