| Prod Model: |
LA110S |
| Frequency Response: |
40Hz-200Hz(±3dB) 30Hz-320Hz(-10dB) |
| Nominal Cverage: |
Omnidirectional |
| Sensitivity: |
100dB Spl |
| Power Rating: |
1000W |
| Nominal Impedance: |
8 Ohm |
| Maximum Spl: |
130dB (Continuous) 136dB (Peak) |
| Drivers: |
2X15" Woofer (75mm Voice Coil) |
| Dimensions (Hxwxd): |
680X580X796mm |
| Weight: |
60kg |
| Service: |
OEM/ODM |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
SGS |
| THD: |
>0.01% |
| Monitor: |
None |
Product Description

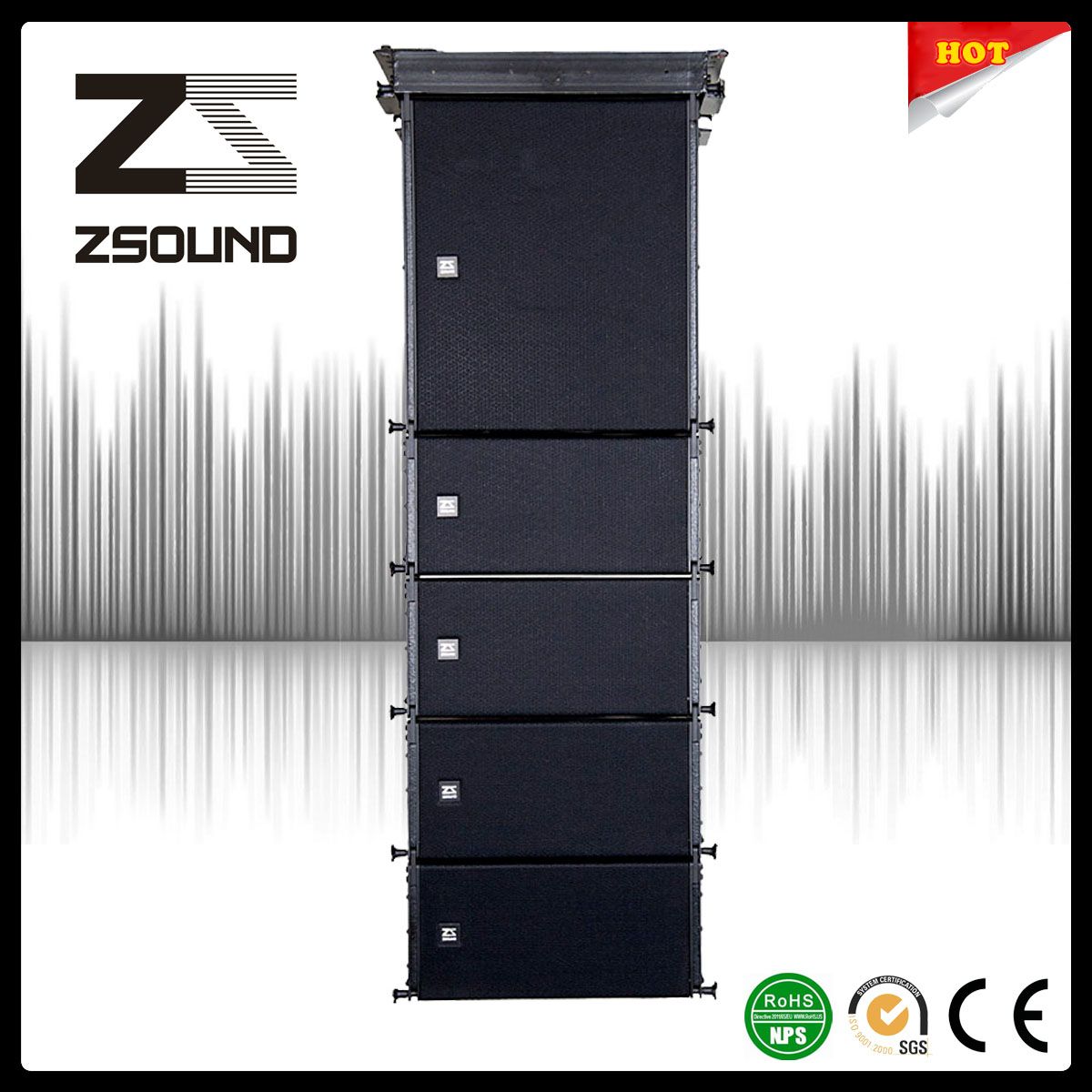

Small enclosure Dual 15 inch line array speaker
Product DescriptionLA110S subwoofer is a one way system, which provides 40Hz-200Hz,30Hz-320Hz frequency response, with flat frequency and phase response.two 15" low-frequency driver to generate ultrahigh headroom,effectively decrease the weight of the enclosure,and obviously improve the ratio of SPL and Volume.
Feature:
75mm voice coil high-transient response woofer
small volume, vented, horn preposition design
small enclosure but high SPL output
Applications:
Touring performance
theatre and multi-functional hall
church
| TECHNICAL SPECIFICATION |
| Frequency Response: | 40Hz-200Hz(±3dB) 30Hz-320Hz(-10dB) |
| Nominal Coverage: | Omnidirectional |
| Sensitivity(@1w/1m): | 100dB SPL |
| Power Rating (AES): | 1000W |
| Nominal impedance: | 8 Ohm |
| Maximium SPL: | 130dB(continuours) 136(peak) |
| Drivers: | 2x15" (75mm voice coil) woofer |
| |
| PHYSICAL DATA |
| Dimension(H*W*D): | 680*580*796mm |
| Weight: | 60kg |
| Connectors: | 2*WP4 connectors |
| Speaker cables: | 1-2+ |
| Materials: | 15mm, 18mm brich multi-plywood |
| FINISH: | Black water paint |
| GRILLE: | Black epoxy mesh grille with acoustically reticulated foam |
| RIGGING | 5,0,-5,-10 degree adjustable |
