| Prod Model: |
LQ-WSM-11KW |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe |
| Item: |
Small Wire Saw |
| Main Motor Power: |
11/15/22kw |
| Diameter Of Driving Wheel: |
600-1000mm |
| Length Of Wire: |
10-30m |
| Wire Speed: |
0-40m/S |
| Cutting Efficiency: |
1-8m2/H |
| Use: |
Automatic |
| For: |
Granite & Marble |
| Direction: |
Horizontal |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Wire Saw Cutting Machine |
| Control: |
Automatic |
| Certification: |
SGS, CE,a&V |
Product Description

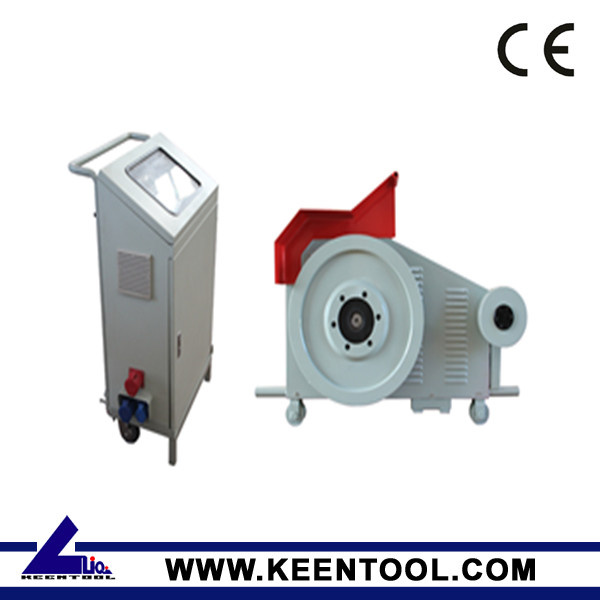

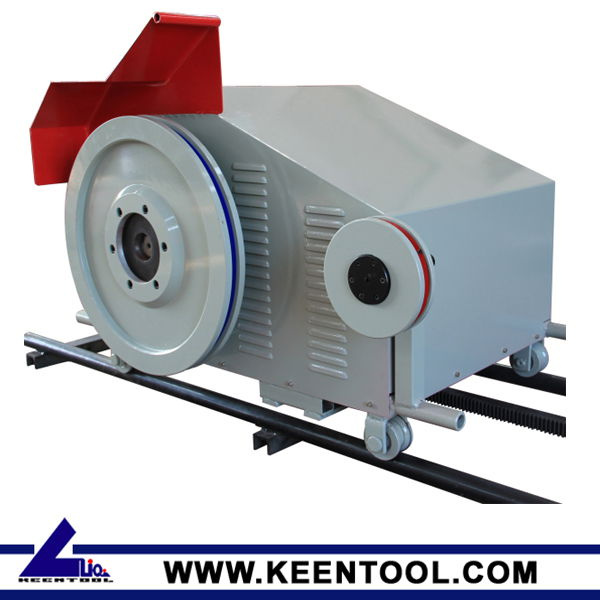

Main features of Small wire saw machine:
1. Small wire saw machine is mainly used for small area cutting, stone blocks in quarrying and block trimming.
2. Constant tensioning system keep the diamond wire always in the best working condition and greatly enhance the cutting life of the diamond wire.
3. With 4 meter track to facilitate the lifting in the quarry. With take-off and landing on both sides for squaring blocks which have a slope.
4. Remote independent control panel, which is safe and easy operation for the operators.
| Model | Main Motor | Length of wire
(Meter) | Linear Speed
(M/Sec) | Diameter of driving wheels
(mm) | Application |
| LQ-WSM-11KW | 11KW/15HP | 5-20 | 0-40 | Φ550 | For block trimming |
| LQ-WSM-15KW | 15KW/20HP | 5-30 | 0-40 | Φ550 |
| LQ-WSM-22KW | 22KW/30HP | 10-40 | 0-40 | Φ600 |
| LQ-WSM-37KW | 37KW/50HP | 20-80 | 0-40 | Φ800 | For Quarry |
| LQ-WSM-45KW | 45KW/60HP | 20-100 |
| LQ-WSM-55KW | 55KW/750HP | 20-120 |
| LQ-WSM-75KW | 75KW/100HP | 20-150 | 0-40 | Φ1000 | |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
