| Prod Model: |
SD-5D-H-IC |
| Cutting Edge Diameter: |
2-20m |
| Flute Length: |
15-130mm |
| Shank Diameter: |
3-20mm |
| Shank Length: |
28-50mm |
| Overall Length: |
46-185mm |
| Sample: |
Free |
Product Description
Solid Carbide Helix Drill with internal Coolant 5xD High-performance Type
1.Features:- All dimension is fixed by our norm and also accepted non standard order.
- Tolerance of dc m7; tolerance of ds h6.
- To achieve the best performance, special design for point angel, point geometry, flute type and coating etc.,

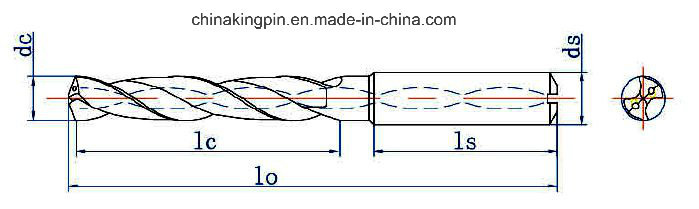

2.Picture:
3.Specification: | High-performance order No. | Cutting Edge Diameter | Flute Length | Shank Diameter | Shank length | Overall Length |
| HE series(Coating for universal type) | dc | lc | ds | ls | lo |
| EA5A1001 | 2.00 | 15 | 3 | 28 | 46 |
| EA5A1002 | 2.10 | 15 | 3 | 28 | 46 |
| EA5A1003 | 2.20 | 15 | 3 | 28 | 46 |
| EA5A1004 | 2.30 | 15 | 3 | 28 | 46 |
| EA5A1005 | 2.40 | 15 | 3 | 28 | 46 |
| EA5A1006 | 2.50 | 15 | 3 | 28 | 46 |
| EA5A1007 | 2.60 | 20 | 3 | 28 | 51 |
| EA5A1008 | 2.70 | 20 | 3 | 28 | 51 |
| EA5A1009 | 2.75 | 20 | 3 | 28 | 51 |
| EA5A1010 | 2.80 | 20 | 3 | 28 | 51 |
| EA5A1011 | 3.00 | 20 | 3 | 28 | 51 |
| EA5A1012 | 3.30 | 26 | 4 | 28 | 59 |
| EA5A1013 | 3.40 | 26 | 4 | 28 | 59 |
| EA5A1014 | 3.50 | 26 | 4 | 28 | 59 |
| EA5A1015 | 3.60 | 26 | 4 | 28 | 59 |
| EA5A1016 | 3.65 | 26 | 4 | 28 | 59 |
| EA5A1017 | 3.70 | 26 | 4 | 28 | 59 |
| EA5A1018 | 3.75 | 26 | 4 | 28 | 59 |
| EA5A1019 | 3.80 | 26 | 4 | 28 | 59 |
| EA5A1020 | 4.00 | 26 | 4 | 28 | 59 |
| EA5A1021 | 4.20 | 35 | 6 | 36 | 76 |
| EA5A1022 | 4.50 | 35 | 6 | 36 | 76 |
| EA5A1023 | 4.60 | 35 | 6 | 36 | 76 |
| EA5A1024 | 4.70 | 35 | 6 | 36 | 76 |
| EA5A1025 | 4.80 | 35 | 6 | 36 | 76 |
| EA5A1026 | 5.00 | 35 | 6 | 36 | 76 |
| EA5A1027 | 5.10 | 39 | 6 | 36 | 80 |
| EA5A1028 | 5.30 | 39 | 6 | 36 | 80 |
| EA5A1029 | 5.50 | 39 | 6 | 36 | 80 |
| EA5A1030 | 5.60 | 39 | 6 | 36 | 80 |
| EA5A1031 | 5.70 | 39 | 6 | 36 | 80 |
| EA5A1032 | 5.80 | 39 | 6 | 36 | 80 |
| EA5A1033 | 6.00 | 39 | 6 | 36 | 80 |
| EA5A1034 | 6.50 | 48 | 8 | 36 | 89 |
| EA5A1035 | 6.60 | 48 | 8 | 36 | 89 |
| EA5A1036 | 6.70 | 48 | 8 | 36 | 89 |
| EA5A1037 | 6.80 | 48 | 8 | 36 | 89 |
| EA5A1038 | 6.90 | 48 | 8 | 36 | 89 |
| EA5A1039 | 7.00 | 48 | 8 | 36 | 89 |
| EA5A1040 | 7.30 | 52 | 8 | 36 | 93 |
| EA5A1041 | 7.40 | 52 | 8 | 36 | 93 |
| EA5A1042 | 7.50 | 52 | 8 | 36 | 93 |
| EA5A1043 | 7.70 | 52 | 8 | 36 | 93 |
| EA5A1044 | 7.80 | 52 | 8 | 36 | 93 |
| EA5A1045 | 8.00 | 52 | 8 | 36 | 93 |
| EA5A1046 | 8.50 | 61 | 10 | 40 | 106 |
| EA5A1047 | 8.70 | 61 | 10 | 40 | 106 |
| EA5A1048 | 8.80 | 61 | 10 | 40 | 106 |
| EA5A1049 | 9.00 | 61 | 10 | 40 | 106 |
| EA5A1050 | 9.30 | 65 | 10 | 40 | 110 |
| EA5A1051 | 9.50 | 65 | 10 | 40 | 110 |
| EA5A1052 | 9.60 | 65 | 10 | 40 | 110 |
| EA5A1053 | 9.70 | 65 | 10 | 40 | 110 |
| EA5A1054 | 9.80 | 65 | 10 | 40 | 110 |
| EA5A1055 | 10.00 | 65 | 10 | 40 | 110 |
| EA5A1056 | 10.20 | 74 | 12 | 45 | 124 |
| EA5A1057 | 10.50 | 74 | 12 | 45 | 124 |
| EA5A1058 | 10.70 | 74 | 12 | 45 | 124 |
| EA5A1059 | 10.80 | 74 | 12 | 45 | 124 |
| EA5A1060 | 11.00 | 74 | 12 | 45 | 124 |
| EA5A1061 | 11.20 | 78 | 12 | 45 | 128 |
| EA5A1062 | 11.50 | 78 | 12 | 45 | 128 |
| EA5A1063 | 11.70 | 78 | 12 | 45 | 128 |
| EA5A1064 | 11.80 | 78 | 12 | 45 | 128 |
| EA5A1065 | 12.00 | 78 | 12 | 45 | 128 |
| EA5A1066 | 12.50 | 87 | 14 | 45 | 137 |
| EA5A1067 | 12.70 | 87 | 14 | 45 | 137 |
| EA5A1068 | 12.80 | 87 | 14 | 45 | 137 |
| EA5A1069 | 13.00 | 87 | 14 | 45 | 137 |
| EA5A1070 | 13.50 | 91 | 14 | 45 | 141 |
| EA5A1071 | 13.70 | 91 | 14 | 45 | 141 |
| EA5A1072 | 13.80 | 91 | 14 | 45 | 141 |
| EA5A1073 | 14.00 | 91 | 14 | 45 | 141 |
| EA5A1074 | 14.50 | 100 | 16 | 48 | 153 |
| EA5A1075 | 14.70 | 100 | 16 | 48 | 153 |
| EA5A1076 | 14.80 | 100 | 16 | 48 | 153 |
| EA5A1077 | 15.00 | 100 | 16 | 48 | 153 |
| EA5A1078 | 15.50 | 104 | 16 | 48 | 157 |
| EA5A1079 | 15.70 | 104 | 16 | 48 | 157 |
| EA5A1080 | 15.80 | 104 | 16 | 48 | 157 |
| EA5A1081 | 16.00 | 104 | 16 | 48 | 157 |
| EA5A1082 | 16.50 | 113 | 18 | 48 | 166 |
| EA5A1083 | 16.70 | 113 | 18 | 48 | 166 |
| EA5A1084 | 16.80 | 113 | 18 | 48 | 166 |
| EA5A1085 | 17.00 | 113 | 18 | 48 | 166 |
| EA5A1086 | 17.50 | 117 | 18 | 48 | 170 |
| EA5A1087 | 17.70 | 117 | 18 | 48 | 170 |
| EA5A1088 | 17.80 | 117 | 18 | 48 | 170 |
| EA5A1089 | 18.00 | 117 | 18 | 48 | 170 |
| EA5A1090 | 18.50 | 126 | 20 | 50 | 181 |
| EA5A1091 | 18.60 | 126 | 20 | 50 | 181 |
| EA5A1092 | 18.70 | 126 | 20 | 50 | 181 |
| EA5A1093 | 18.80 | 126 | 20 | 50 | 181 |
| EA5A1094 | 19.00 | 126 | 20 | 50 | 181 |
| EA5A1095 | 19.50 | 130 | 20 | 50 | 185 |
| EA5A1096 | 19.70 | 130 | 20 | 50 | 185 |
| EA5A1097 | 19.80 | 130 | 20 | 50 | 185 |
| EA5A1098 | 20.00 | 130 | 20 | 50 | 185 |
4.FAQ:(1) Are you a manufacturer or a trading company?We are a manufacturer , and a trading company too.We sell our own products, at the same time, we also sell other products. (2) Where is the loading port?Qingdao port, or to meet client's requirement. (3) How long is the production lead time?It takes about 30-40 days. But the delivery date is 30-40days after we received your deposit. If we have stock we can delivery the goods to you asap. (4) Do you accept OEM? Sure, we accept and provide OEM production. (5) What's your payment term?T/T (30% of total amount deposit and 70% before shipment), Western Union.
