| Prod Model: |
SD-7D-H-IC |
| Cutting Edge Diameter: |
2-20m |
| Flute Length: |
20-170mm |
| Shank Diameter: |
3-20mm |
| Shank Length: |
28-50mm |
| Overall Length: |
51-225mm |
Product Description
Solid Carbide Helix Drill with internal Coolant 7xD High-performance Type
1.Features:- All dimension is fixed by our norm and also accepted non standard order.
- Tolerance of dc m7; tolerance of ds h6.
- To achieve the best performance, special design for point angel, point geometry, flute type and coating etc.,

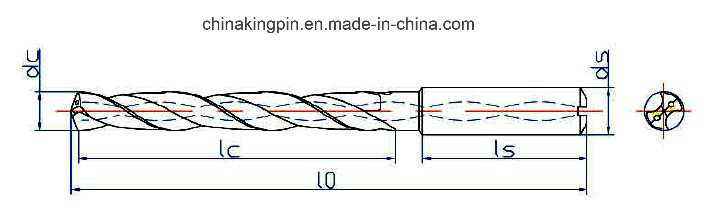

2.Picture:
3.Specification: | High-performance type order No. | Cutting Edge Diameter | Flute Length | Shank Diameter | Shank length | Overall Length |
| HE series(Coating for universal type) | dc | lc | ds | ls | lo |
| EA5A1201 | 2.00 | 20 | 3 | 28 | 51 |
| EA5A1202 | 2.10 | 20 | 3 | 28 | 51 |
| EA5A1203 | 2.20 | 20 | 3 | 28 | 51 |
| EA5A1204 | 2.30 | 20 | 3 | 28 | 51 |
| EA5A1205 | 2.40 | 20 | 3 | 28 | 51 |
| EA5A1206 | 2.50 | 20 | 3 | 28 | 51 |
| EA5A1207 | 2.60 | 26 | 3 | 28 | 57 |
| EA5A1208 | 2.70 | 26 | 3 | 28 | 57 |
| EA5A1209 | 2.75 | 26 | 3 | 28 | 57 |
| EA5A1210 | 2.80 | 26 | 3 | 28 | 57 |
| EA5A1211 | 3.00 | 26 | 3 | 28 | 57 |
| EA5A1212 | 3.30 | 34 | 4 | 28 | 67 |
| EA5A1213 | 3.40 | 34 | 4 | 28 | 67 |
| EA5A1214 | 3.50 | 34 | 4 | 28 | 67 |
| EA5A1215 | 3.60 | 34 | 4 | 28 | 67 |
| EA5A1216 | 3.65 | 34 | 4 | 28 | 67 |
| EA5A1217 | 3.70 | 34 | 4 | 28 | 67 |
| EA5A1218 | 3.75 | 34 | 4 | 28 | 67 |
| EA5A1219 | 3.80 | 34 | 4 | 28 | 67 |
| EA5A1220 | 4.00 | 34 | 4 | 28 | 67 |
| EA5A1221 | 4.20 | 47 | 6 | 36 | 88 |
| EA5A1222 | 4.50 | 47 | 6 | 36 | 88 |
| EA5A1223 | 4.60 | 47 | 6 | 36 | 88 |
| EA5A1224 | 4.70 | 47 | 6 | 36 | 88 |
| EA5A1225 | 4.80 | 47 | 6 | 36 | 88 |
| EA5A1226 | 5.00 | 47 | 6 | 36 | 88 |
| EA5A1227 | 5.10 | 51 | 6 | 36 | 92 |
| EA5A1228 | 5.30 | 51 | 6 | 36 | 92 |
| EA5A1229 | 5.50 | 51 | 6 | 36 | 92 |
| EA5A1230 | 5.60 | 51 | 6 | 36 | 92 |
| EA5A1231 | 5.70 | 51 | 6 | 36 | 92 |
| EA5A1232 | 5.80 | 51 | 6 | 36 | 92 |
| EA5A1233 | 6.00 | 51 | 6 | 36 | 92 |
| EA5A1234 | 6.50 | 64 | 8 | 36 | 105 |
| EA5A1235 | 6.60 | 64 | 8 | 36 | 105 |
| EA5A1236 | 6.70 | 64 | 8 | 36 | 105 |
| EA5A1237 | 6.80 | 64 | 8 | 36 | 105 |
| EA5A1238 | 6.90 | 64 | 8 | 36 | 105 |
| EA5A1239 | 7.00 | 64 | 8 | 36 | 105 |
| EA5A1240 | 7.30 | 68 | 8 | 36 | 109 |
| EA5A1241 | 7.40 | 68 | 8 | 36 | 109 |
| EA5A1242 | 7.50 | 68 | 8 | 36 | 109 |
| EA5A1243 | 7.70 | 68 | 8 | 36 | 109 |
| EA5A1244 | 7.80 | 68 | 8 | 36 | 109 |
| EA5A1245 | 8.00 | 68 | 8 | 36 | 109 |
| EA5A1246 | 8.50 | 81 | 10 | 40 | 126 |
| EA5A1247 | 8.70 | 81 | 10 | 40 | 126 |
| EA5A1248 | 8.80 | 81 | 10 | 40 | 126 |
| EA5A1249 | 9.00 | 81 | 10 | 40 | 126 |
| EA5A1250 | 9.30 | 85 | 10 | 40 | 130 |
| EA5A1251 | 9.50 | 85 | 10 | 40 | 130 |
| EA5A1252 | 9.60 | 85 | 10 | 40 | 130 |
| EA5A1253 | 9.70 | 85 | 10 | 40 | 130 |
| EA5A1254 | 9.80 | 85 | 10 | 40 | 130 |
| EA5A1255 | 10.00 | 85 | 10 | 40 | 130 |
| EA5A1256 | 10.20 | 98 | 12 | 45 | 148 |
| EA5A1257 | 10.50 | 98 | 12 | 45 | 148 |
| EA5A1258 | 10.70 | 98 | 12 | 45 | 148 |
| EA5A1259 | 10.80 | 98 | 12 | 45 | 148 |
| EA5A1260 | 11.00 | 98 | 12 | 45 | 148 |
| EA5A1261 | 11.20 | 102 | 12 | 45 | 152 |
| EA5A1262 | 11.50 | 102 | 12 | 45 | 152 |
| EA5A1263 | 11.70 | 102 | 12 | 45 | 152 |
| EA5A1264 | 11.80 | 102 | 12 | 45 | 152 |
| EA5A1265 | 12.00 | 102 | 12 | 45 | 152 |
| EA5A1266 | 12.50 | 115 | 14 | 45 | 165 |
| EA5A1267 | 12.70 | 115 | 14 | 45 | 165 |
| EA5A1268 | 12.80 | 115 | 14 | 45 | 165 |
| EA5A1269 | 13.00 | 115 | 14 | 45 | 165 |
| EA5A1270 | 13.50 | 119 | 14 | 45 | 169 |
| EA5A1271 | 13.70 | 119 | 14 | 45 | 169 |
| EA5A1272 | 13.80 | 119 | 14 | 45 | 169 |
| EA5A1273 | 14.00 | 119 | 14 | 45 | 169 |
| EA5A1274 | 14.50 | 132 | 16 | 48 | 185 |
| EA5A1275 | 14.70 | 132 | 16 | 48 | 185 |
| EA5A1276 | 14.80 | 132 | 16 | 48 | 185 |
| EA5A1277 | 15.00 | 132 | 16 | 48 | 185 |
| EA5A1278 | 15.50 | 136 | 16 | 48 | 189 |
| EA5A1279 | 15.70 | 136 | 16 | 48 | 189 |
| EA5A1280 | 15.80 | 136 | 16 | 48 | 189 |
| EA5A1281 | 16.00 | 136 | 16 | 48 | 189 |
| EA5A1282 | 16.50 | 149 | 18 | 48 | 202 |
| EA5A1283 | 16.70 | 149 | 18 | 48 | 202 |
| EA5A1284 | 16.80 | 149 | 18 | 48 | 202 |
| EA5A1285 | 17.00 | 149 | 18 | 48 | 202 |
| EA5A1286 | 17.50 | 153 | 18 | 48 | 206 |
| EA5A1287 | 17.70 | 153 | 18 | 48 | 206 |
| EA5A1288 | 17.80 | 153 | 18 | 48 | 206 |
| EA5A1289 | 18.00 | 153 | 18 | 48 | 206 |
| EA5A1290 | 18.50 | 166 | 20 | 50 | 221 |
| EA5A1291 | 18.60 | 166 | 20 | 50 | 221 |
| EA5A1292 | 18.70 | 166 | 20 | 50 | 221 |
| EA5A1293 | 18.80 | 166 | 20 | 50 | 221 |
| EA5A1294 | 19.00 | 166 | 20 | 50 | 221 |
| EA5A1295 | 19.50 | 170 | 20 | 50 | 225 |
| EA5A1296 | 19.70 | 170 | 20 | 50 | 225 |
| EA5A1297 | 19.80 | 170 | 20 | 50 | 225 |
| EA5A1298 | 20.00 | 170 | 20 | 50 | 225 |
4.FAQ:(1) Are you a manufacturer or a trading company?We are a manufacturer , and a trading company too.We sell our own products, at the same time, we also sell other products. (2) Where is the loading port?Qingdao port, or to meet client's requirement. (3) How long is the production lead time?It takes about 30-40 days. But the delivery date is 30-40days after we received your deposit. If we have stock we can delivery the goods to you asap. (4) Do you accept OEM? Sure, we accept and provide OEM production. (5) What's your payment term?T/T (30% of total amount deposit and 70% before shipment), Western Union.
5.Certificate:
WEIFANG JOYOUNG RETURN IMPORT & EXPORT Co., Ltd, located in high-tech zone, Weifang city, who is called Kite capital. The company mainly engaged in import and export trade of Bonded Abrasives, Ordinary abrasive, hardware, electromechanical products, Ordinary Machinery, golf equipment, equipment parts, etc.
Our company has a high-quality management international trade department, providing one-stop service. Our clients are able to find all machinery related equipment or tools from us. Because of the declining global economy and market demand, the buyers who place small order are difficult to find what they need from big company but here we are. Our international trade team will devote ourselves to serve every single customer no matter whether you are small buyer or not. Our professional production line and specialist enable the customization of the product, from the production process, materials and size to packing, shipment or even white label, it all depends on you.
"Respect" and "honesty" are our company's core values. We are honest to and respect every people including our customers, our staff, our cooperators, and so on. Pursuit of excellence, continuous improvement, innovation and win-win are our concern.
We are eagerly looking forward for your cooperation and to service for you. Welcome to connect us.
