| Prod Model: |
GDR-JFWJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Metal |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Performance Classification: |
High-End CNC Machine Tools |
| Numerical Control: |
CNC/Mnc |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Condition: |
New |
Product Description

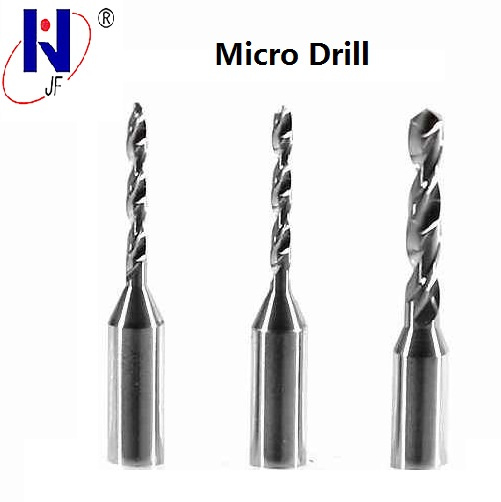

Solid Carbide Micro Drill Bit
JF CARBIDE drill is made from solid carbide and has been optimized for steel, stainless steel and aluminium. It provides high-speed and easy drilling. It is highly suitable for traditional drilling, inclined surfaces, chamfered holes, cross holes, traditional stack drilling and convex/concave surfaces.
It provides low cutting forces. This minimizes problems related to weak fixtures, parts with thin walls as well as cutting edge loads. It provides outstanding evacuation of chips. It also provides higher achievable cutting data in both short and long chipping materials. The combination of these features ensures reliable and high-performance drilling at high penetration rates. The standard drill in the point hole.
D1403 provides superior and dependable performance and lower cost per hole. It provides a long tool service life and wear formation is controlled.
The main advantage
(1)Good quality
(2)Super and stable raw material
(3)Super coating
(4)High reputation
(5)Reasonable price
(6)Short delivery time
Advantage
Carbide deep hole drills
1. Sharp cutting matched with the good hardness
2. Two relief angle: Arc & Flat relief angle, Arc relief angle makes the a better wear-resisting of the tool. Flat relief angle makes the tools more sharper and more powerful
3. Coating: ALTIN black coating, advanced technology and equipment of Japan; High temperature oxidation resistance (800° C), Life is longer than others about 20%
Equipment Show
1. We have 10 CNC machines. Walter, ANCA, strong stability and high precision. The technical from Germany
2. Anca: Small diameter cutter
3. Walter: Special cutter
4. Advanced equipment, more efficiency, save time and cost.
5. Clean working environment, better working mood, high quality products
6. Test --with three test to confirm the quality.
Package
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)Put the goods encased with air bubble paper into the carton.
(4)Other packing will be accepted according to your needs.
Why choose us:
1) Demand--Custom demand are welcomed
2) Design--Design and Development Team to meet your individual demands
3) Molds--Various molds existed
4) Production--Assembly line production, high standard and strict requirements
5) Products--More than 2000 products are available
6) Package--Tailor-made package to cater for your personalize taste
7) Payment--Various options to make payment more convenient
8) Logistics--Various cooperated express to reduce on your freight cost.
Customer Service--E-mail your suggestions or complaints, and we will handle them ASAP
Performance Solid Carbide Drills
| Carbide Micro Drill |
| Code | Specification |
| GDR-JFWJ | d | L1 | D | L |
| GDR-JFWJ001 | 0.1 | 2.5 | 3 | 38 |
| GDR-JFWJ002 | 0.15 | 2.5 | 3 | 38 |
| GDR-JFWJ003 | 0.2 | 2.5 | 3 | 38 |
| GDR-JFWJ004 | 0.25 | 2.5 | 3 | 38 |
| GDR-JFWJ005 | 0.3 | 5.5 | 3 | 38 |
| GDR-JFWJ006 | 0.35 | 5.5 | 3 | 38 |
| GDR-JFWJ007 | 0.4 | 5.5 | 3 | 38 |
| GDR-JFWJ008 | 0.45 | 5.5 | 3 | 38 |
| GDR-JFWJ009 | 0.5 | 5.5 | 3 | 38 |
| GDR-JFWJ010 | 0.55 | 5.5 | 3 | 38 |
| GDR-JFWJ011 | 0.6 | 9.5 | 3 | 38 |
| GDR-JFWJ012 | 0.65 | 9.5 | 3 | 38 |
| GDR-JFWJ013 | 0.7 | 9.5 | 3 | 38 |
| GDR-JFWJ014 | 0.75 | 9.5 | 3 | 38 |
| GDR-JFWJ015 | 0.8 | 9.5 | 3 | 38 |
| GDR-JFWJ016 | 0.85 | 9.5 | 3 | 38 |
| GDR-JFWJ017 | 0.9 | 9.5 | 3 | 38 |
| GDR-JFWJ018 | 0.95 | 9.5 | 3 | 38 |
| GDR-JFWJ019 | 1 | 9.5 | 3 | 38 |
| GDR-JFWJ020 | 0.1 | 2.5 | 3.175 | 38 |
| GDR-JFWJ021 | 0.15 | 2.5 | 3.175 | 38 |
| GDR-JFWJ022 | 0.2 | 2.5 | 3.175 | 38 |
| GDR-JFWJ023 | 0.25 | 2.5 | 3.175 | 38 |
| GDR-JFWJ024 | 0.3 | 5.5 | 3.175 | 38 |
| GDR-JFWJ025 | 0.35 | 5.5 | 3.175 | 38 |
| GDR-JFWJ026 | 0.4 | 5.5 | 3.175 | 38 |
| GDR-JFWJ027 | 0.45 | 5.5 | 3.175 | 38 |
| GDR-JFWJ028 | 0.5 | 5.5 | 3.175 | 38 |
| GDR-JFWJ029 | 0.55 | 5.5 | 3.175 | 38 |
| GDR-JFWJ030 | 0.6 | 9.5 | 3.175 | 38 |
| GDR-JFWJ031 | 0.65 | 9.5 | 3.175 | 38 |
| GDR-JFWJ032 | 0.7 | 9.5 | 3.175 | 38 |
| GDR-JFWJ033 | 0.75 | 9.5 | 3.175 | 38 |
| GDR-JFWJ034 | 0.8 | 9.5 | 3.175 | 38 |
| GDR-JFWJ035 | 0.85 | 9.5 | 3.175 | 38 |
| GDR-JFWJ036 | 0.9 | 9.5 | 3.175 | 38 |
| GDR-JFWJ037 | 0.95 | 9.5 | 3.175 | 38 |
| GDR-JFWJ038 | 1 | 9.5 | 3.175 | 38 |
