| Prod Model: |
W2000-W8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Sov Steel Manual Mighty Hydraulic Torque Wrench |
| Max Torque Value: |
2800-47500nm |
| Torque Range: |
2000-35000FT.Lbs |
| Six Angle Plug Size: |
36-115mm |
| The Optional Six Angle Plug Size: |
30-155mm |
| Color: |
Customized |
| OEM: |
Yes |
| Warranty: |
Oner Year |
Product Description

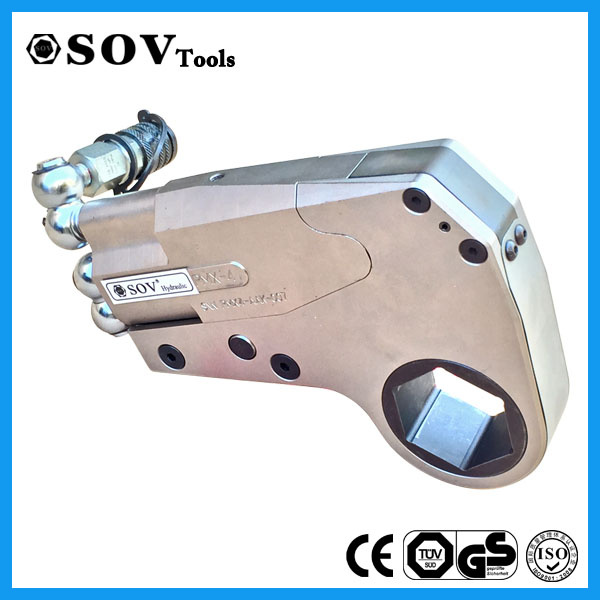

SOV Steel Manual Mighty Hydraulic Torque WrenchFeature:SOVtorque wrenches were designed using state-of-the art CAD techniques to bring you the most advanced low profile hexagon torque wrench on the market
Rigid steel design - durabilty, reliabilty and safety
No tools needed for changing hexagon heads
Versatility: one hydraulic drive unit per torque capacity can be used to drive any hexagon head within that range
Innovative, pinless wrench construction with quick release drive and automatic crank engagement
Fast operation due to the large nut rotation per wrench cycle (30 degree) and rapid return stroke, double-acting
Constant torque output provides high accuracy (± 3%) across the full stroke
360 degree swivel manifold with screw lock couplers
Optional interchangeable metric and imperial hexagon heads and reducer inserts
Product Parameter| Model | Max pressure (bar ) | Max torque value | Six angle plug size | The optional six angle plug size |
|
| Nm | Ft.Ibs | mm | inch | mm | inch |
| SV-W2000 | 700 | 2800 | 2000 | 36-60 | 1 7/16-2 3/8 | 30-55 | 1 1/4-2 3/16 |
| SV-W4000 | 5400 | 4000 | 55-80 | 2 3/16-3 1/8 | 36-85 | 1 5/8-2 15/16 |
| SV-W8000 | 10800 | 8000 | 65-95 | 2 9/16-3 7/8 | 50-105 | 2-3 1/2 |
| SV-W15000 | 20500 | 15000 | 80-115 | 3 1/8-4 5/8 | 65-115 | 2 9/16-4 1/4 |
| SV-W35000 | 47500 | 35000 | 80-115 | 3 1/8-6 1/8 | 80-155 | 2-5 1/8
|
Product Picture
Package and Delivery1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port
Company informationShanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components. CertificateSince the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
ClientsOur customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Main ProductsWe are a manufacturer in tools, such as:•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;•Hydraulic pumps, manual and electric type (max up to 4000bar);•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hoseOur products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
If you have any questions,please feel free to contact me:Sidney Zheng
Sales manager of SOV
TEL:+86 189 1815 8229
Web: www.sovhydraulic.com
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:

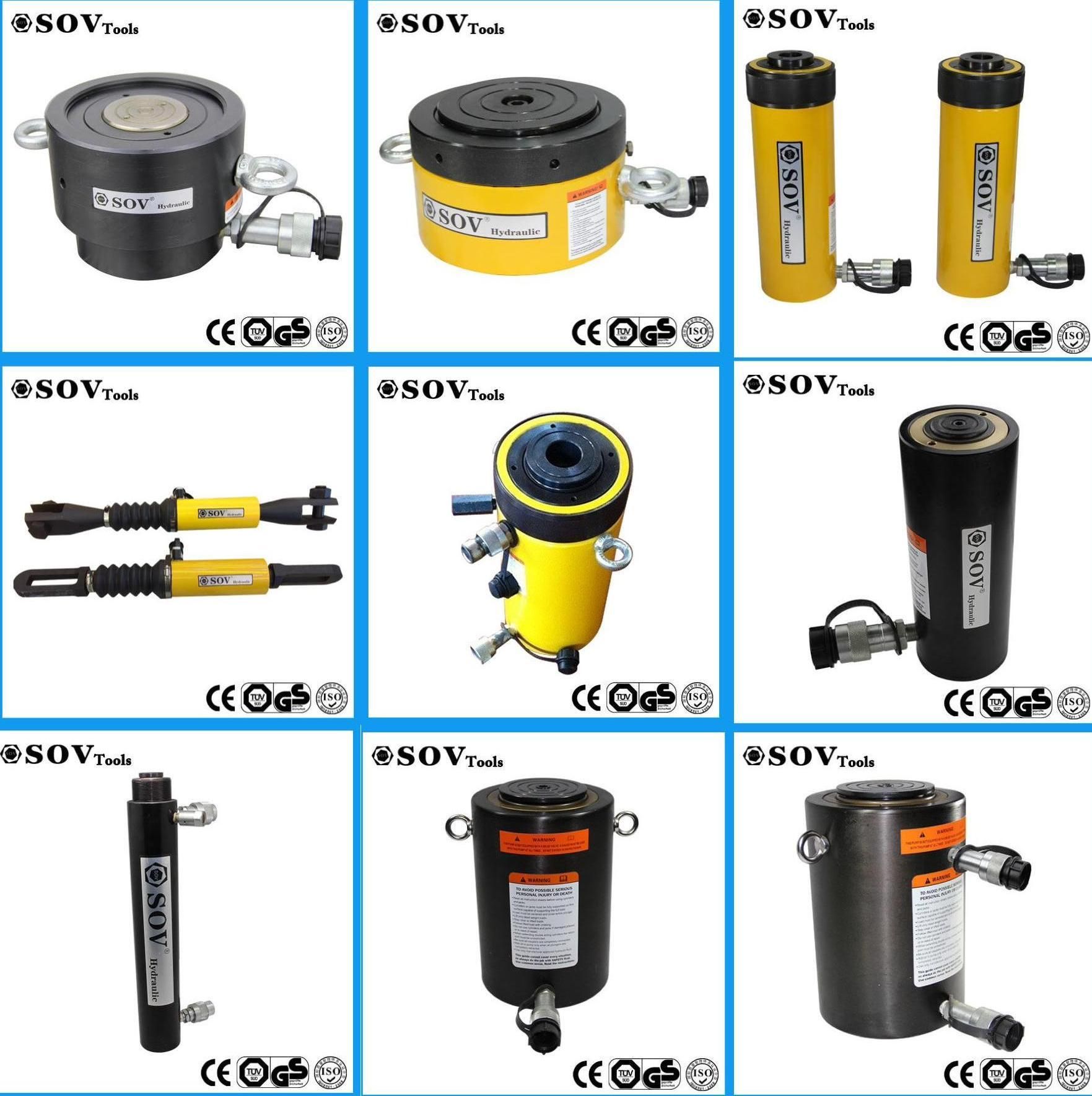

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine

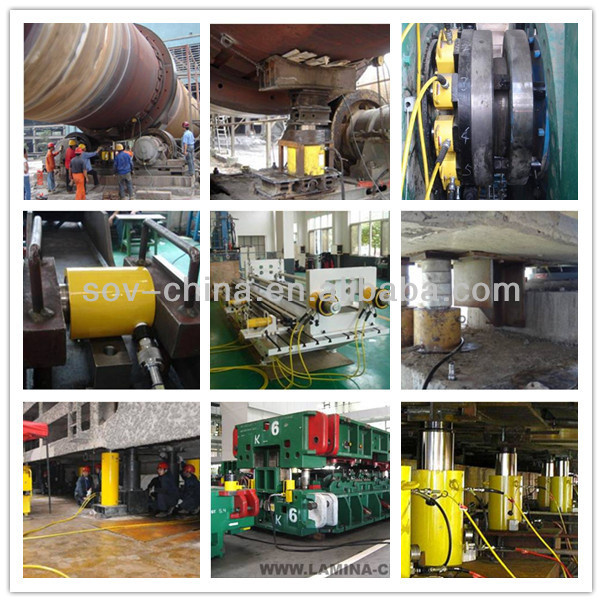

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
