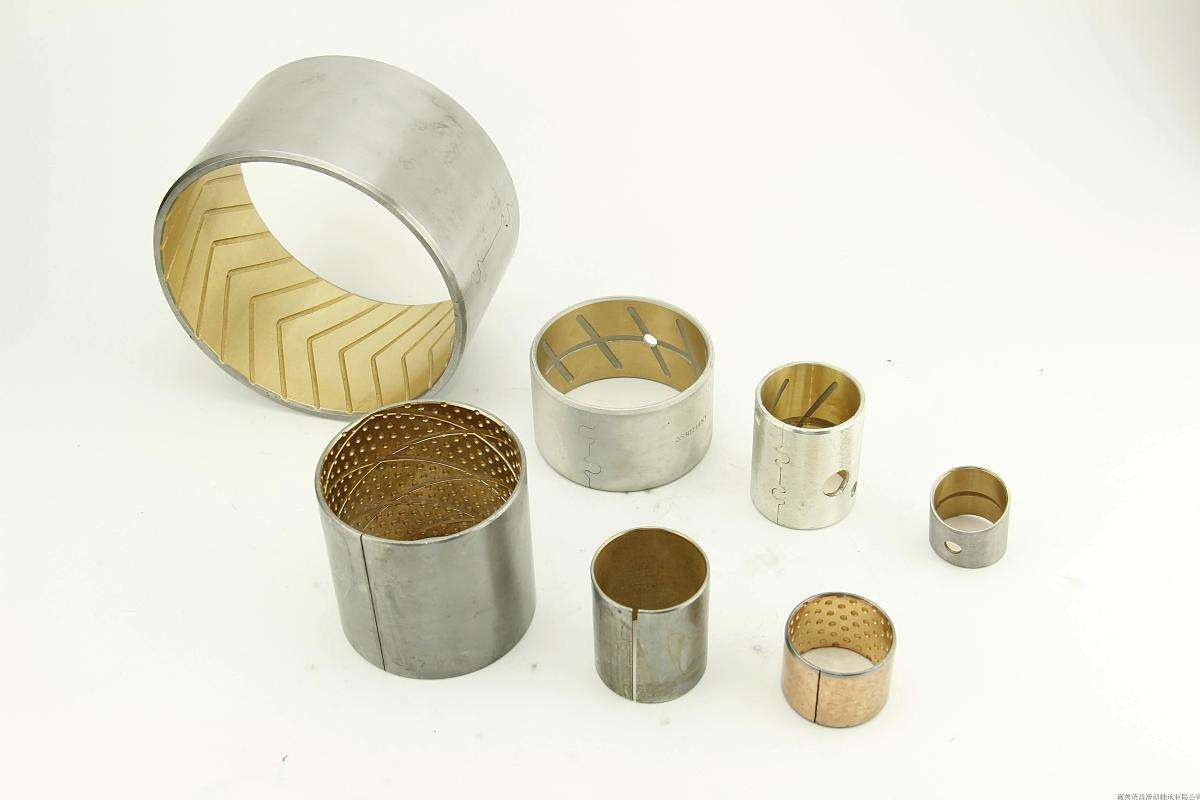

Specialized Metal-Polymer Composite Bearings for Processing Machinery
| Price: |
US $ 0.5-7/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CSB-50MP |
| Maximum Dynamic Loading: |
120n/mm² |
| Self Lubricating Material: |
Graphite+Others |
| Working Temperature: |
-40ºC-300ºC |
| Working Enviroment: |
Water,Air,Oil and Grease |
| Maximum Sliding Speed: |
0.4m/S |
| Bearing Structure: |
Split Plain Bearing |
| Type Of Lubricant: |
Oil-Lubricated Bearing |
| Lubricant & Load: |
Hydrostatic Bearing |
| Bushing Material: |
Self-Lubrication |
| Bearing Direction: |
Radial |
| Lubricating Way: |
Maintenance-Free Bearing |
| Lubricating Film Thickness: |
Thin Film Lubrication |
Product Description
1.Products features:
Comparing with the traditional 3-layer composite bearings, the added high performance resin provides better wear resistance feature.This material is suitable for the applications of better tolerance required by machining after assembly,the special requirement of wear resistance,stable friction requirement, longer service life requirement and so on.The typical applications include belt tensioners, idler pulley, magnetic valves,cylinder guide bush and brake system etc. 2. Technical data
| Max.Load | Static | 250N/mm2 | | Friction coefficient | 0.03~0.20 |
| Very low speed | 140N/mm2 |
| Rotating oscillating | 60N/mm2 | Max. | Dry running | 2m/s | |
| speed | Hydrodynamic operation | >2m/s | |
| Max. PVdry | Short-term operation | 3.6N/mm2*m/3 | Thermal conductivity | >2m/s42W(m*K)-1 | |
| running | Continuous operation | 1.8N/mm2*m/3 | |
| Temp. limit | -195ºC~+280ºC | Coefficient of thermal expansion | 11*10-6*K-1 | |

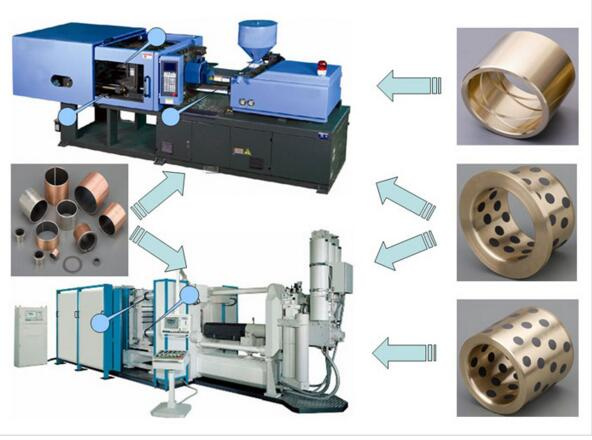

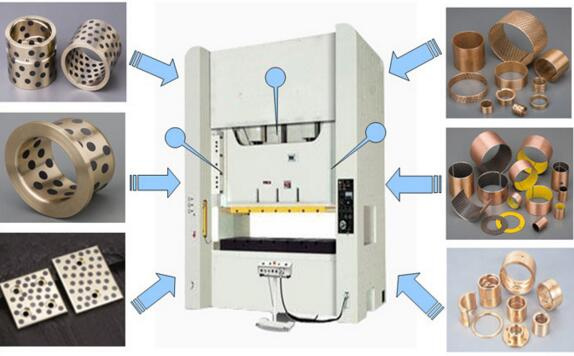

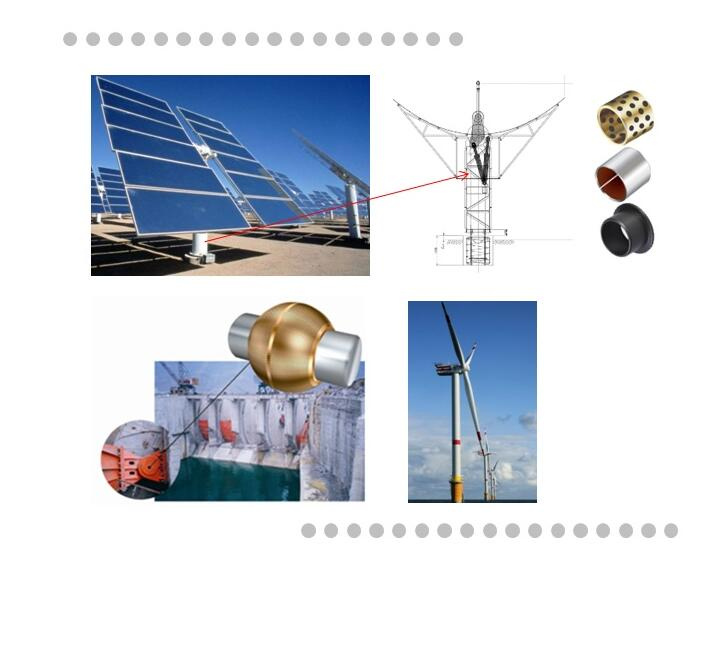

3.Typical Application:an meet the demanding criteria for long life and trouble-free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...
And materials handling, marine engine, packaging, textile equipment, tools

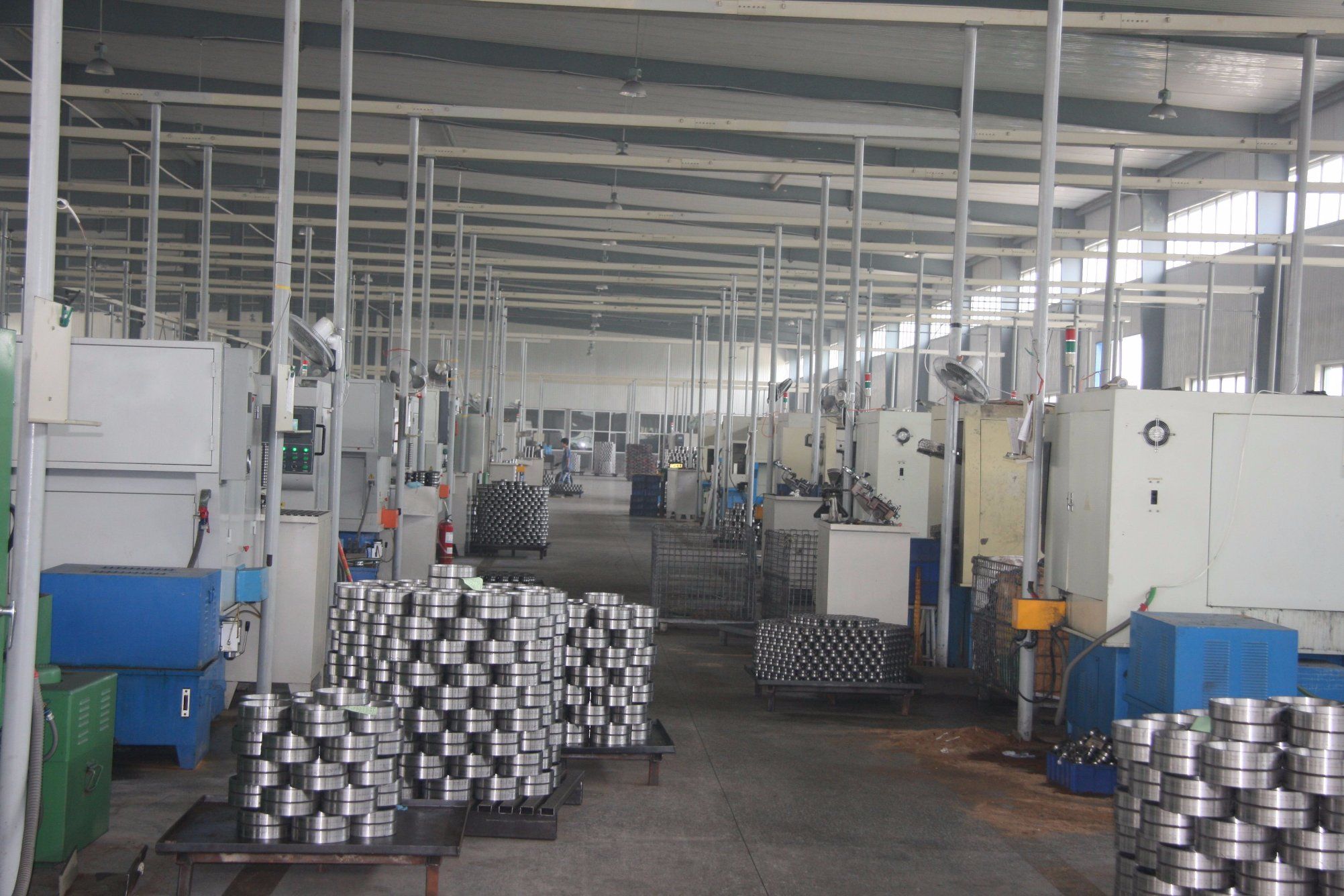

4. Our manufacturing

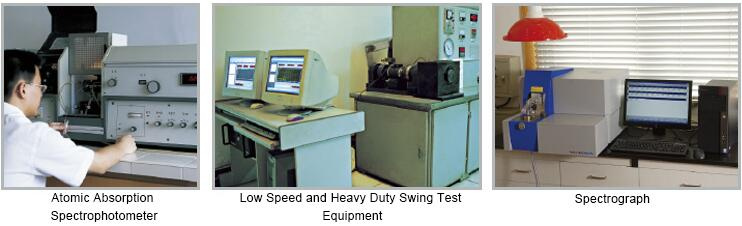

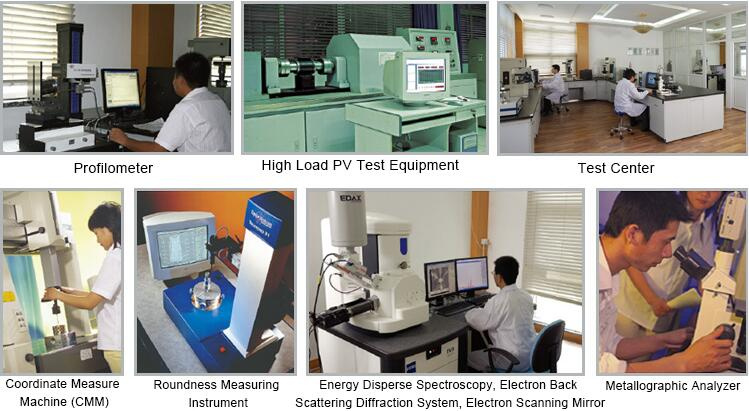

5. Our Quality Assurance
Since 1997, E-Hu Group focus on designing, producing and selling different kinds of automobile parts. Now our mainly products are auto filter. Oil seal and O-ring, which used on European, America, Japanese and Korea series of cars, trucks and machine equipment.
Our head office is located in Changsha, Hunan, China, with a long history and very beautiful city. It is also Chair Mao hometown. We have invested in two factories, one is producing oil filter, fuel filter, air fuel, cabin filter and Hydraulic filters, and the other one is professional manufacturer of Oil seal and O ring. The factories cover about 10000 square meters, with more than 500 employees. The more important is we own advance technology and equipment, can be provide OEM&ODM service, to meet your sourcing needs.
The Oil seal and O ring we supply are made of different kinds of materials including NBR FKM, EPDM, PTFE. SI and so on, with more than 7000 kinds of sizes in stock, for your choice. We mainly produce oil filter, air filter, fuel filter, diesel filter and hydraulic filter used on the after-sales markets. They will be best replacement products of the world famous brand filters like MANLE, FRAM, MAN, WIX, PUROLATOR, WIX, BOSCH, JCB, SOFIMA, Perkins and so on, which suitable for car maker of Toyota, Honda, Ford, MAZDA, Nissan, BMW, BENS, Volvo, CATS, COUMMINS, Iveco, DAEWOO, Mitsubishi, HIMO etc.
E-HU has enjoyed all the benefits of advanced technology and some of the most innovative designs in oil filter industry. Gradually, E-HU's quality and reputation win the favor of customers worldwide. We equipped with proficient knowledge in exporting, our main markets in Middle East, Africa, Europe, Australia, America, and various other South American countries.
Best quality is our promise and The customer is our gold", stands as E-HU motto. We can provide quality certificates such as ISO9001, SGS, TUV and ISO16949. We are satisfied with the fact that we have achieved a high quality reputation. If you are seeking superior quality oil seal, and oil filter supplier for CAR, Truck and machine equipment, just choose E-HU. Expect your inquiries! ! Nice Customer service representatives are here waiting to assist you!
