Tc NBR Hydraulic Machine Oil Seal for Cars and Truck

Name: Tc NBR Hydraulic Machine Oil Seal for Cars and Truck
Brand: tool-buy.com
SKU: 762779295
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	US $ 0.08-0.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Changsha E-Hu Machinery & Electronics Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	140X170X12
Markets:	South America,Eastern Europe,Africa,Mid East,Western Europe
Materials:	NBR/FKM/Silicon/PTFE/EPDM/PU
OEM:	Avaliable
Color:	Black, Brown, Red, White, Green, Blue, etc.
Hardness:	70-90 Shore
Tempeture:	From -60 to 325cesus
Certificate:	ISO, Ts16949, SGS
Function:	Anti Water and Oil
Size:	From 8X22X7 to 765X835X25
Material:	NBR
Usage:	Customizable
Standard:	Nonstandard

Product Description

1. Production details

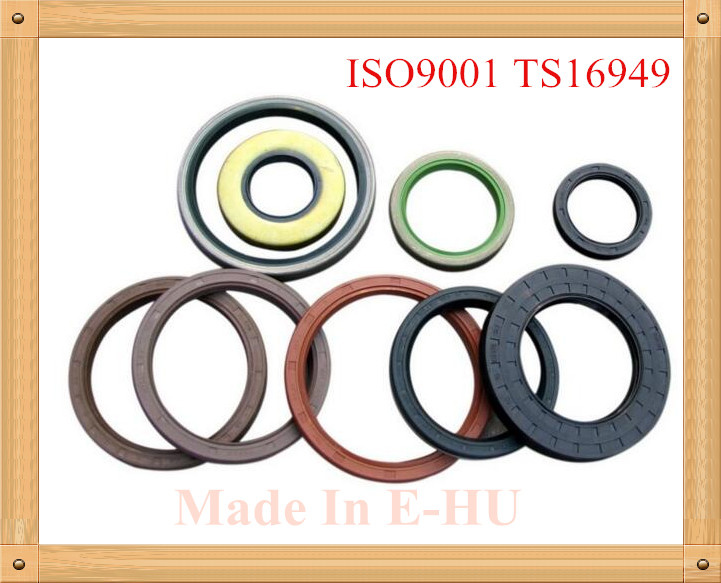

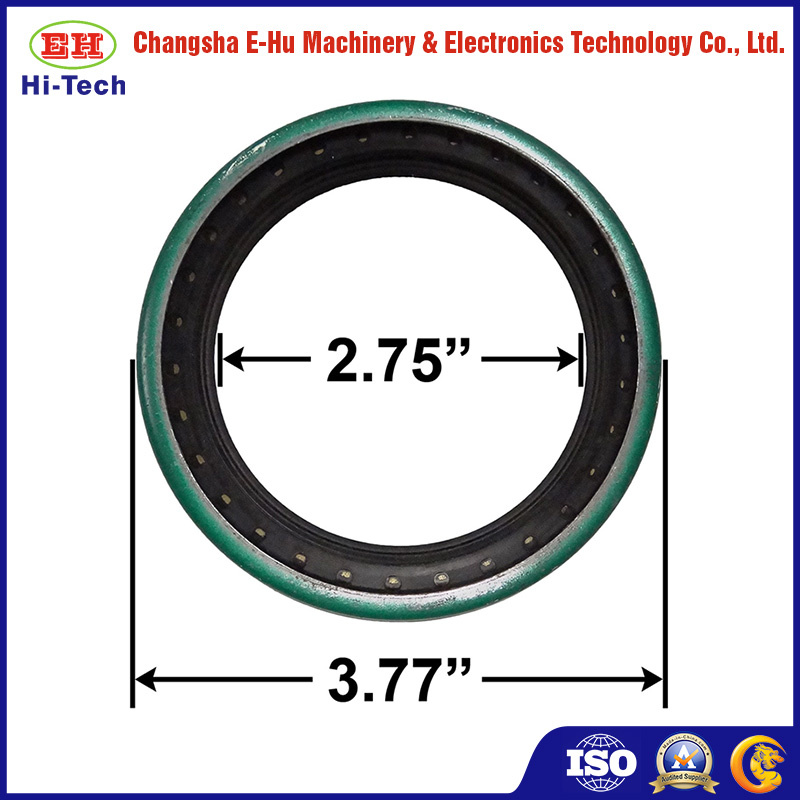

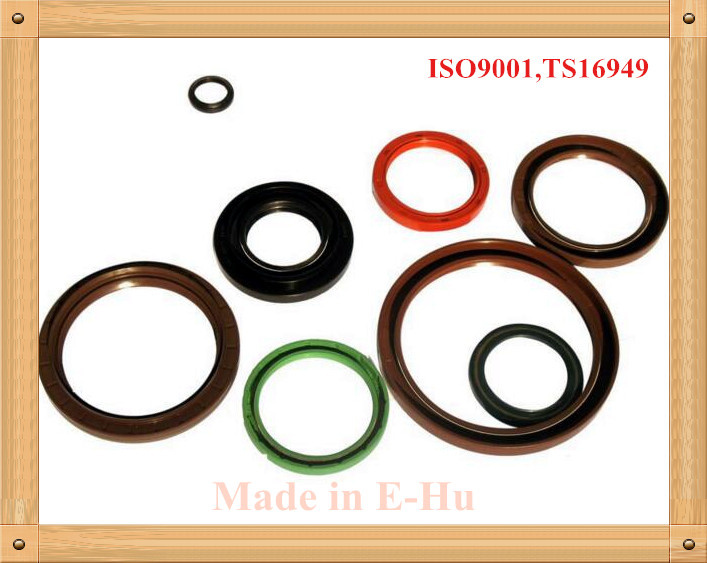

Oil seal is a popular and important parts in industry. Its use is to seal oil, dissociates the output parts from lubricating parts, and make sure the lube can't be leaked. Diameter from 10mm to 2500mm oil seals could be supplied.

Item Name	Oil seal
Material	NBR, FKM,Viton, Silicone, EPDM, HNBR
Hardness	Shore 70-90 or as ordered
Application	Engine, Transmission, Rear Axle
Speed	Ultra-High-Speed Mechanical Seal
Lip	Double lips and single lip are available
Color	Black, brown, red, white, black, green, blue or as you required
Pressure	Pressure type
Standard	Standard or nonstandard
MOQ	1-50 PCS
Sample	YES
Size	From 8x22x7 to 765x835x25
OEM	Acceptable
Packing	10 or 20 pc/paper, then in carton
Production Time	10-15 days
Samples	1. We will provide free samples
Samples	2.Customer can choose our own design or provide us your design
Shipment	1. Normal order : 7-10 days after recived the deposit;
Shipment	2. Urgent Order : you can negotiate with us.
Payment terms	T/T or Westrn Union
Factory visit	Available
Company Type	Manufacturer

Classification:
Based on axle speed: low speed oil seal (less than 6m/s), high speed oil seal (more than 6m/s).
Based on pressure: atmospheric oil seal, pressure oil seal.
Based on construction and sealing principle: standard oil seal, power back oil seal.
Based on components: framework oil seal, case-less oil seal.
Based on spring: spring oil seal, no spring oil seal.
Construction: TC, TG, TB, TA, SA, SB, SC, VC, VB, TC4, TG4, etc.

Materials and advantages:
NBR oil seals: oil resistance and wear resistance.
FKM oil seals: oil resistance, hard-wearing, heat resisting, acid and alkali fast.
VMQ oil seals: heat resisting, anti-aging and non-toxic food grade.

Oil proof, hard-wearing, heat resisting, anti-aging, acid and alkali fast.

Oil Seals are used to prevent oil leakage from rotary shaft and housing clearance. It has a flexible lip that rubs against a shaft or housing to prevent leakage or ingress of fluid and dirt. Seal selection is based on shaft diameter, housing bore diameter and width, shaft speed, working temperature, fluid, pressure differential and service conditions. Common configurations include single lip, double lip, triple lip and four or more lips.

Rubber sealing element or lip material choices for oil seals include: Nitrile Rubber (NBR), Acrylic Rubber (ACM), Silicon Rubber (VMQ), Fluorocarbon Rubber (Viton/FKM), Ethylene Propylene Rubber (EPDM), Tetrafluoroethylene Resin (PTFE). To resist wear, the compound durometer (hardness) is typically 70 to 85 shores A

   2. Oil Seal Main Applications
Diesel and Gasoline Engine Like Crankshaft and Camshaft
Rotational System of Vehicle Like Gear Box, Wheel Hub, Axle, Pumps, oil field, Shock Absorber
Rotational system of Farm and Construction Machinery like Forklift, Excavator
Industrial Gear Box
Daily Washing Machine
Mechanical Engineering and Equipment Processing Industr

   3. About us
   We are specialized in manufacturing oil seal, O ring, rubber sleeve, rubber damper, rubber strip, customized rubber parts, plastic/bakelite products.

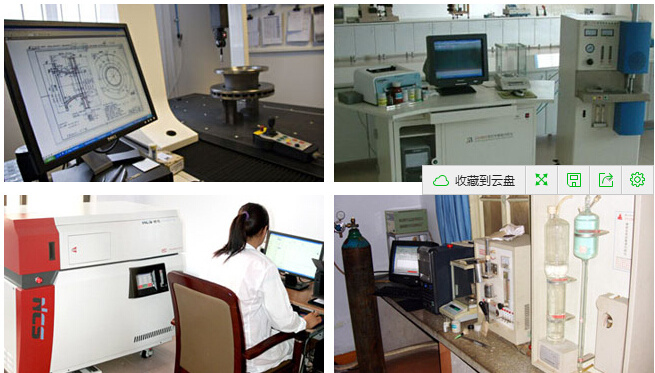

We have modern machines, such as rubber molding machines, rubber injection machines, extruding machines, etc.

There are thousands of moulds are free for you. You can get more information from our website.

With more than 20-year experience, the goods are exported to Singapore, Vietnam, Philippines, India, Malaysia, Pakistan, USA, France, Finland, Hungry, UK, South Africa, Egypt, Mongolia, Russia and so on. We establish long terms business relationship with the customers. We are familiar for foreign market. Please don't worry, we can introduce suitable quality as your use and market.

By the way, we attend the Canton Fair twice in Guangzhou, China. If you also go there, please come to our booth. Otherwise, we also attend the PTC Fair in Shanghai of China. Will you go there?

Samples are free! Welcome to our factory! When you see our production process by your own eyes, you will be confident to cooperate with us.

4.Our advantages
1. Various material: NBR, FKM (Vition), natural rubber, EPDM, silicon rubber (VMQ), PU, special rubber,bakelite, ABS, SBR, CP, PE, PA, PP, FPM, POM and other plastic.
2. We are direct factory, so small order quantity is acceptable and lots of samples are free.
3. There are about 8000 sets of moulds are free. Besides, we have standard TC oil seals in stock.
4.. With more than 30-year experience, we could supply you suitable solutions.

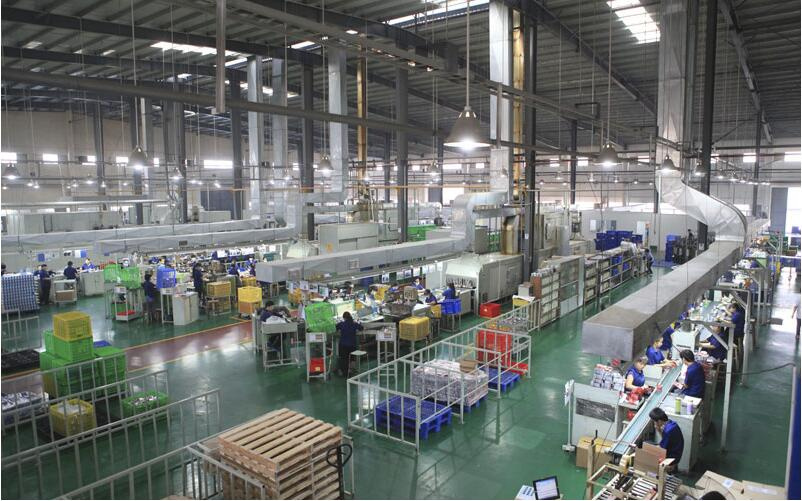

5.Our warehouse and equipment

6.Our Team

7. The following is one parts of oil seal sizes for your reference

TC NBR/FKM/FPM/VITON OIL SEALS
Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
1	TC 4.5-15-5	47	TC 8-22-10	93	TC 10-24-4	139	TC 12-25-10
2	TC 4.5-17-7	48	TC 8-22-6	94	TC 10-24-6	140	TC 12-25-5
3	TC 5-14.5-7	49	TC 8-22-7	95	TC 10-24-7	141	TC 12-25-6
4	TC 5-15-6	50	TC 8-23-5	96	TC 10-25-10	142	TC 12-25-7
5	TC 5-16-6	51	TC 8-23-7	97	TC 10-25-5	143	TC 12-25-8
6	TC 5-16-7	52	TC 8-24-7	98	TC 10-25-7	144	TC 12-26-7
7	TC 5-17-7	53	TC 8-25-7	99	TC 10-26-7	145	TC 12-27-7
8	TC 5-18-7	54	TC 8-25-8	100	TC 10-28-10	146	TC 12-28-7
9	TC 5-18-8	55	TC 8-26-7	101	TC 10-28-7	147	TC 12-28-8
10	TC 5-19-7	56	TC 8-28-5	102	TC 10-30-10	148	TC 12-29-9
11	TC 5-22-7	57	TC 8-30-6	103	TC 10-30-7	149	TC 12-30-10
12	TC 6-15-4	58	TC 8-30-7	104	TC 11.5-24-10	150	TC 12-30-7
13	TC 6-16-5	59	TC 9-16-7	105	TC 11.6-24-10	151	TC 12-32-10
14	TC 6-16-7	60	TC 9-17-4	106	TC 11-17-4	152	TC 12-32-5.5
15	TC 6-17-7	61	TC 9-18-7	107	TC 11-17-5	153	TC 12-32-7
16	TC 6-18-7	62	TC 9-19-5	108	TC 11-20-7	154	TC 12-34-7
17	TC 6-19-7	63	TC 9-19-7	109	TC 11-21-7	155	TC 12-35-10
18	TC 6-20-7	64	TC 9-20-7	110	TC 11-22-7	156	TC 12-35-7
19	TC 6-22-7	65	TC 9-22-7	111	TC 11-23.5-7	157	TC 12-37-7
20	TC 6-22-8	66	TC 9-24-7	112	TC 11-23-7	158	TC 12.70-28.575-6.35
21	TC 6.5-14.5-7	67	TC 9-25-7	113	TC 11-25-7	159	TC 13-20-5
22	TC 7-16-7	68	TC 9-26-7	114	TC 11-26-7	160	TC 13-22-4
23	TC 7-17-4	69	TC 9-29-7	115	TC 11-28-7	161	TC 13-22-5
24	TC 7-17-7	70	TC 9-30-7	116	TC 11-30-10	162	TC 13-22-7
25	TC 7-18-5	71	TC 10-16-4	117	TC 11-30-7	163	TC 13-23-7
26	TC 7-18-7	72	TC 10-16-7	118	TC 12-18-5	164	TC 13-24-7
27	TC 7-19-7	73	TC 10-17-4	119	TC 12-19-4.5	165	TC 13-25-7
28	TC 7-20-7	74	TC 10-17-5	120	TC 12-19-5	166	TC 13-26-7
29	TC 7-22-6	75	TC 10-17-7	121	TC 12-19-7	167	TC 13-26-9
30	TC 7-22-7	76	TC 10-18-4	122	TC 12-20-4	168	TC 13-28-7
31	TC 8-14-4	77	TC 10-18-5	123	TC 12-20-5	169	TC 13-30-10
32	TC 8-14-5	78	TC 10-18-6	124	TC 12-20-6	170	TC 13-30-7
33	TC 8-14-5	79	TC 10-18-7	125	TC 12-20-7	171	TC 13-30-8
34	TC 8-15-5	80	TC 10-19-10	126	TC 12-21-4	172	TC 13-32-7
35	TC 8-16-4	81	TC 10-19-4	127	TC 12-21-7	173	TC 13-35-7
36	TC 8-16-5	82	TC 10-19-7	128	TC 12-22-5	174	TC 13.5-24-6
37	TC 8-16-7	83	TC 10-20-5	129	TC 12-22-6	175	TC 13.7-24-5
38	TC 8-17-7	84	TC 10-20-7	130	TC 12-22-7	176	TC 13.8-24-5
39	TC 8-18-5	85	TC 10-21-4	131	TC 12-22-9	177	TC 14-20-5
40	TC 8-18-6	86	TC 10-21-5	132	TC 12-23-7	178	TC 14-20-7
41	TC 8-18-7	87	TC 10-21-6	133	TC 12-24-10	179	TC 14-22-4
42	TC 8-19-7	88	TC 10-22-5	134	TC 12-24-4.5	180	TC 14-22-5
43	TC 8-20-5	89	TC 10-22-6	135	TC 12-24-5	181	TC 14-22-7
44	TC 8-20-6	90	TC 10-22-7	136	TC 12-24-6	182	TC 14-24-6
45	TC 8-20-7	91	TC 10-23-7	137	TC 12-24-7	183	TC 14-24-7
46	TC 8-21-6	92	TC 10-23-8	138	TC 12-25.5-7	184	TC 14-24-8

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
185	TC 14-25-5	236	TC 15-35-7	287	TC 17-26-7	338	TC 18-28-7/9
186	TC 14-25-7	237	TC 15-35-8	288	TC 17-27-10	339	TC 18-29-7
187	TC 14-26-7	238	TC 15-36-7	289	TC 17-27-6	340	TC 18-30-10
188	TC 14-27-7	239	TC 15-37-7	290	TC 17-27-7	341	TC 18-30-5
189	TC 14-28-10	240	TC 15-38-10	291	TC 17-27-8	342	TC 18-30-6
190	TC 14-28-7	241	TC 15-38-7	292	TC 17-28-5	343	TC 18-30-7
191	TC 14-28-8	242	TC 15-40-10	293	TC 17-28-6	344	TC 18-30-8
192	TC 14-29-7	243	TC 15-40-8	294	TC 17-28-7	345	TC 18-31-7
193	TC 14-30-10	244	TC 15-42-10	295	TC 17-28-8	346	TC 18-32-10
194	TC 14-30-7	245	TC 15-42-7	296	TC 17-29-5	347	TC 18-32-7
195	TC 14-30-9	246	TC 15-42-8	297	TC 17-29-7	348	TC 18-32-8
196	TC 14-32-10	247	TC 15-46-7	298	TC 17-29-8	349	TC 18-34-7
197	TC 14-32-7	248	TC 15.5-28-7	299	TC 17-30-10	350	TC 18-35-10
198	TC 14-35-10	249	TC 15.6-25.6-7	300	TC 17-30-5	351	TC 18-35-7
199	TC 14-35-7	250	TC 16-22-4	301	TC 17-30-6	352	TC 18-35-8
200	TC 14-35-8	251	TC 16-22-7	302	TC 17-30-7	353	TC 18-36-8
201	TC 14-36-7	252	TC 16-24-5	303	TC 17-30-8	354	TC 18-37-7
202	TC 14-40-10	253	TC 16-24-6	304	TC 17-31-7	355	TC 18-38-10
203	TC 14-40-7	254	TC 16-24-6/6.5	305	TC 17-32-5	356	TC 18-38-7
204	TC 15-22-5	255	TC 16-24-7	306	TC 17-32-6	357	TC 18-40-10
205	TC 15-22-7	256	TC 16-25-5	307	TC 17-32-7	358	TC 18-40-7
206	TC 15-23-5	257	TC 16-25-6	308	TC 17-32-8	359	TC 18-42-10
207	TC 15-23-7	258	TC 16-25-7	309	TC 17-33-7	360	TC 18-42-7
208	TC 15-24-5	259	TC 16-26-6	310	TC 17-34-7	361	TC 18.9-28-5
209	TC 15-24-7	260	TC 16-26-7	311	TC 17-35-10	362	TC 18.9-30-5
210	TC 15-25.5-7	261	TC 16-27-6	312	TC 17-35-7	363	TC 19-27-10
211	TC 15-25-5	262	TC 16-27-7	313	TC 17-35-8	364	TC 19-27-5
212	TC 15-25-6	263	TC 16-28.5-10	314	TC 17-36-7	365	TC 19-27-6
213	TC 15-25-7	264	TC 16-28-6	315	TC 17-37-10	366	TC 19-27-7
214	TC 15-25-8	265	TC 16-28-7	316	TC 17-37-7	367	TC 19-28-7
215	TC 15-26-6	266	TC 16-29-7	317	TC 17-38-10	368	TC 19-29-7
216	TC 15-26-7	267	TC 16-30-10	318	TC 17-38-5	369	TC 19-30-5
217	TC 15-27-7	268	TC 16-30-4.5	319	TC 17-38-7	370	TC 19-30-7
218	TC 15-27-8	269	TC 16-30-6	320	TC 17-40-10	371	TC 19-31-5
219	TC 15-28-10	270	TC 16-30-7	321	TC 17-40-5	372	TC 19-32-7
220	TC 15-28-5	271	TC 16-32-10	322	TC 17-40-7	373	TC 19-32-8
221	TC 15-28-6	272	TC 16-32-7	323	TC 17-40-8	374	TC 19-33-7
222	TC 15-28-7	273	TC 16-35-10	324	TC 17-42-7	375	TC 19-33-8
223	TC 15-28-8	274	TC 16-35-7	325	TC 17-45-7	376	TC 19-34-7
224	TC 15-29-7	275	TC 16-37-7	326	TC 17-47-10	377	TC 19-35-10
225	TC 15-30-10	276	TC 16-38-7	327	TC 17-47-7	378	TC 19-35-5
226	TC 15-30-5	277	TC 16-38-8	328	TC 17-47-8	379	TC 19-35-7
227	TC 15-30-7	278	TC 16-40-10	329	TC 18-24-4	380	TC 19-35-8
228	TC 15-30-8	279	TC 16-40-8	330	TC 18-24-7	381	TC 19-36-7
229	TC 15-31-7	280	TC 16.4-30-5	331	TC 18-25-7	382	TC 19-37-10
230	TC 15-32-5	281	TC 17-24-5	332	TC 18-26-7	383	TC 19-37-7
231	TC 15-32-7	282	TC 17-24-7	333	TC 18-27-7	384	TC 19-38-10
232	TC 15-32-9	283	TC 17-25-4	334	TC 18-28-10	385	TC 19-38-7
233	TC 15-33-7	284	TC 17-25-6	335	TC 18-28-6	386	TC 19-38-8
234	TC 15-35-10	285	TC 17-25-7	336	TC 18-28-6.5	387	TC 19-40-10
235	TC 15-35-5	286	TC 17-26-5	337	TC 18-28-7	388	TC 19-40-7

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
389	TC 19-42-7	440	TC 20-40-9	491	TC 22-37-6	542	TC 23-43-10
390	TC 19-47-10	441	TC 20-42-10	492	TC 22-37-7	543	TC 23-43-8
391	TC 19-47-7	442	TC 20-42-12	493	TC 22-37-8	544	TC 23-47-10
392	19.05-31.75-6.35	443	TC 20-42-5	494	TC 22-38-10	545	TC 23-47-7
393	TC 19.5-35.1-7	444	TC 20-42-7	495	TC 22-38-5	546	TC 23-47-8
394	TC 19.8-30-5	445	TC 20-42-8	496	TC 22-38-6	547	TC 24-32-5
395	TC 19.8-30-7	446	TC 20-45-10	497	TC 22-38-7	548	TC 24-32-7
396	TC 20-25-7	447	TC 20-45-12	498	TC 22-38-8	549	TC 24-33-7
397	TC 20-26-4	448	TC 20-45-7	499	TC 22-39-6	550	TC 24-34-7
398	TC 20-26-5	449	TC 20-45-8	500	TC 22-39-7	551	TC 24-35-6
399	TC 20-28-4	450	TC 20-46-8	501	TC 22-40-10	552	TC 24-35-7
400	TC 20-28-5	451	TC 20-47-10	502	TC 22-40-12	553	TC 24-35-8
401	TC 20-28-6	452	TC 20-47-12	503	TC 22-40-7	554	TC 24-36-7
402	TC 20-28-7	453	TC 20-47-5	504	TC 22-40-8	555	TC 24-36-8
403	TC 20-30-10	454	TC 20-47-7	505	TC 22-41.25-7	556	TC 24-37-7
404	TC 20-30-4.5	455	TC 20-47-8	506	TC 22-41-7	557	TC 24-38-10
405	TC 20-30-5	456	TC 20-48-10	507	TC 22-42-10	558	TC 24-38-7
406	TC 20-30-6	457	TC 20-48-7	508	TC 22-42-11	559	TC 24-38-8
407	TC 20-30-7	458	TC 20-49-7	509	TC 22-42-5	560	TC 24-40-10
408	TC 20-30-7/9	459	TC 20-50-10	510	TC 22-42-7	561	TC 24-40-7
409	TC 20-30-8	460	TC 20-50-8	511	TC 22-42-8	562	TC 24-40-8
410	TC 20-30-9	461	TC 20-52-7	512	TC 22-44-7	563	TC 24-41-8
411	TC 20-31-7	462	TC 20-52-8	513	TC 22-45-10	564	TC 24-42-10
412	TC 20-32-10	463	TC 20-52-9	514	TC 22-45-7	565	TC 24-42-7
413	TC 20-32-5	464	TC 20-52-10	515	TC 22-45-8	566	TC 24-42-8
414	TC 20-32-6	465	TC 20-52-12	516	TC 22-47-10	567	TC 24-43-6
415	TC 20-32-7	466	TC 21-31-7	517	TC 22-47-7	568	TC 24-43-7
416	TC 20-32-8	467	TC 21-32-5	518	TC 22-48-11	569	TC 24-45-10
417	TC 20-33-7	468	TC 21-33-7	519	TC 22-48-7	570	TC 24-45-11
418	TC 20-34-7	469	TC 21-35-6	520	TC 22-50-10	571	TC 24-45-6
419	TC 20-35-10	470	TC 21-35-7	521	TC 22-50-7	572	TC 24-45-7
420	TC 20-35-12	471	TC 21-36-7	522	TC 22-52-10	573	TC 24-45-8
421	TC 20-35-5	472	TC 21-37-7	523	TC 22-52-8	574	TC 24-46-10
422	TC 20-35-6	473	TC 21-40-7	524	TC 22-55-7	575	TC 24-46-8
423	TC 20-35-7	474	TC 22-28-4	525	TC 22.2-32.2-5	576	TC 24-47-10
424	TC 20-35-8	475	TC 22-30-6	526	TC 23-32-7	577	TC 24-47-7
425	TC 20-36-10	476	TC 22-30-7	527	TC 23-35-7	578	TC 24-48-7
426	TC 20-36-7	477	TC 22-31-7	528	TC 23-35-8	579	TC 24-49-12
427	TC 20-36-8	478	TC 22-32-5	529	TC 23-36-10	580	TC 24-49-8
428	TC 20-37-10	479	TC 22-32-7	530	TC 23-36-6	581	TC 24-50-12
429	TC 20-37-7	480	TC 22-33-10	531	TC 23-36-7	582	TC 24-52-10
430	TC 20-38-10	481	TC 22-33-7	532	TC 23-37-6	583	TC 24-52-8
431	TC 20-38-5	482	TC 22-34-7	533	TC 23-37-7	584	TC 25-30-7
432	TC 20-38-7	483	TC 22-35-10	534	TC 23-38-10	585	TC 25-32-4
433	TC 20-38-8	484	TC 22-35-5	535	TC 23-38-7	586	TC 25-32-5
434	TC 20-40-10	485	TC 22-35-6	536	TC 23-40-10	587	TC 25-32-7
435	TC 20-40-11	486	TC 22-35-7	537	TC 23-40-6	588	TC 25-33-6
436	TC 20-40-12	487	TC 22-35-8	538	TC 23-40-7	589	TC 25-34-5
437	TC 20-40-5	488	TC 22-36-10	539	TC 23-40-8	590	TC 25-34-5.5
438	TC 20-40-7	489	TC 22-36-5	540	TC 23-42-10	591	TC 25-34-7
439	TC 20-40-8	490	TC 22-36-7	541	TC 23-42-7	592	TC 25-35-10

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
593	TC 25-35-5	644	TC 25-50-8	695	TC 26-50-10	746	TC 28-43-7
594	TC 25-35-6	645	TC 25-52-10	696	TC 26-50-7	747	TC 28-44-15
595	TC 25-35-7	646	TC 25-52-12	697	TC 26-52-8	748	TC 28-44-6
596	TC 25-35-8	647	TC 25-52-15	698	TC 26-62-9	749	TC 28-44-7
597	TC 25-36-7	648	TC 25-52-7	699	TC 26-72-10	750	TC 28-45-10
598	TC 25-36-8	649	TC 25-52-8	700	TC 27-36-6	751	TC 28-45-5
599	TC 25-37-5	650	TC 25-53-10	701	TC 27-37-6	752	TC 28-45-7
600	TC 25-37-6	651	TC 25-54-8	702	TC 27-37-7	753	TC 28-45-8
601	TC 25-37-7	652	TC 25-55-10	703	TC 27-37-8	754	TC 28-46-7
602	TC 25-38-10	653	TC 25-55-12	704	TC 27-38-6	755	TC 28-47-10
603	TC 25-38-7	654	TC 25-55-8	705	TC 27-38-8	756	TC 28-47-7
604	TC 25-38-8	655	TC 25-58-10	706	TC 27-40-10	757	TC 28-47-8
605	TC 25-39-8	656	TC 25-60-10	707	TC 27-40-12	758	TC 28-48-11
606	TC 25-40-10	657	TC 25-62-10	708	TC 27-40-5	759	TC 28-48-7
607	TC 25-40-12	658	TC 25-62-12	709	TC 27-40-6	760	TC 28-48-8
608	TC 25-40-5	659	TC 25-62-7	710	TC 27-40-7	761	TC 28-50-10
609	TC 25-40-6	660	TC 25-62-8	711	TC 27-40-8	762	TC 28-50-7
610	TC 25-40-7	661	TC 25-65-10	712	TC 27-42-10	763	TC 28-50-8
611	TC 25-40-7	662	TC 25-70-10	713	TC 27-42-7	764	TC 28-52-10
612	TC 25-40-8	663	TC 25-72-10	714	TC 27-43-8	765	TC 28-52-7
613	TC 25-41.25-6	664	TC 25-72-8	715	TC 27-43-9	766	TC 28-56-8
614	TC 25-41-6	665	25.40-38.10-6.35	716	TC 27-45-8	767	TC 28-58-10
615	TC 25-42-10	666	TC 25.4-40-7	717	TC 27-45-9	768	TC 28-58-9
616	TC 25-42-12	667	25.40-50.80-9.525	718	TC 27-47-10	769	TC 28-62-10
617	TC 25-42-6	668	25.40-62.00-9.525	719	TC 27-47-7	770	TC 28.575-41.28-6.35
618	TC 25-42-7	669	TC 26-35-7	720	TC 27-47-8	771	TC 28.575-47.63-6.35
619	TC 25-42-8	670	TC 26-36-5	721	TC 27-48-8	772	TC 29-40-7
620	TC 25-43-10	671	TC 26-36-7	722	TC 27-50-10	773	TC 29-43-8
621	TC 25-43-12	672	TC 26-37-7	723	TC 27-52-8	774	TC 29-45-8
622	TC 25-43-8	673	TC 26-37-8	724	TC 27-53-7	775	TC 29-45-9
623	TC 25-44-7	674	TC 26-38-5	725	27.00-42.875-7.95	776	TC 29-46-10
624	TC 25-44-8	675	TC 26-38-7	726	TC 28-35-5	777	TC 29-47-10
625	TC 25-45-10	676	TC 26-38-8	727	TC 28-35-7	778	TC 29-47-8
626	TC 25-45-12	677	TC 26-40-10	728	TC 28-35-8	779	TC 29-48-10
627	TC 25-45-5	678	TC 26-40-7	729	TC 28-36-7	780	TC 29-50-10
628	TC 25-45-7	679	TC 26-40-8	730	TC 28-37-4	781	TC 29-52-7
629	TC 25-45-8	680	TC 26-40-9	731	TC 28-37-5	782	TC 29-55-10
630	TC 25-46-10	681	TC 26-42-10	732	TC 28-37-6	783	TC 29-56-10
631	TC 25-46-7	682	TC 26-42-7	733	TC 28-37-7	784	TC 29.37-40-7.8
632	TC 25-47-10	683	TC 26-42-8	734	TC 28-37-8	785	TC 30-37-4
633	TC 25-47-12	684	TC 26-43-8	735	TC 28-38-10	786	TC 30-37-5
634	TC 25-47-5	685	TC 26-45-7	736	TC 28-38-7	787	TC 30-38-10
635	TC 25-47-7	686	TC 26-45-8	737	TC 28-38-8	788	TC 30-38-5
636	TC 25-47-8	687	TC 26-45-9	738	TC 28-40-10	789	TC 30-38-7
637	TC 25-48-10	688	TC 26-47-10	739	TC 28-40-5	790	TC 30-38-8
638	TC 25-48-7	689	TC 26-47-11	740	TC 28-40-7	791	TC 30-40-10
639	TC 25-48-8	690	TC 26-47-12	741	TC 28-40-8	792	TC 30-40-12
640	TC 25-49-10	691	TC 26-47-6	742	TC 28-40-9	793	TC 30-40-5
641	TC 25-50-10	692	TC 26-47-7	743	TC 28-42-10	794	TC 30-40-6
642	TC 25-50-12	693	TC 26-47-8	744	TC 28-42-7	795	TC 30-40-7
643	TC 25-50-7	694	TC 26-48-7	745	TC 28-43-10	796	TC 30-40-8

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
797	TC 30-41-7	848	TC 30-60-7	899	TC 32-50-8	950	TC 33-52-5
798	TC 30-42-10	849	TC 30-60-8	900	TC 32-52-10	951	TC 33-52-6
799	TC 30-42-4.5	850	TC 30-62-10	901	TC 32-52-11	952	TC 33-55-10
800	TC 30-42-6	851	TC 30-62-12	902	TC 32-52-12	953	TC 33-56-10
801	TC 30-42-7	852	TC 30-62-7	903	TC 32-52-5	954	TC 33-56-12
802	TC 30-42-8	853	TC 30-62-8	904	TC 32-52-7	955	TC 33-66-12
803	TC 30-43-7	854	TC 30-65-10	905	TC 32-52-8	956	TC 34-41-7
804	TC 30-43-8	855	TC 30-68-10	906	TC 32-53-7	957	TC 34-44-7
805	TC 30-43-8.5	856	TC 30-68-12	907	TC 32-54-10	958	TC 34-44-8
806	TC 30-43-9	857	TC 30-70-10	908	TC 32-54-7	959	TC 34-45-8
807	TC 30-44-10	858	TC 30-72-10	909	TC 32-54-8	960	TC 34-46-10.5
808	TC 30-44-7	859	TC 30-72-8	910	TC 32-55-10	961	TC 34-46-8
809	TC 30-45-10	860	TC 30-75-10	911	TC 32-55-11	962	TC 34-47-10
810	TC 30-45-12	861	TC 30-75-9	912	TC 32-55-7	963	TC 34-47-7
811	TC 30-45-5	862	TC 30-77-10	913	TC 32-55-8	964	TC 34-47-8
812	TC 30-45-6	863	TC 30-77-9	914	TC 32-56-10	965	TC 34-47-9
813	TC 30-45-7	864	TC 30-80-10	915	TC 32-56-12	966	TC 34-48-7
814	TC 30-45-8	865	TC 31-42-8	916	TC 32-56-8	967	TC 34-48-8
815	TC 30-46-10	866	TC 31-45-7	917	TC 32-57.2-10	968	TC 34-49-8
816	TC 30-46-7	867	TC 31-45-9	918	TC 32-58-10	969	TC 34-50-10
817	TC 30-46-8	868	TC 31-46-8	919	TC 32-58-12	970	TC 34-50-12
818	TC 30-47-10	869	TC 31-47-10	920	TC 32-58-8	971	TC 34-50-7
819	TC 30-47-5	870	TC 31-47-7	921	TC 32-60-10	972	TC 34-52-10
820	TC 30-47-7	871	TC 31-49-7	922	TC 32-60-8	973	TC 34-52-5
821	TC 30-47-8	872	TC 31-50-8	923	TC 32-62-10	974	TC 34-52-7
822	TC 30-48-10	873	TC 31-52-10	924	TC 32-62-12	975	TC 34-52-8
823	TC 30-48-7	874	TC 31-52-6	925	TC 32-62-7	976	TC 34-54-10
824	TC 30-48-8	875	TC 31-52-7	926	TC 32-62-8	977	TC 34-54-8
825	TC 30-50-10	876	TC 31-55-11	927	TC 32-65-10	978	TC 34-55-11
826	TC 30-50-11	877	TC 32-40-10	928	TC 32-65-8	979	TC 34-55-8
827	TC 30-50-12	878	TC 32-40-7	929	TC 32-68-8	980	TC 34-55-9
828	TC 30-50-7	879	TC 32-42-7	930	TC 32-70-10	981	TC 34-58-10
829	TC 30-50-8	880	TC 32-42-8	931	TC 32-70-8	982	TC 34-62-10
830	TC 30-50-9	881	TC 32-43-7	932	TC 32-72-10	983	TC 34-70-10
831	TC 30-51-10	882	TC 32-44-10	933	TC 32.54-49.21-12.7	984	TC 34-72-10
832	TC 30-52-10	883	TC 32-44-7	934	TC 33-42-7	985	TC 34.925-44.45-4.75
833	TC 30-52-12	884	TC 32-44-9	935	TC 33-44-7	986	TC 34.925-49.61-9.53
834	TC 30-52-7	885	TC 32-45-10	936	TC 33-44-8	987	TC 35-42-4
835	TC 30-52-8	886	TC 32-45-6	937	TC 33-44-8.9	988	TC 35-42-8
836	TC 30-55-10	887	TC 32-45-7	938	TC 33-45-10	989	TC 35-44-7
837	TC 30-55-11	888	TC 32-45-8	939	TC 33-45-8	990	TC 35-45-10
838	TC 30-55-12	889	TC 32-46-6	940	TC 33-46-7	991	TC 35-45-12
839	TC 30-55-7	890	TC 32-46-7	941	TC 33-47-10	992	TC 35-45-6
840	TC 30-55-8	891	TC 32-47-10	942	TC 33-47-8	993	TC 35-45-7
841	TC 30-56-10	892	TC 32-47-7	943	TC 33-48-8	994	TC 35-45-8
842	TC 30-56-12	893	TC 32-47-8	944	TC 33-49-12	995	TC 35-46-10
843	TC 30-57-10	894	TC 32-48-10	945	TC 33-50-10	996	TC 35-46-7
844	TC 30-58-10	895	TC 32-48-7	946	TC 33-50-6	997	TC 35-47-10
845	TC 30-58-8	896	TC 32-48-8	947	TC 33-50-7	998	TC 35-47-12
846	TC 30-60-10	897	TC 32-50-10	948	TC 33-50-8	999	TC 35-47-7
847	TC 30-60-12	898	TC 32-50-7	949	TC 33-52-10	1000	TC 35-47-8

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
1001	TC 35-48-10	1052	TC 35-68-10	1103	TC 39-65-8	1154	TC 40-50-10
1002	TC 35-48-7	1053	TC 35-68-8	1104	TC 39-60-8	1155	TC 40-50-4
1003	TC 35-48-8	1054	TC 35-70-10	1105	TC 39-56-7	1156	TC 40-50-7
1004	TC 35-48-9	1055	TC 35-72-10	1106	TC 38.10-66.68-9.525	1157	TC 40-50-8
1005	TC 35-49-6	1056	TC 35-72-12	1107	TC 38-80-8	1158	TC 40-52-10
1006	TC 35-49-8	1057	TC 35-72-7	1108	TC 38-80-10	1159	TC 40-52-6
1007	TC 35-50-10	1058	TC 35-72-8	1109	TC 38-74-11	1160	TC 40-52-7
1008	TC 35-50-11	1059	TC 35-75-10	1110	TC 38-72-12	1161	TC 40-52-8
1009	TC 35-50-12	1060	TC 35-75-12	1111	TC 38-72-10	1162	TC 40-52-9
1010	TC 35-50-7	1061	TC 35-75-8	1112	TC 38-70-8	1163	TC 40-54-10
1011	TC 35-50-8	1062	TC 35-78-8	1113	TC 38-70-10	1164	TC 40-54-7
1012	TC 35-50-9	1063	TC 35-80-10	1114	TC 38-68-8	1165	TC 40-54-9
1013	TC 35-51-10	1064	TC 35-80-12	1115	TC 38-65-8	1166	TC 40-55-10
1014	TC 35-51-8	1065	TC 35-80-8	1116	TC 38-65-12	1167	TC 40-55-12
1015	TC 35-52-10	1066	TC 35-82-7	1117	TC 38-65-10	1168	TC 40-55-6
1016	TC 35-52-11	1067	TC 36-46-10	1118	TC 38-62-8	1169	TC 40-55-7
1017	TC 35-52-12	1068	TC 36-46-6	1119	TC 38-62-7	1170	TC 40-55-8
1018	TC 35-52-6	1069	TC 36-46-9	1120	TC 38-62-12	1171	TC 40-56-10
1019	TC 35-52-7	1070	TC 36-47-7	1121	TC 38-62-10	1172	TC 40-56-12
1020	TC 35-52-8	1071	TC 36-48-10	1122	TC 38-60-8	1173	TC 40-56-7
1021	TC 35-54-10	1072	TC 36-48-7	1123	TC 38-60-12	1174	TC 40-56-8
1022	TC 35-54-12	1073	TC 36-48-8	1124	TC 38-60-10	1175	TC 40-57-7
1023	TC 35-54-7	1074	TC 36-49-7	1125	TC 38-58-8	1176	TC 40-58-10
1024	TC 35-54-8	1075	TC 36-50-10	1126	TC 38-58-7	1177	TC 40-58-12
1025	TC 35-55-10	1076	TC 36-50-7	1127	TC 38-58-12	1178	TC 40-58-8
1026	TC 35-55-11	1077	TC 36-51-8	1128	TC 38-58-11	1179	TC 40-59-10
1027	TC 35-55-12	1078	TC 36-52-10	1129	TC 38-58-10	1180	TC 40-60-10
1028	TC 35-55-7	1079	TC 36-52-7	1130	TC 38-57-10	1181	TC 40-60-12
1029	TC 35-55-8	1080	TC 36-54-10	1131	TC 38-56-8	1182	TC 40-60-7
1030	TC 35-55-9	1081	TC 36-54-7	1132	TC 38-56-7	1183	TC 40-60-8
1031	TC 35-56-10	1082	TC 36-54-8	1133	TC 38-56-12	1184	TC 40-62-10
1032	TC 35-56-12	1083	TC 36-55-10	1134	TC 38-56-10	1185	TC 40-62-11
1033	TC 35-56-8	1084	TC 36-56-10	1135	TC 38-55-9	1186	TC 40-62-12
1034	TC 35-57-10	1085	TC 36-56-12	1136	TC 38-55-8	1187	TC 40-62-6
1035	TC 35-57-9	1086	TC 36-58-10	1137	TC 38-55-7	1188	TC 40-62-7
1036	TC 35-58-10	1087	TC 36-58-12	1138	TC 38-48-7	1189	TC 40-62-8
1037	TC 35-58-12	1088	TC 36-58-8	1139	TC 38-47-7	1190	TC 40-62-9
1038	TC 35-58-8	1089	TC 36-60-10	1140	TC 38-55-10	1191	TC 40-63-7
1039	TC 35-60-10	1090	TC 36-60-6	1141	TC 38-48-10	1192	TC 40-64-10
1040	TC 35-60-12	1091	TC 36-62-7	1142	TC 37-64-13	1193	TC 40-64-12
1041	TC 35-60-15.5	1092	TC 36-68-10	1143	TC 38-54-8	1194	TC 40-65-10
1042	TC 35-60-7	1093	TC 37-47-10	1144	TC 38-54-10	1195	TC 40-65-12
1043	TC 35-60-8	1094	TC 37-52-7	1145	TC 38-52-8	1196	TC 40-65-7
1044	TC 35-62-10	1095	TC 37-52-8	1146	TC 38-52-7	1197	TC 40-65-8
1045	TC 35-62-12	1096	TC 37-53-7	1147	TC 38-52-10	1198	TC 40-68-10
1046	TC 35-62-7	1097	TC 37-55-8	1148	TC 38-51-7	1199	TC 40-68-12
1047	TC 35-62-8	1098	TC 37-58-10	1149	TC 38-51-10	1200	TC 40-68-7
1048	TC 35-64-12	1099	TC 37-58-7	1150	TC 38-50-8	1201	TC 40-68-8
1049	TC 35-65-10	1100	TC 37-62-10	1151	TC 38-50-7	1202	TC 40-70-10
1050	TC 35-65-12	1101	TC 37-62-7	1152	TC 38-50-11	1203	TC 40-70-12
1051	TC 35-65-7	1102	TC 37-62-8	1153	TC 38-50-10	1204	TC 40-70-8

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
1205	TC 40-72-10	1256	TC 42-65-9	1307	TC 45-62-7	1358	TC 48-62-10
1206	TC 40-72-12	1257	TC 42-68-10	1308	TC 45-62-8	1359	TC 48-62-12
1207	TC 40-72-7	1258	TC 42-68-8	1309	TC 45-62-9	1360	TC 48-62-6
1208	TC 40-72-8	1259	TC 42-70-10	1310	TC 45-63.5-10	1361	TC 48-62-7
1209	TC 40-75-10	1260	TC 42-70-12	1311	TC 45-63-7	1362	TC 48-62-8
1210	TC 40-75-12	1261	TC 42-70-8	1312	TC 45-64-10	1363	TC 48-62-9
1211	TC 40-76-8	1262	TC 42-72-10	1313	TC 45-64-7	1364	TC 48-65-10
1212	TC 40-80-10	1263	TC 42-72-12	1314	TC 45-64-9	1365	TC 48-65-12
1213	TC 40-80-12	1264	TC 42-72-8	1315	TC 45-65-10	1366	TC 48-65-7
1214	TC 40-80-7	1265	TC 42-75-10	1316	TC 45-65-12	1367	TC 48-65-8
1215	TC 40-85-10	1266	TC 42-75-12	1317	TC 45-65-7	1368	TC 48-65-9
1216	TC 40-90-10	1267	TC 42-76-12	1318	TC 45-65-8	1369	TC 48-68-10
1217	TC 40-90-12	1268	TC 42-78-10	1319	TC 45-65-9	1370	TC 48-68-12
1218	TC 40-110-10	1269	TC 42.85-66.68-9.525	1320	TC 45-68-10	1371	TC 48-68-7
1219	TC 41-53-7	1270	TC 43-55-7	1321	TC 45-68-12	1372	TC 48-70-10
1220	TC 41-53-8	1271	TC 43-55-8	1322	TC 45-68-8	1373	TC 48-70-12
1221	TC 41-54-7	1272	TC 43-55-9	1323	TC 45-68-9	1374	TC 48-70-7
1222	TC 41-55-7	1273	TC 43-58-8	1324	TC 45-70-10	1375	TC 48-70-9
1223	TC 41-56-7	1274	TC 43-60-10	1325	TC 45-70-12	1376	TC 48-72-10
1224	TC 41-64-10	1275	TC 43-62-12	1326	TC 45-70-5	1377	TC 48-72-12
1225	TC 41.28-63.50-7.95	1276	TC 43-62-8	1327	TC 45-70-8	1378	TC 48-72-7
1226	TC 42-50-10	1277	TC 43-66-10	1328	TC 45-72-10	1379	TC 48-72-8
1227	TC 42-50-7	1278	TC 44-54-7	1329	TC 45-72-12	1380	TC 48-74-10
1228	TC 42-52-10	1279	TC 44-58-8	1330	TC 45-72-8	1381	TC 48-75-10
1229	TC 42-52-7	1280	TC 44-60-10	1331	TC 45-75-10	1382	TC 48-75-12
1230	TC 42-52-8	1281	TC 44-60-7	1332	TC 45-75-12	1383	TC 48-76-12
1231	TC 42-55-10	1282	TC 44-62-10	1333	TC 45-75-8	1384	TC 48-80-10
1232	TC 42-55-7	1283	TC 44-64-10	1334	TC 45-78-12	1385	TC 48-80-12
1233	TC 42-55-8	1284	TC 44-65-11	1335	TC 45-80-10	1386	TC 48-82-10
1234	TC 42-55-9	1285	TC 44-70-12	1336	TC 45-80-12	1387	TC 48-82-12
1235	TC 42-56-10	1286	TC 44-72-10	1337	TC 45-80-8	1388	TC 48-85-10
1236	TC 42-56-7	1287	TC 44-72-8	1338	TC 45-82-12	1389	TC 48-90-13
1237	TC 42-58-10	1288	TC 44-92-10	1339	TC 45-85-10	1390	TC 49-77-18
1238	TC 42-58-12	1289	TC 45-55-10	1340	TC 45-85-12	1391	TC 49-92-10
1239	TC 42-58-7	1290	TC 45-55-12	1341	TC 45-85-8	1392	TC 50-58-13
1240	TC 42-58-8	1291	TC 45-55-7	1342	TC 45-90-10	1393	TC 50-58-4
1241	TC 42-60-10	1292	TC 45-55-8	1343	TC 45-100-10	1394	TC 50-60-10
1242	TC 42-60-12	1293	TC 45-56-7	1344	TC 46-60-10	1395	TC 50-60-12
1243	TC 42-60-7	1294	TC 45-56-8	1345	TC 46-60-7	1396	TC 50-60-8
1244	TC 42-60-8	1295	TC 45-57-9	1346	TC 46-62-8	1397	TC 50-62-10
1245	TC 42-60-9	1296	TC 45-58-10	1347	TC 47-55-7	1398	TC 50-62-12
1246	TC 42-62-10	1297	TC 45-58-7	1348	TC 47-56-7	1399	TC 50-62-7
1247	TC 42-62-12	1298	TC 45-58-8	1349	TC 47-60-7	1400	TC 50-62-8
1248	TC 42-62-8	1299	TC 45-59-7	1350	TC 47-62-7	1401	TC 50-62-9
1249	TC 42-62-9	1300	TC 45-60-10	1351	TC 47-62-8	1402	TC 50-63-8
1250	TC 42-63-8	1301	TC 45-60-12	1352	TC 47-65-10	1403	TC 50-64-10
1251	TC 42-64-10	1302	TC 45-60-7	1353	TC 47-65-8	1404	TC 50-64-8
1252	TC 42-64-8	1303	TC 45-60-8	1354	TC 47-70-10	1405	TC 50-65-10
1253	TC 42-65-10	1304	TC 45-60-9	1355	TC 47.63-66.68-7.95	1406	TC 50-65-8
1254	TC 42-65-12	1305	TC 45-62-10	1356	TC 48-60-10	1407	TC 50-65-9
1255	TC 42-65-8	1306	TC 45-62-12	1357	TC 48-60-8	1408	TC 50-67-11

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
1409	TC 50-67-9	1460	TC 52-72-12	1511	TC 55-75-12	1562	TC 58-75-11
1410	TC 50-68-10	1461	TC 52-72-8	1512	TC 55-75-6	1563	TC 58-75-12
1411	TC 50-68-12	1462	TC 52-75-10	1513	TC 55-75-8	1564	TC 58-75-8
1412	TC 50-68-8	1463	TC 52-75-12	1514	TC 55-75-9	1565	TC 58-75-9
1413	TC 50-68-9	1464	TC 52-75-15	1515	TC 55-76-12	1566	TC 58-78-12
1414	TC 50-70-10	1465	TC 52-75-8	1516	TC 55-78-12	1567	TC 58-80-10
1415	TC 50-70-12	1466	TC 52-78-10	1517	TC 55-78-9	1568	TC 58-80-12
1416	TC 50-70-7	1467	TC 52-80-10	1518	TC 55-80-10	1569	TC 58-80-8
1417	TC 50-70-8	1468	TC 52-80-12	1519	TC 55-80-12	1570	TC 58-80-9
1418	TC 50-70-9	1469	TC 52-80-13	1520	TC 55-80-13	1571	TC 58-82-10
1419	TC 50-72-10	1470	TC 52-80-8	1521	TC 55-80-8	1572	TC 58-82-12
1420	TC 50-72-12	1471	TC 52-85-10	1522	TC 55-82-10	1573	TC 58-85-10
1421	TC 50-72-7	1472	TC 52-85-13	1523	TC 55-82-12	1574	TC 58-85-12
1422	TC 50-72-8	1473	TC 52-85-9	1524	TC 55-82-9	1575	TC 58-85-8
1423	TC 50-72-9	1474	TC 52-90-10	1525	TC 55-85-10	1576	TC 58-90-10
1424	TC 50-73-12	1475	TC 52-100-10	1526	TC 55-85-12	1577	TC 59-72-12
1425	TC 50-75-10	1476	TC 53-72-10	1527	TC 55-85-8	1578	TC 60-70-10
1426	TC 50-75-12	1477	TC 53-73-10	1528	TC 55-88-10	1579	TC 60-70-12
1427	TC 50-75-6	1478	TC 54-64-9	1529	TC 55-90-10	1580	TC 60-70-8
1428	TC 50-75-8	1479	TC 54-65-10	1530	TC 55-90-12	1581	TC 60-72-10
1429	TC 50-76-12	1480	TC 54-65-13	1531	TC 55-90-8	1582	TC 60-72-12
1430	TC 50-78-12	1481	TC 54-68-10	1532	TC 55-100-10	1583	TC 60-72-9
1431	TC 50-78-8	1482	TC 54-68-9	1533	TC 55-100-12	1584	TC 60-74-10
1432	TC 50-80-10	1483	TC 54-70-10	1534	TC 56-69-10	1585	TC 60-75-10
1433	TC 50-80-12	1484	TC 54-70-9	1535	TC 56-70-8	1586	TC 60-75-12
1434	TC 50-80-13	1485	TC 54-72.5-9	1536	TC 56-70-9	1587	TC 60-75-8
1435	TC 50-80-8	1486	TC 54-72-10	1537	TC 56-72-10	1588	TC 60-75-9
1436	TC 50-82-12	1487	TC 54-74-10	1538	TC 56-72-8	1589	TC 60-78-9
1437	TC 50-85-10	1488	TC 54-75-10	1539	TC 56-72-9	1590	TC 60-80-10
1438	TC 50-85-12	1489	TC 54-76-12	1540	TC 56-75-8	1591	TC 60-80-12
1439	TC 50-85-8	1490	TC 54-76-8	1541	TC 56-80-10	1592	TC 60-80-13
1440	TC 50-90-10	1491	TC 54-80-10	1542	TC 56-80-13	1593	TC 60-80-7
1441	TC 50-90-12	1492	TC 54-82-10	1543	TC 56-80-8	1594	TC 60-80-8
1442	TC 50-90-13	1493	TC 54-82-11	1544	TC 56-85-10	1595	TC 60-80-9
1443	TC 50-90-8	1494	TC 54-85-10	1545	TC 56-85-8	1596	TC 60-82-12
1444	TC 50-100-10	1495	TC 54-85-8	1546	TC 56-90-10	1597	TC 60-82-9
1445	TC 50-110-10	1496	TC 55-65-10	1547	TC 56-100-10	1598	TC 60-84-10
1446	TC 50.80-76.20-9.525	1497	TC 55-65-8	1548	TC 57-67-6	1599	TC 60-85-10
1447	TC 50.80-79.375-12.7	1498	TC 55-68-10	1549	TC 57-73-7	1600	TC 60-85-12
1448	TC 52-60-7	1499	TC 55-68-12	1550	TC 57-77-10	1601	TC 60-85-13
1449	TC 52-62-10	1500	TC 55-68-8	1551	TC 57-80-12	1602	TC 60-85-6
1450	TC 52-62-7	1501	TC 55-70-10	1552	TC 57-85-10	1603	TC 60-85-8
1451	TC 52-62-9	1502	TC 55-70-12	1553	TC 57.15-110-10	1604	TC 60-86-10
1452	TC 52-63-8	1503	TC 55-70-8	1554	TC 58-68-9	1605	TC 60-90-10
1453	TC 52-65-10	1504	TC 55-70-9	1555	TC 58-70-11	1606	TC 60-90-11
1454	TC 52-65-9	1505	TC 55-72-10	1556	TC 58-70-9	1607	TC 60-90-12
1455	TC 52-68-10	1506	TC 55-72-12	1557	TC 58-72-10	1608	TC 60-90-13
1456	TC 52-68-7	1507	TC 55-72-8	1558	TC 58-72-8	1609	TC 60-90-8
1457	TC 52-68-8	1508	TC 55-72-9	1559	TC 58-72-9	1610	TC 60-92-12
1458	TC 52-70-9	1509	TC 55-73-10	1560	TC 58-74-10	1611	TC 60-95-10
1459	TC 52-72-10	1510	TC 55-75-10	1561	TC 58-75-10	1612	TC 60-95-12

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
1613	TC 60-95-13	1664	TC 65-80-8	1715	TC 70-85-8	1766	TC 75-90-8
1614	TC 60-100-10	1665	TC 65-82-12	1716	TC 70-87-10	1767	TC 75-92-12
1615	TC 60-100-12	1666	TC 65-82-9	1717	TC 70-88-10	1768	TC 75-95-10
1616	TC 60-100-13	1667	TC 65-85-10	1718	TC 70-88-12	1769	TC 75-95-12
1617	TC 60-110-10	1668	TC 65-85-12	1719	TC 70-88-8	1770	TC 75-95-13
1618	TC 60-110-12	1669	TC 65-85-8	1720	TC 70-90-10	1771	TC 75-95-8
1619	TC 62-75-10	1670	TC 65-88-10	1721	TC 70-90-12	1772	TC 75-100-10
1620	TC 62-75-12	1671	TC 65-88-12	1722	TC 70-90-13	1773	TC 75-100-12
1621	TC 62-78-10	1672	TC 65-88-8	1723	TC 70-90-7	1774	TC 75-100-13
1622	TC 62-78-5	1673	TC 65-89-13	1724	TC 70-90-8	1775	TC 75-105-10
1623	TC 62-80-10	1674	TC 65-90-10	1725	TC 70-92-10	1776	TC 75-105-12
1624	TC 62-80-12	1675	TC 65-90-12	1726	TC 70-92-12	1777	TC 75-105-13
1625	TC 62-82.5-12	1676	TC 65-90-13	1727	TC 70-92-9	1778	TC 75-110-10
1626	TC 62-82-10	1677	TC 65-90-8	1728	TC 70-95-10	1779	TC 75-110-12
1627	TC 62-82-12	1678	TC 65-92-12	1729	TC 70-95-12	1780	TC 75-110-13
1628	TC 62-85-10	1679	TC 65-95-10	1730	TC 70-95-13	1781	TC 75-115-10
1629	TC 62-85-12	1680	TC 65-95-12	1731	TC 70-100-10	1782	TC 75-115-13
1630	TC 62-88-12	1681	TC 65-95-13	1732	TC 70-100-12	1783	TC 75-115-9.5
1631	TC 62-90-10	1682	TC 65-100-10	1733	TC 70-100-13	1784	TC 75-120-12
1632	TC 62-90-12	1683	TC 65-100-12	1734	TC 70-102-12	1785	TC 75-120-13
1633	TC 62-90-13	1684	TC 65-100-13	1735	TC 70-105-10	1786	TC 75-130-12
1634	TC 62-95-10	1685	TC 65-105-12	1736	TC 70-105-12	1787	TC 76-95-11
1635	TC 62-95-12	1686	TC 65-110-10	1737	TC 70-105-13	1788	TC 76-105-12
1636	TC 62-100-10	1687	TC 65-110-12	1738	TC 70-110-10	1789	TC 76.20-101.60-12.7
1637	TC 62-100-13	1688	TC 65-110-13	1739	TC 70-110-12	1790	TC 77-95-10
1638	TC 62-110-13	1689	TC 65-115-12	1740	TC 70-110-13	1791	TC 78-100-10
1639	TC 62-120-12	1690	TC 65-115-13	1741	TC 70-110-8	1792	TC 78-100-13
1640	TC 62-120-15	1691	TC 65-120-12	1742	TC 70-112-13	1793	TC 78-110-12
1641	TC 63-80-10	1692	TC 65-120-13	1743	TC 70-115-13	1794	TC 78-110-13
1642	TC 63-80-12	1693	TC 65-120-15	1744	TC 70-120-13	1795	TC 78-115-10
1643	TC 63-80-9	1694	TC 67-82-7	1745	TC 70-125-12	1796	TC 80-95-10
1644	TC 63-85.5-10	1695	TC 68-80-10	1746	TC 70-125-13	1797	TC 80-95-8
1645	TC 63-85-10	1696	TC 68-82-10	1747	TC 72-90-10	1798	TC 80-98-10
1646	TC 63-85-12	1697	TC 68-82-7	1748	TC 72-90-8	1799	TC 80-100-8
1647	TC 63-88-10	1698	TC 68-85-10	1749	TC 72-92-12	1800	TC 80-100-10
1648	TC 63-88-12	1699	TC 68-90-10	1750	TC 72-94-12	1801	TC 80-100-12
1649	TC 63-90-10	1700	TC 68-90-12	1751	TC 72-95-10	1802	TC 80-100-13
1650	TC 63-90-12	1701	TC 68-90-8	1752	TC 72-95-12	1803	TC 80-100-15
1651	TC 63-100-13	1702	TC 68-92-12	1753	TC 72-95-13	1804	TC 80-105-10
1652	TC 64-80-10	1703	TC 68-95-10	1754	TC 72-98-9	1805	TC 80-105-12
1653	TC 64-80-12	1704	TC 68-95-13	1755	TC 72-100-10	1806	TC 80-105-13
1654	TC 64-80-8	1705	TC 68-95-8	1756	TC 72-100-12	1807	TC 80-110-10
1655	TC 64-85-10	1706	TC 68-98-10	1757	TC 72-105-13	1808	TC 80-110-12
1656	TC 64-85-12	1707	TC 68-100-10	1758	TC 72-110-12	1809	TC 80-110-13
1657	TC 64-85-16	1708	TC 68-100-12	1759	TC 72-140-12	1810	TC 80-110-15
1658	TC 65-75-10	1709	TC 68-100-13	1760	TC 73-100-13	1811	TC 80-115-10
1659	TC 65-75-12	1710	TC 70-80-10	1761	TC 74-90-10	1812	TC 80-115-12
1660	TC 65-75-8	1711	TC 70-80-12	1762	TC 74-98-12	1813	TC 80-115-13
1661	TC 65-78-12	1712	TC 70-80-8	1763	TC 74-100-10	1814	TC 80-120-10
1662	TC 65-80-10	1713	TC 70-85-10	1764	TC 75-90-10	1815	TC 80-120-12
1663	TC 65-80-12	1714	TC 70-85-12	1765	TC 75-90-12	1816	TC 80-125-10

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
1817	TC 80-125-12	1868	TC 90-120-12	1919	TC 100-140-13	1970	TC 115-135-13
1818	TC 80-125-13	1869	TC 90-120-13	1920	TC 100-145-13	1971	TC 115-140-12
1819	TC 80-128-10	1870	TC 90-125-12	1921	TC 100-145-14	1972	TC 115-140-13
1820	TC 80-140-13	1871	TC 90-125-13	1922	TC 100-150-10	1973	TC 115-140-14
1821	TC 80-150-15	1872	TC 90-125-15	1923	TC 100-150-13	1974	TC 115-140-16
1822	TC 80-170-13	1873	TC 90-130-10	1924	TC 100-180-12	1975	TC 115-145-13
1823	TC 82-105-10	1874	TC 90-130-12	1925	TC 101.60-127-12.70	1976	TC 115-145-14
1824	TC 82-105-13	1875	TC 90-130-13	1926	TC 102-130-13	1977	TC 115-146.5-13
1825	TC 82-110-13	1876	TC 90-135-13	1927	TC 105-120-13	1978	TC 115-150-12
1826	TC 82-160-13	1877	TC 90-140-16	1928	TC 105-125-12	1979	TC 115-150-14
1827	TC 82.55-114.30-12.7	1878	TC 92-110-10	1929	TC 105-125-13	1980	TC 115-150-16
1828	TC 84-105-12	1879	TC 92-120-12	1930	TC 105-130-12	1981	TC 115-160-15
1829	TC 85-100-9	1880	TC 95-105-13	1931	TC 105-130-13	1982	TC 115.5-180-14.5
1830	TC 85-100-10	1881	TC 95-105-9	1932	TC 105-130-15	1983	TC 116-132-12
1831	TC 85-100-12	1882	TC 95-110-10	1933	TC 105-135-12	1984	TC 118-150-12
1832	TC 85-100-13	1883	TC 95-110-12	1934	TC 105-135-13	1985	TC 120-140-12
1833	TC 85-105-10	1884	TC 95-110-13	1935	TC 105-135-14	1986	TC 120-140-13
1834	TC 85-105-12	1885	TC 95-115-10	1936	TC 105-140-12	1987	TC 120-140-15
1835	TC 85-105-13	1886	TC 95-115-12	1937	TC 105-140-13	1988	TC 120-145-12
1836	TC 85-110-10	1887	TC 95-115-13	1938	TC 105-140-15	1989	TC 120-145-15
1837	TC 85-110-12	1888	TC 95-120-10	1939	TC 105-145-12	1990	TC 120-150-12
1838	TC 85-110-13	1889	TC 95-120-12	1940	TC 105-145-15	1991	TC 120-150-14
1839	TC 85-115-12	1890	TC 95-120-13	1941	TC 107.95-133.35-12.7	1992	TC 120-150-15
1840	TC 85-115-13	1891	TC 95-125-12	1942	TC 110-115-12	1993	TC 120-155-14
1841	TC 85-120-10	1892	TC 95-130-12	1943	TC 110-125-10	1994	TC 120-155-16
1842	TC 85-120-12	1893	TC 95-130-13	1944	TC 110-125-12	1995	TC 120-160-12
1843	TC 85-120-13	1894	TC 95-130-15	1945	TC 110-130-10	1996	TC 120-160-14
1844	TC 85-125-12	1895	TC 95-135-12	1946	TC 110-130-12	1997	TC 120-160-15
1845	TC 85-125-13	1896	TC 95-135-13	1947	TC 110-130-13	1998	TC 120-165-14
1846	TC 85-125-14	1897	TC 95-140-13	1948	TC 110-130-14	1999	TC 120-180-15
1847	TC 85-130-10	1898	TC 95-145-10	1949	TC 110-135-10	2000	TC 125-145-13
1848	TC 85-130-12	1899	TC 95-145-13	1950	TC 110-135-12	2001	TC 125-145-14
1849	TC 85-140-12	1900	TC 98-120-13	1951	TC 110-135-13	2002	TC 125-150-12
1850	TC 85-150-12	1901	TC 100-115-10	1952	TC 110-140-12	2003	TC 125-150-13
1851	TC 87-110-13	1902	TC 100-115-12	1953	TC 110-140-13	2004	TC 125-150-14
1852	TC 89-115-13	1903	TC 100-115-9	1954	TC 110-140-14	2005	TC 125-150-15
1853	TC 90-100-12	1904	TC 100-120-10	1955	TC 110-140-15	2006	TC 125-155-14
1854	TC 90-100-7	1905	TC 100-120-12	1956	TC 110-142-14	2007	TC 125-160-12
1855	TC 90-105-10	1906	TC 100-120-13	1957	TC 110-145-13	2008	TC 125-160-14
1856	TC 90-105-12	1907	TC 100-120-7	1958	TC 110-145-14	2009	TC 125-160-15
1857	TC 90-105-13	1908	TC 100-125-10	1959	TC 110-150-13	2010	TC 125-160-16
1858	TC 90-105-9	1909	TC 100-125-12	1960	TC 110-150-14	2011	TC 125-200-15
1859	TC 90-110-10	1910	TC 100-125-13	1961	TC 110-160-12	2012	TC 130-150-10
1860	TC 90-110-12	1911	TC 100-130-10	1962	TC 110-160-13	2013	TC 130-150-12
1861	TC 90-110-13	1912	TC 100-130-12	1963	TC 110-160-14	2014	TC 130-150-13
1862	TC 90-112-12	1913	TC 100-130-13	1964	TC 110-170-12	2015	TC 130-150-15
1863	TC 90-115-10	1914	TC 100-135-10	1965	TC 110-200-13	2016	TC 130-155-10
1864	TC 90-115-12	1915	TC 100-135-12	1966	TC 114-140-13	2017	TC 130-155-12
1865	TC 90-115-13	1916	TC 100-135-13	1967	TC 114-145-14	2018	TC 130-155-14
1866	TC 90-118-12	1917	TC 100-135-14	1968	TC 114.3-139.7-12.7	2019	TC 130-160-12
1867	TC 90-120-10	1918	TC 100-140-12	1969	TC 115-130-12	2020	TC 130-160-13

Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE	Item NO.	SIZE
2021	TC 130-160-14	2072	TC 150-172-12	2123	TC 180-205-15	2174	TC 215-240-15
2022	TC 130-160-15	2073	TC 150-175-10	2124	TC 180-210-15	2175	TC 215-245-15
2023	TC 130-160-16	2074	TC 150-180-12	2125	TC 180-215-15	2176	TC 215-248-15
2024	TC 130-165-13	2075	TC 150-180-13	2126	TC 180-220-15	2177	TC 215-275-26
2025	TC 130-165-14	2076	TC 150-180-14	2127	TC 180-220-16	2178	TC 220-250-15
2026	TC 130-170-12	2077	TC 150-180-15	2128	TC 185-210-13	2179	TC 220-255-16
2027	TC 130-170-15	2078	TC 150-180-16	2129	TC 185-210-15	2180	TC 220-260-14
2028	TC 130-180-13	2079	TC 150-185-16	2130	TC 185-215-15	2181	TC 220-260-18
2029	TC 130-190-12	2080	TC 150-190-15	2131	TC 185-215-16	2182	TC 230-255-18
2030	TC 130-200-12	2081	TC 150-210-15	2132	TC 185-240-22	2183	TC 230-260-15
2031	TC 130-230-14	2082	TC 150-225-12	2133	TC 188-215-16	2184	TC 230-260-20
2032	TC 135-150-15	2083	TC 155-180-10	2134	TC 188-238-16	2185	TC 235-275-16
2033	TC 135-155-12	2084	TC 155-180-12	2135	TC 190-210-10	2186	TC 240-270-15
2034	TC 135-159-13	2085	TC 155-180-13	2136	TC 190-210-15	2187	TC 240-273-16
2035	TC 135-160-12	2086	TC 155-180-15	2137	TC 190-215-15	2188	TC 240-280-18
2036	TC 135-160-15	2087	TC 155-185-14	2138	TC 190-220-15	2189	TC 240-280-20
2037	TC 135-165-13	2088	TC 155-185-16	2139	TC 190-225-12	2190	TC 250-280-15
2038	TC 135-165-14	2089	TC 155-190-15	2140	TC 190-225-16	2191	TC 250-290-15
2039	TC 135-165-15	2090	TC 160-180-10	2141	TC 190-230-15	2192	TC 260-280-15
2040	TC 135-170-12	2091	TC 160-180-13	2142	TC 190-230-16	2193	TC 260-290-15
2041	TC 135-170-15	2092	TC 160-180-15	2143	TC 190-240-15	2194	TC 260-300-18
2042	TC 135-175-12	2093	TC 160-185-10	2144	TC 190-250-22	2195	TC 260-300-20
2043	TC 135-175-15	2094	TC 160-185-13	2145	TC 195-230-15	2196	TC 265-290-16
2044	TC 138-160-15	2095	TC 160-190-12	2146	TC 195-230-16	2197	TC 270-310-20
2045	TC 140-160-12	2096	TC 160-190-13	2147	TC 195-230-20	2198	TC 275-310-15
2046	TC 140-160-13	2097	TC 160-190-14	2148	TC 195-231-20	2199	TC 280-310-15
2047	TC 140-160-14	2098	TC 160-190-15	2149	TC 195-235-16	2200	TC 280-320-18
2048	TC 140-165-13	2099	TC 160-190-16	2150	TC 195-240-15	2201	TC 280-320-20
2049	TC 140-165-15	2100	TC 160-200-12	2151	TC 195-250-22	2202	TC 285-320-20
2050	TC 140-170-12	2101	TC 160-200-14	2152	TC 200-225-15	2203	TC 290-320-18
2051	TC 140-170-13	2102	TC 160-200-15	2153	TC 200-230-13	2204	TC 290-330-18
2052	TC 140-170-14	2103	TC 160-240-15	2154	TC 200-230-15	2205	TC 300-340-16
2053	TC 140-170-15	2104	TC 165-190-13	2155	TC 200-230-16	2206	TC 300-340-18
2054	TC 140-175-13	2105	TC 165-190-14	2156	TC 200-235-15	2207	TC 300-340-20
2055	TC 140-175-15	2106	TC 165-190-15	2157	TC 200-240-15	2208	TC 310-350-18
2056	TC 140-175-16	2107	TC 165-195-15	2158	TC 200-240-20	2209	TC 320-360-18
2057	TC 140-180-12	2108	TC 170-190-10	2159	TC 200-250-15	2210	TC 320-360-20
2058	TC 140-180-15	2109	TC 170-190-14	2160	TC 200-250-16	2211	TC 340-360-20
2059	TC 140-210-15	2110	TC 170-195-15	2161	TC 200-250-20	2212	TC 340-380-20
2060	TC 142-165-10	2111	TC 170-200-13	2162	TC 203.2-241.3-19.03	2213	TC 360-400-20
2061	TC 142-168-14	2112	TC 170-200-15	2163	TC 205-225-18	2214	TC 380-420-20
2062	TC 145-165-13	2113	TC 170-200-16	2164	TC 205-230-16	2215	TC 400-440-20
2063	TC 145-165-14	2114	TC 170-205-15	2165	TC 205-235-18
2064	TC 145-170-12	2115	TC 170-210-15	2166	TC 210-240-15
2065	TC 145-170-13	2116	TC 170-210-16	2167	TC 210-245-18
2066	TC 145-170-15	2117	TC 175-200-15	2168	TC 210-250-15
2067	TC 145-175-14	2118	TC 175-210-15	2169	TC 210-250-16
2068	TC 145-175-15	2119	TC 175-230-20	2170	TC 210-255-16
2069	TC 145-180-12	2120	TC 180-200-12	2171	TC 210-260-16
2070	TC 145-180-15	2121	TC 180-200-14	2172	TC 210-270-16
2071	TC 150-170-15	2122	TC 180-200-15	2173	TC 215-240-12

If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in12hours).

Changsha E-Hu Machinery &Electronics TechnologyCo. Ltd.
Website		http://ehuparts.en.made-in-china.com/ http://www.ehuoilseal.com/
Contact information		Telephone:+0086 731 88834905
		Fax:+0086 731 88834905




Address		F902, Building 4, No. 636, Luvalley Road, Hi-Tech Development Zone, Changsha, Hunan

Since 1997, E-Hu Group focus on designing, producing and selling different kinds of automobile parts. Now our mainly products are auto filter. Oil seal and O-ring, which used on European, America, Japanese and Korea series of cars, trucks and machine equipment.

Our head office is located in Changsha, Hunan, China, with a long history and very beautiful city. It is also Chair Mao hometown. We have invested in two factories, one is producing oil filter, fuel filter, air fuel, cabin filter and Hydraulic filters, and the other one is professional manufacturer of Oil seal and O ring. The factories cover about 10000 square meters, with more than 500 employees. The more important is we own advance technology and equipment, can be provide OEM&ODM service, to meet your sourcing needs.

The Oil seal and O ring we supply are made of different kinds of materials including NBR FKM, EPDM, PTFE. SI and so on, with more than 7000 kinds of sizes in stock, for your choice. We mainly produce oil filter, air filter, fuel filter, diesel filter and hydraulic filter used on the after-sales markets. They will be best replacement products of the world famous brand filters like MANLE, FRAM, MAN, WIX, PUROLATOR, WIX, BOSCH, JCB, SOFIMA, Perkins and so on, which suitable for car maker of Toyota, Honda, Ford, MAZDA, Nissan, BMW, BENS, Volvo, CATS, COUMMINS, Iveco, DAEWOO, Mitsubishi, HIMO etc.

E-HU has enjoyed all the benefits of advanced technology and some of the most innovative designs in oil filter industry. Gradually, E-HU's quality and reputation win the favor of customers worldwide. We equipped with proficient knowledge in exporting, our main markets in Middle East, Africa, Europe, Australia, America, and various other South American countries.

Best quality is our promise and The customer is our gold", stands as E-HU motto. We can provide quality certificates such as ISO9001, SGS, TUV and ISO16949. We are satisfied with the fact that we have achieved a high quality reputation. If you are seeking superior quality oil seal, and oil filter supplier for CAR, Truck and machine equipment, just choose E-HU. Expect your inquiries! ! Nice Customer service representatives are here waiting to assist you!
