Spring Type Cable Reel for Power Cable on Crane
| Price: |
US $ 400-1500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JTA85-30-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue/Red |
| Power Type: |
Spring Driven Type |
| Installation Pattern: |
Vertical Coiling |
| Current Capacity: |
85A |
| Coil Length Of Cable: |
30m |
| Phase Number/Hose Number: |
4 Phase |
| Structure Type: |
Slip Ring Built-in |
| Matched Cable Model: |
Yc 3*16+1*6 |
| Application: |
Lifting Electromagnet, All Kinds of Cranes etc. |
| Power Source For Cable Reel: |
Spring or Motor Type |
| Type: |
Module Connecting Machine |
| Certification: |
BV |
| Customized: |
Customized |
| Condition: |
New |
| Feature: |
Insulation |
Product Description
Description:
1. JT Series spring type cable reel is designed by our factory specially. It is a kind of automatic mechanical device which is driven by the spiral springs and using a spring energy storage automatic coiling cable.
2. It is suitable for all kinds of situations where the mobile cable power supply is needed, such as lifting magnet, electromotion flat car, all kinds of crane, hydraulic pressure grab bucket etc. It has the characteristics of easy power-supply, reliable operation etc.
Structures and Features:
-- Using spiral springs as power without electric energy consumption to keep reliable in operation;
-- Using collector slip ring carbon brush bracket to transfer the electric energy steadily and continuously;
-- Equipped with reversible unit/guide pulley to avoid the reel counter-rotating to break the springs;
-- Power supply easily, safety and reliability in operation.
-- Ways of coiling cable: Mid-feed(with guide pulley) or End-feed.
Model Description: JTA85-30-4
"J"------ Cable Reel Series
"T"------ Spring Driven Type
"A"------ Vertical Coiling
"85"------ Maximum Current (A)
"30"------ Cable Length (m)
"4"------Core Number of the Cable

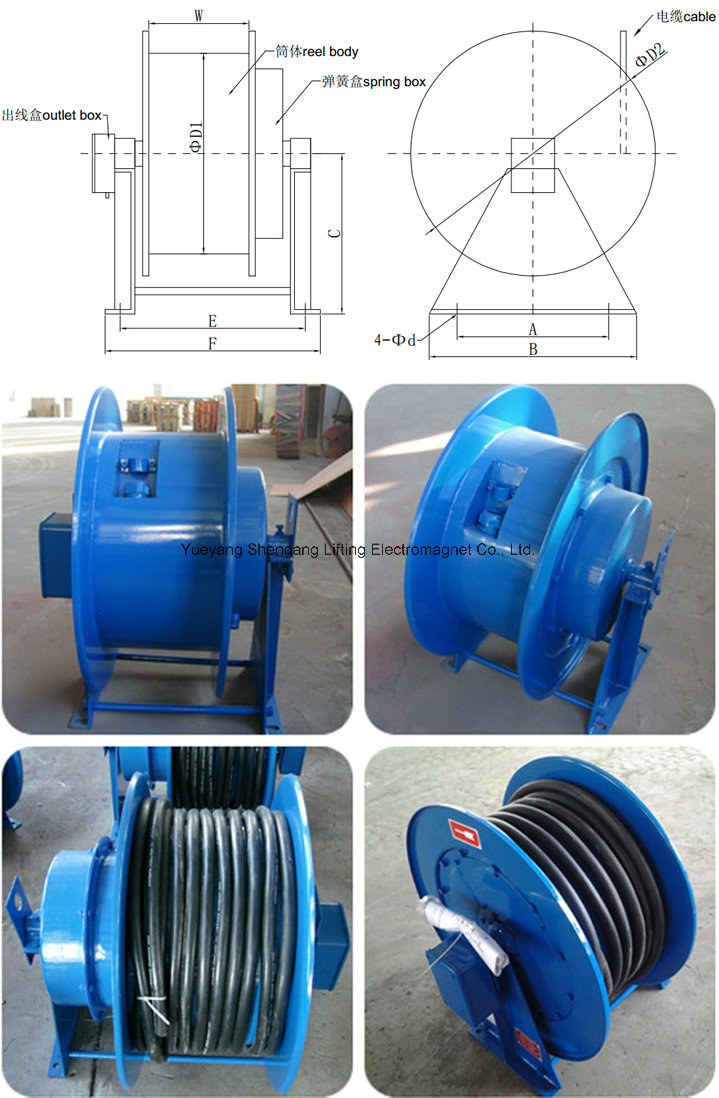

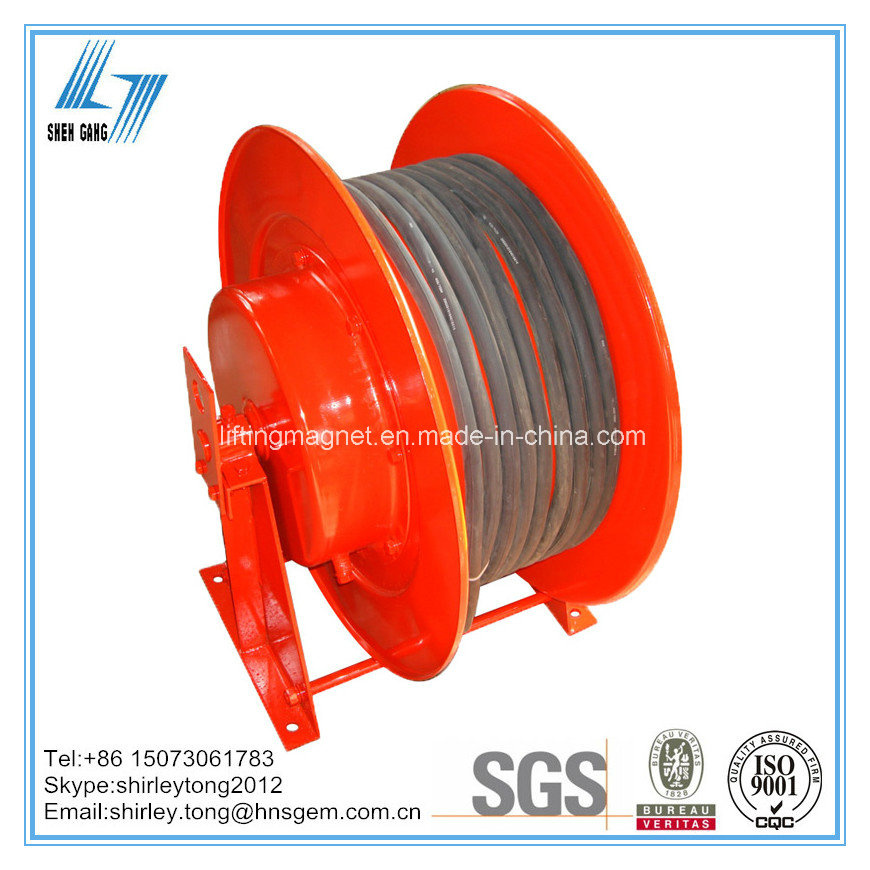

Overall Dimension and product Pictures:
Technical data: | Overall dimension table(mm) |
| Contour items | A | B | C | D1 | D2 | d | E | F | W | Mass (kg) |
|
| 10m series | 1 | 250 | 300 | 300 | 360 | 500 | 14 | 450 | 600 | 320 | 73 |
| 2 | 485 | 650 | 350 | 78 |
| 15m,20m series | 1 | 300 | 360 | 400 | 500 | 700 | 15 | 440 | 600 | 250 | 95 |
| 2 | 490 | 650 | 300 | 100 |
| 3 | 560 | 720 | 250 | 115 |
| 4 | 610 | 770 | 300 | 120 |
| 5 | 720 | 880 | 300 | 150 |
| 25m,30m series | 1 | 400 | 460 | 450 | 600 | 800 | 18 | 525 | 675 | 300 | 120 |
| 2 | 641 | 795 | 300 | 150 |
| 3 | 751 | 905 | 300 | 180 |
| 4 | 892 | 1045 | 300 | 212 |
| 5 | 500 | 580 | 550 | 800 | 1000 | 18 | 641 | 795 | 300 | 185 |
| 6 | 751 | 905 | 300 | 212 |
| 7 | 892 | 1045 | 300 | 240 |
| 8 | 1005 | 1160 | 300 | 268 |
| Technical Data |
| Cable Model | Enabled Current(A)
(40 centigrade) | 15m series | Contour
item | 20m series | Contour
item | 25m series | Contour
item | 30m series | Contour
item |
Core number×
Cross section(mm²) | continuously | 1 min. on;
1 min. Off |
| YC2×6 | 40 | 50 | | | | | JTA50-25-2 | 1 | | |
| | | | | JTB50-25-2 | | |
| YC2×10 | 58 | 75 | JTA75-15-2 | 1 | JTA75-20-2 | 1 | JTA75-25-2 | 2 | JTA75-30-2 | 6 |
| JTB75-15-2 | JTB75-20-2 | JTB75-25-2 | JTB75-30-2 |
| YC2×16 | 77 | 100 | JTA100-15-2 | 1 | JTA100-20-2 | 3 | JTA100-25-2 | 2 | JTA100-30-2 | 6 |
| JTB100-15-2 | JTB100-20-2 | JTB100-25-2 | JTB100-30-2 |
| YC2×25 | 106 | 135 | JTA135-15-2 | 4 | JTA135-20-2 | 4 | JTA135-25-2 | 3 | JTA135-30-2 | 8 |
| JTB135-15-2 | JTB135-20-2 | JTB135-25-2 | JTB135-30-2 |
| YC2×35 | 132 | 170 | JTA170-15-2 | 4 | JTA170-20-2 | 5 | JTA170-25-2 | 4 | | |
| JTB170-15-2 | JTB170-20-2 | JTB170-25-2 | | |
| YC3×6+1×4 | 35 | 50 | JTA50-15-4 | 2 | JTA50-20-4 | 2 | JTA50-25-4 | 2 | JTA50-30-4 | 5 |
| JTB50-15-4 | JTB50-20-4 | JTB50-25-4 | JTB50-30-4 |
| JTC50-15-4 | JTC50-20-4 | JTC50-25-4 | 1 | JTC50-30-4 |
| JTD50-15-4 | JTD50-20-4 | JTD50-25-4 | JTD50-30-4 |
| JTE50-15-4 | | | JTE50-25-4 | 2 | JTE50-30-4 | 6 |
| JTF50-15-4 | | | JTF50-25-4 | JTF50-30-4 |
| YC3×10+1×6 | 50 | 65 | JTA65-15-4 | 2 | JTA65-20-4 | 4 | JTA65-25-4 | 2 | JTA65-30-4 | 6 |
| JTB65-15-4 | JTB65-20-4 | JTB65-25-4 | JTB65-30-4 |
| JTC65-15-4 | JTC65-20-4 | 2 | JTC65-25-4 | 1 | JTC65-30-4 | 5 |
| JTD65-15-4 | JTD65-20-4 | JTD65-25-4 | JTD65-30-4 |
| JTE65-15-4 | 4 | JTE65-20-4 | 4 | JTE65-25-4 | 3 | JTE65-30-4 | 7 |
| JTF65-15-4 | JTF65-20-4 | JTF65-25-4 | JTF65-30-4 |
| YC3×16+×6 | 66 | 85 | JTA85-15-4 | 4 | JTA85-20-4 | 4 | JTA85-25-4 | 3 | JTA85-30-4 | 7 |
| JTB85-15-4 | JTB85-20-4 | JTB85-25-4 | JTB85-30-4 |
| JTC85-15-4 | 2 | JTC85-20-4 | 2 | JTC85-25-4 | 2 | JTC85-30-4 | 6 |
| JTD85-15-4 | JTD85-20-4 | JTD85-25-4 | JTD85-30-4 | 5 |
| JTE85-15-4 | 4 | JTE85-20-4 | 4 | JTE85-25-4 | 4 | | |
| JTF85-15-4 | JTF85-20-4 | 5 | JTF85-25-4 | | |

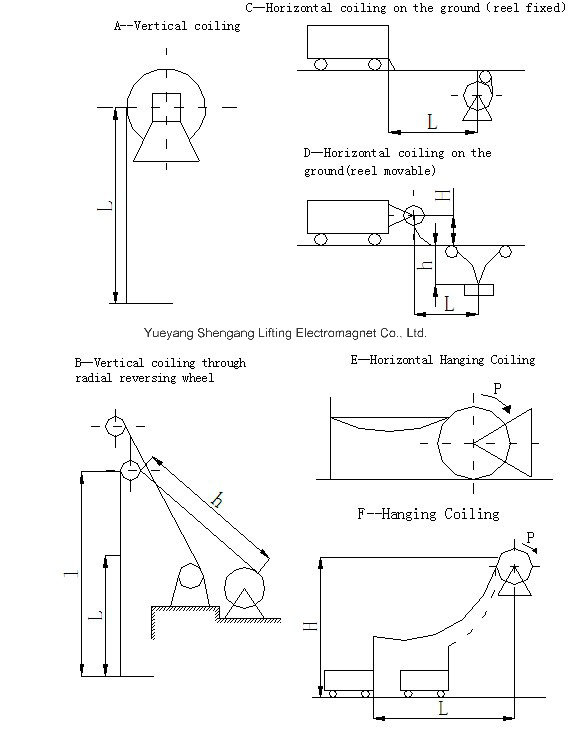

Installation Pattern:

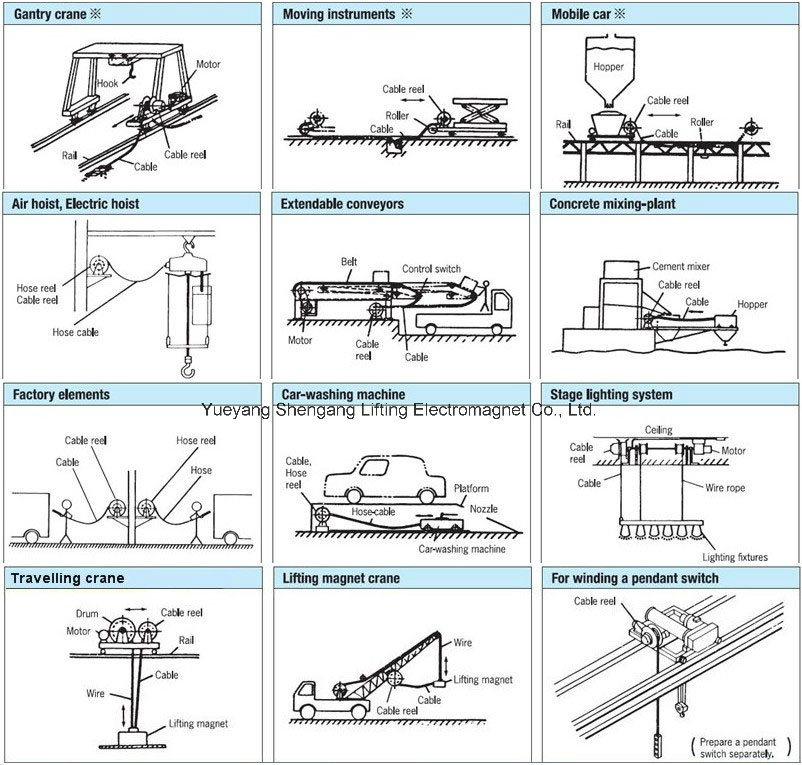

Cable Reel Application:

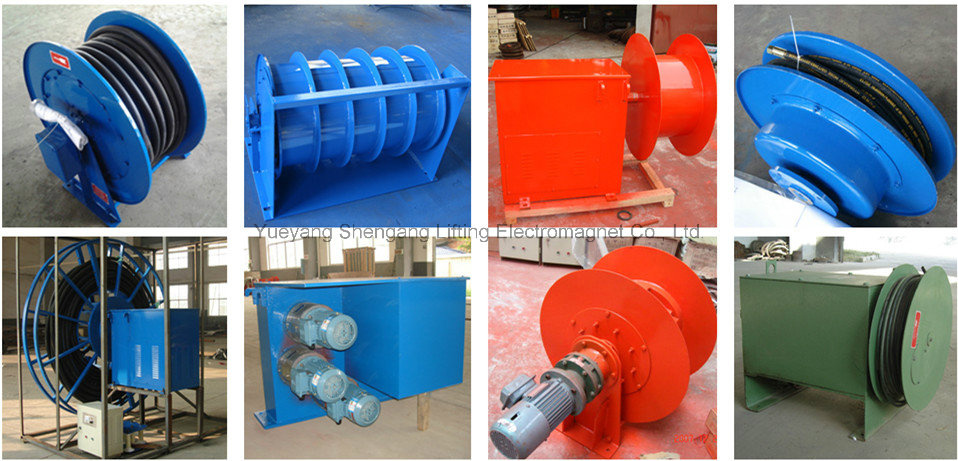

Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
Customers Visit and Certification:
FAQ:
Q:Why customers choose us?
A:We are a professional cable reel products manufacturer with 17 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
Q:What is your payment terms?
A:Payment≤USD1000.00,100% T/T in advance;Payment>USD1000.00,
30%T/T in advance,70% T/T before delivery. We support T/T, Western Union,LC at sight, SWIFT/Money Gram/Paypal etc..
Q:How long is your delivery time?
A:Standard model is within 13 work days after deposit confirmed.
Customerized model will depend on actual production needs.
Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
About Enquiry:
To help you get the best cable reel for your application, we should have the following information:
1. Do you have special requirement about the power types? Spring type / Motor powered type
2. What is the cable specification?
Cable core number × Cross section,Cable outer diameter,coil length of cable?
3. What kind of mobile equipment will the cable reel be applied with?
Lifting electromagnet, all kinds of crane or other apparatus.
4.Do you prefer FOB or CIF price? Kindly inform us destination port.
Standard Export Package:
(fixed iron frame with five polywoodboard packing to keep safety long-distance transportation; Don't need to be fumigated. )
Quick Response:
--We highly appreciate your any enquiry by email, fax or instant message.
--We will reply your email or fax within 24 hours.
--Please fell free to call us at any time if there is any questions.
