Square Drive Hydraulic Impact Torque Wrench

Prod Model:	SOV-MXTA series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Torque:	1915-34080nm
Shaft Drive:	3/4-21/2inch
Socket Size:	15-255mm
Optional Socket Size:	14-85mm
Stock:	Yes
OEM:	Yes
Payment:	T/T
Name:	Square Drive Hydraulic Impact Torq
Color:	Red, Black or Customerized
Type:	Torque Wrench
Material:	High carbon Steel
Standard:	European Type

Product Description

                                          Square Drive Hydraulic Impact Torque Wrench


Features:

1. Al-Ti alloy integrated machine has high strength, high tenacity with light weight.
2. The 360º×180º rotating oil connection has no limitation in used space and is convenient to be operated.
3. The actuating shaft is released by torque and can fast switch between screwing up and dismantling.
4. The hydraulic piston and power head have a small shape, compact structure and small operation radius.
5. The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
6. The reactive force is on one straight line, which can decrease the inner torque abrasion.
7. The constant torque output provides the high precision for wrench in the whole working process.
8. The maintenance is simple and does not need the special tools.
9. The precise ratchet wheel is used in the inside of the wrench, with the precision up to ±3%.



Model	SOV-1MXTA	SOV-3MXTA	SOV-5MXTA	SOV-8MXTA	SOV-10MXTA	SOV-20MXTA	SOV-25MXTA	SOV-35MXTA
Torque Range (nm)	183-1837	451-4512	752-7528	1078-10780	1551-15516	2666-26664	3472-34725	4886-48666
Bolt Size (mm)	16-36	22-48	27-56	30-64	36-72	42-90	48-100	64-115
Nut Size (mm)	24-55	34-75	41-85	46-95	55-105	65-110	74-145	95-165
Square Drive	3/4''	1''	1-1/2''	1-1/2''	1-1/2''	2-1/2''	2-1/2''	2-1/2''

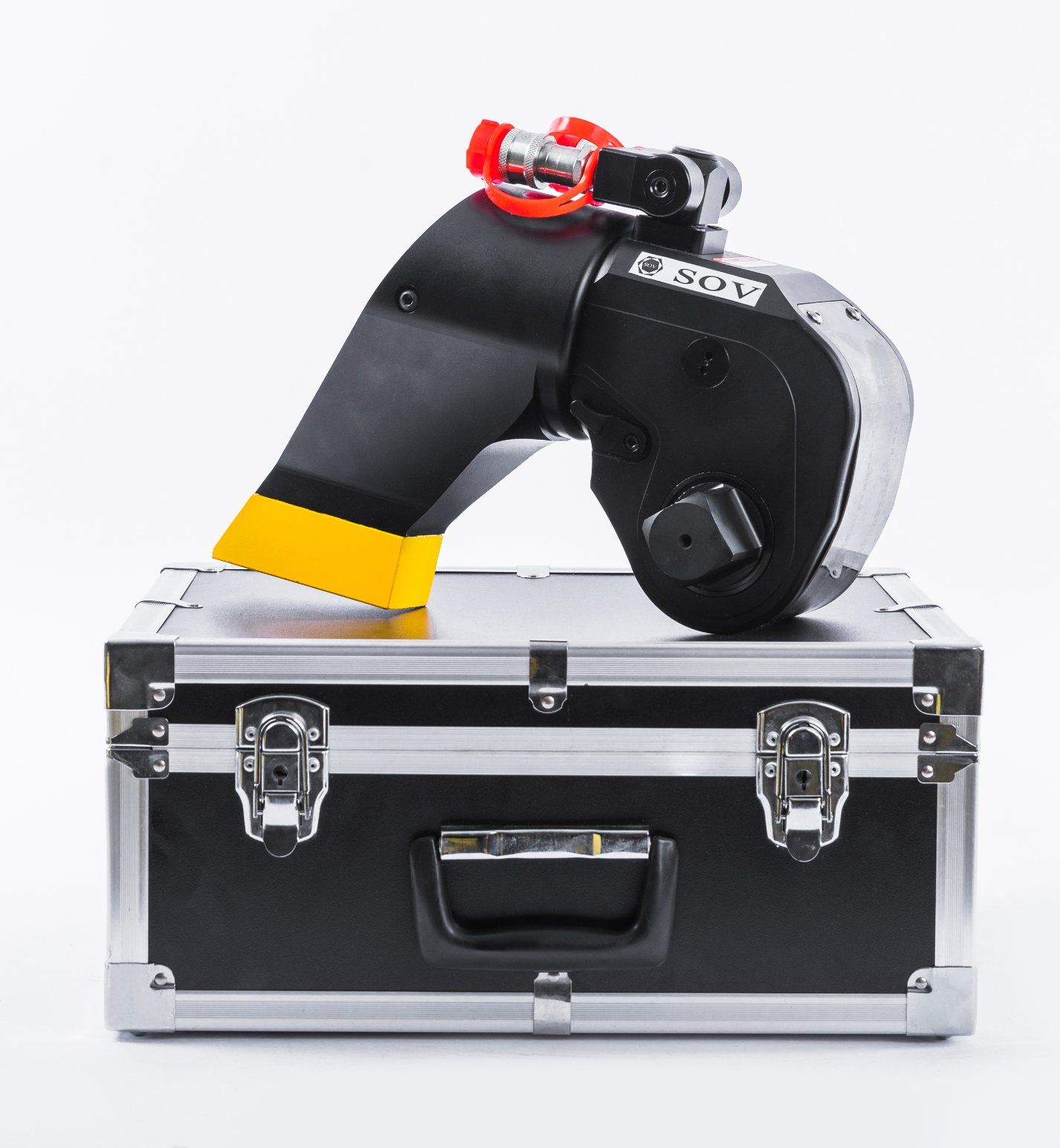

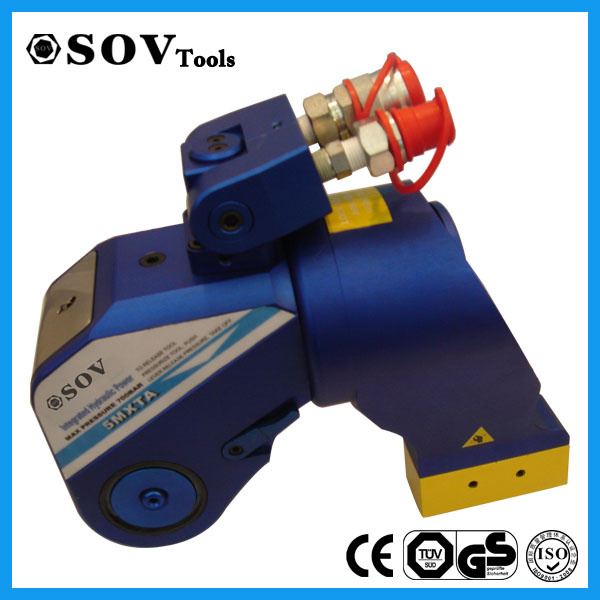

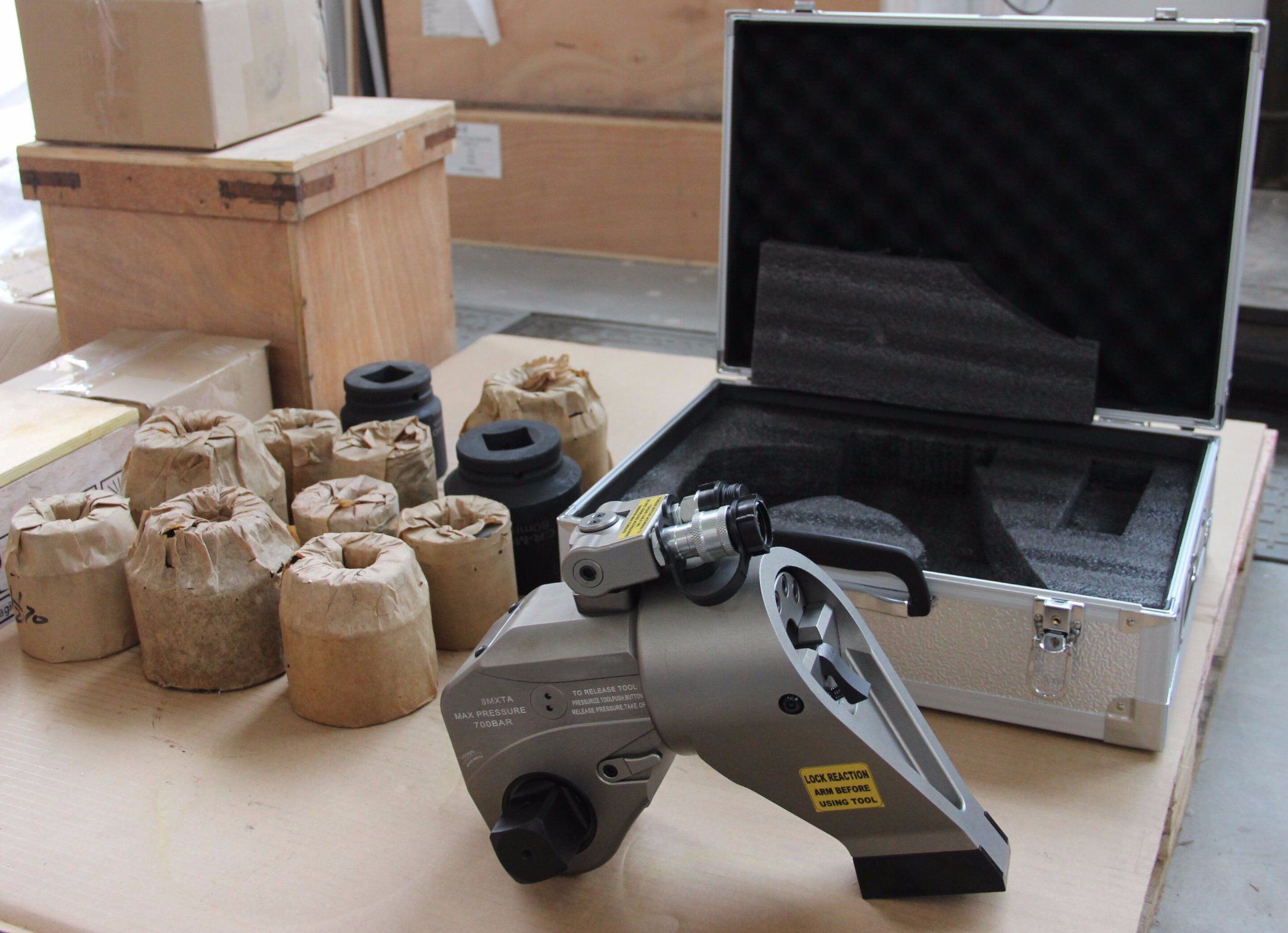

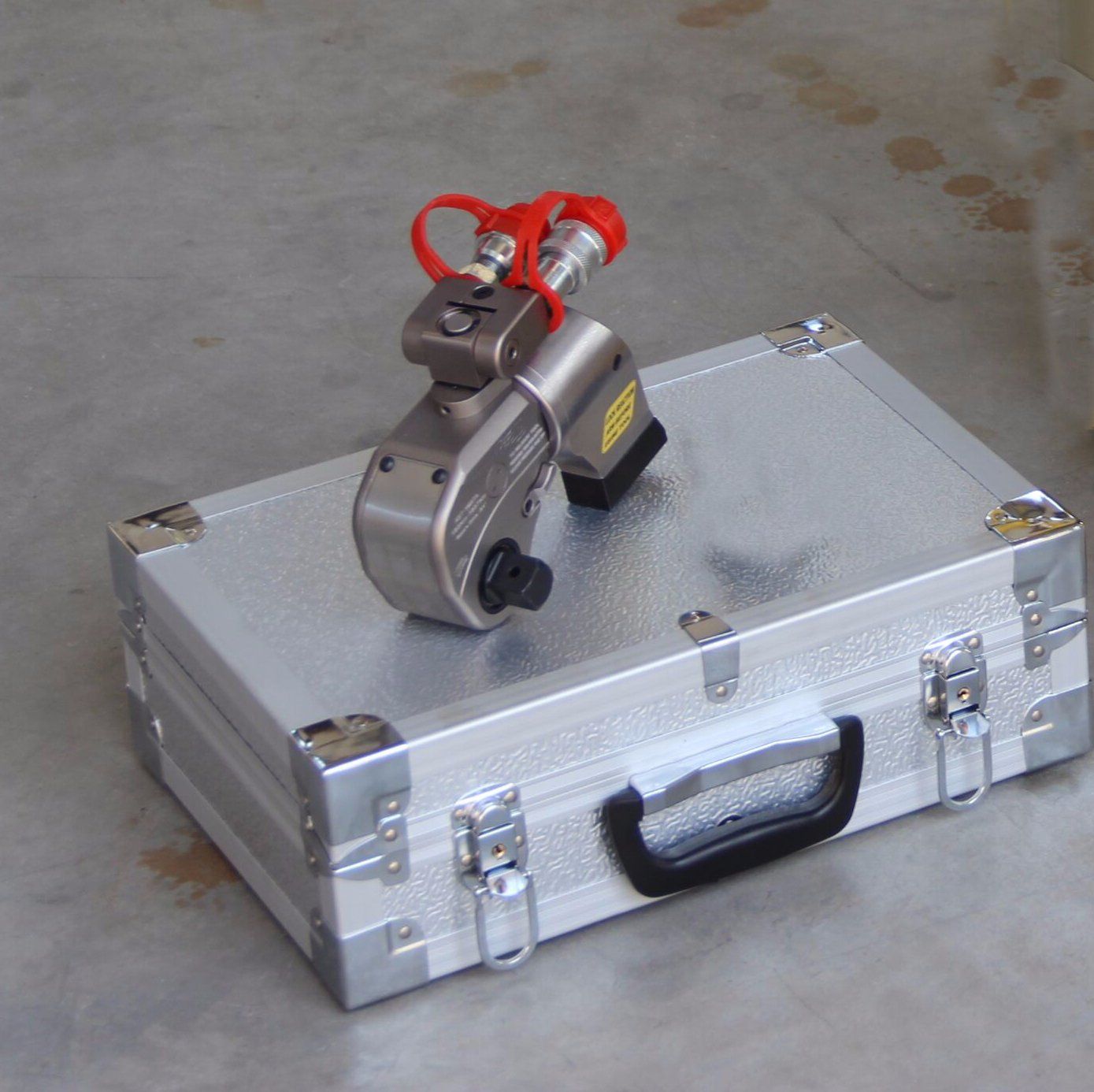

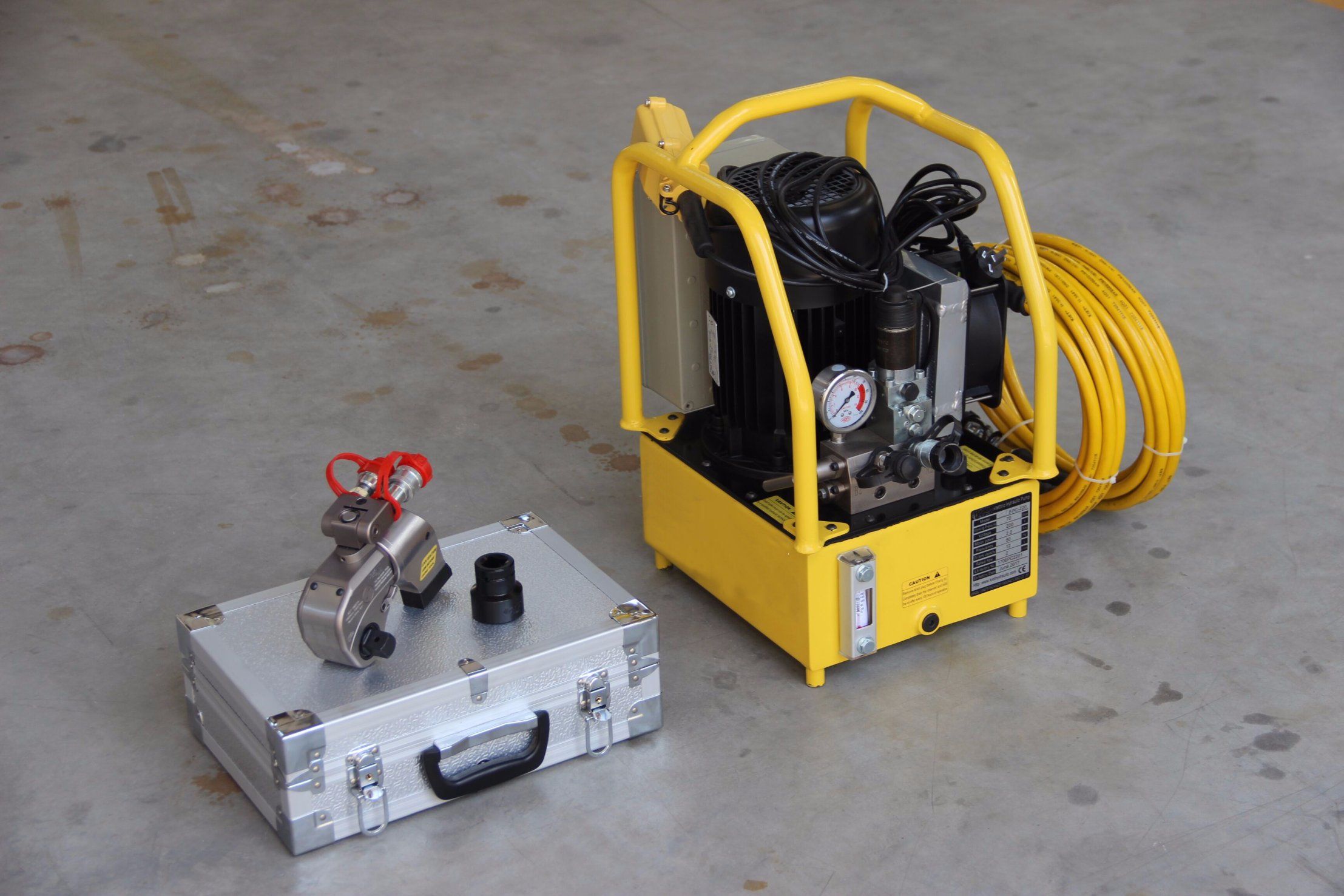

Photos









Packaging Details

1. Outside packaging: standard export wooden packing;
2. Inner packaging: stretch Film;
3. Customized packaging acceptable.

Shipping

1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: by sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Product Application

Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.

Our Service

1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders , synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
