| Prod Model: |
SV31LB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Hydraulic Torque Wrench |
| Torque Range: |
110-72000mm |
| Bolt Diameter: |
14-125mm |
| Nut On The Side: |
22-180mm |
| Drive Shaft: |
(3/4)-(2-1/2)Inch |
| Max Pressure: |
700bar |
| Weight: |
1.7-85.5kg |
| Oes: |
Yes |
| Color: |
Customized |
| Certificate: |
Ce, ISO9001:2008 |
| Type: |
Torque Wrench |
| Material: |
Aluminum Alloy |
| Brand: |
Sov |
Product Description
Square drive hydraulic torque wrench (Al-Ti alloy)
Description| Model | Torque range(mm) | Bolt diameter
(mm) | Nut on the side(mm) | Drive shaft
(inch) | Max pressure(Bar) | Weight
(Kg) |
| SV31LB120 | 110-1200 | 14-30 | 22-46 | 3/4 | 700 | 1.7 |
| SV31LB180 | 180-1800 | 16-36 | 24-55 | 3/4 | 2.3 |
| SV31LB450 | 450-4510 | 22-48 | 34-75 | 1 | 4.8 |
| SV31LB750 | 755-7558 | 27-56 | 41-85 | 1-1/2 | 8.1 |
| SV31LB1000 | 1050-10550 | 30-64 | 46-95 | 1-1/2 | 11 |
| SV31LB1500 | 1550-15500 | 36-72 | 55-105 | 1-1/2 | 14.5 |
| SV31LB2500 | 2650-26500 | 42-90 | 65-110 | 2-1/2 | 26.5 |
| SV31LB3500 | 3500-35000 | 48-100 | 75-145 | 2-1/2 | 34.5 |
| SV31LB5000 | 4850-48500 | 64-120 | 95-170 | 2-1/2 | 48.2 |
| SV31LB7000 | 7200-72000 | 72-125 | 105-180 | 2-1/2 | 85.5 |

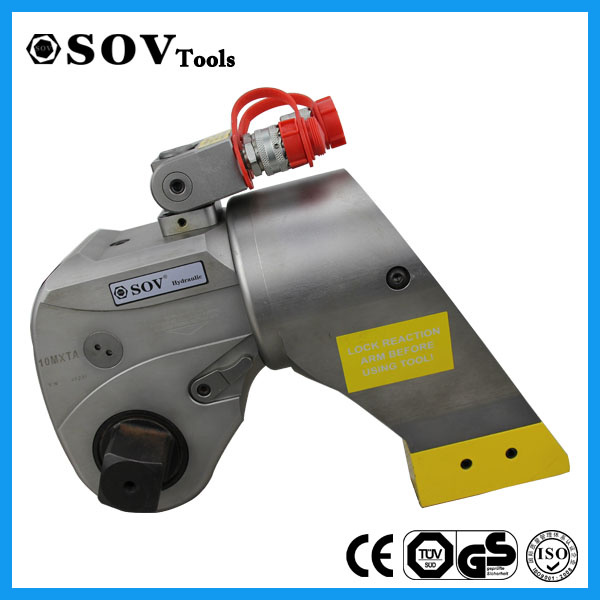

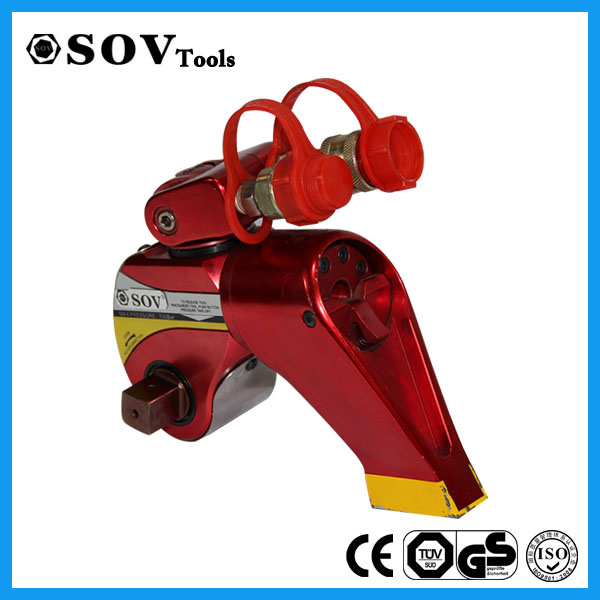

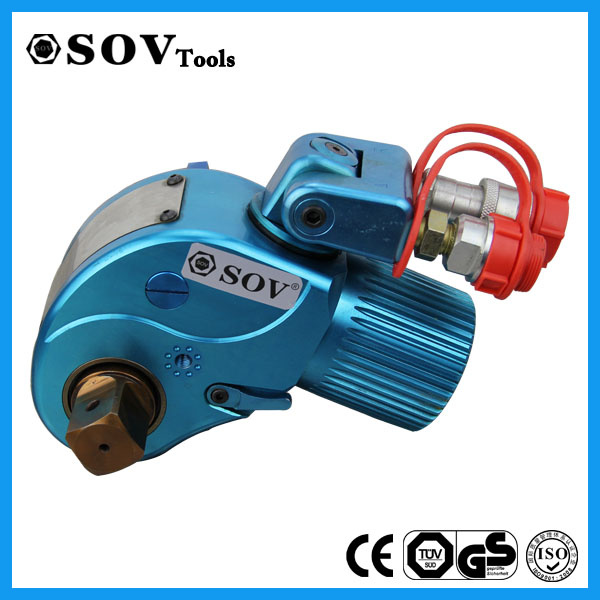

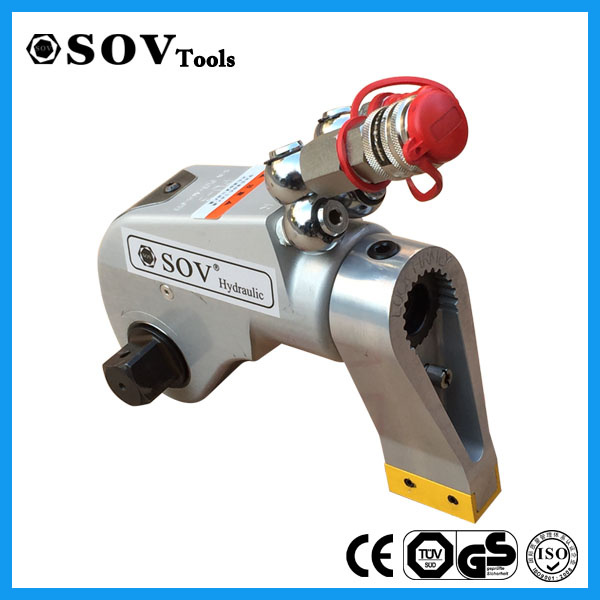

Products Pictures
Features
1. 360º×180º swivel hose connection allows easier positioning in confined spaces.
2. Push-button drive release; no tools needed to reverse drives for tightening or loosening.
3. Its cylinder and head features small size, compact structure and slim nose radius.
4. High degree of rotation angle for increased productivity.
5. Constant torque output provides high precision operation.
6. Easy maintenance without any special tool.
7. Equipped with precision ratchet for high precision.
Warranty
One year for free repair and replacement.
Packing
Wooden case packing.
Our Services
1. 24hours online techinical support(telephone and email);
2. Under the equal condition, we won't to reduce the product quality, and sincerity to provide the most competitive price to you;
3. Engineers are available

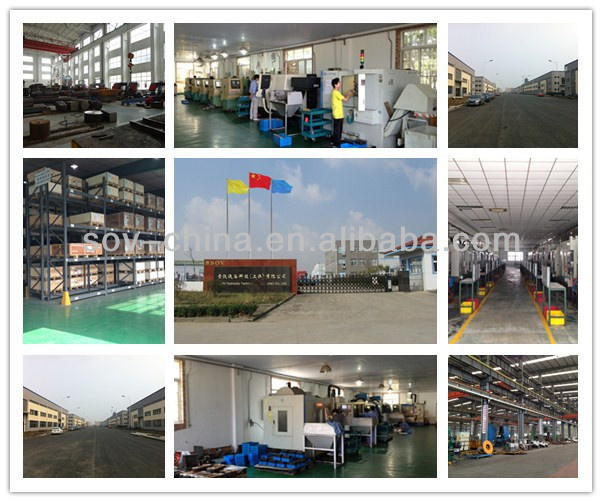

Company Information
1. Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
2. Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
3. Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
3. We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)WHY YOU NEED SOV? Q1: What's the brand name of your products ?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits.As is known to all,vehicles in China are often overload,our products all designed to bear the overload power.We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time.Generally ,it's 7-20 days.
Q6: What 's the after-service?
A: If the quality can't meet your requirement ,we will pay all your lost and offer technical support to solve your problem.
