| Prod Model: |
NM-48 |
| Model: |
Nm-48 |
| Controller: |
Nk-105 DSP |
| Rail: |
Taiwan |
| Motor: |
Stepper Motor ( Servo Motor Is Optional) |
| Rack: |
M1.5 Helical |
| Table: |
T-Slot Vacuum Table |
| Spinde: |
6kw Air Coolng |
| Transmission: |
Reducer |
| Dust Collector: |
3kw / 5.5kw |

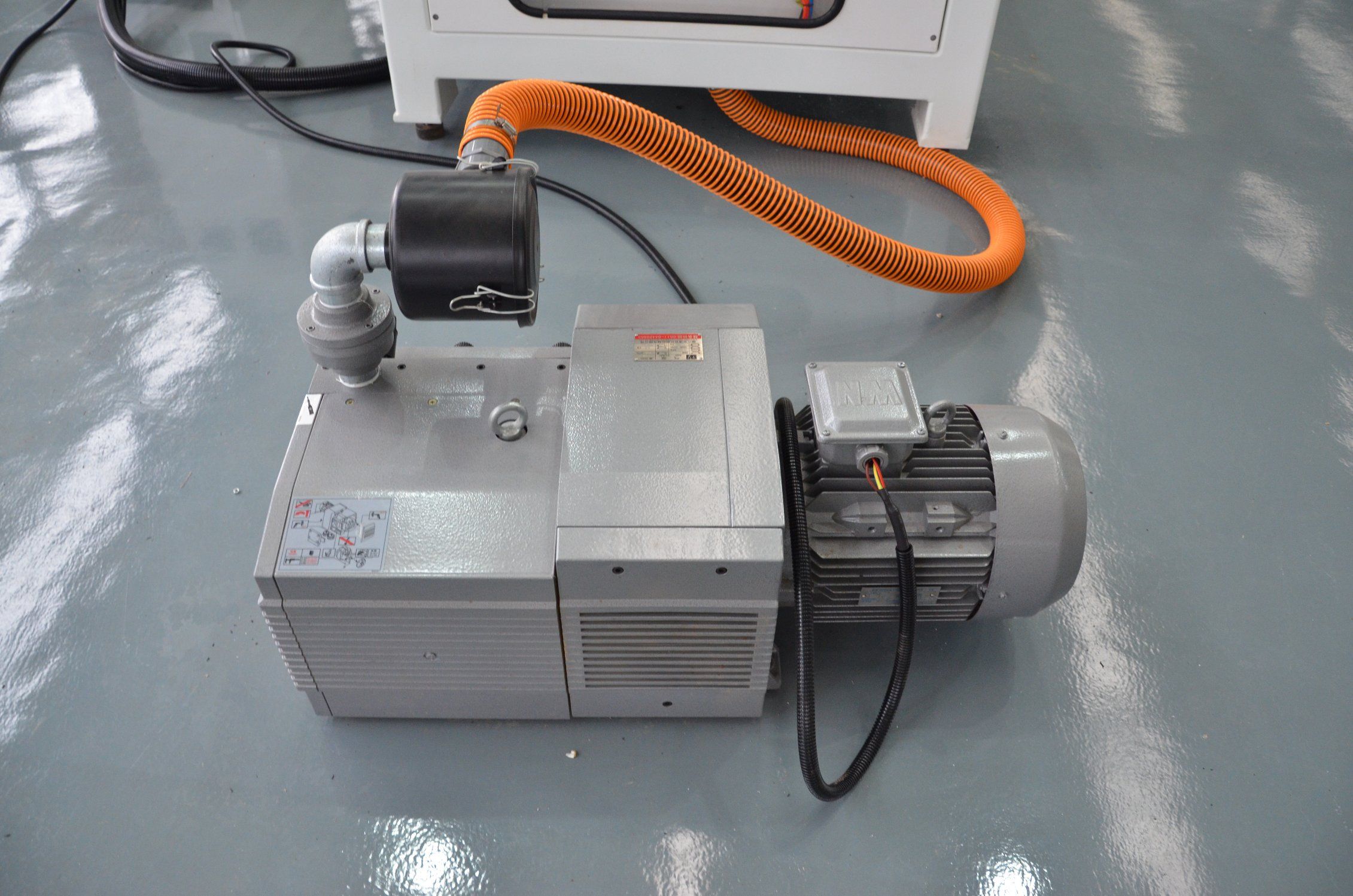

| Pump: |
5.5kw Air Cooling Pump |
Product Description
N Series

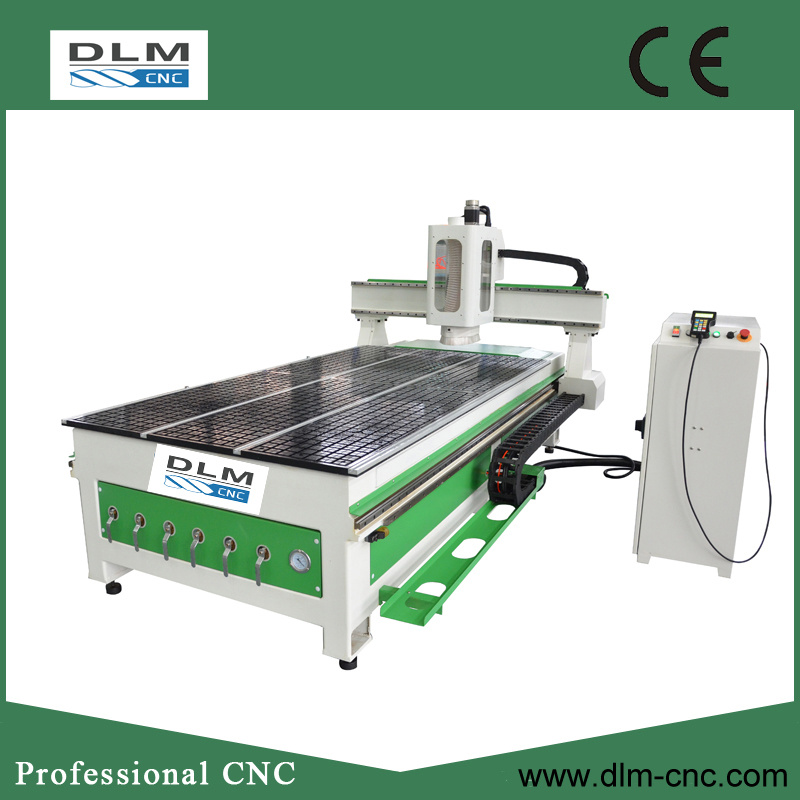

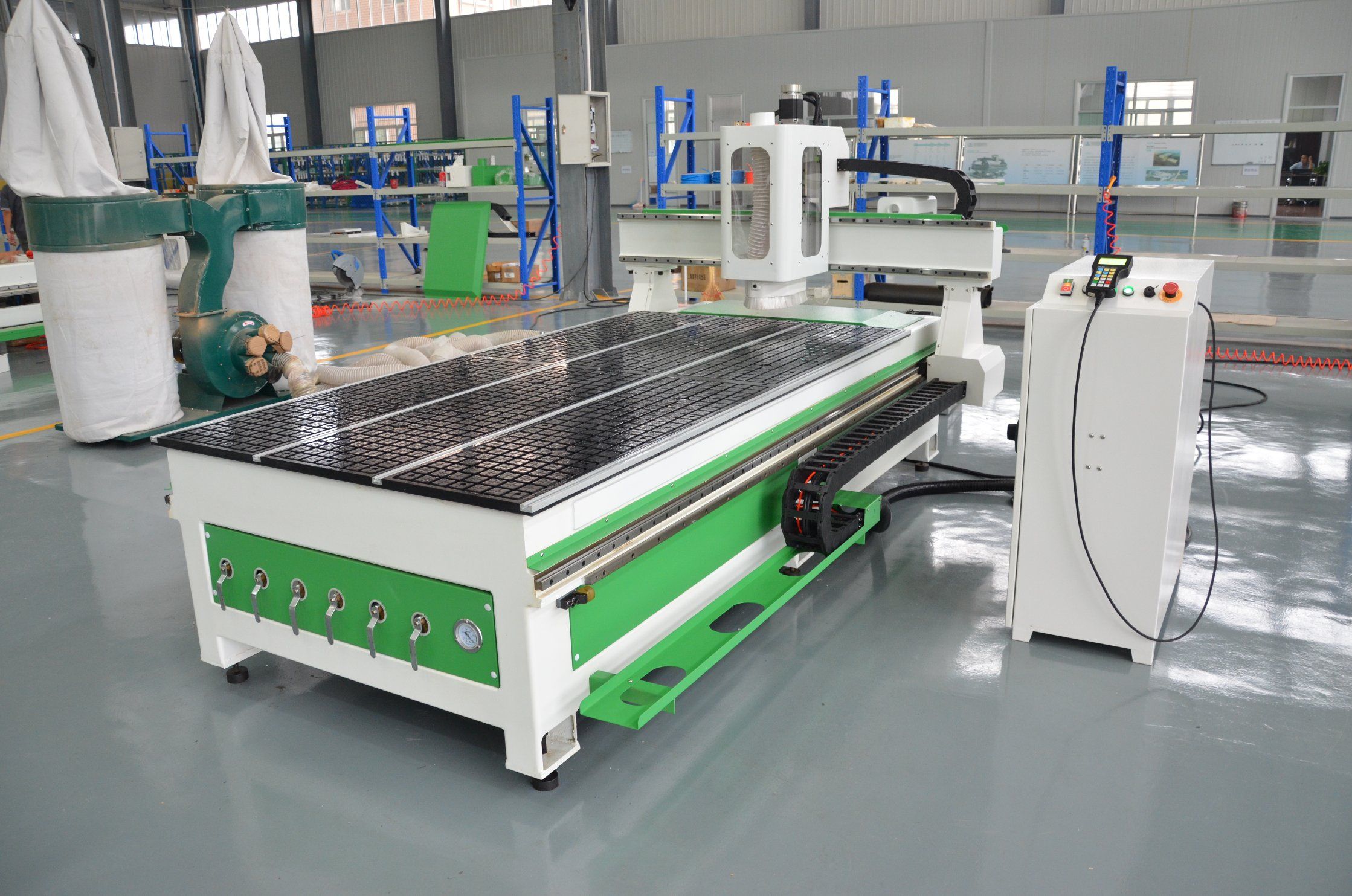

The standard configuration of NM-48 is:
| Spindle Power | 3.5KW / 4.5KW / 6KW / 7KW |
| Controller | Weihong hand-held controller/ DSP controller |
| Motor | Stepper motor /servo motor |
| Gear Reducer | Japanese Shimpo planetary gear reducer |
| Table | PVC+T-slot vacuum table |
| Software | Type-3 |
| Transmission | Precision helical rack and pinion drive & Z axis direct drive |
| Ball Screw | 25mm Taiwan AMT |
| Guide Rail | 25mm Taiwan PMI |
| Table Size | 1220x2440mm |
| Max. Traveling Size (X/Y/Z) | 2540x1320x200mm |
| Max. Workpiece Height | 150mm |
| Dimensions (X/Y/Z) | 3500x1800x2000mm |
| Net Weight | 1500kg |
Upgrade:
Positioning air cylinders
Boring aggregate
Pushing device
Protection enclosure
Laser light screen
Spindle cover
Full-body cover
Movable vacuum suction chucks
Multi-spindle design
+/-90°spindle horizontal processing design
Loading & unloading roller table and floating table
Spindles with enhanced power
Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.
We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
