| Prod Model: |
M6 M8 M10 |
| Material: |
Stainless Steel |
| Type: |
Pan Head |
| Connection: |
Common Bolt |
| Head Style: |
Round |
| Standard: |
GB |

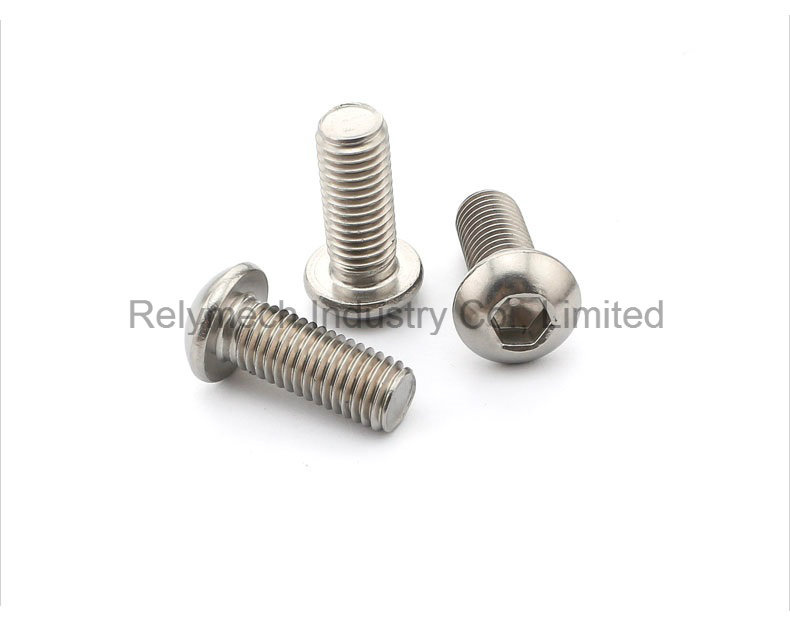

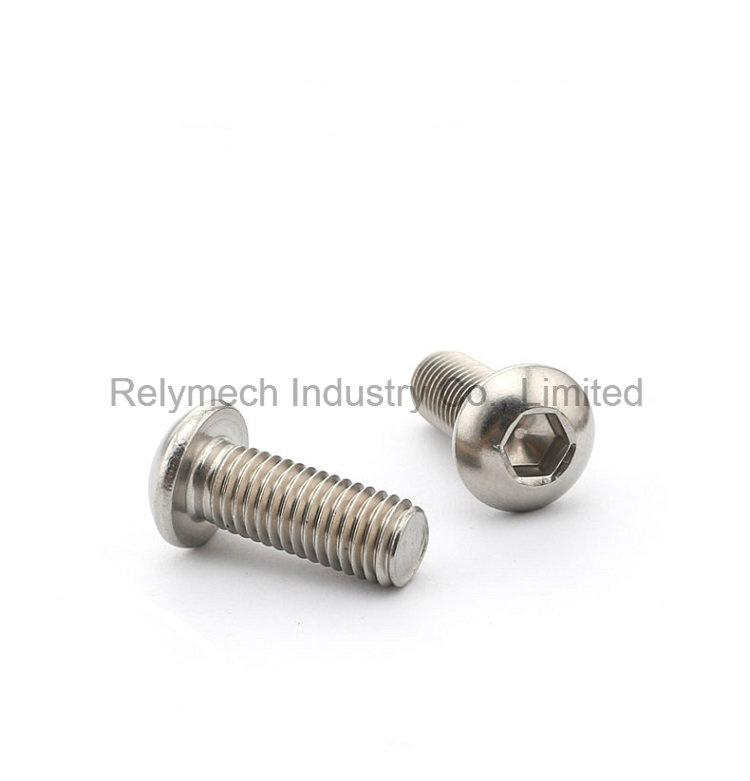

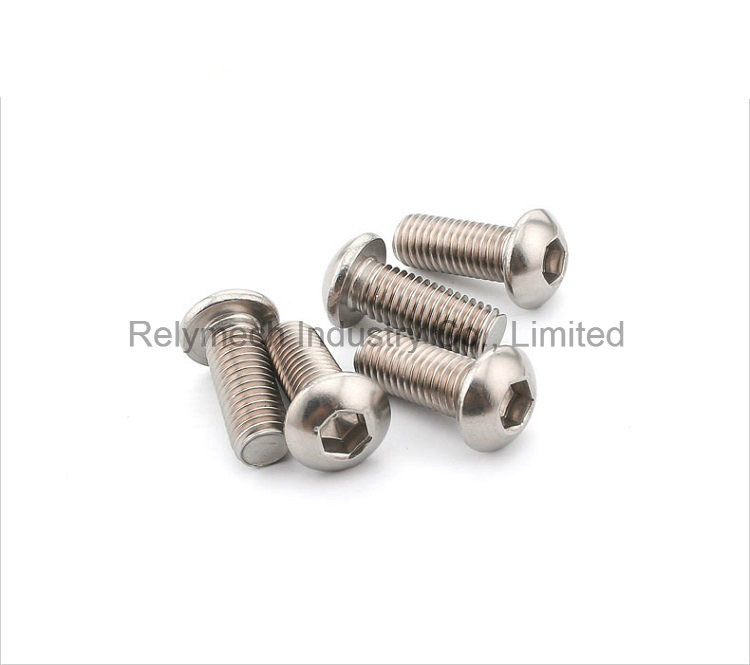

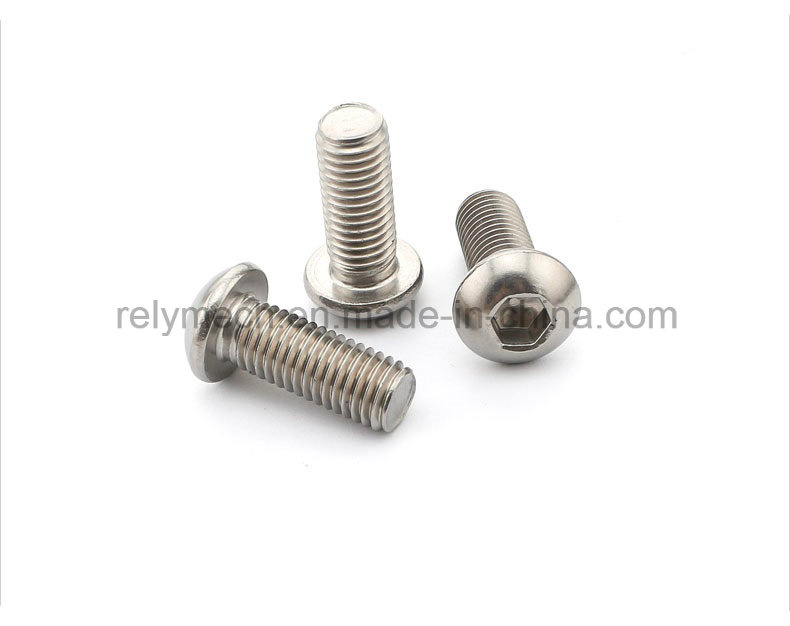

Product Description
| Name | Hex socket pan head screw |
| Material | stainless steel 304 |
| Standard | GB |
| Packing | Plastic bag or paper box |

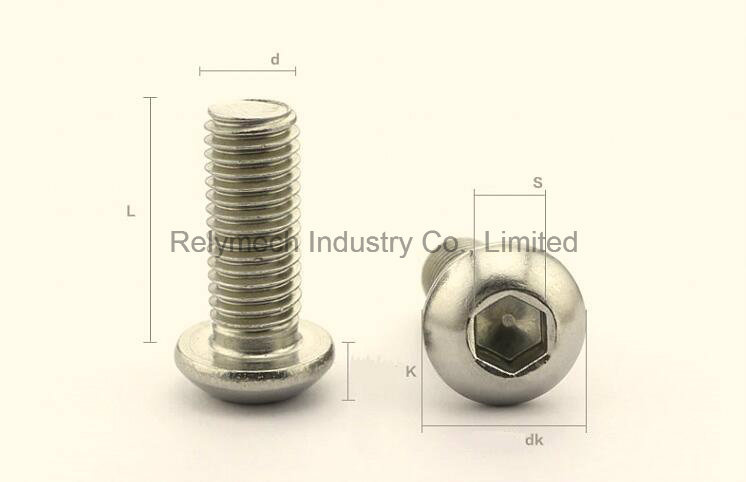

Specification: D is thread diameter, L is thread length, head is not included. | D*L | D*L | D*L |
| M6*10 | M8*12 | M10*20 |
| M6*12 | M8*16 | M10*25 |
| M6*16 | M8*20 | M10*30 |
| M6*20 | M8*25 | M10*35 |
| M6*25 | M8*30 | M10*40 |
| M6*30 | M8*35 | M10*50 |
| M6*35 | M8*40 | |
| M6*40 | M8*50 | |
| M6*50 | M8*60 | |

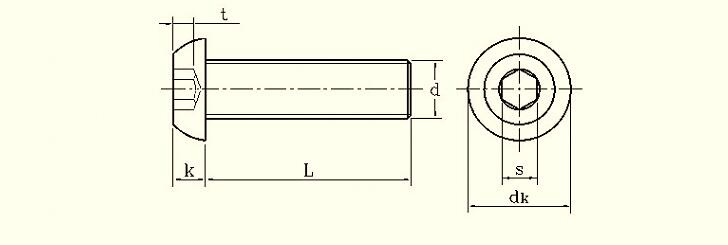

Nominal Dia.
d(mm) | Pitch
P(mm) | dk(mm) | k(mm) | s(mm) | t(mm)
min |
| max | min | max | min | max | min |
| M3 | 0.5 | 5.7 | 5.4 | 1.65 | 1.4 | 2.045 | 2.02 | 1.04 |
| M4 | 0.7 | 7.6 | 7.24 | 2.2 | 1.95 | 2.56 | 2.52 | 1.3 |
| M5 | 0.8 | 9.5 | 9.14 | 2.75 | 2.5 | 3.071 | 3.02 | 1.56 |
| M6 | 1 | 10.5 | 10.07 | 3.3 | 3 | 4.084 | 4.02 | 2.08 |
| M8 | 1.25 | 14 | 13.57 | 4.4 | 4.1 | 5.084 | 5.02 | 2.6 |
| M10 | 1.5 | 17.5 | 17.07 | 5.5 | 5.2 | 6.095 | 6.02 | 3.12 |
| M12 | 1.75 | 21 | 20.48 | 6.6 | 6.24 | 8.115 | 8.025 | 4.16 |
| M16 | 2 | 28 | 27.48 | 8.8 | 8.44 | 10.115 | 10.025 | 5.2 |
Remark: Above datas are measured by manual for your reference, details in accordance with the final product.
