| Price: | US $ 3100/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | CY-STX-201 |
|---|---|
| Wire Traveling Speed: | 0-3m/Sec |
| Rotate Speed: | 50-900rpm |
| Cutting Thickness: | up to 50 mm |

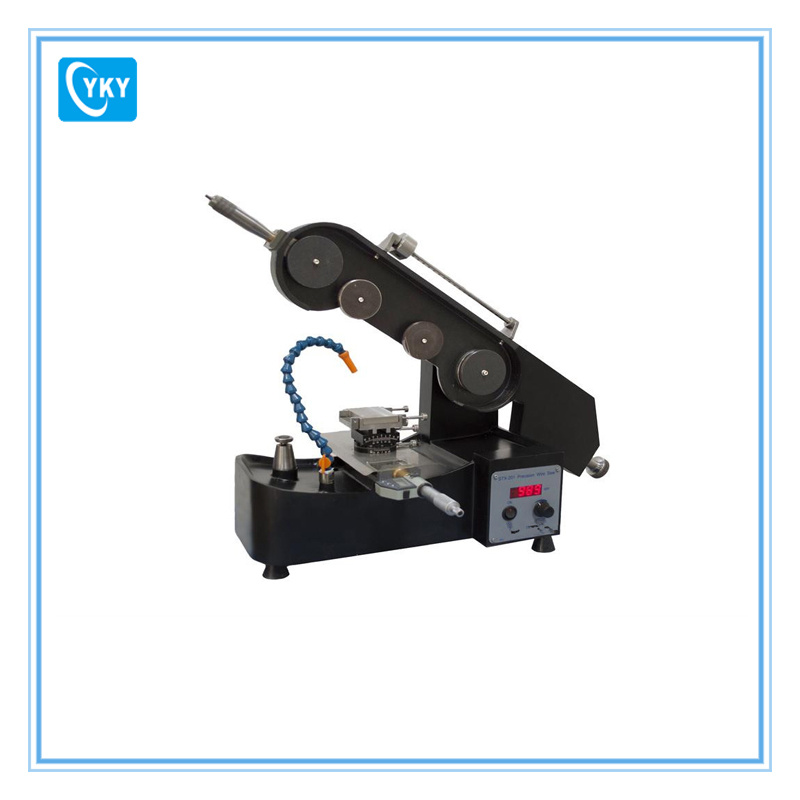

| Name: | Precision Diamond Wire Saw |
| Warranty: | One Year |
| Certificate: | Ce/TUV |
| Stage travel distance | Max. 50.8 mm (2") travel length 360 degree horizontal rotating and 30 degrees tilt stage |
| Traveling position accuracy | 2'' Digital Micrometer Head with accuracy of +/- 0.005 mm ( 5 microns) |
| Size of sample stage | 80 x 51 mm |
| Wire traveling speed | 0-3m/sec |
| Rotate speed | 50-900rpm |
| Diamond Wire | One piece loop type diamond wire (840 mm long, 0.3mm Dia. Diamond coated) is included for immediate use. A Diamond Blade Dressing Stone is included for keeping the wire sharp. Anti-corrosive coolant is required during cutting The diamond wire is consumable. |
| Stainless Steel Wire (optional) | 0.25mm dia. stainless steel wire is available. The stainless wire is used with the abrasive slurry that can provide more efficient cutting in terms of the cutting speed and surface finish comparing to the diamond impregnated wire in some cases. |
| Cutting thickness | Up to 50 mm |
| Power Supply | AC 110~220 50/60Hz, 50W |
| Product dimension | With saw closed: 81Lx 43Wx 37H cm With saw fully open: 81Lx 43Wx 54H |
| Package dimension | 40" x 25" x 30" |
| Shipping Weight | 150 Lbs |
| Warranty | One year limited manufacturer warranty with lifetime support |
