| Prod Model: |
AQ BQ NQ HQ PQ B T TT T2 T6 T6S LTK WG WF MLC. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Matrix Height: |
6mm-14mm |
| Shape: |
Round |
| Usage: |
Core Drill |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Use: |
Exploration, Mining Drill |
Product Description

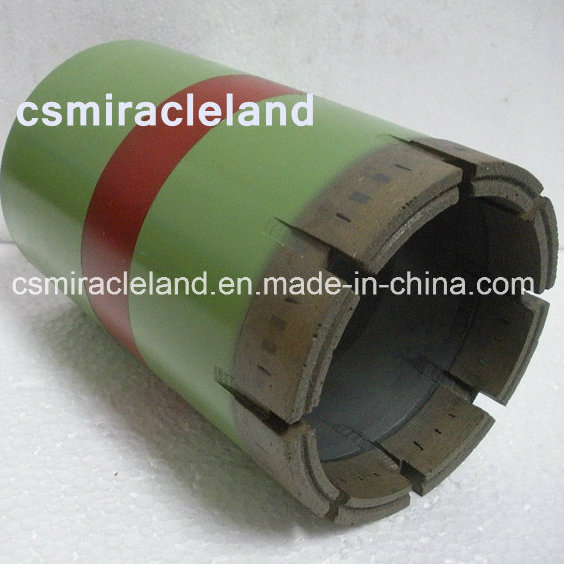

Impregnated Drill bit Diamond Core Bit can handle a broad variety of rocks...
Miracleland had been making great efforts to develop various drilling tools to meet the different needs for our customers. The drilling tools including core bits, diamond core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshots, drill rods, casing tubes and other drilling tools.
If you need any further information about our any type drilling tools, please feel free to contact with us, we would be quite pleased to show all the details you asked for.
Diamond core drill bits
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 & TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-66, T2-76, T2-76Coreline, T2-86,
T2-86 Coreline, T2-101, T2-101 Coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
and all other standard CDDA, DCDMA, Crealius, and ISO sizes .
Dimensions of Core Bits:
| A-Gauge Core Bits |
| Size | Outside diameter | Inside diameter |
| inch | mm | inch | mm |
| AQ | 1.880/1.870 | 47.75/47.50 | 1.607/1.057 | 27.10/26.85 |
| AQ-RSG | 1.895/1.885 | 48.13/47.88 | 1.067/1.057 | 27.10/26.85 |
| AWG,AX | 1.880/1.870 | 47.75/47.50 | 1.190/1.180 | 30.23/29.97 |
| AWM | 1.880/1.870 | 47.75/47.50 | 1.190/1.180 | 30.23/29.97 |
| AWT | 1.880/1.870 | 47.75/47.50 | 1.286/1.276 | 32.66/32.41 |
| LTK48 | 1.880/1.870 | 47.75/47.50 | 1.394/1.384 | 35.40/35.15 |
| B-Gauge Core Bits |
| BQ | 2.350/2.340 | 59.69/59.44 | 1.438/1.428 | 36.52/36.27 |
| BQ-RSG | 2.365/2.355 | 60.77/59.82 | 1.438/1.428 | 36.52/36.27 |
| BQ-2.400 | 2.045/2.395 | 61.09/60.83 | 1.438/1.428 | 36.52/36.27 |
| BQ3 | 2.350/2.340 | 59.69/59.44 | 1.325/1.315 | 33.65/33.40 |
| BWG,BX | 2.350/2.340 | 59.69/59.44 | 1.660/1.650 | 42.16/41.91 |
| BWM | 2.350/2.340 | 59.69/59.44 | 1.660/1.650 | 42.16/41.91 |
| BWT | 2.350/2.340 | 59.69/59.44 | 1.755/1.745 | 44.58/44.32 |
| LTK60 | 2.350/2.340 | 59.69/59.44 | 1.742/1.732 | 44.25/44.00 |
| TBW | 2.350/2.340 | 59.69/59.44 | 1.785/1.775 | 45.34/45.09 |
| N-Gauge Core Bits |
| NQ | 2.970/2.960 | 75.44/75.19 | 1.880/1.870 | 47.75/47.50 |
| NQ-RSG | 2.985/2.975 | 75.82/75.57 | 1.880/1.870 | 47.75/47.50 |
| NQ-3.032 | 3.037/3.027 | 77.14/76.89 | 1.880/1.870 | 47.75/47.50 |
| NQ2 | 2.970/2.960 | 75.44/75.19 | 2.000/1.990 | 50.80/50.55 |
| NQ2-RSG | 2.985/2.975 | 75.82/75.57 | 2.000/1.990 | 50.80/50.55 |
| NQ3,NWLTT | 2.970/2.960 | 75.44/75.19 | 1.780/1.770 | 45.21/44.96 |
| NQ3-RSG | 2.985/2.975 | 75.82/75.57 | 1.780/1.770 | 45.21/44.96 |
| NQ3-3.032 | 3.037/3.027 | 77.14/76.89 | 1.780/1.770 | 45.21/44.96 |
| LMLC | 2.970/2.960 | 75.44/75.19 | 2.052/2.042 | 52.12/51.87 |
| NWG, NX | 2.970/2.960 | 75.44/75.19 | 2.160/2.150 | 54.86/54.61 |
| NWM | 2.970/2.960 | 75.44/75.19 | 2.160/2.150 | 54.86/54.61 |
| NWT | 2.970/2.960 | 75.44/75.19 | 2.318/2.308 | 58.87/58.62 |
| TNW | 2.970/2.960 | 75.44/75.19 | 2.394/2.384 | 60.80/60.55 |
| H-Gauge Core Bits |
| HQ | 3.770/3.755 | 95.76/95.38 | 2.505/2.495 | 63.63/63.38 |
| HQ-RSG | 3.790/3.755 | 96.27/95.89 | 2.505/2.495 | 63.63/63.38 |
| HQ-3.830 | 3.840/3.825 | 97.54/97.16 | 2.505/2.495 | 63.63/63.38 |
| HQ-3.895 | 3.897/3.882 | 98.98/98.60 | 2.505/2.495 | 63.63/63.38 |
| HQ3, WLHTT | 3.770/3.755 | 95.76/95.38 | 2.411/2.401 | 61.24/60.99 |
| HQ3-RSG | 3.790/3.755 | 96.27/95.89 | 2.411/2.401 | 61.24/60.99 |
| HQ3-3.830 | 3.840/3.825 | 97.54/97.16 | 2.411/2.401 | 61.24/60.99 |
| HQ3-3.895 | 3.897/3.882 | 98.98/98.60 | 2.411/2.401 | 61.24/60.99 |
| HMLC | 3.897/3.882 | 98.98/98.60 | 2.505/2.495 | 63.63/63.38 |
| HWF-Long | 3.912/3.897 | 99.36/98.98 | 3.005/2.995 | 76.33/76.08 |
| HWF-Short | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWG, HX | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWM | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWT | 3.897/3.882 | 98.98/98.60 | 3.192/3.182 | 81.08/8082 |
| P-Gauge Core Bits |
| PQ | 4.815/4.795 | 122.30/121.80 | 3.350/3.340 | 85.09/84.84 |
| PQ3 | 4.815/4.795 | 122.30/121.80 | 3.275/3.265 | 83.18/82.93 |
| PWF-Long | 4.755/4.740 | 120.78/120.40 | 3.635/3.620 | 92.33/91.95 |
| PWF-Short | 4.735/4.715 | 120.27/119.76 | 3.635/3.620 | 92.33/91.95 |
| S-Gauge Core Bits |
| SWF-Long | 5.755/5.740 | 146.18/145.80 | 4.447/4.432 | 112.95/112.57 |
| SWF-Short | 5.735/5.715 | 145.67/145.16 | 4.447/4.432 | 112.95/112.57 |
| U-Gauge Core Bits |
| UWF-Long | 6.880/6.860 | 174.75/174.24 | 5.515/5.495 | 140.08/139.57 |
| UWF-Short | 6.855/6.825 | 174.12/173.36 | 5.515/5.495 | 140.08/139.57 |
| Z-Gauge Core Bits |
| ZWF-Long | 7.880/7.860 | 200.15/199.64 | 6.515/6.495 | 165.48/164.97 |
| ZWF-Short | 7.855/7.825 | 199.52/198.76 | 6.515/6.495 | 165.48/164.97 |
| T, TT, T2 & TB Series Metric Core Bits |
| T36 | 1.422/1.412 | 36.12/35.87 | 0.859/0.849 | 21.82/21.57 |
| TT46 | 1.818/1.808 | 46.18/45.92 | 1.394/1.384 | 35.40/35.15 |
| T2-46 | 1.818/1.808 | 46.18/45.92 | 1.253/1.243 | 31.82/31.57 |
| TB56 | 2.220 | 56.30 | 1.640 | 41.70 |
| TT56 | 2.210/2.200 | 56.13/55.88 | 1.788/1.778 | 45.41/45.16 |
| T2-56 | 2.210/2.200 | 56.13/55.88 | 1.647/1.637 | 41.83/41.58 |
| T2-66 | 2.603/2.593 | 66.12/65.87 | 2.040/2.030 | 51.81/51.56 |
| T2-76 | 2.997/2.987 | 76.12/75.87 | 2.434/2.424 | 61.82/61.57 |
| T2-76 Coreline | 2.997/2.987 | 76.12/75.87 | 2.288/2.278 | 58.12/57.87 |
| T2-86 | 3.391/3.381 | 86.13/85.88 | 2.828/2.818 | 71.83/71.58 |
| T2-86 Coreline | 3.391/3.381 | 86.13/85.88 | 2.682/2.672 | 68.13/67.88 |
| T2-101 | 3.981/3.971 | 101.12/100.87 | 3.300/3.290 | 83.82/83.57 |
| T2-101 Coreline | 3.971/3.971 | 101.12/100.87 | 3.155/3.145 | 80.13/79.88 |
| T6 Series Metric Core Bits |
| T6-76 | 2.997/2.987 | 76.12/75.87 | 2.249/2.239 | 57.12/56.87 |
| T6-86 | 3.391/3.381 | 86.13/85.88 | 2.643/2.633 | 67.13/66.88 |
| T6-101 | 3.981/3.971 | 101.12/100.87 | 3.115/3.105 | 79.12/78.87 |
| T6-116 | 4.575/4.560 | 116.20/115.82 | 3.667/3.657 | 93.14/92.89 |
| T6-131 | 5.165/5.150 | 131.19/130.81 | 4.257/4.247 | 108.13/107.88 |
| T6-146 | 5.755/5.740 | 146.18/145.8 | 4.847/4.837 | 123.11/122.86 |
| T6S Series Metric Core Bits |
| T6S-76 | 3.009/2.999 | 76.43/76.18 | 1.883/1.873 | 47.83/47.58 |
| T6S-86 | 3.403/3.393 | 86.43/86.18 | 2.277/2.267 | 57.83/57.58 |
| T6S-101 | 3.993/3.983 | 101.43/101.18 | 2.828/2.818 | 71.83/71.58 |
| T6S-116 | 4.586/4.571 | 116.48/116.10 | 3.379/3.369 | 85.83/85.58 |
| T6S-131 | 5.177/5.162 | 131.48/131.10 | 3.970/3.960 | 100.83/100.58 |
| T6S-146 | 5.767/5.752 | 146.48/146.10 | 4.560/4.550 | 115.83/115.58 |
| B Series (ISO3552-1) Metric Core Bits |
| B36 | 1.422/1.412 | 36.12/35.87 | 0.859/0.849 | 21.82/21.57 |
| B46 | 1.818/1.808 | 46.18/45.92 | 1.253/1.243 | 31.82/31.57 |
| B56 | 2.210/2.200 | 56.13/55.88 | 1.647/1.637 | 41.83/41.58 |
| B66 | 2.603/2.593 | 66.12/65.87 | 2.040/2.030 | 51.81/51.56 |
| B76 | 2.997/2.987 | 76.12/75.87 | 2.434/2.424 | 61.82/61.57 |
| B86 | 3.391/3.381 | 86.13/85.88 | 2.828/2.818 | 71.83/71.58 |
| B101 | 3.981/3.971 | 101.12/100.87 | 3.418/3.408 | 86.82/86.57 |
| B116 | 4.575/4.560 | 116.20/115.82 | 4.009/3.999 | 101.83/101.58 |
| B131 | 5.165/5.150 | 131.19/130.81 | 4.599/4.589 | 116.82/116.57 |
| B146 | 5.755/5.740 | 146.18/145.80 | 5.190/5.180 | 131.82/131.57 |
