| Prod Model: |

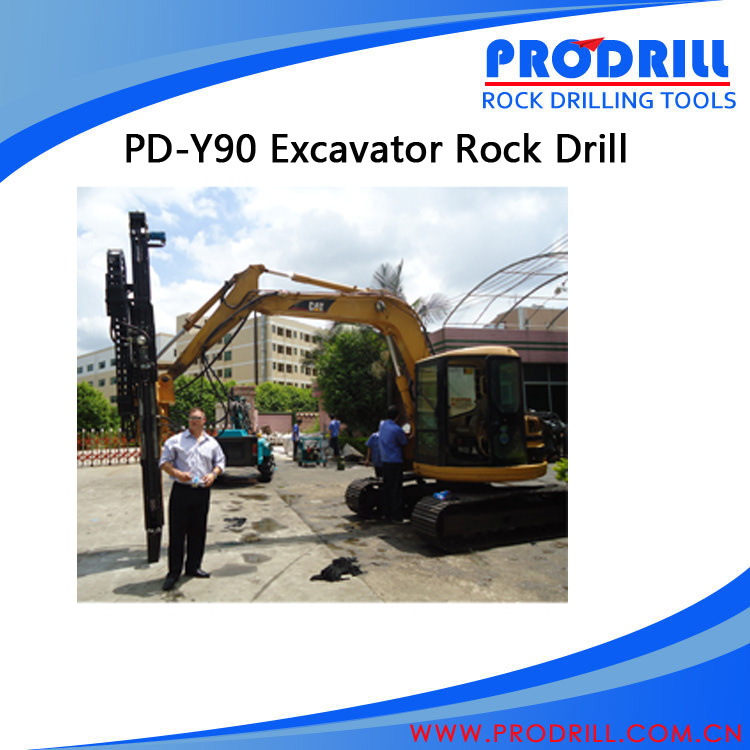

The PD-Y90 Hydraulic Excavator Mounted Drill |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Available Rigidity Rock: |
F=6-16 |
| Drill Scope: |
27-64mm |
| Drill Speed: |
500-1000mm/Min |
| Lowest Horizontal Hole Height: |
250mm |
| Once Propel Travel: |
3m |
| Compressor Type: |
1.8m3-3.2m3 |
| Drifter Weight: |
90kg |
| Whole Weight: |
1.2t |
| Size: |
Large-Scale |
| Condition: |
New |
Product Description
Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concretre demolition, construction works, etc. ProDrill rock drills' percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator's boom.
Besides demanding conditions, ProDrill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.
1. Excavator Mounted Drill Rig
1 meter per Min
Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concretre demolition, construction works, etc. ProDrill rock drills' percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator's boom.
A. QL-Y90 EXCAVATOR MOUNTED HYDRAULIC DRILL RIG
FOCUS ON BIG HOLE
2-3/, .
QL-Y90, 38-89mm, , QL-Y90.
Drilling speed can up to 2-3 meters per minute, but don"t need a big compressor.
The drill hole diameter of QL-Y90 excavator mounted hydraulic drill rigrange from 38 to 89 mm, it is the best choice for the big hole.
B. QL-Y45 EXCAVATOR MOUNTED
HYDRAULIC DRILL RIG
| products type | PD-Y90 |
| available rigidity rock | F=6-20 |
| drill scope | 38-89mm |
| drill speed | 500-1000mm/min |
| lowest horizontal hole height | 250mm |
| once propel travel | 3m |
| oil pressure | ≤19Mpa |
| compressor type | 1.8m3-3.2m3 |
| size | 7488*140*252mm |
| drifter weight | 115kg |
| whole weight | 1.2t |
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
