| Prod Model: |
M1432/1000 |
| M1432: |
Semi-Auto Universal Cylindrical Grinding Machine |
| Distance Between Centers: |
1000mm |
| Dia.Ground (O.D): |
8-320 |
| Dia.Ground (I.D): |
30-100mm |
| Center Height: |
180mm |
| Max.Length Ground (O.D): |
1000mm |
| Max.Weight Of Work Piece: |
150kg |
| Swiveling Angle: |
90 Degree |
| Packing Size: |
3220X2000X2050mm |
| Machine Weight: |
5300kgs |
| Type: |
External Grinding Machine |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Processing Object: |
Other |
| Controlling Mode: |
Electric |
Product Description

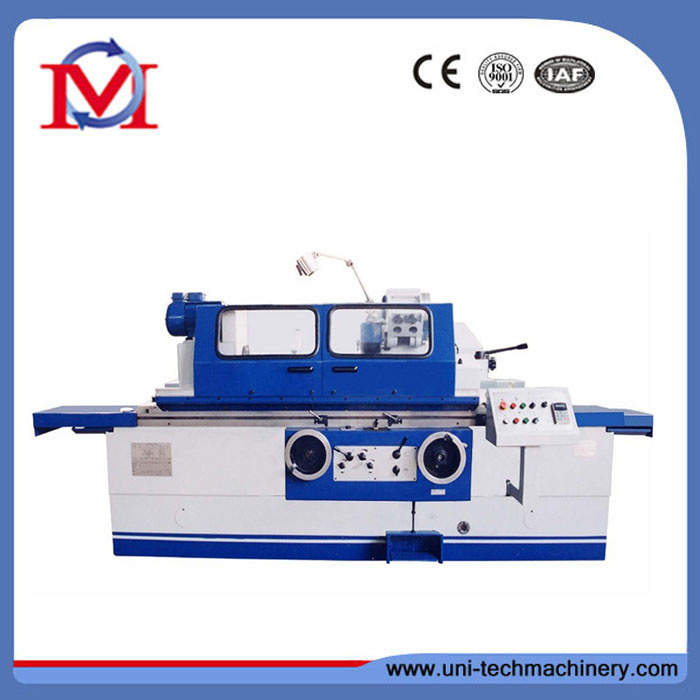

Semi-Auto Universal Cylindrical Grinding Machine (M1432/1000)
FEATURES of our Universal Cylindrical Grinding Machine:
When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale
Oil film between bearing and spindle keeps vibrations at a minimum level, hence achieving outstanding results and top accuracy
Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation
Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations
Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments
Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing
Longitudinal table feed can be set to automatic mode - hydraulically driven or manual mode - by handwheel
Stepless feed adjustments with the option of a programmable hold time at the end of each table movement
Hydraulic or manual repositioning of grinding spindle stock
Guideways in x- and y-axis are precisely constructed and hand-polished
Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide
Specification:
| MAIN SPECIFICATION | UNIT | M1432 |
| General capacity |
| Distance between centers | mm | 1000, 1500, 2000, 3000 |
| Center height | mm | 180 |
| Dia.Ground (O.D) | mm | 8-320 |
| Dia.Ground (I.D) | mm | 30-100 |
| Max.length ground (O.D) | mm | 1000, 1500, 2000, 3000 |
| Max.length ground (I.D) | mm | 125 |
| Max.weight of work piece | kg | 150 |
| Workhead |
| Swiveling angle | / | +90° |
| Center taper (MT) | MT | 4 |
| Spindle speed | r/min | 50HZ:25-220 Stepless |
| Wheelhead |
| Wheel spindle speed | r/min | 1670 |
| Wheelhead rapid travel | mm | 50 |
| Max.travel | mm | 246 |
| Swiveling angel | / | ±30° |
| Hand feed per.rev | mm | rough:2 fine:0.5 |
| Hand feed per.gra | mm | rought:0.01 fine:0.0025 |
| Wheel size (ODxWxID) | mm | 400x50x203 |
| Periphearal velocity | m/s | 35 |
| Internal grinding device |
| Spindle speed | r/min | 10000/15000 |
| Dimension of wheel | mm | max:50x25x13, min:17x20x6 |
| Table |
| Hand feed per.rev | mm | 6 |
| Max.swiveling angle of table | Clockwise | / | 3°(1000, 1500), 2°(2000, 3000) |
| Anticlockwise | / | 7°(1000), 6°(1500), 5°(2000), 3°(3000) |
| Longitudinal speed range of table | m/min | 0.1-4 |
| Tailstock |
| Center taper (MT) | MT | 4 |
| Quil travel | mm | 30 |
| Motor |
| Wheelhead motor power | kw | 5.5 |
| Internal grinding | kw | 1.1 |
| Workhead motor power | kw | 1.5 |
| Machine |
| Gross weight | kg | 5.3(1000), 6.1(1500), 7.9(2000), 9.9(3000) |
| Packing dimension | cm | 322x200x205, 422x200x205, 540x200x205, 739x200x205 |
Standard accessories:
Grinding wheel
Grinding wheel flange
3-jaw chuck diam. 200 mm
Open steady rest
Internal grinding spindle
working light
Balancing arbor
Extent arbor
Alloy enter
Measuring bridge plate
Coolant tank
Table swiveling wrench
Dog arm
Dog pole
Seal rings
Wheel extractor
High speed strap
Multiple v-belt
Internal wheel wedge
Optional accessories:
Close steady rest
Radial dresser
End dresser
Balancing stand
Digital readout
Warranty:
