Us Type Rigging Hardware Bow Chain Anchor Shackle

Name: Us Type Rigging Hardware Bow Chain Anchor Shackle
Brand: tool-buy.com
SKU: 821969955
Availability: InStock
Rating: 4.9 (108 reviews)

Price:	US $ 0.5-50/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Chongqing Deso Lifting Co., Ltd.

Showroom Product Company Profile

Prod Model:	G210
Delivery Time:	10-30days
Material:	Alloy Steel

Product Description

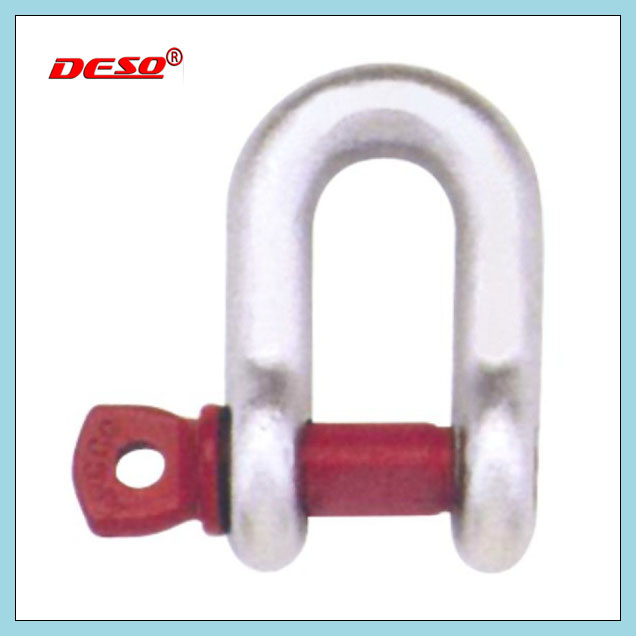

G210 screw pin chain shackle
Screw pin chain shackle meets performance requirements of Federal specifications RR-C-271D.
Traceability code, capacity, brand name and WLL embossed.
Construction: Forged quanched and tempered, with alloy pin.
Material: Forged carbon steel with alloy pin.
Finish: Hot dip galvanized.
Proof load: Tested at 2 times of Working Load Limit.
Safety factor: 6: 1.
Fatigue: Tested at 1.5 times of Working Load Limit.

Product Name	G210 screw pin chain shackle
Material	High quality alloy steel/carbon steel/stainless steel
Size	Different size available (1/4"-4")
Finish	Hot dip galvanized,eletro galvanized,painted,polish
Standard	Federal Specifications RR-C-271D
Feature	Traceability code, capacity, Brand DESO and WLL embossed Forged quenched and tempered, with alloy pins Proof Load: Tested at 2 times of WLL Fatigue: tested at 1.5 times of WLL *Safety factor:6:1
Packing	Gunny bag or carton and pallet or as customer requirements.
Delivery Time	10~30days,based on Qty
Application	Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings

Size (in)	WLL (t)	Weight (kg/pc)	Dimensions(mm)									Tolerance +/-
Size (in)	WLL (t)	Weight (kg/pc)	A	B	C	D	E	F	H	L	N	C	A
3/16	0.33	0.03	9.65	6.35	22.4	4.85	15.2	14.2	37.3	24.9	4.85	1.50	1.50
1/4	0.5	0.05	11.9	7.85	28.7	6.36	19.8	15.5	46.7	32.5	6.35	1.50	1.50
5/16	0.75	0.10	13.5	9.65	31.0	7.85	21.3	19.1	53.0	37.3	7.85	3.30	1.50
3/8	1	0.15	16.8	11.2	36.6	9.65	26.2	23.1	63.0	45.2	9.65	3.30	1.50
7/16	1.5	0.22	19.1	12.7	42.9	11.2	39.5	26.9	74.0	51.5	11.2	3.30	1.50
1/2	2	0.36	20.6	16.0	47.8	12.7	33.3	30.2	83.5	58.5	12.7	3.30	1.50
5/8	3.25	0.62	26.9	19.1	60.5	16.0	42.9	39.1	106	74.5	17.5	6.35	1.50
3/4	4.75	1.23	31.8	22.4	71.5	19.1	51.0	46.0	126	89.0	20.6	6.35	1.50
7/8	6.5	1.79	36.6	25.4	84.0	22.4	58.0	53.0	148	102	24.6	6.35	1.50
1	8.5	2.28	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	6.35	1.50
1-1/8	9.5	3.75	46.0	31.8	108	28.7	74.0	68.0	190	131	31.8	6.35	1.50
1-1/4	12	5.31	51.5	35.1	119	31.8	82.5	76.0	210	146	35.1	6.35	1.50
1-3/8	13.5	7.18	57.0	38.1	133	35.1	92.0	84.0	233	162	38.1	6.35	3.30
1-1/2	17	8.62	60.5	41.4	146	38.1	98.5	92.0	254	175	41.1	6.35	3.30
1-3/4	25	15.4	73.0	51.0	178	44.4	127	106	313	226	57.0	6.36	3.30
2	35	23.7	82.5	57.0	197	51.0	146	122	348	253	61.0	6.35	3.30
2-1/2	55	44.6	105	70.0	267	66.5	184	145	453	327	79.5	6.35	6.35
3	85	70	127	82.5	330	76.0	200	165	546	365	92.0	6.35	6.35
3-1/2	120	120	133	95.5	372	92.0	229	203	626	419	105	6.35	6.35
4	150	153	140	108	368	104	254	229	653	468	166	6.35	6.35

If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
