| Prod Model: |
GDW-KT-R |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East |
| Dimension(mm): |
11.5mm/11.0mm |
| Item: |
Mine Rope Saw |
| Application Usage: |
for Quarry Operation |
| Beads: |
26-40/M |
| Coating: |
Spring/Rubber |
| Length Of Wire: |
50m/Roll |
| Weight: |
17-18.5kg |
| Package: |
Carton with Water Proof Plastic |
Product Description

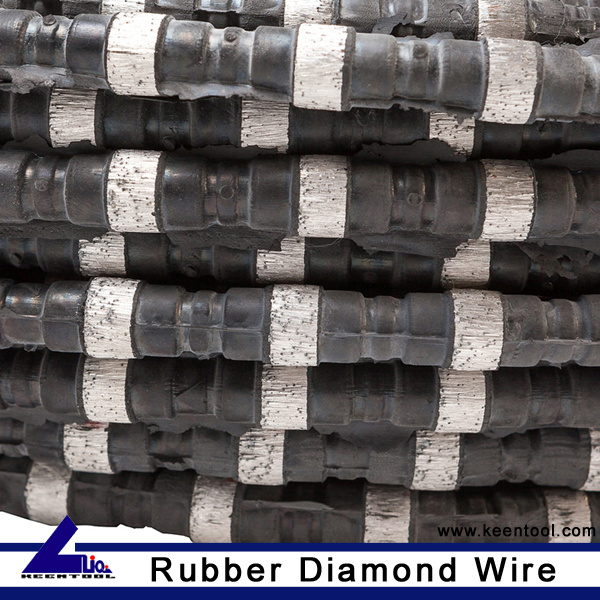

Description Crude rubber coating diamond wire with advantages of good flexibility, good protection for internal steel cable, good safety and stability during cutting, which is the best choice for quarrying of hard materials like Granite, Sandstone, Basalt etc.
Spring diamond wire with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repairment, low cost, can be considered as the most simple and versatile of instruments for quarrying Marble, Limestone, Travertine etc.
Packaging & Shipping:Packaging: Carton with water proof plastic.
Meters/Roll: 50 Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
Technical Data| Diamond wire for granite quarry |
| Specification of beads(mm) | Model | Coating | Beads No.
(Pcs/Mtr) | Hardness of Granite | Cutting speed
( Sqm/Hr ) | Cutting life
( Sqm/Mtr ) |
Φ11.5*6.5
Φ11.0*6.0 | GDW-KT-R | Rubber | 40 | Soft | 8-12 | 28-40 |
| Medium | 6-8 | 18-25 |
| Hard | 3-5 | 8-15 |
| Diamond Wire for Marble Quarry |
| Specification of Beads(mm) | Model | Coating | Beads No.
(Pcs/Meter) | Hardness of Marble | Cutting speed
(M2 /Hour) | Cutting life
( M2/Meter) |
Φ11.0mm
Φ10.5mm | MDW-KT-QS | Spring | 26 | SOFT | 16-25 | 55-75 |
| MEDIUM | 12-16 | 45-65 |
| HARD | 7-10 | 30-45 |
Φ11.0mm
Φ10.5mm | MDW-KT-QR | Rubber | 37 | SOFT | 12-20 | 55-75 |
| MEDIUM | 8-14 | 45-65 |
| HARD | 5-8 | 30-45 |
