Wire Saw Machine for Horizontal and Vertical Cutting

Name: Wire Saw Machine for Horizontal and Vertical Cutting
Brand: tool-buy.com
SKU: 646416645
Availability: InStock
Rating: 4.6 (88 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,others
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Quanzhou Keen Diamond Tool Co., Ltd.

Showroom Product Company Profile

Prod Model:	LQ-WSM-75KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Brand:	Keentool
Main Motor:	11-75kw
Length Of Wire:	20-120m
Linear Speed:	0-40m/S
Dia Of Driving Wheels:	600-1000mm
Weight:	2.5t
Specification(with Package):	200013001500mm
Diameter Of Driving Wheel:	800mm
Motor Type:	Stepper Motor
Type:	CNC Cutting Machine
Usage:	Marble
Application:	Stone Industry
Source Voltage:	380V
Automation:	Automatic

Product Description

Description:

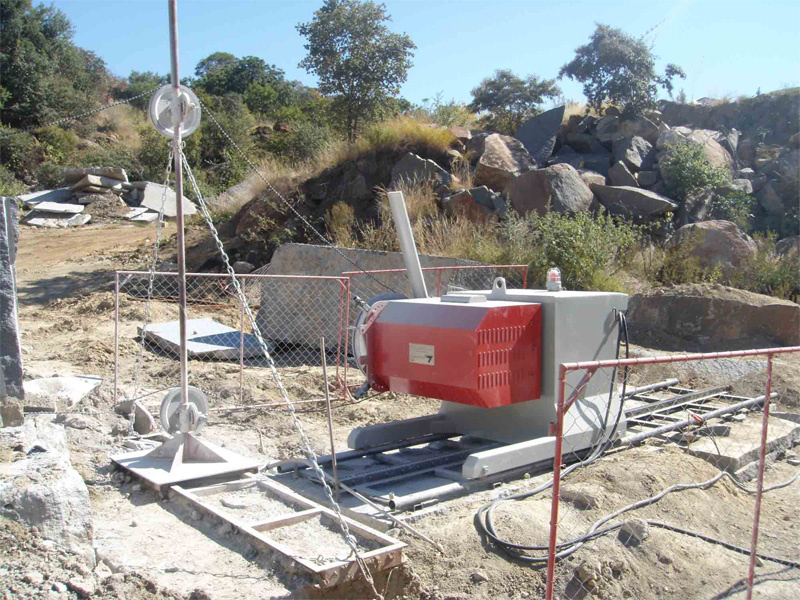

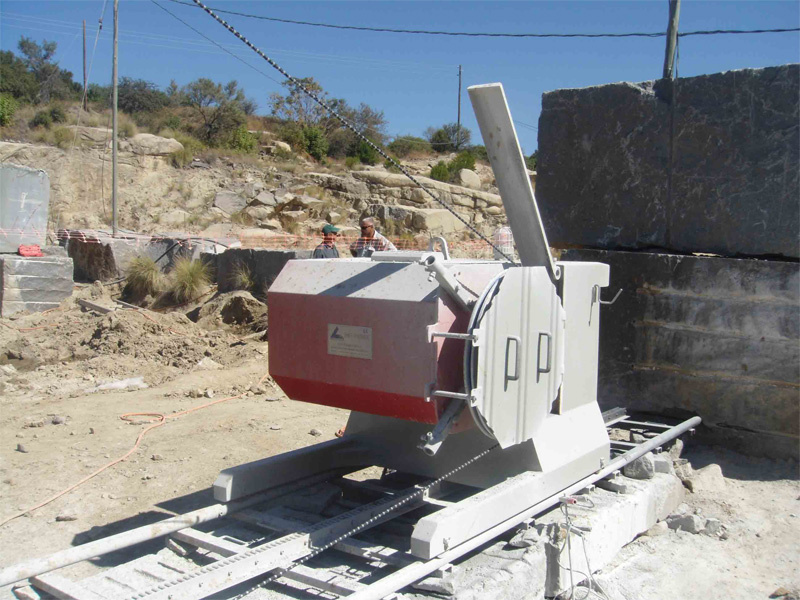

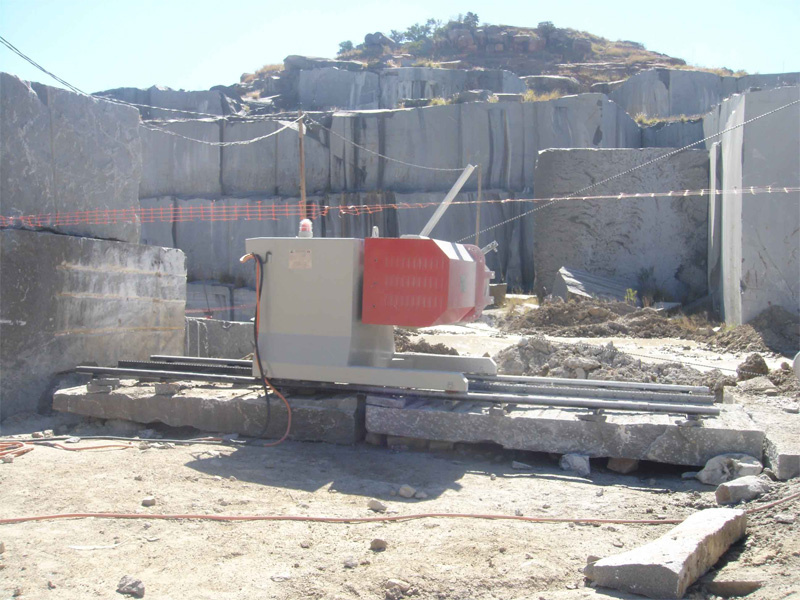

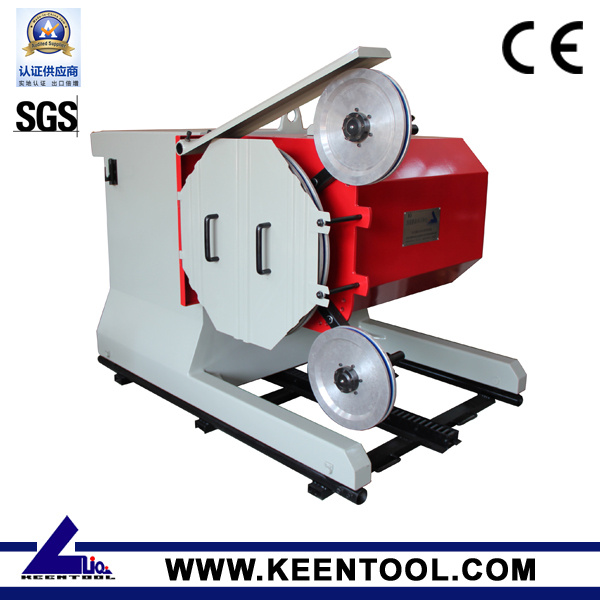

Quarry Wire Saw Machine

Variable speed Wire Saw Machine for Stone Quarry

The electrical control system of our wire saw machines are with PLC and two inverters that allow to variable linear speed of wire from 0-40m/s. The translation and 360 degree rotation of flywheel-holder head of wire saw machines are motorized and allow an easy and fast positioning of the machine, as well as the execution of two parallel cuts. All the movement of the wire saw machines are motorized and an automatic mechanism keeps always constant and programmed tension of diamond wire in working conditions. Our Wire Saw Machines are with Safety devices that shut off the machine in case of wire breakage, over voltage, over electric current, over heating of motor, incorrect maneuvers etc. The greatest advantage of our wire saw machines are safe cutting and good diamond wire durability as well as being user friendly.

The major parameters of mining machine:

1. Elctrical control system with PLC and two inverters that allow varied linear speed range from 0-40m/s.

2. Angle adjustment from 0-360 degree, which allows any direction cutting.

3. Horizontal extension system, allows two parallel cuts.

4. Constant tensioning system keep the wire always in best working condition and greatly enhance the duration.

5. Quick backward, improve the working efficiency.

6. Safety stop, in case of wire breakage or other faults.

7. Independent panel, which is safety for the operators.

Detailed specifications of mining machine:

The major parameters of mining machine:

1. Elctrical control system with PLC and two inverters that allow varied linear speed range from 0-40m/s.

2. Angle adjustment from 0-360 degree, which allows any direction cutting.

3. Horizontal extension system, allows two parallel cuts.

4. Constant tensioning system keep the wire always in best working condition and greatly enhance the duration.

5. Quick backward, improve the working efficiency.

6. Safety stop, in case of wire breakage or other faults.

7. Independent panel, which is safety for the operators.

Remarks:

1. Standard power supply is 3-phases 380V, 50Hz. Any difference of the power should be informed. We could design and adjust the machines to be compatible with any power supply requirement (Extra price will be needed for different voltage requirement as sometimes separate voltage transformer will be necessary)

2. We have another Economical type wire saw machines, LQ-DWS-E37-8P & LQ-DWS-EM37-8P fro granite cutting and LQ-DWS-EM-37-6P for marble cutting, which has the basic functions of standard type, difference is that the function of The translation or 360⁰ rotation of flywheel holder head are manual one.

Technical Data:

Model	Main Motor	Length of wire (Meter)	Linear Speed (M/Sec)	Diameter of driving wheels (mm)	Application
LQ-WSM-11KW	11KW/15HP	5-20	0-40	Φ550	For block trimming
LQ-WSM-15KW	15KW/20HP	5-30	0-40	Φ550
LQ-WSM-22KW	22KW/30HP	10-40	0-40	Φ600
LQ-WSM-37KW	37KW/50HP	20-80	0-40	Φ800	For Quarry
LQ-WSM-45KW	45KW/60HP	20-100
LQ-WSM-55KW	55KW/750HP	20-120
LQ-WSM-75KW	75KW/100HP	20-150	0-40	Φ1000

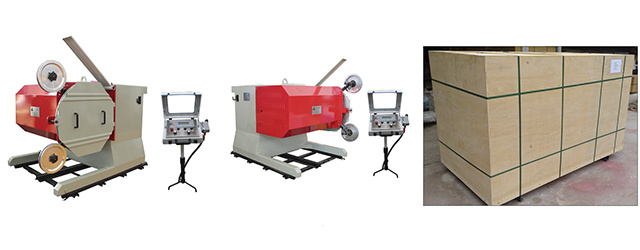

Package and Shipping:
Package: Crate with waterproof plastic
Delivery time: Within 14 days after confirmation of payment

Our Services:
1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry

Always at your service!

Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.

We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:

1. For stone Quarry:

Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.

Consultant service for project evaluation, quarry development and mining construction

Consultant and marketing service for block distribution

2. For stone Factory:

Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.

3. For civil construction:

Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.

Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction

Diamond blade for cutting concrete, reinforced concrete and asphalt

Diamond Core Drills for concrete reinforced concrete, wall and asphalt

Diamond polisher for polishing of concrete floor, wall and blocks

The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
