| Price: | US $ 1-3200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |

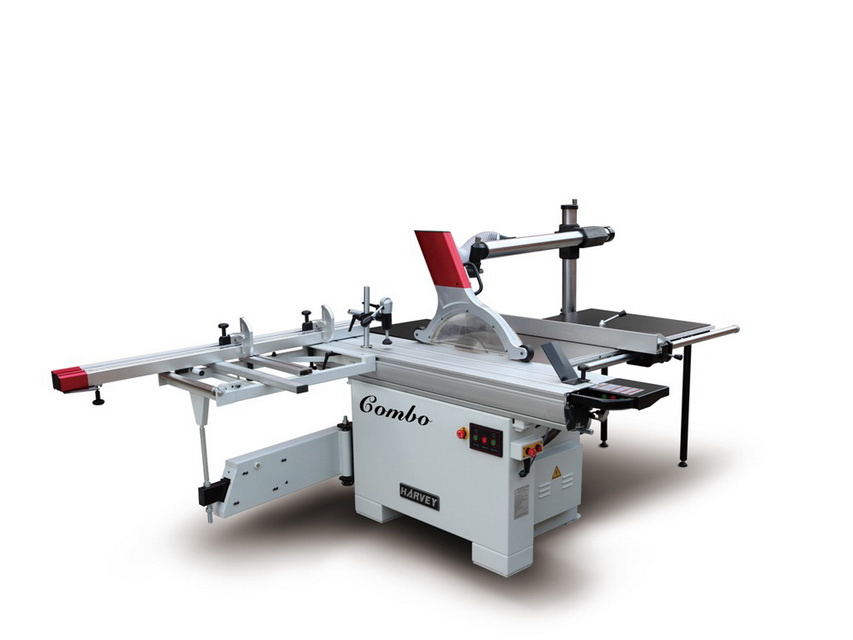

| Prod Model: | C-1600 |
|---|---|
| Weight: | 560kgs |
| Type: | Table Panel Saw |
| Layout: | Horizontal |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Precision: | Precision |
| Certification: | CSA |
| Color: | RAL7035 |
Featuring
• Laser cut heavy steel frame with thorough powder coating
• Standard scoring system for tear-free cutting
• Oversized spindle in precision sealed and permanent lubrication ball bearings
• Dynamically balanced spindles perform at extremely low noise and hardly felt vibration
• Precision and anodized sliding table made of T-6 Aluminum Alloy
• Outrigger table with Telescopic cross cut fence
• Chromed and hardened solid rip fence rail
• Standard camlock hold down and trimming shoe
• Powerful 4kw/3ph motor
• User-friendly dual control panels
• Ready for dado cutting
Optional Equipment
• Digital readout for rip fence
• Rear extension table
• "Shark" overhead guarding system
• Digital readout for cross cut fence
Specifications
Model | C-1600 CSA version |
Sliding table size | 63" x 14-1/5" |
Sliding table travel | 71" |
Maximum cutting lengthl | 63" |
Main table size | 31-1/2" x 20" |
Table height | 34" |
Crosscut table size | 33" x 20" |
Main blade size | 10" or 12" |
Arbor size | 5/8" |
Scoring blade Size (dia.x arbor size) | 4-3/4" x 13/16" |
Cutting height with scoring @90°/45° | 3"/ 2-1/8" (10" Blade) |
Cutting height without scoring @90°/45° | 4"/ 2-3/4" (12" Blade) |
Maximum dado width | 13/16" |
Spindle speed | 4500RPM |
Scoring spindle speed | 6500RPM |
Max. ripping capacity | 30" |
Dust collection ports | 4" on cabinet , 2" on blade guard |
Main motor power | 4kW /400V/3PH |
Scoring motor power | 0.55KW |
Machine weight | 1235lbs |
Machine foot print | 40-1/2" x 28" |
Full container loading quantity (20'/40') | 16units / 32units |
