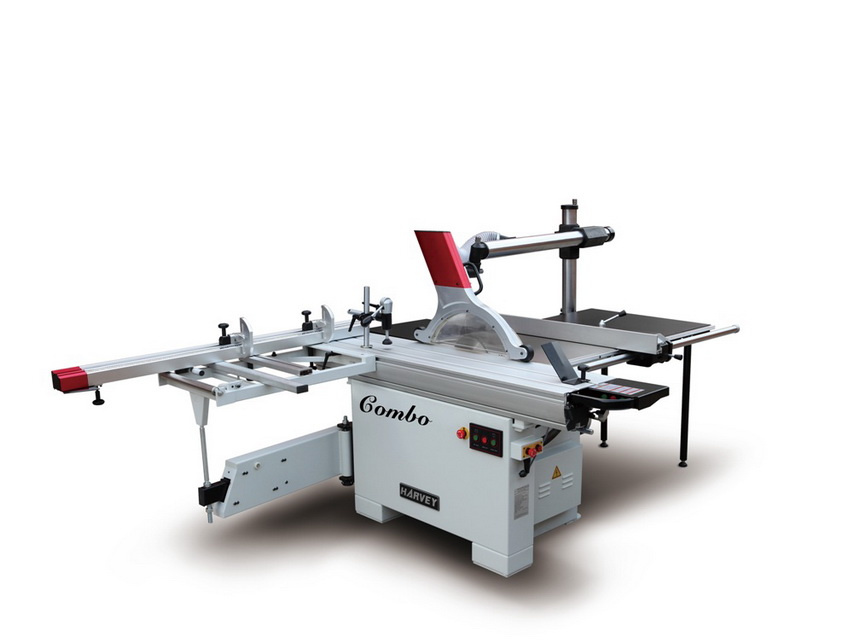

Woodworking Machine C-1600E Precision panel saw

Woodworking Machine C-1600E Precision panel saw
Price: US $ 1-3200/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: C-1600E
Weight: 560kgs
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: Artificial
Automatic Grade: Manual
Precision: Precision
Certification: CSA
Color: RAL7035

Product Description

Featuring

• Laser cut heavy steel frame with thorough powder coating
• Standard scoring system for tear-free cutting
• Oversized spindle in precision sealed and permanent lubrication ball bearings
• Dynamically balanced spindles perform at extremely low noise and hardly felt vibration
• Precision and anodized sliding table made of T-6 Aluminum Alloy
• Outrigger table with Telescopic cross cut fence
• Chromed and hardened solid rip fence rail
• Standard camlock hold down and trimming shoe
• Powerful 4kw/3ph motor
• User-friendly dual control panels
• Ready for dado cutting



Optional Equipment

• Digital readout for rip fence
• Rear extension table
• "Shark" overhead guarding system
• Digital readout for cross cut fence



Specifications



Model

C-1600E

CE version

Sliding table size

1600 x 360mm

Sliding table travel

1800mm

Maximum cutting lengthl

1600mm

Main table size

800 x 490mm

Table height

860mm

Crosscut table size

840 x 510mm

Main blade size

250,305mm

Arbor size

30mm

Scoring blade Size (dia.x arbor size)

120 x 20mm

Cutting height with scoring @90°/45°

70/ 48mm (250mm Blade)

Cutting height without scoring @90°/45°

97.5 / 69mm (305mm Blade)

Maximum dado width

20mm

Spindle speed

4500RPM

Scoring spindle speed

6500RPM

Max. ripping capacity

762mm

Dust collection ports

100mm on cabinet,

50mm on blade guard

Main motor power

4kW /400V/3PH

Scoring motor power

0.55KW

Machine weight

520kgs

Machine foot print

1030 x 715mm

Full container loading quantity (20'/40')

16units / 32units

With over 18 years of experience in machineries. Harvey believes that quality is always the only thing a manufacturer should really care about. The quality includes the best performance, the longest durability engineering of machines, as well as satisfactory services for the customers.

As a perfectionist, Harvey spent extraordinary time and efforts on the performance, accuracies, reliability and workmanship of our woodworking machines. On this web, we are presenting a selective fine line of Table Saws, Shapers and Accessories. Thousands of these machines were sold worldwide and they are proven to have to best value for professional users. We are proud to be able to serve the wooding industry and generate constant benefits for our customers.

Also, we are introducing our newest innovation on this web: Tin Coating technology. This patented coating process dramatically improves the worktable quality of the woodworking.

We thank you for your interest in our machines and look forward to working with you.
