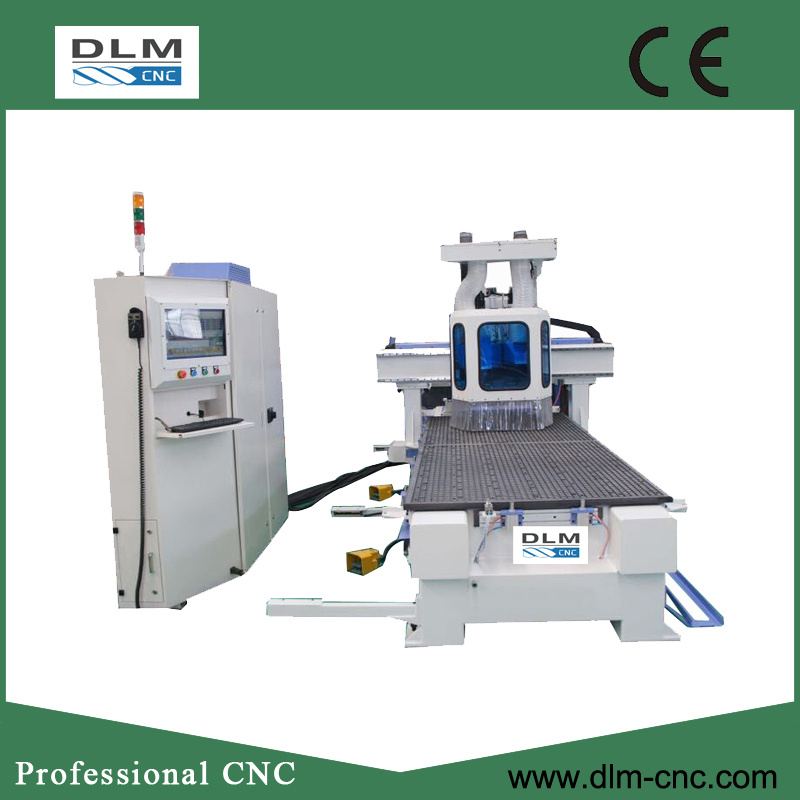

Woodworking Machinery Router
| Price: |
US $ 29900-40500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
UAB-410 |
| Spindel: |
9kw Air Cooling Spindle /Italy |
| Controller: |
Taiwan Syntec Controller |
| Motor: |
Yaskawa Servo Motor / Japan |
| Rail: |
Taiwan Rail |
| Table: |
Double Layer PVC Vacuum Table |
| Rack: |
Helical Racks |
| Software: |
Router 8/ Artcam |
| Pump: |
5.5kw Air Cooling Pump |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
Features:*Centralized automatic lubrication system.
*Centralized dust collection control system
*Tool automatic compensation system.
*Automatic backlash preloading mechanism.
*Two Z axes rise and descend mechanism
*High rigidity design.
*Taiwan PMI ball screw and rail guide.
*Taiwan YUAN YI CHANG precise spiral rack transmission.
*Italy HSD auto tool changing high frequency spindle.
*Japan YASKAWA servo motor and driver.
*Taiwan LIMING planetary type reducer.
*Taiwan 9 vertical, 2 horizontal | Model | UAB-410 |
| Table size | 1220mm*2440mm |
| Max. working stroke | 1320mm*2540mm*300mm |
| Working height | 200mm |
| X & Y Rapid speed | 80m/min |
| Z & W rapid speed | 20m/min |
| Vacuum pump | 5.5KW / 160m3/h |
| Dimensions | 4150mm*3200mm*2300mm |
| Net weight | 3500 kgs |
| Multi drill | 9V2H |
| Spindle | 9KW / Italy / 24000rpm / air cooling |
| Controller | Taiwan Syntec |
| Motor | Yaskawa servo motor / Delta servo motor |
| Rail | Taiwan linear rail |
| Rack | Helical racks |
| Table design | Double layer PVC table |
| ATC | Linear type / 8 positions |
| Positioning cylinder | 3 pcs. |
| Tool holder | ISO-30 |
| Package | Plywood box |
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.
We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
