| Prod Model: |
YT28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Prodrill |
| Air Pressure: |
0.4-0.63MPa |
| Air Consumption: |
D81L/C |
| Layout: |
Vertical, Horizontal, Two Hammer, Four Homme |
| Model Number: |
Yt28 |
| Weight: |
26kgs |
| Usage: |
Quarry |
| Condition: |
New |
| Power Type: |
Pneumatic |
| Type: |
Air Compressor |
Product Description

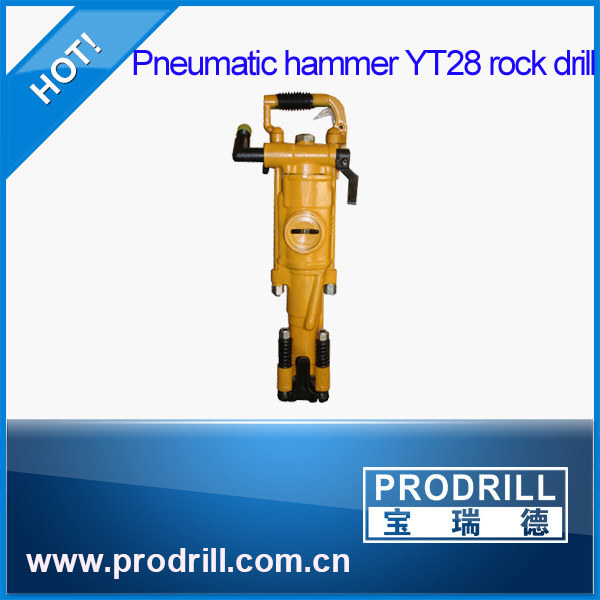

Our Yt28 Jack hammer with Pusher leg can be devided into two parts, one is hand-held rock drill, the other is air-leg rock drill. Both of them have excellent drilling performance.
YT28 Jack Hammer Feathures:
1.The rock drill is a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.
YT28 Rock Drill Application:
It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.Blast hole dia is 34-42mm,drill hole depth is 5m. This machine may match with Model FT160 air leg.
Main Technical Parameters:
Weight |
≈ 26 kg |
Length |
661mm |
Cylinder dia |
80mm |
Piston stroke |
60mm |
Air pressure |
0.4- 0.63MPa |
Impact frequencey |
≥ 37Hz |
Air consumption |
≤81L/S |
Air pipe (inner dia ) |
25mm |
Water pipe (inner dia ) |
13mm |
Drill bit dia |
34-42mm |
Shank dimensions(hex*length) |
22*108+1mm
|
For hand-held rock drills, we have Y6, Y20, Y19A Y24 and Y26. Among them, the Y6, Y20 and Y24 are widely used in quarrying or construction industry.
Model Y6 hand-held rock drill is a light-duty tools designed for quarrying and drilling operation. You may expect satisfaction results with adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting. It has characteristic of low weight, reasonable structure, handy use and little air consumption.
Model Y20 and Y24 Hand-held Rock Drill is intended for drilling downward and inclined blast holes in medium hard and herd rock (f=8~18): · The rock drill is mainly used small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.
Technical Parameters
Model |
| Y6 | Y20 | Y19A | Y24 | Y26 |
| Weight | kg | 6 | 18 | 19 | 24 | 26 |
| Air consumption | L/s | ≤9.5L/s | 25 | 43 | ≤50 | ≤47 |
| Length | mm | 426 | 605 | 600 | 604 | 650 |
| Shank | mm | 15*88 | 22*108 | 22*108 | 22*108 | 22(25)*108 |
| Bore Dia | mm | 20 | 30-42 | 30-42 | 30-42 | 30-42 |
| Drill depth | m | 0.5 | 3 | 5 | 5 | 5 |
| Impact rate | Hz | 51 | 34 | 35 | 30 | 27 |
| Hose connection | mm | 13 | 16 or 19 | 19 | 19 | 19 |
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
