| Prod Model: |
M44T |
| Sampling Rate: |
48kHz |
| Ad/Da Converter: |
24bits High-Resolutioin Chip |
| DSP: |
24bits |
| Frequency Response: |
+-1dB(20Hz to 20kHz) |
| SBR: |
92 dB Typical (Unweighted) |
| Cmrr: |
Greater Than 40dB(20Hz to 10kHz) |
| Crosstalk: |
Less Than -100dB |
| Distortion: |
0.005percent (1kHz@0dbu) |
| Power: |
90-265VAC (50/60Hz) |
| Weight: |
4.6kg |
| Application: |
Club/Bar/Live Music Venus/Concert/Music Hall |
| Type: |
Portable |
| Game Function: |
Without Game Function |
| Screen Size: |
LCD Screen |
Product Description

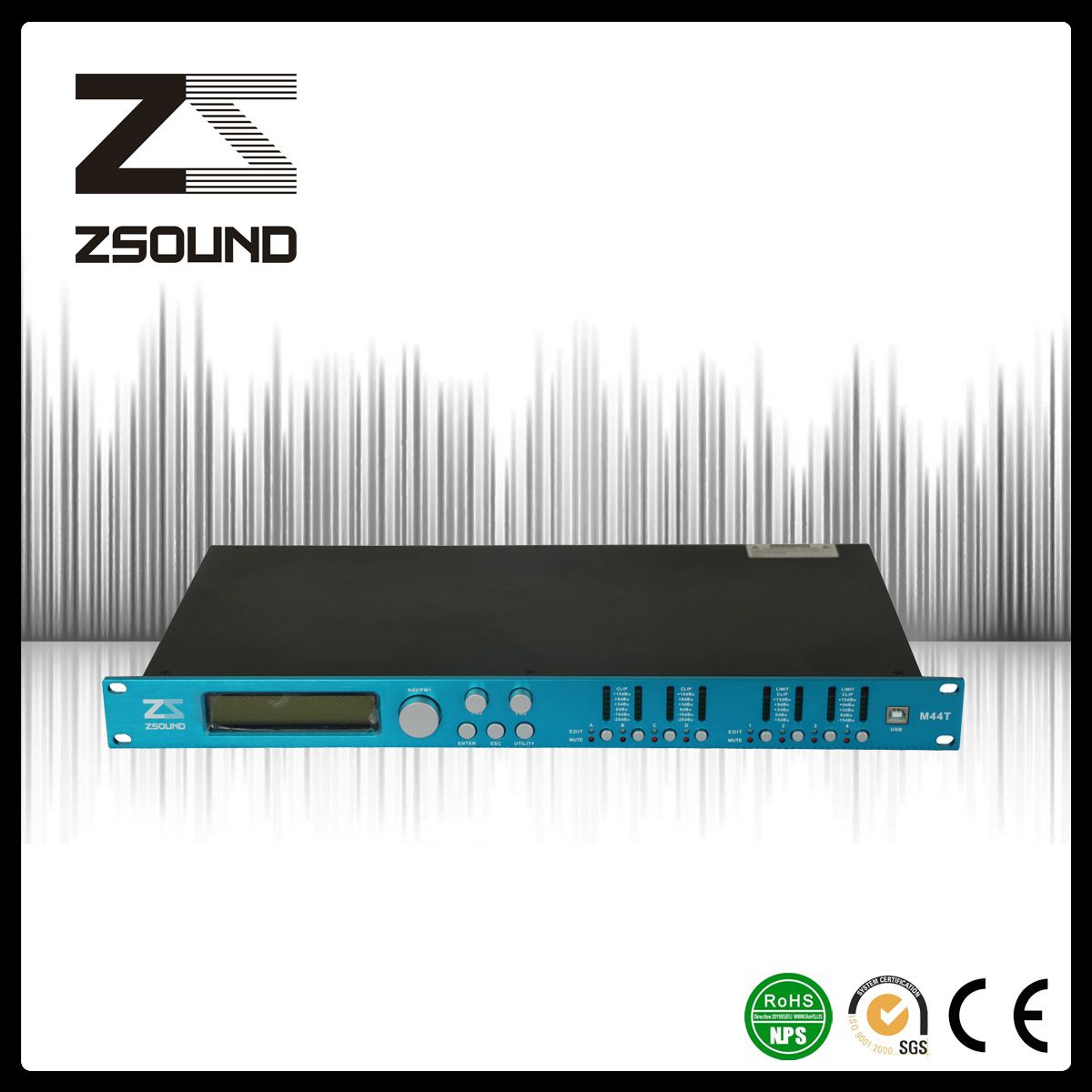

Zsound M44T Mixer Console Speaker Processor PA System Audio Processor
ZSound M44T 4in and 4out digital signal processor with Ethernet port to control brings a new level of audio performance, ease of use, precise algorithms, and value to audio processing for all kind of speakers.(ZSound M Series have M44, M44T In total 2 Models)
Feature:
| Input/output |
| Input impedance | >10K ohm |
| Output impedance | 50 ohm |
| Max.SPL | +20dBu |
| Analog Audio |
| Frequency response | +/- 1dB (20Hz to 20kHz) |
| SNR | 92dB typical (unweighted) |
| CMRR | >40dB (20Hz to 10KHz) |
| Crosstalk | <-100dB |
| Distortion | 0.005% (1KHZ@0dBu) |
| Analog Audio |
| DSP | 24 bits |
| Sampling rate | 48KHz |
| ADC/DC | 24bits 192kHz high-resolution chip |
| Transmission | 1.27ms |
| General Specification |
| Power | 90-265VAC(50/60Hz) |
| Dimension | 19"*1.75"*9"(483*44*229mm) |
| Weight | 101bs/4.6kg |
| Adjustable Parameters |
| Master gain | -12 to 12dB, 0.1dB stepping |
| Channel gain | -18 to 0dB, 0.1dB stepping |
| Delay | Max850ms per input and output |
| EQ | 5 band EQ per input and output |
| EQ types | Oaraneter,HP,LP,shelv, Full pass. Band pass, trapper |
| EQ gain | -15 to +15dB 0.5DdB stepping |
| EQ bandwidth | 0.009 to 4.8 octaves (Q=0.3 to 20) |
| Rms Limiter |
| Threshold value | -10 to 20dBu |
| Compression ratio | 1:1 to 32:1 |
| Starting time | 5 to 200ms |
| Release time | 0.1s to 3s |
| Peak Limiter |
| Threshold value | -10 to 20dBu |
| Starting time | 5 to 200ms |
| Release time | 0.1s to 3s |

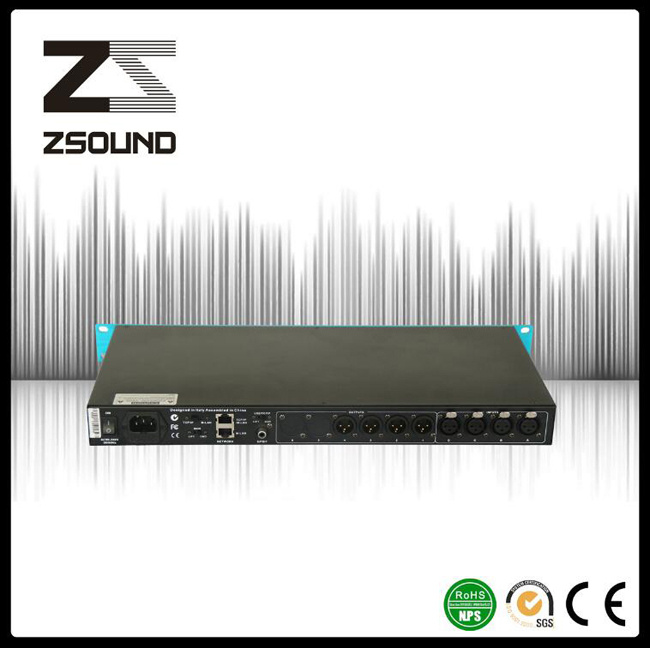

| Connector |
| Analog Audio terminals | 4input and 4ouput 3pin XLR |
| RS-485 | 3pin. M XLR; FM XLR |
| USB Connector | Type B |
| Digital audio output connectors | S/PDIF |
| Power | Socket with IEC Standard |
| Ethernet Port | 2xRJ45 connector(TCP/IP&M-LAN) |
| The longest distance of CAT cable | CAT 5e within 100 meters |
Applications:
- Touring performance/Live Show;
- Theater/Cinema;
- Stadium/gymnasium/sport facilities;
- Auditorium/Church
- Club/Bar/Live Music Venus;
- Concert/Music Hall;
- Airport/Square;
- Fixed Installation Architecture.
Every year, Zsound took part in the Pro Audio Exhibition around the world almost 10 times.
ZSOUND Pro Audio Technology co., Ltd is a company specializes in research, development, production and trade of ZSOUND pro audio.
The ZSOUND was derived form a speaker lab found by 4 speaker enthusiasts, they were form the same college and researched the brand new pro audio system together. From the driver of speaker, they selected form a large number of drivers to find out the excellent on. In the case of no suitable driver, they joint research with the speaker driver manufacturer to research the new driver for the high-quality loudspeaker box. The experience of many years of system debugging and the deep understanding of Pro audio system of the 4 people, had guided the speaker's development direction.
Pro audio system is not only a simple combination of speaker, amplifier and processor, the rational system design, installation, debugging and acoustical features are also the key to reply the true sound. ZSOUND provides the whole Pro audio system hardware, meanwhile it provides the system philosophy training. Philosophy system has already spread through the many times of Pro audio system technical training.
Today, ZSOUND have a lot of series of loudspeaker, including LA series line array, S Series sub-woofer, CM series coaxial monitor, M series monitor, CC series coaxial speaker, P series multi-function speaker, V series speaker, K series entertainment speaker. All ZSOUND products will have scientific design, accurate assembly and strict testing before being brought to marker, most of the product are applied to touring performance and fixed installation, such as stadium, theater, church,meeting room, music hall, bar, KTV, club, television stations and so on.
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

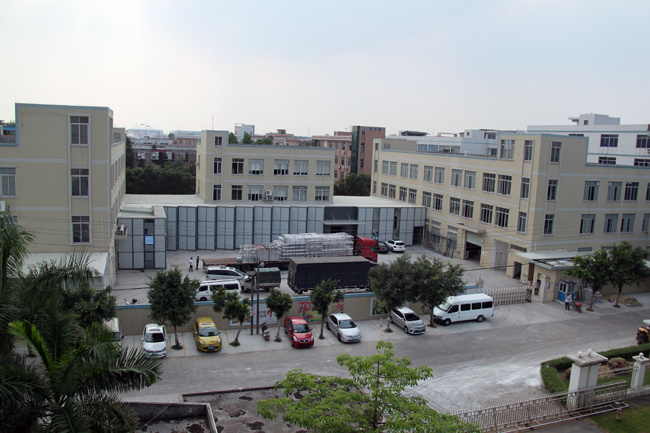

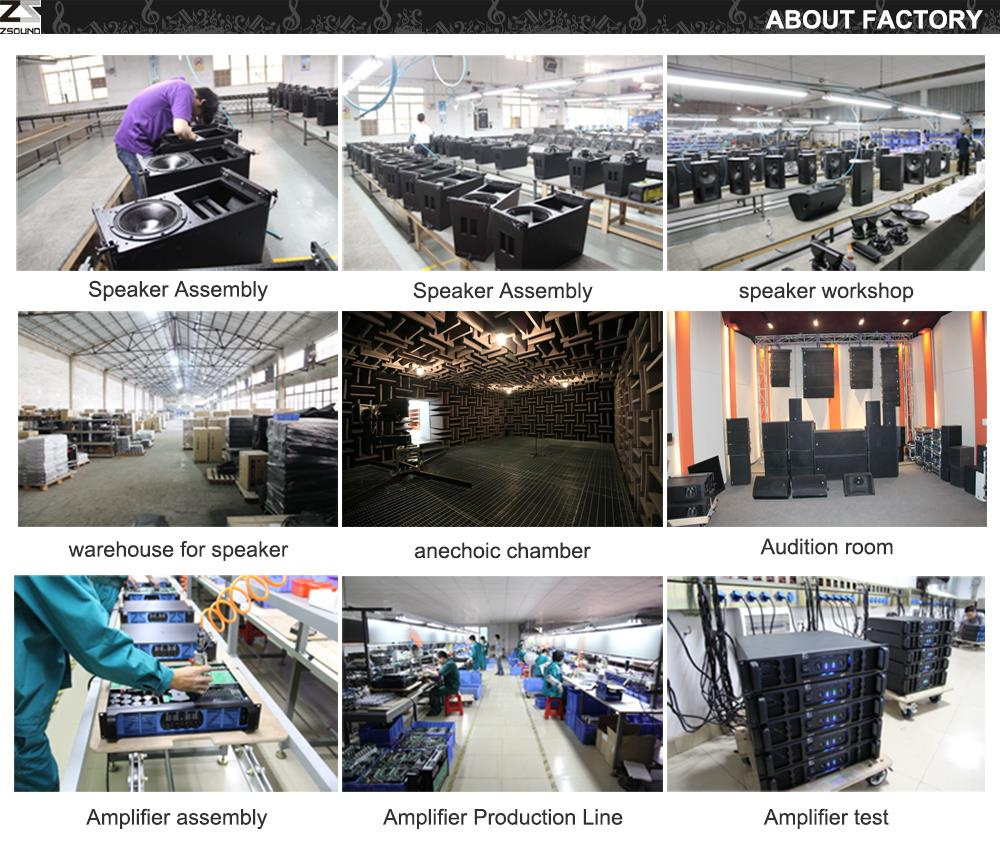

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
