| Price: | US $ 500-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | S18B |
|---|---|
| Certificate: | Ce, RoHS |
| Nominal Impedance: | 8ohm |
| Maximum Spl: | 129dB(Continuous)135dB (Peak) |
| Driver Number: | 1X18 Inch(100mm Voice Coil) Subwoofer |
| Power Rating(AES): | 1200W |
| Frequency Response: | 32Hz~180Hz(+-3dB) 30Hz~250Hz(-10dB) |
| Nominal Coverage(-6dB): | Omnidirectional |
| Weight: | 42kg |
| Connectors: | 2xnl4MP Neutrik Speakon Connectors |
| Matrials: | 18mm,24mm Birch Plywood |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Club/Bar/Live Music Venus/Concert/Music Hall |
| Certification: | RoHS |
| THD: | <0.005% |
| Monitor: | None |
Zsound has been paying great attention to create ultra-low frequency loudspeaker, for the LF is the essence of music, and subwoofer is the natural extension for the system. Designing procedures in Zsound include: large numbers of the linearity and non-linearity surveys, constant AES power measurement, detailed computer modeling, complete prototyping, and exhaustive comparative analysis. And then, the specifically designed OEM procedure can efficiently optimize the available resources of all bandwidth, as well as performance of the whole system. Therefore, S18B subwoofer is the optimal complement and extension for Zsound Loudspeakers.
S18B subwoofer can be used in conjunction with P15, P12, and P10, and it can make the sub-frequency extend to 32Hz.

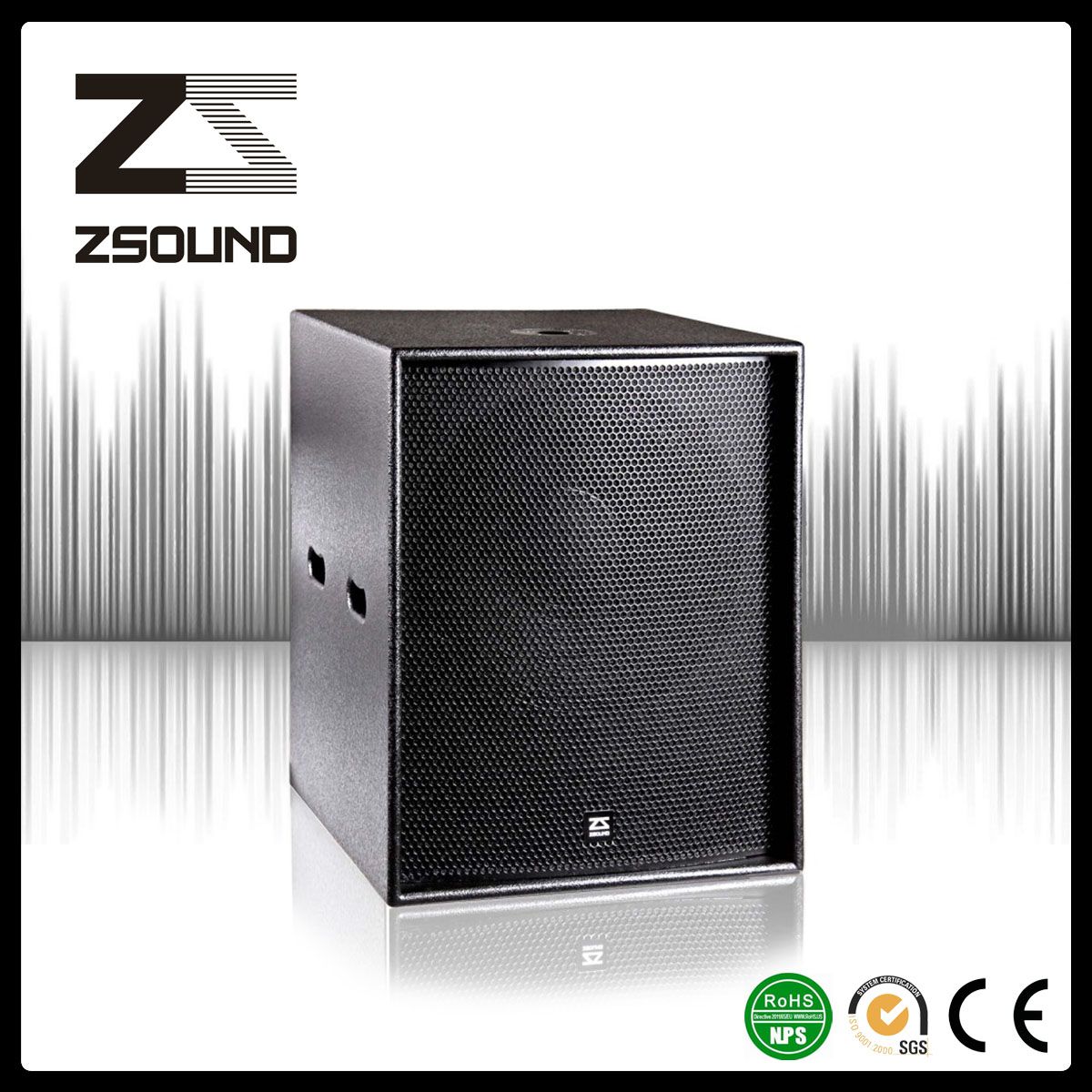

S18B is a bass reflex regulating enclosure, comprising a 18" straight radiating LF driver, which can supply excellent cone coverage and maintain thermo-compression even working under ultra high SPL. The design of the reflex enclosure provides more advantages for bass energy, which is more convenient for airflow circulating. Compared with previous products, configuration of S18B is more fashionable. Coupled with the latest riser vent, it has been effectively increased SPL output with 3 dB.
Features:
Vented subwoofer;
15 inch direct-radiation driver;
Heat resisting 4 inch (100mm) voice coil;
Large-scale vented design to reduce airflow noise.
Specification:
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 32Hz-180Hz(+-3dB) 30Hz-250Hz(-10dB) |
| Nominal Coverage(-6dB): | Omnidirectional |
| Sensitivity (@1w/1m): | 99 dB SPL |
| Power Rating (AES): | 1200W |
| Nominal Impedance: | 8Ohm |
| Maximum SPL: | 129 dB (continuous) 135 dB(peak) |
| Drivers: | 1*18 inch (100mm voice coil)woofer; |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 706(H)x561(W)x600(D)mm |
| Weights: | 42 kg |
| Connectors: | 2*NL4MP Neutrik Speakon connectors |
| Speaker Cables: | 1+1- |
| Materials: | 18mm,24mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated foam |
Applications:
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
